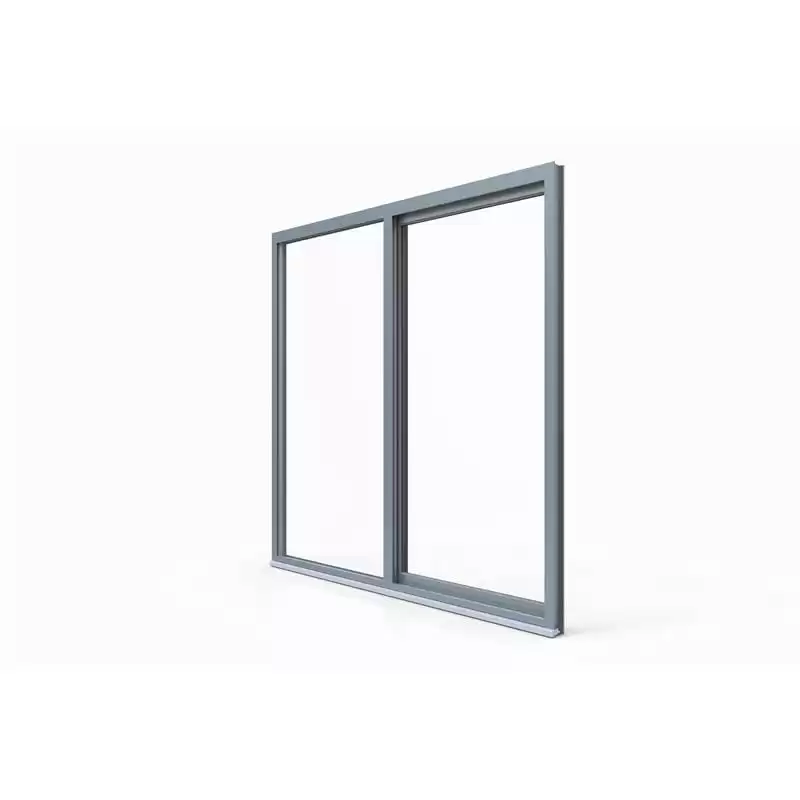

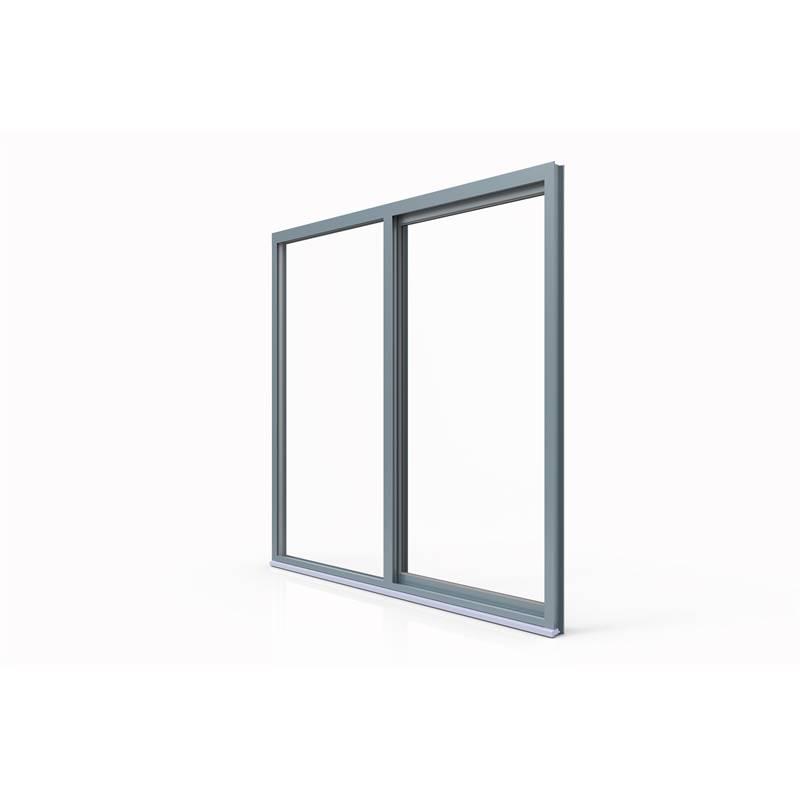

New designed window frame aluminum sliding window aluminum glass sliding window

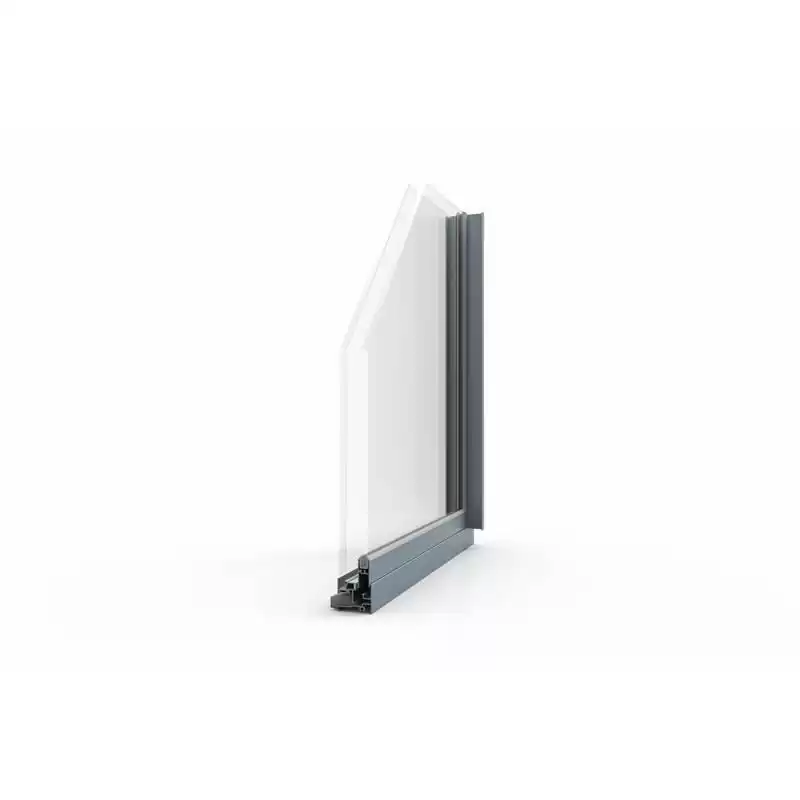

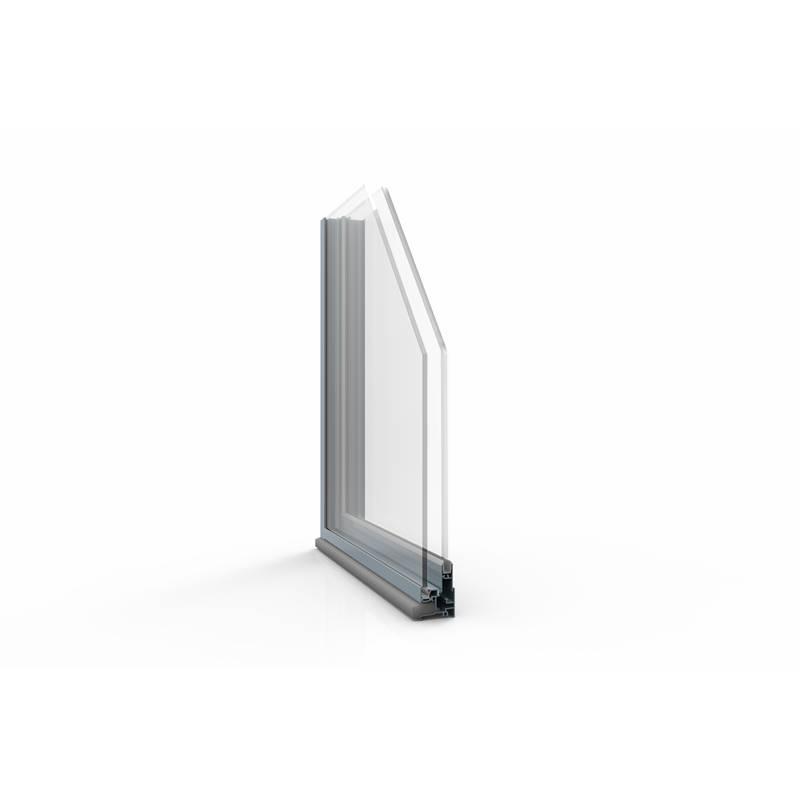

HA38 in this exquisite floor to ceiling series the aluminium window frame and sash have been significantly reduced&have been crafted in a slim line design to lessen the amount of visible frames and sash.


  • MaterialAluminum Alloy
  • Screen Netting MaterialSteel
  • Opening PatternSliding
  • CustomAvailable
  • Product OriginChina
  • GlassClear/Frosted/Reflective/Low-E
  • Position
  • Shape
  • Grade
  • Surface FinishingFinished

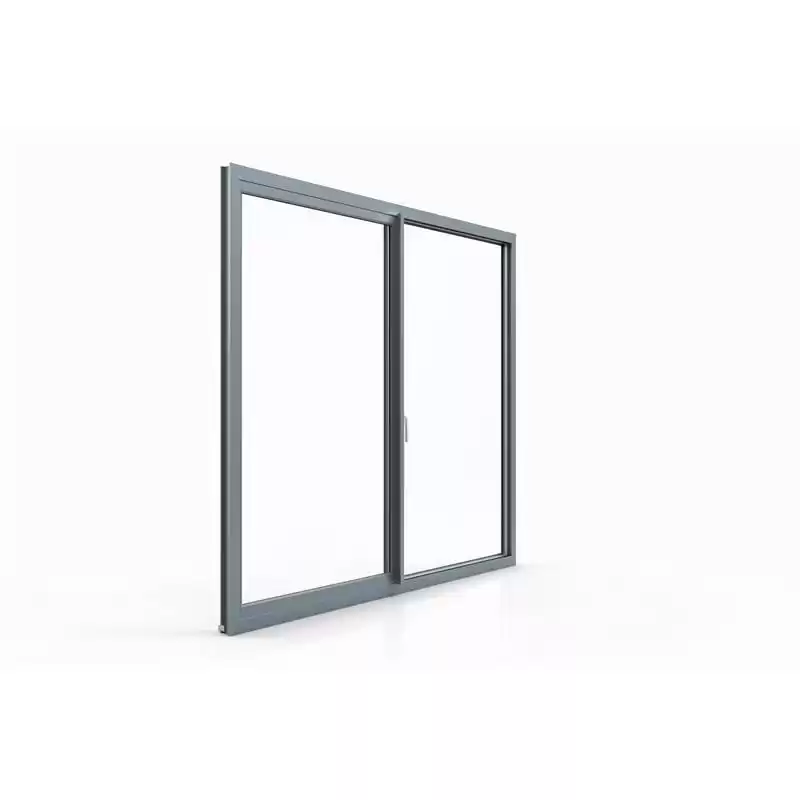

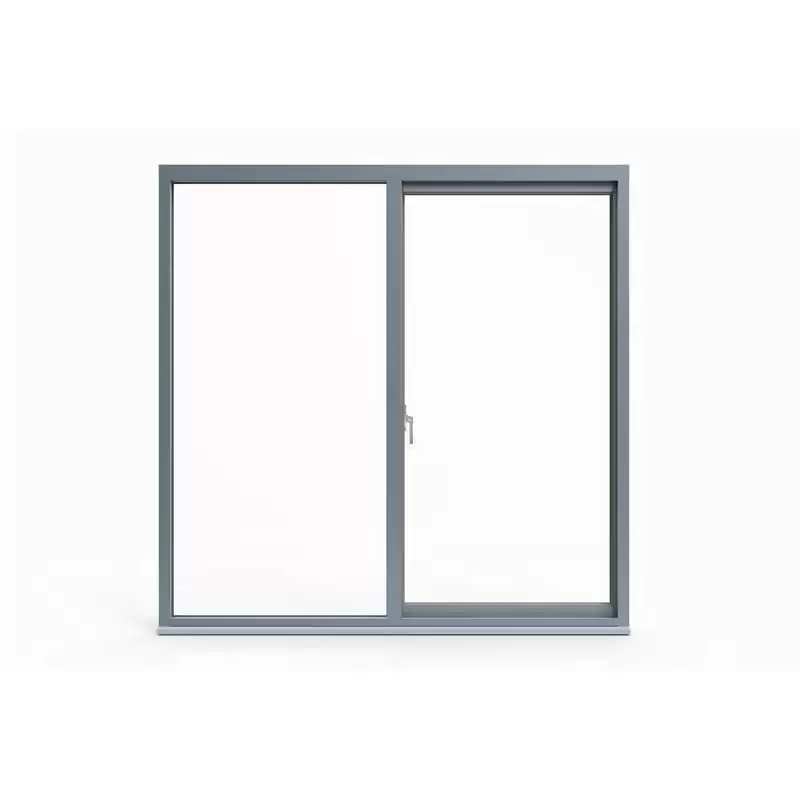

New designed window frame aluminum sliding window aluminum glass sliding window



Slim framed sliding door system can be used as the slimmest framed opening window system available, maintaining the 21mm vertical framing profile of the sliding glass doors but at the shorter heights of windows.

As there are no issues of feasibility in large opening windows swinging inwards or outwards these sliding windows can be designed and installed at large sizes, enabling large opening elements to windows for uninterrupted views and suitable ventilation.



FEATURES



  • Aluminum sliding windows are a superb choice for quick and effective ventilation They are non-projecting, sliding windows can be fitted with exterior security screens or fly screens
  • The opening direction of the aluminum sliding window can be left pull and right pull. It has the advantage of not occupying indoor space.
  • Sliding windows include two framed panes of glass, which overlap to slide open for easy access.
  • Sliding windows are available in any style, from contemporary and modern to elegant and classical.



PARAMETERS



Parameters
Suitable Width/Height of Sash
(mm)
Visible Width/Height
(mm)
Aluminium width
(mm)
Glass(Thickness)
Width 1000-3000mm
Height:1800-3500mm
Weight 500kg
Frame Width 40mm
Visible Sash Width 30mm
Visible Sash Width 20.6mm
Frame Depth 125mm
Sash Depth 57mm
SGU:8-12mm
DGU:19-38mm






Performance
Heat Preservation Performance
W(m2.k)
Sound Insulation Performance
(DB)
Watertight Performance
(Pa)
Airtight Performance
Wind Load Resistance
(KPA)
2.5
level5
35DB
level 4
500PA
level5
level 6
4.0KPA
level 7



WHY CHOOSE US

Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.

Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.

System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.



FAQ

Q: Are you trading company or manufacturer?

A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience.  And you are warmly welcomed to visit us.

Q: How long is your delivery time?

A: Generally it is 15-20 workdays after receiving payment.

Q: Do you provide samples for free? What's the MOQ?

A: The new die samples are free for approval and inspection. The MOQ is 8-10tons

Q: What is the payment terms?

A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
