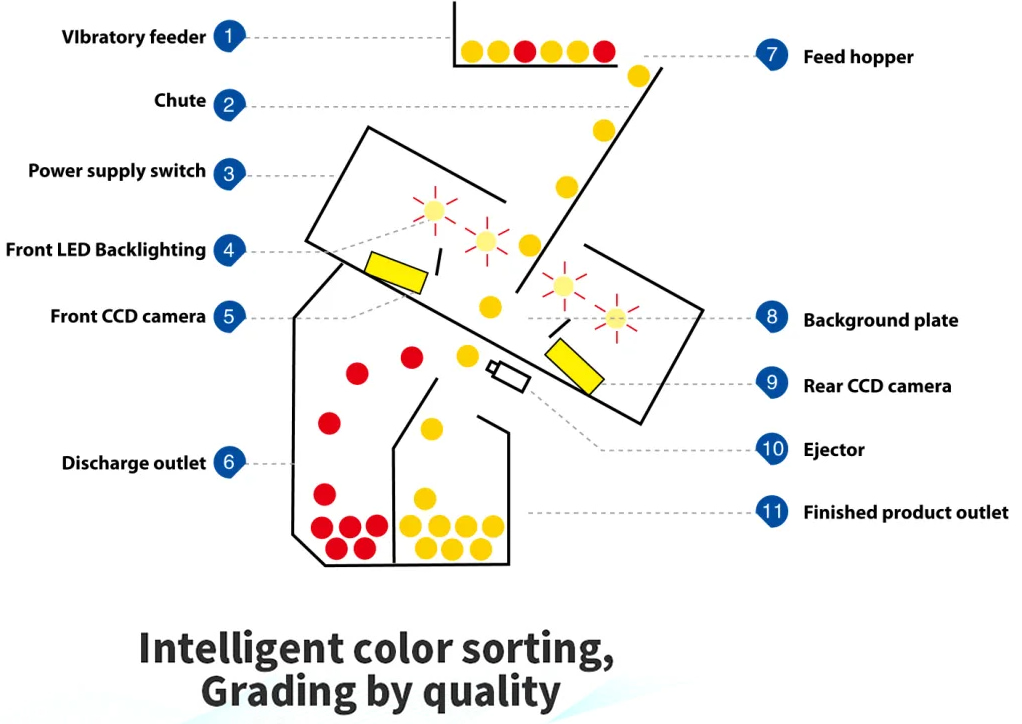

Grain color sorter machine is based on the fact that different colors have different optical properties. Colour sorter use CCD cameras and sensors to detect the color of each grain of rice, and then sorts them into different bins according to their color. The sorting process is done by using an air jet system which separate the grains according to their colors, you can see the follow structure schematic.
Grain Color Sorter Application
Grain Color Sorting Machine Core Advantages

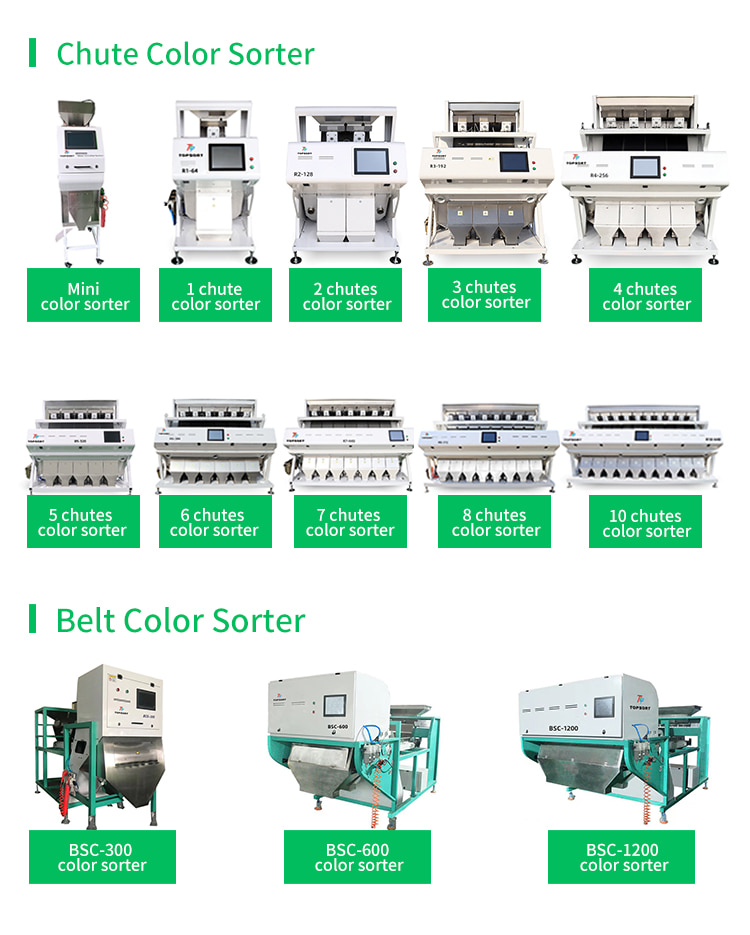

More Models You Can Choose
| Model |
Power(KW) |
Capacity (T/H) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| MINI-32 |
0.5 |
0.5-1 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|
| R1-64 |
0.8 |
1-2.5 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|

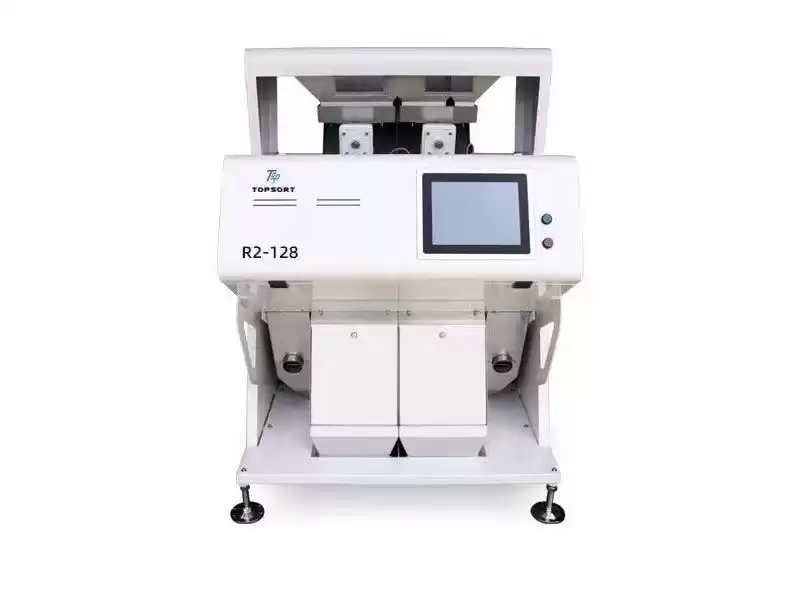

| R2-128 |
1.3 |
2-4 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| R3-192 |
1.9 |
3-6 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| R4-256 |
2.4 |
4-8 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| R5-320 |
3.0 |
5-10 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| R6-384 |
3.6 |
6-12 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| R7-448 |
4.1 |
7-14 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| R8-512 |
4.7 |
8-16 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| R10-640 |
5.8 |
10-20 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |
Choose TOPSORT Ccolor Sorter, Really Rest Assured
* High stability and low failure rate
* New intelligent algorithm and communication architecture
* Ai multi-dimensional self-learning
* Accuracy increased by 10%
- *Carryover ratio is reduced by 20%
-
- * Output increased by 25%
* Foresight, extensible design
* Can be equipped with a multi-dimensional camera
* Network cloud platform
* Realize real-time data monitoring
* Two years warranty

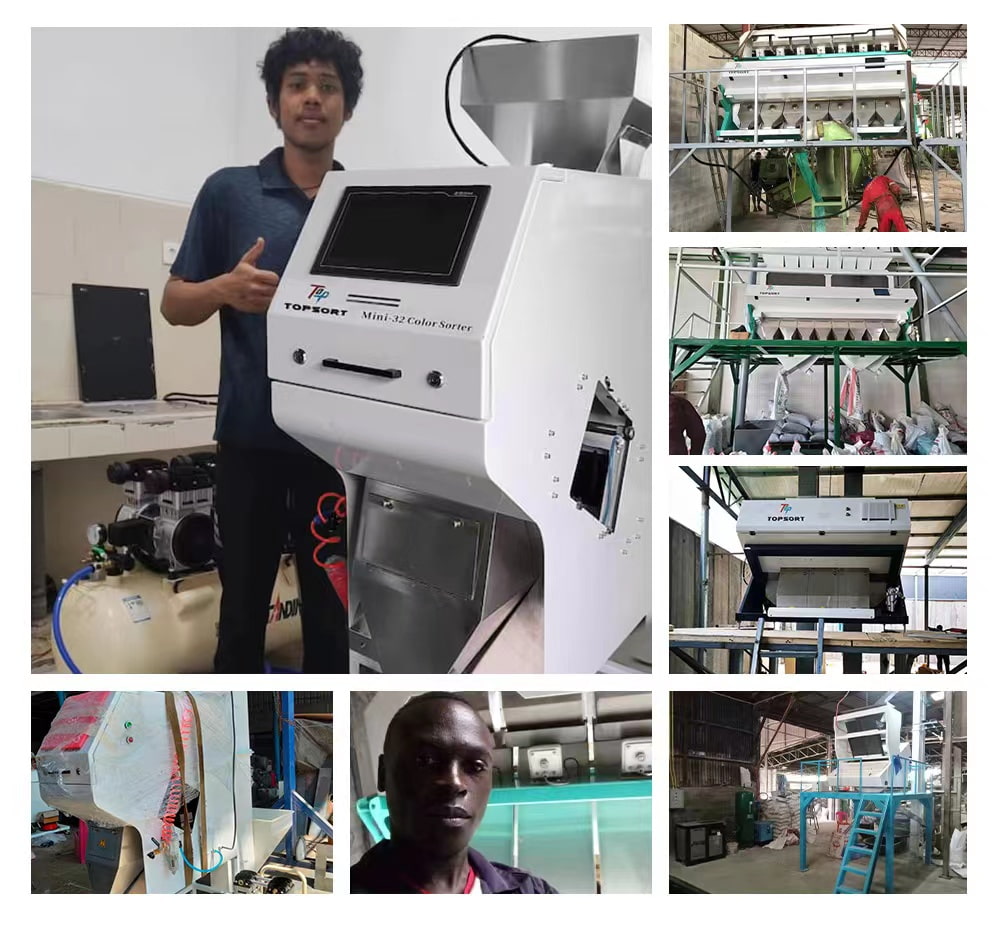

Customer Cases
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
