Frame
|

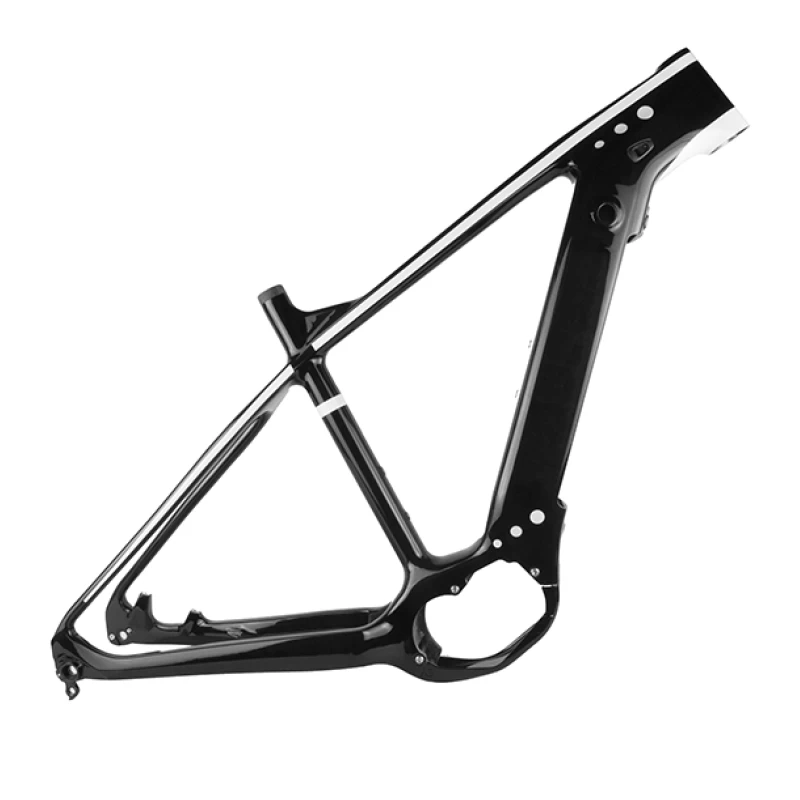

New hardtail full carbon electric MTB frameset
|
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
15, 17, 19, 21 (inch)
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57E)
|
|
Weight
|
2370±45g/Medium
|
|
Seatpost Diameter
|
31.6mm(37mm clamp)
|
|
Motor
|
M500(95NM)/M600(120NM) mid drive engine
|
|
Battery
|
Bafang BTF03
|
|
Front Travel
|
Compatible with 120mm travel fork
|
|
Max Tire Clearance
|
650b*2.8'' and 29er 2.35''
|
|
Brake Type
|
Post Mount Disc brake 203mm
|
|
Dropout
|
Thru Axle 12*148mm boost
|
|
Max Chainring
|
32T
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
