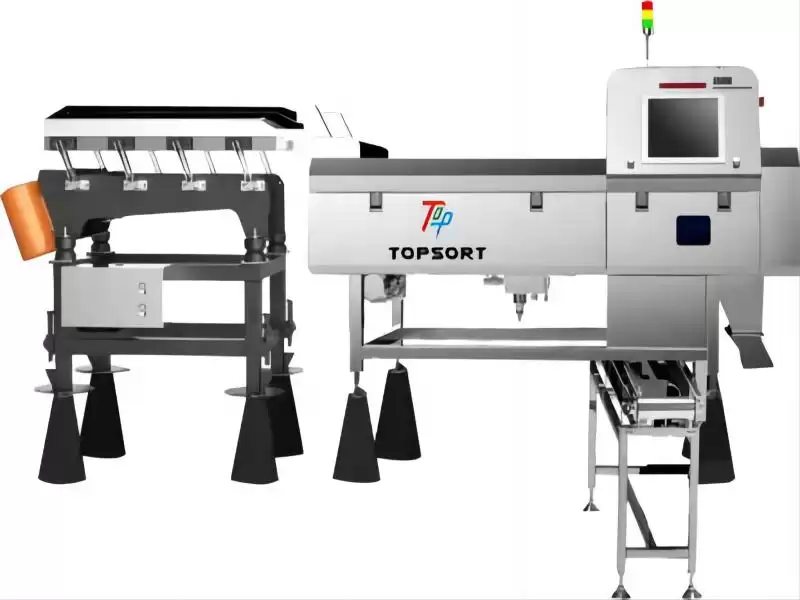

X-Ray Inspection Machine Working Principle

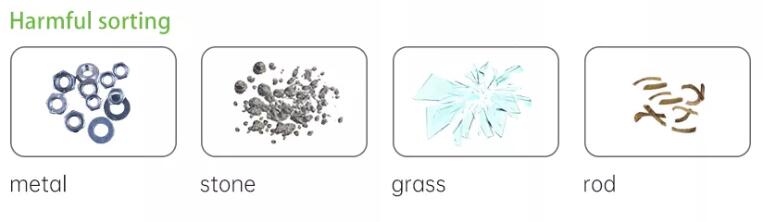

X-ray Inspection Machine is a sophisticated machine that uses X-ray technology to inspect food, medical supplies, and other materials for foreign objects that may be harmful or undesirable. The machine works by transmitting X-rays through the material being inspected, creating an image of the object on a screen that can be viewed by an operator. The operator can then identify and remove any foreign objects, including metal, glass, plastic, and even bones, before the product is shipped to the customer. This type of equipment is essential for ensuring the safety and quality of products and is widely used by food manufacturers, medical device manufacturers, and other industries that require high levels of quality control.
X-Ray Inspection Machine Features
1.High Sensitivity: X-ray inspection machines are designed to detect even the smallest foreign objects, with a sensitivity of up to 0.3mm.
2.Real-time Imaging: The detectors produce real-time images that allow manufacturing personnel to identify foreign objects and other contaminants in real-time.
3.Multi-lane Inspection: X-ray foreign material detectors can inspect multiple lanes at once, allowing for faster and more efficient inspection of products.
4.Automatic Rejection: When foreign objects are detected, these detectors can automatically reject the contaminated products without any human intervention.
5.User-friendly Interface: The detectors come with user-friendly interfaces that allow for easy operation and setup.
6.High Accuracy: X-ray foreign material detectors offer high accuracy rates in detecting foreign objects, with a low false-positive rate.
7.Compact Design: The detectors come in compact designs, making them easy to install in line with manufacturing processes.
8.Customizable Settings: These detectors can be customized to fit the specific needs of the manufacturing process.
X-Ray Foreign Material Detector Technical Parameters
| Model |
BSC-630 |
| Channles |
128 |
| Power |
2.8kw |
| Weight |
1200kgs |
| Dimensions |
2145*1480*2084mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99% |
| Capacity |
2000-3000kg/h |
| Air consumption |
<3.0m3/min |
| Air pressure |
0.6-0.8Mpa |

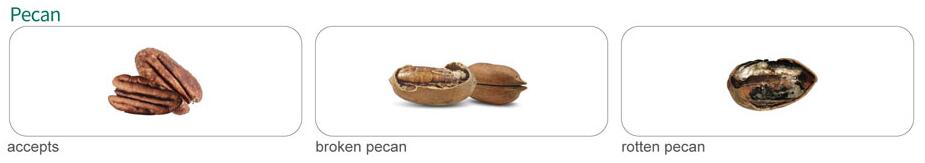

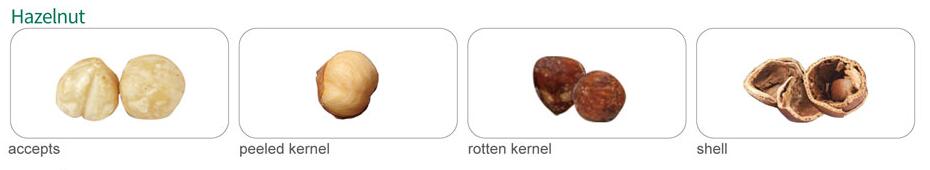

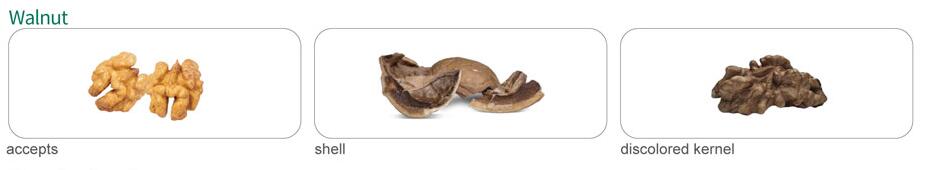

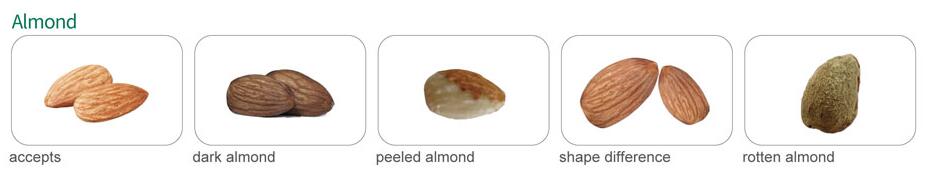

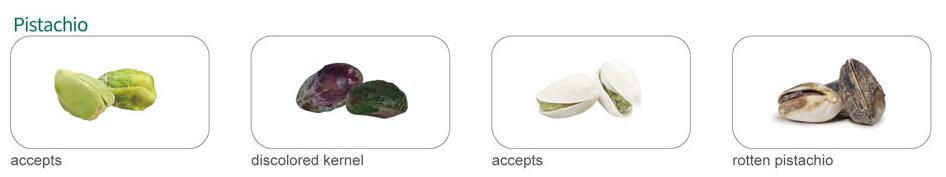

Superb Nuts Sorting Sulotions

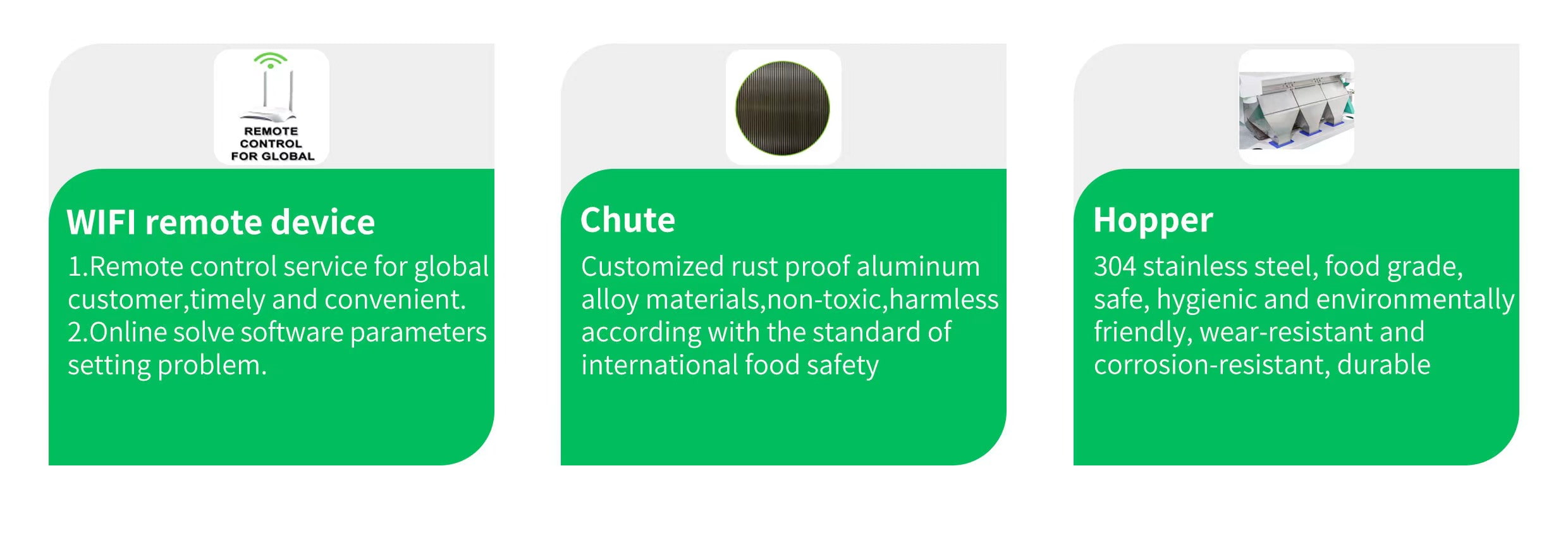

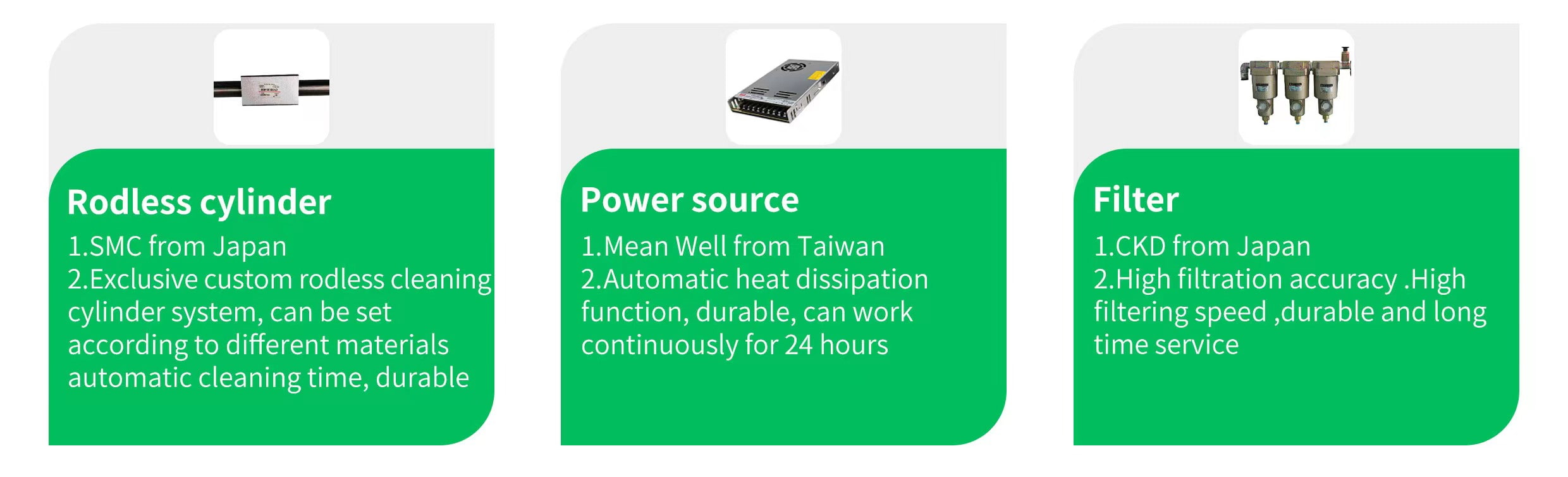

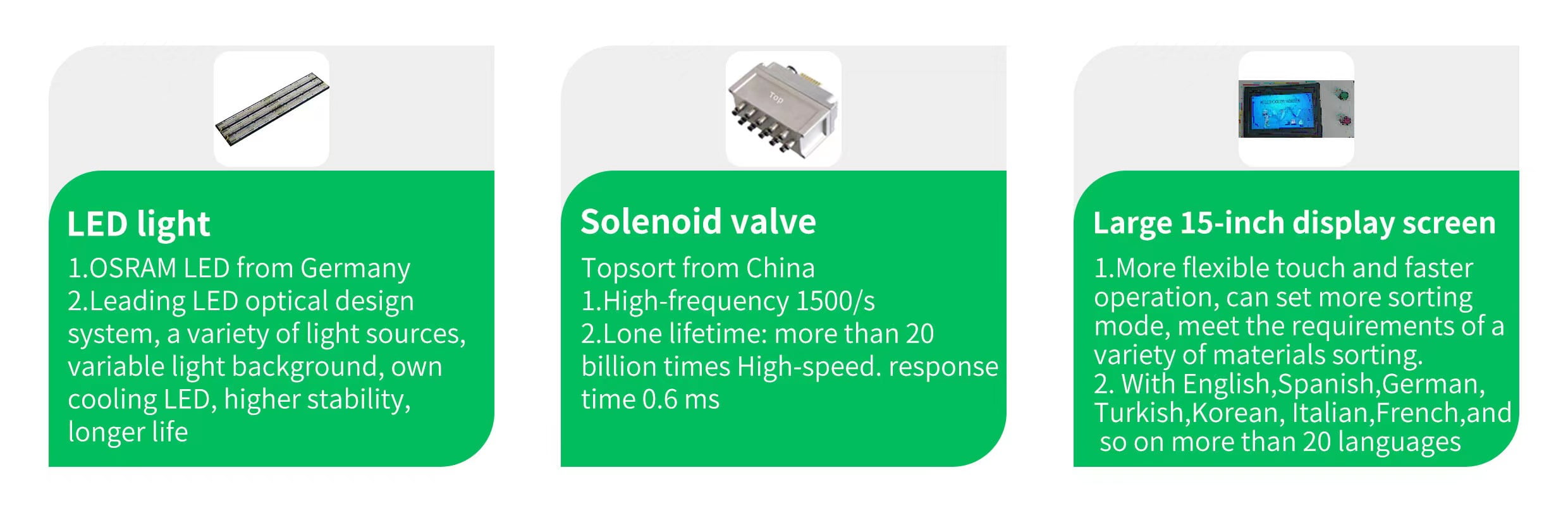

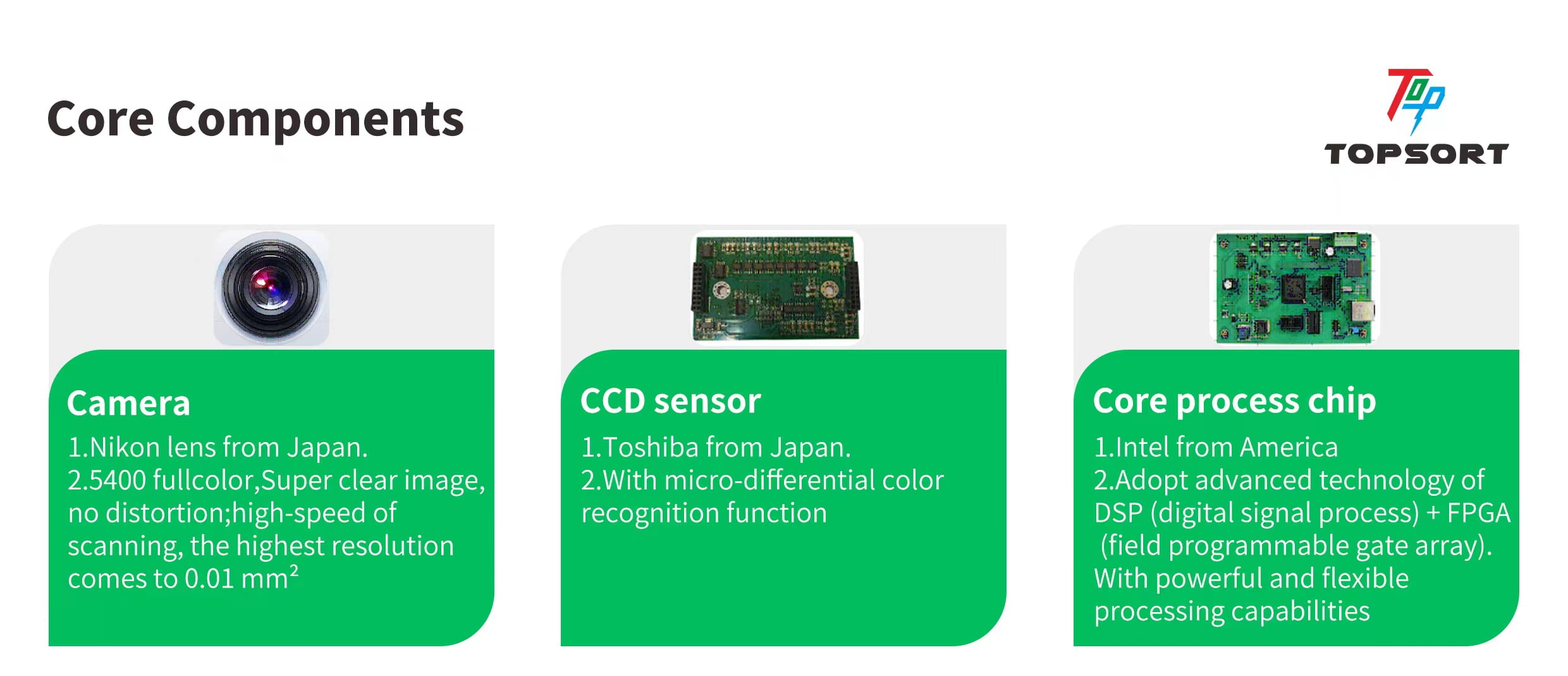

TOPSORT Color RGB Selector Core Advantages
Case Studies
Why Choose TOPSORT Color Sorter
Top technology
♣ Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
♣ High computing power deep learning platform with 4 times more data processing power；
♣ Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials；
♣ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
♣ Perfect after-sales service with big data + cloud interconnection.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
Wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

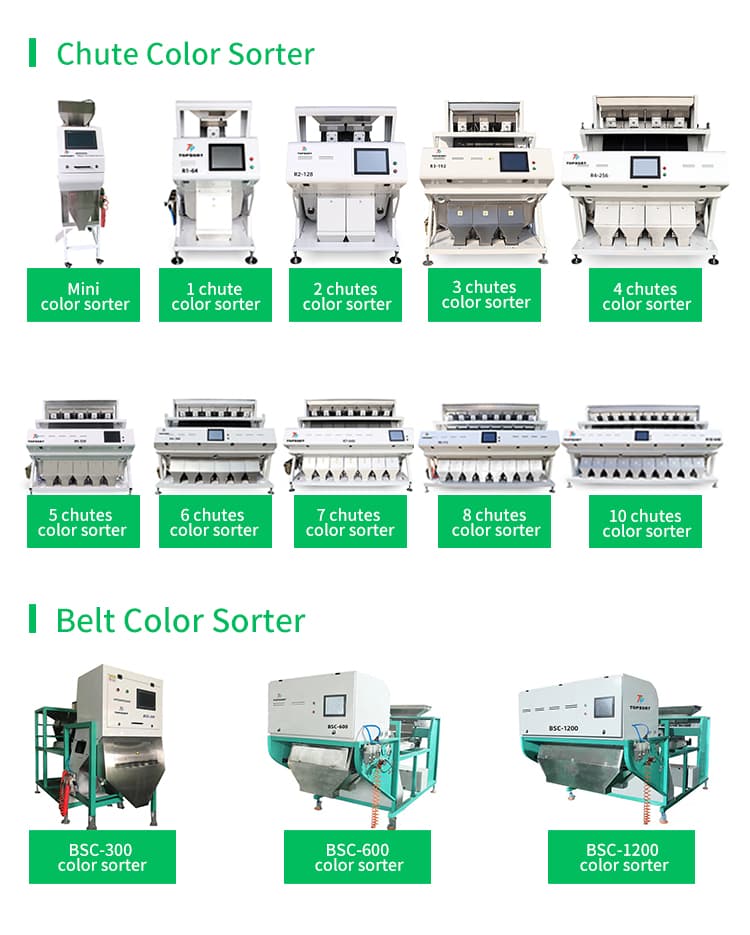

More ModelsYou Can Choose
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
