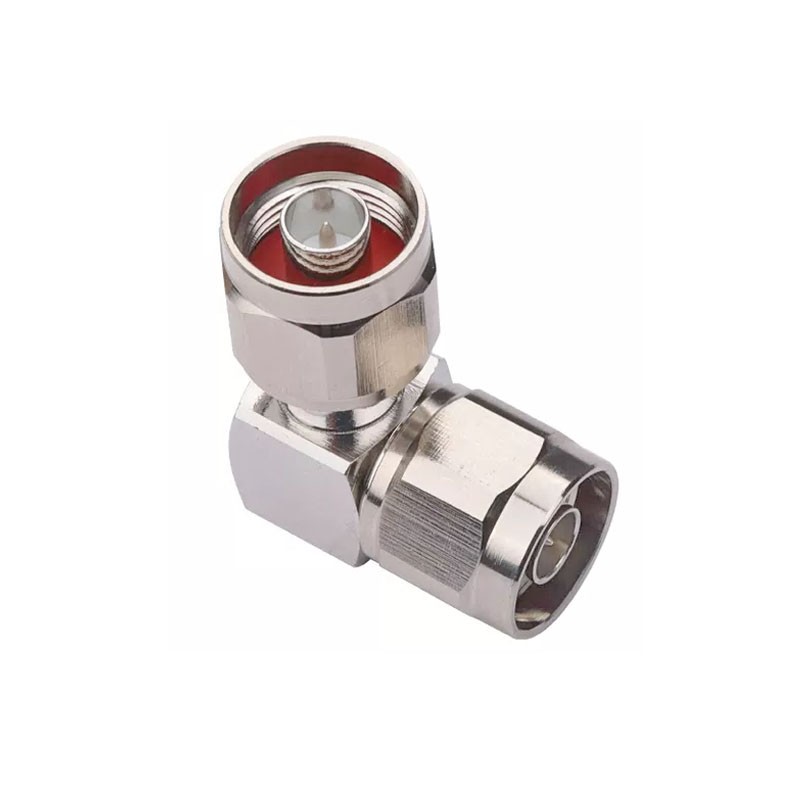

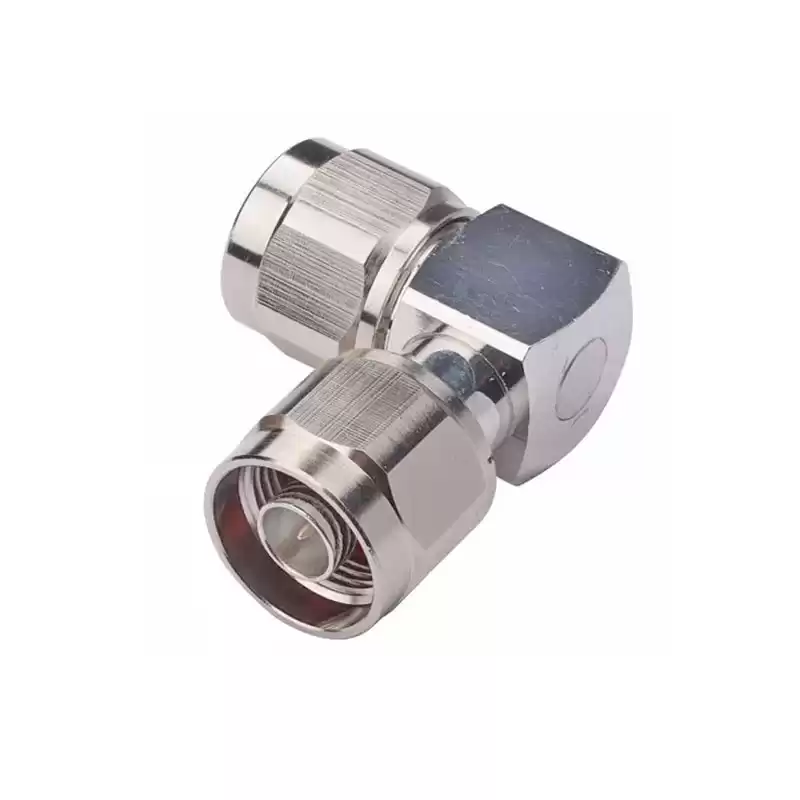

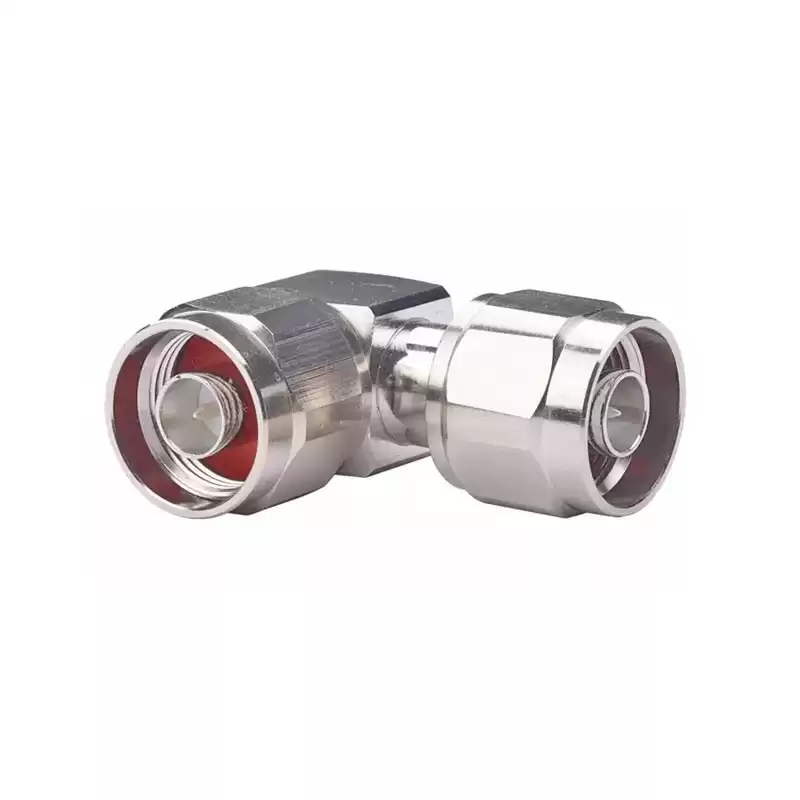

New N Male to N Male Right Angle RF Connector Adapter

N type adapters Features:

  • Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors;
  • Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance;
  • High frequency range up to 8GHz;
  • Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.



New N Male to N Male Right Angle RF Connector Adapter



The N Type Adapter has N to N standard polarity adapter gender. The N to N adapters has female to female, female to male or male to male gender, and has bulkhead, 4 hole panel or mountless configurations. ROHO's N to N standard polarity adapters are standard interfaces; it has 50ohm or 75ohm impedance standard polarity, and has straight, radius right angle, tee or right angle versions. ROHO offers low PIM or high performance designs.This N male to N male adapter has a maximum frequency of 11GHz, and is a right angle RF adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series N-Type
Adapter Side 1 Style Plug/Male
Adapter Side 2 Series N-Type
Adapter Side 2 Style Plug/Male
Frequency (Max GHz) 11
Impedance (Ohms) 50 or 75
Low PIM Yes
Orientation Right Angle
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material Brass
Body Finish
Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Base stations
  • Broadcast systems
  • Radar equipment
  • Microwave Radio
  • Outdoor antennas
  • Wireless LAN
  • Satellite systems
  • Surge protection
