Description:

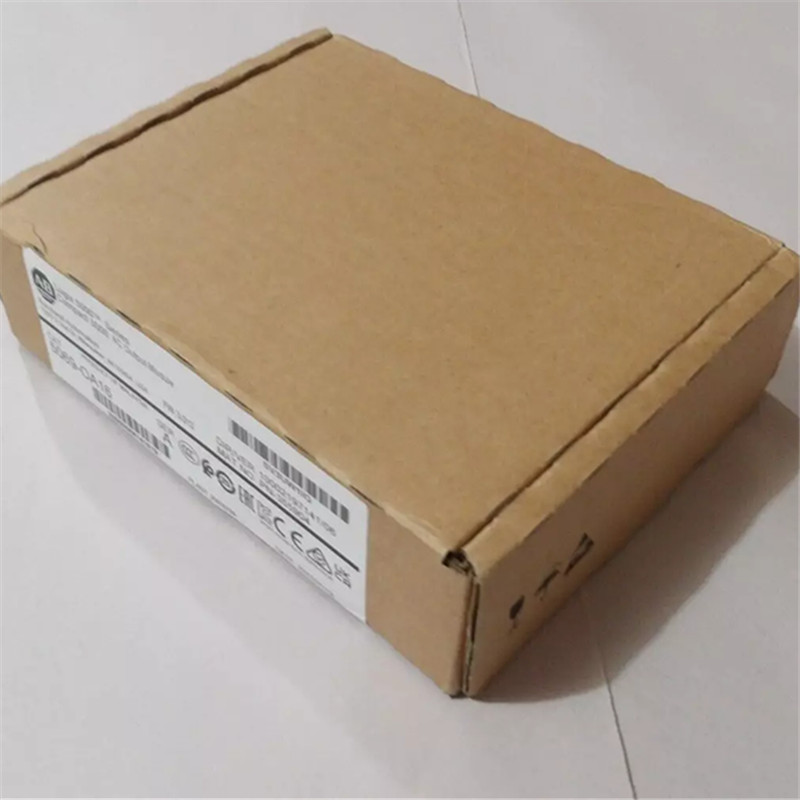

The Allen-Bradley 5069-OA16 is a Compact 5000 Discrete output module. This module features Sixteen (16) single group discrete output channels that operates at voltage range of 85-264VAC, 47-63 Hz. It provides output current of 0.5 A per channel and maximum of 4 A per module. This module may be used as Local I/O or distributed I/O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.
- Product Family:Compact I/O modules
- No. of channels：Sixteen (16)
- Output Voltage:85-264VAC
- Output Frequency:47-63 Hz
- Output Current, channel:0.5 A
- Output Current, module:4.0 A
- MOD Power:100 mA @ 18…32V DC
- SA Power:4 A @ 85…264V AC
- Removable Terminal Block (RTB):5069-RTB18-SCREW; 5069-RTB18-SCREW
- Wire size:0.5…1.5 mm2 (22…16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only.
- Spring Type: 0.5…1.5 mm2 (22…16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.) max diameter including insulation, single wire connection only.
- Operating Temperature:0 °C < Ta < +60 °C (+32 °F < Ta < +140 °F)
- Enclosure:None (Open type)
- Series：Compact 5000 I/O
- No. of Outputs：Sixteen (16) AC output channels
- Output Voltage signal, nominal：120 / 240VAC
- Output current per module, max：4:00 AM
- Pilot Duty rating：0.5 A pilot duty
- No. of output groups：One (1)
- Removable Terminal Block：5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB
- Output states (Fault mode, fault state Program mode) Hold Last State; On; Off (default)
- Duration of fault mode per point：1 s, 2 s, 5 s, 10 s, Forever (default)
- Number of Inputs：N/A
- Number of Outputs：1 Group of 16 Channels
- Voltage Category：120/240 Volts AC
- Input Voltage Range：N/A
- Output Voltage Range：85-264 Volts AC
- Power Dissipation：3.4 Watts
- Enclosure Type：None (Open Style)
