Description:

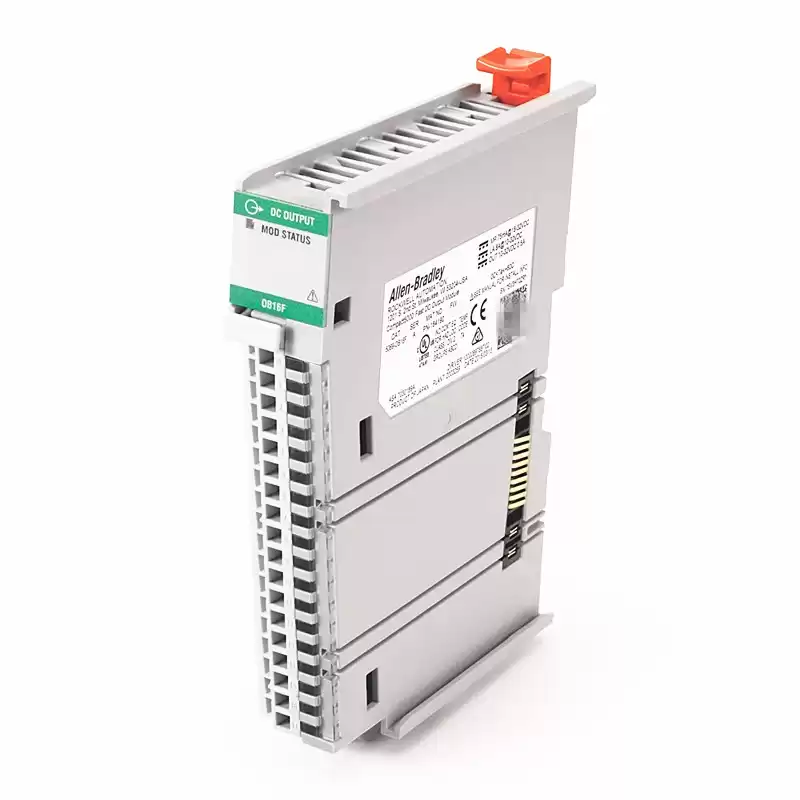

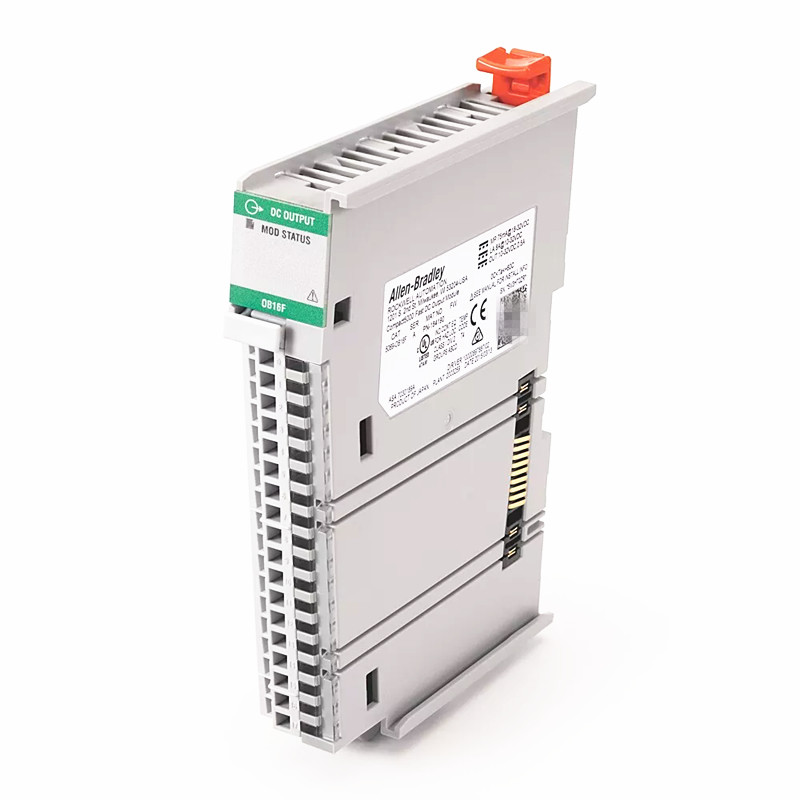

The Allen-Bradley 5069-OB16F is a Compact 5000 Fast switching Discrete output module. This module features Sixteen (16) single group sourcing output channels that operates at voltage range of 10-32VDC. It provides output current of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. This module features reduced output delay of 10 µs, ±1 µs @ 25 °C (77 °F) @ 0.5 A for faster response. It is capable of implementing scheduled outputs at resolution of 1 ns and accuracy of ±10 µs . This module may be used as Local I/O or distributed I/O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.
- Series:Compact 5000 I/O
- No. of Outputs:Sixteen (16) sourcing output channels
- Output Voltage signal, nominal:24VDC
- Output Voltage Signal range:10-32VDC
- Output current rating:0.5 A resistive per channel @ 10…32V DC 8 A resistive per module @ 10…32V DC, max
- Surge Current per point:1 A max for 10 ms per point, repeatable every 2 s
- Output delay time:? 10 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A
- Pulse width, min:20 µs @ 0.5 A @ 25 °C (77 °F)
- No. of output groups:One (1)
- Removable Terminal Block:5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB
- Output states (Fault mode, fault state Program mode):Hold Last State; On; Off (default)
- Duration of fault mode per point:1 s, 2 s, 5 s, 10 s, Forever (default)
- Number of Inputs:N/A
- Number of Outputs:1 Group of 16 Channels (Sourcing)
- Voltage Category:12/24 Volts DC Source
- Input Voltage Range:N/A
- Output Voltage Range:10-32 Volts DC
- Power Dissipation:3.25 Watts
- Enclosure Type:None (Open Style)
