Description:

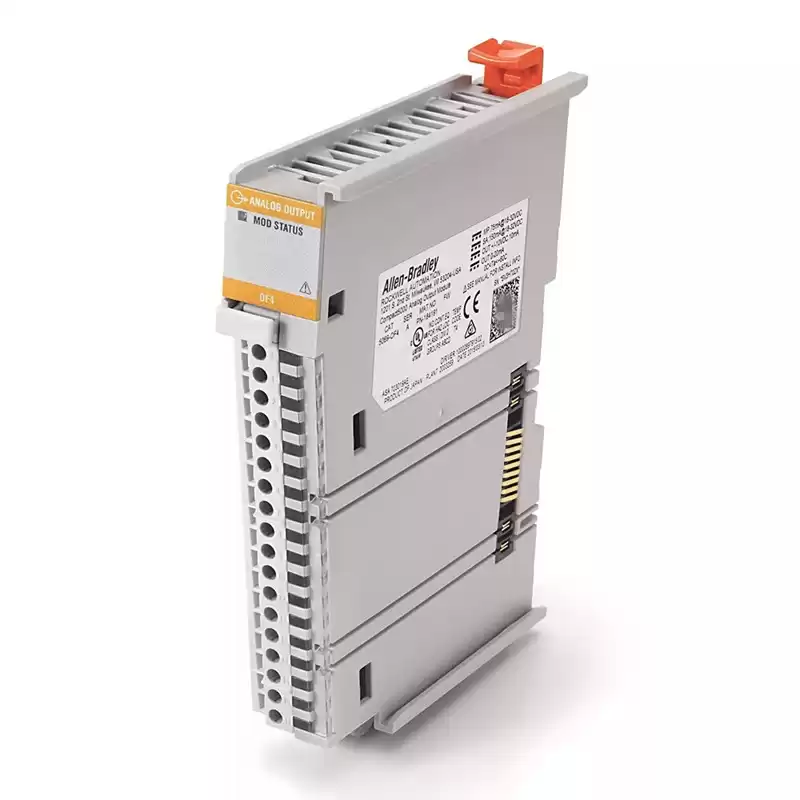

The 5069-OF4 module is an output module from the Allen-Bradley CompactLogix 5069 and Compact 5000 series. It comes with 4 analog output modules. The 5069-OF4 output module can operate with voltage signals and with current signals. The supported voltage ratings are +/-10 Volts DC, 0 to 10 Volts DC, and 0 to 5 Volts DC. Additionally, the 5069-OF4 output module's supported current ratings are 0 to 20 milliamps and 4 to 20 milliamps.
- Series：Compact 5000 I/O
- No. of Inputs：Four (4) channels
- Output Voltage signal：±10VDC; 0-10VDC; 0-5VDC
- Output Current signal：0-20 mA and 4-20 mA
- Conversion method：R-Ladder DAC, monotonicity with no missing codes
- Conversion time per channel：25 µs
- Resolution：16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit
- Open circuit detection：Current mode only
- Data format：IEEE 32-bit floating point
- Analog output ratings：+/–10V DC, 0…20 mA per channel
- MOD Power：75 mA @ 18…32V DC
- MOD Power Passthrough, max：9.55 A @ 18…32V DC
- SA Power：150 mA @ 18…32V DC
- SA Power Passthrough, max：9.95 A @ 18…32V DC
- Number of Inputs：N/A
- Number of Outputs：4 Voltage or Current Outputs
- Voltage Category：N/A
- Input Voltage Range：N/A
- Output Voltage Range：+/- 10 Volts, 0-10 Volts, 0-5 Volts
- Power Dissipation：3.3 Watts
- Enclosure Type：None (Open Style)
