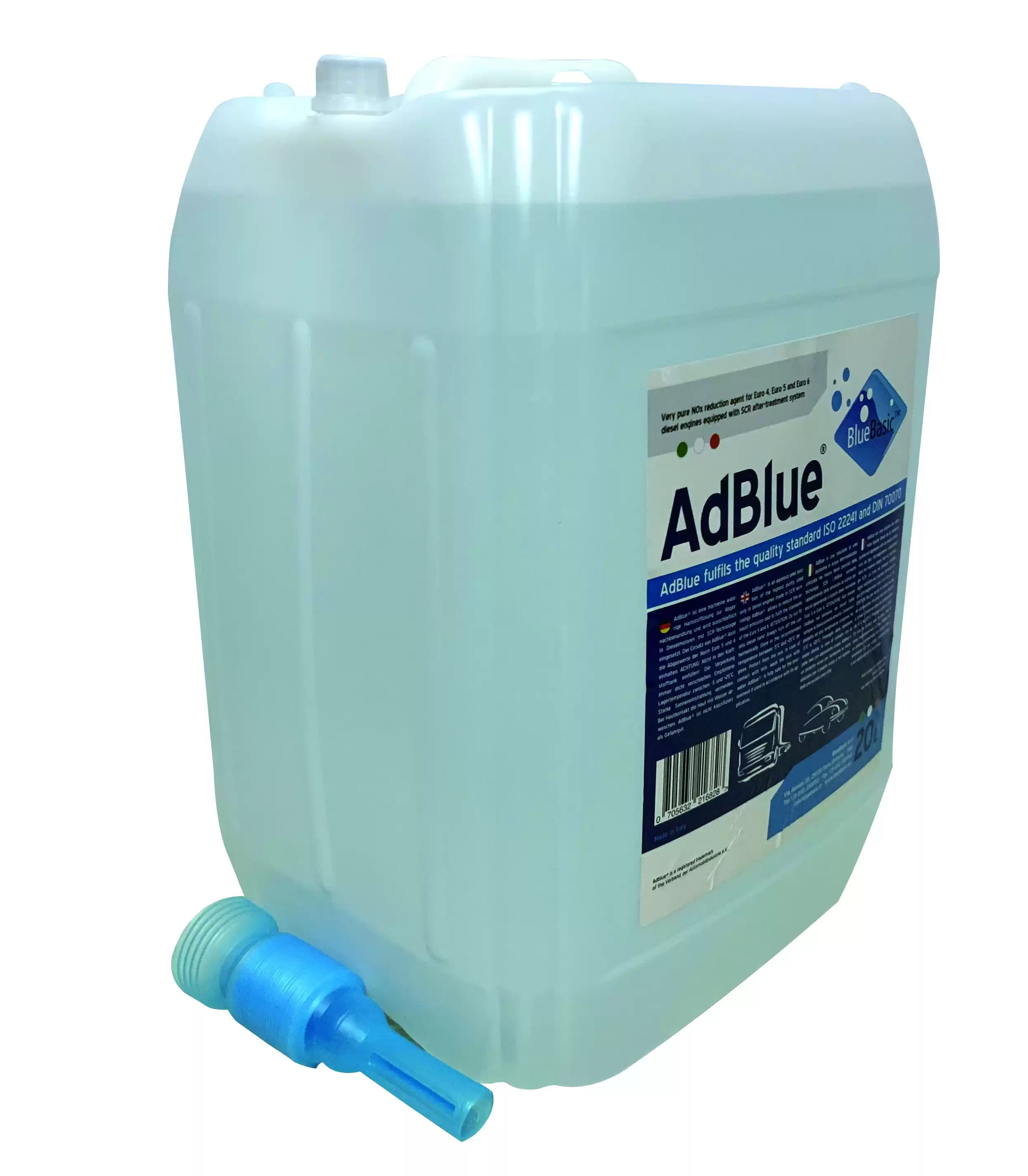

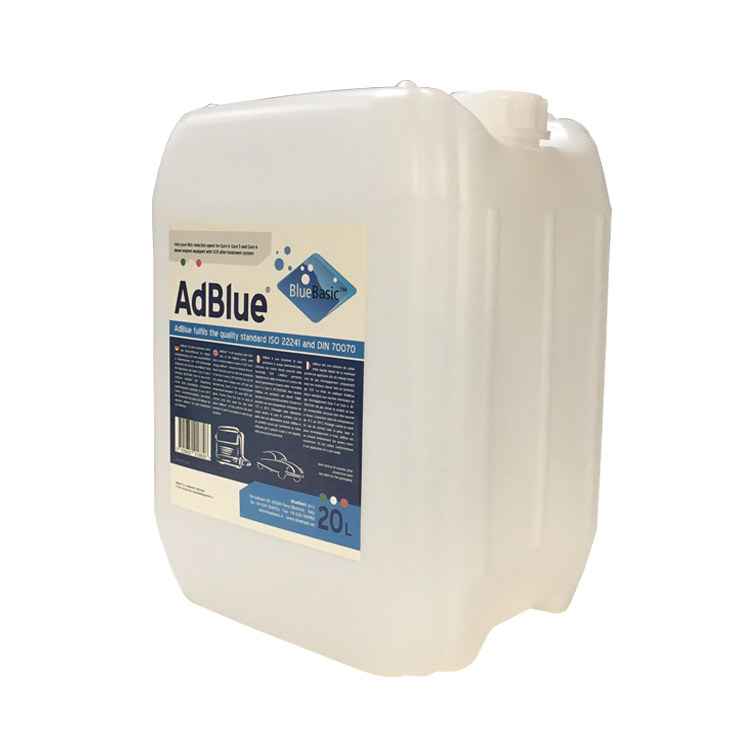

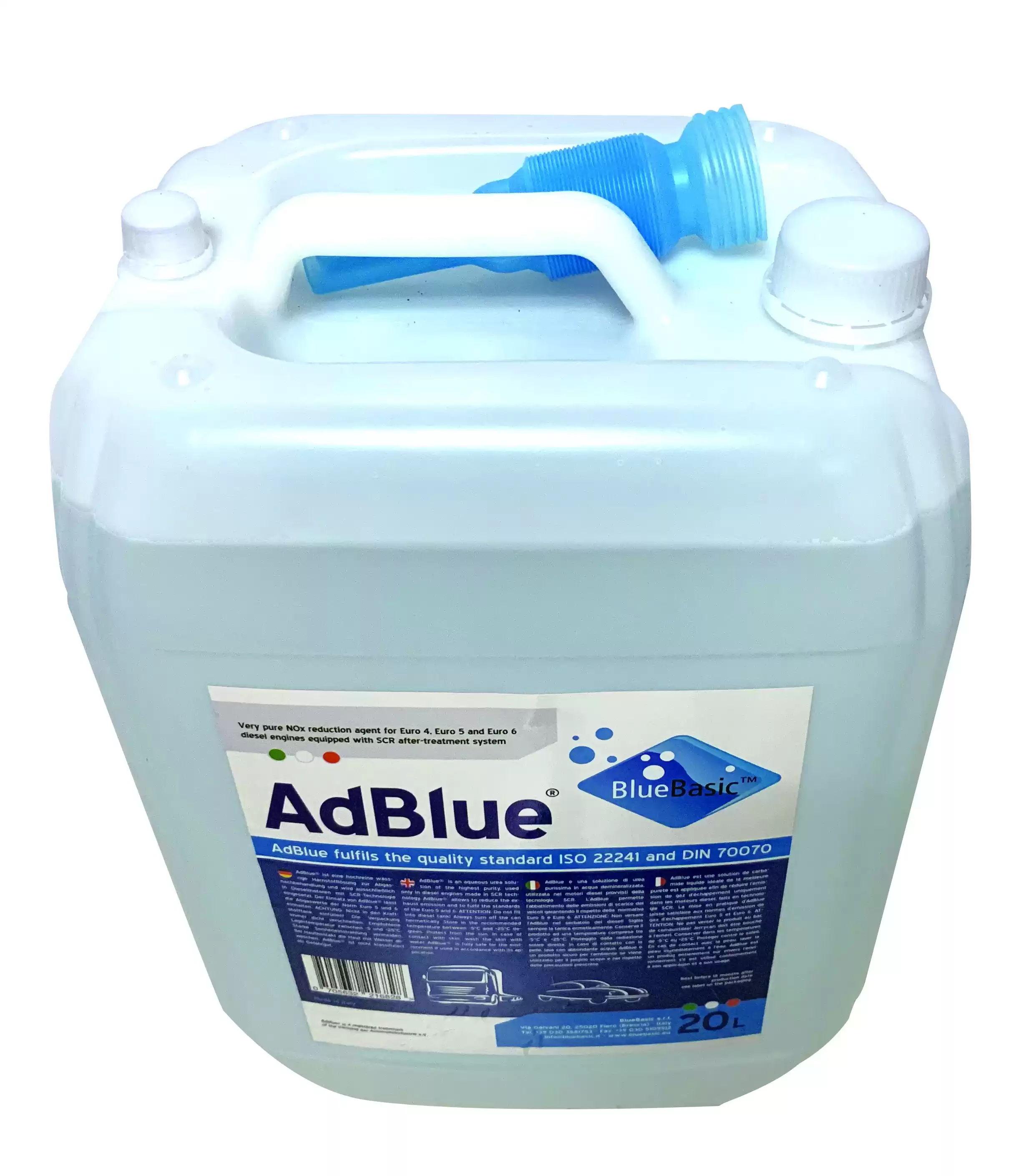

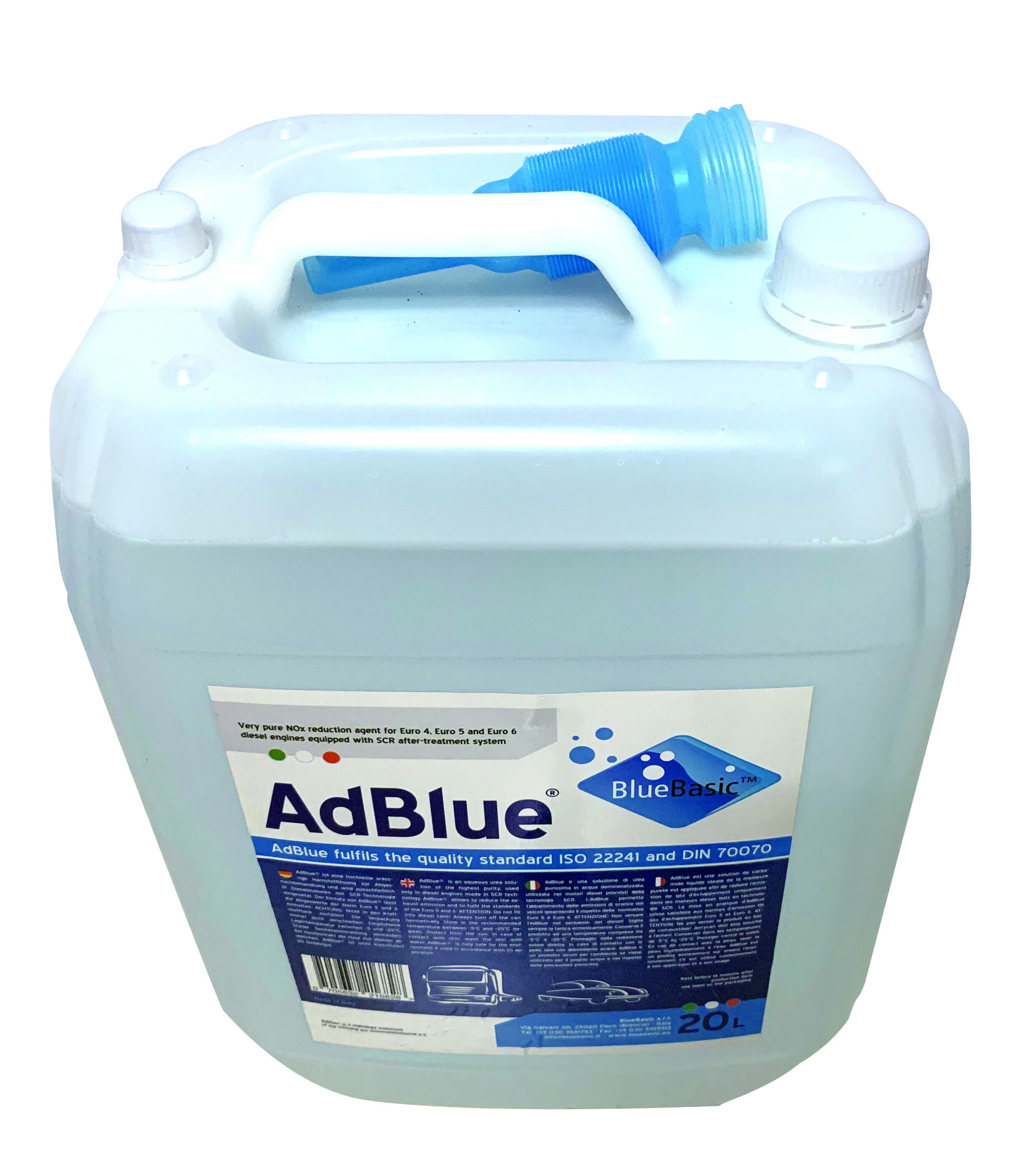

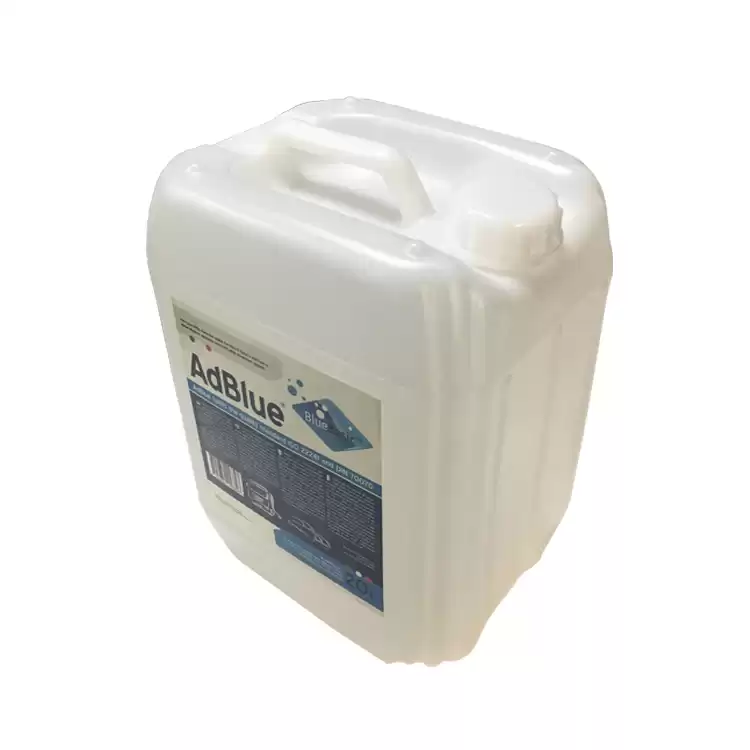

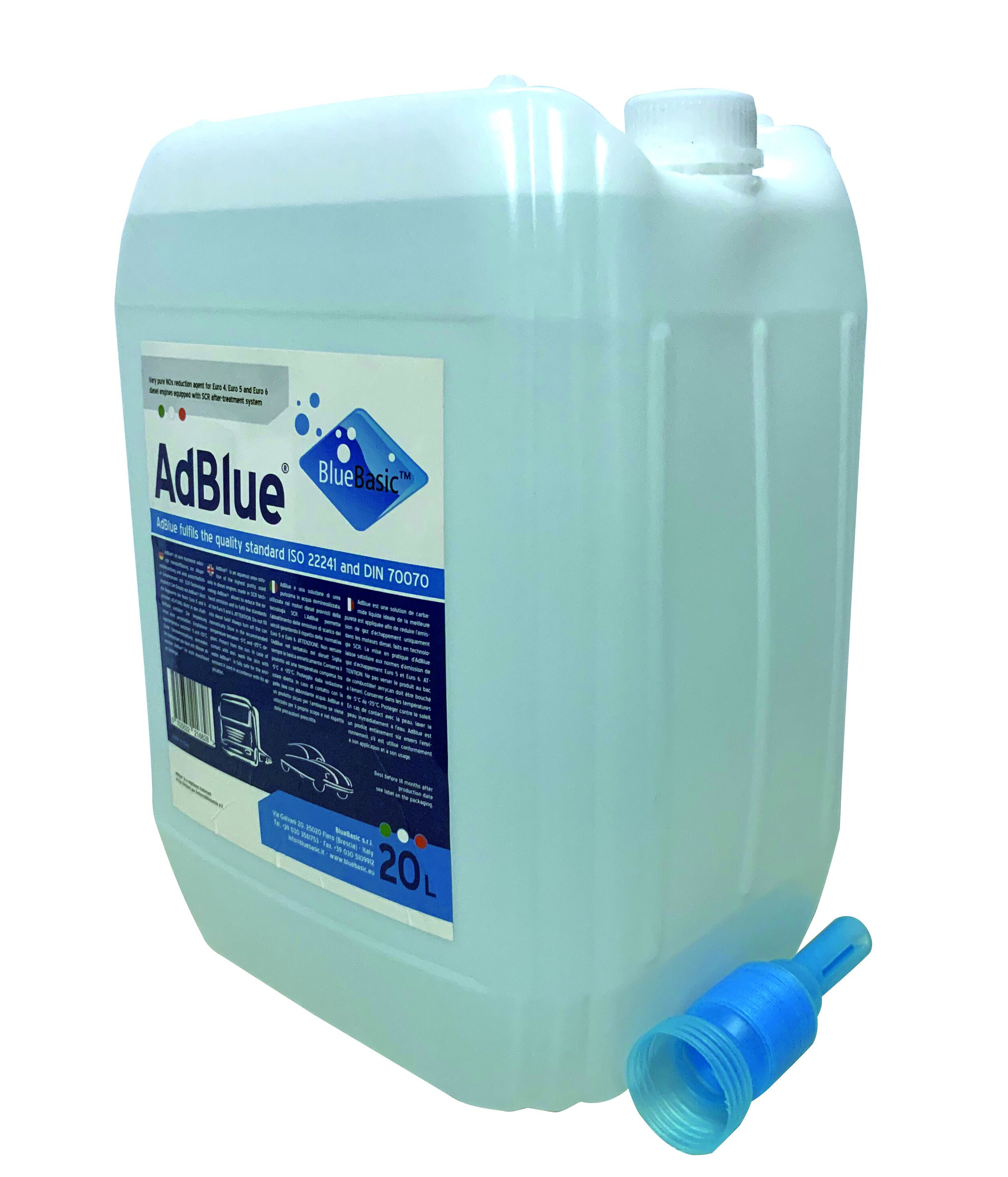

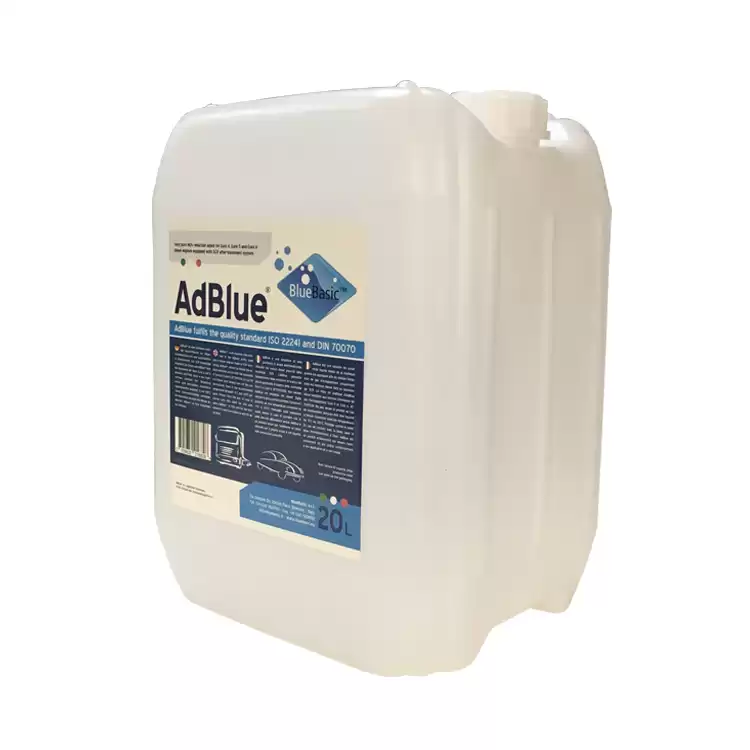

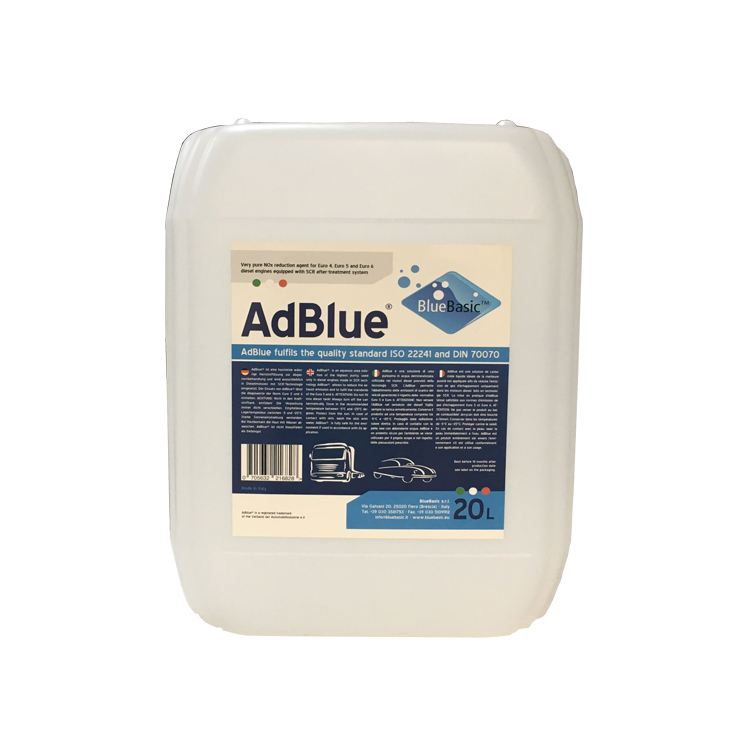

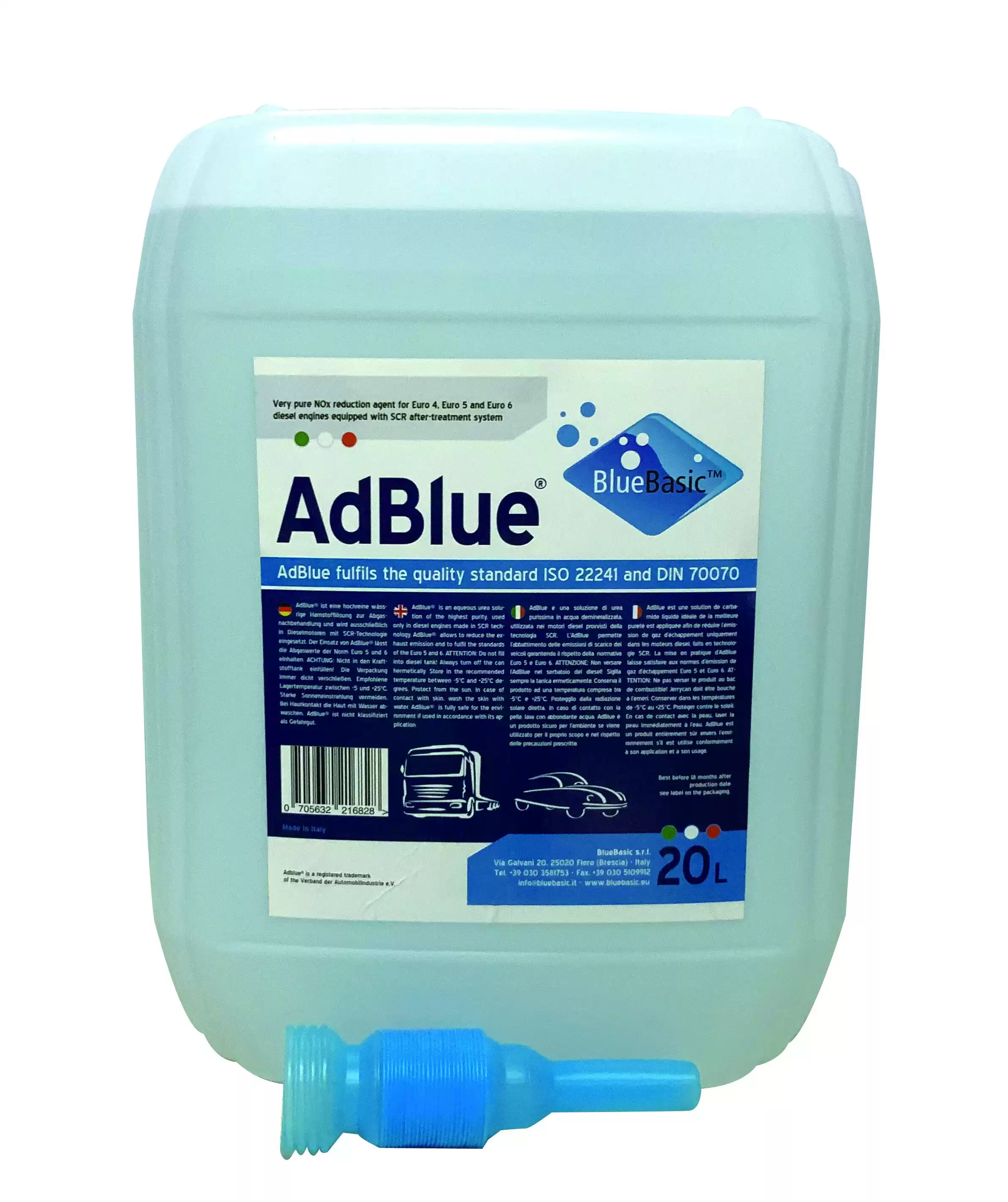

New Packing of 20L AdBlue® Urea Solution with Inspiration Hole for Faster Filling
|
Item No .
|
EB20L
|
|
Package
|
20L/Bottle
|
|
Net Weight
|
21.8kg
|
|
Gross Weight
|
23kg
|
|
Application
|
Diesel truck / SCR system
|
1. Product Features
-
AdBlue® / DEF is a transparent liquid with weakly alkaline (ph=9~10), tasteless or mild ammonia odor(This product is a catalytic reduction agent selection of NOx)
-
Combined with SCR technology, the fuel consumption can be effectively reduced the emission of nitrogen oxides and solid particles automobile exhaust by using AUS 32.
-
AdBlue® / DEF is synthesized from ultrapure water and high purity urea.
-
Non-toxic, non polluting and non combustible.
-
Simple and safe operation.
-
Application: All SCR emission control systems.
2. EverBlue Urea Solution Test Item
|
Testing items
|
Unit
|
Limits
|
Test method
|
|
Min.
|
Max.
|
|
Urea content
|
%（m/m）
|
31.8
|
33.2
|
Formaldehyde method
|
|
Density at 20℃
|
Kg/m3
|
1087.0
|
1093.0
|
SH/T 0604
|
|
Refractive index at 20℃
|
--
|
1.3814
|
1.3843
|
GB/T 614
|
|
Alkalinity as NH3
|
%（m/m）
|
--
|
0.2
|
ISO 22241-2-2006
|
|
Biuret
|
%（m/m）
|
--
|
0.3
|
|
Aldehyde
|
mg/kg
|
--
|
5
|
|
Insolubles
|
mg/kg
|
--
|
20
|
|
Phosphate(PO4)
|
mg/kg
|
--
|
0.5
|
|
Calcium
|
mg/kg
|
--
|
0.5
|
|
Iron
|
mg/kg
|
--
|
0.5
|
|
Copper
|
mg/kg
|
--
|
0.2
|
|
Zinc
|
mg/kg
|
--
|
0.2
|
|
Chromium
|
mg/kg
|
--
|
0.2
|
|
Nickel
|
mg/kg
|
--
|
0.2
|
|
Aluminum
|
mg/kg
|
--
|
0.5
|
|
Magnesium
|
mg/kg
|
--
|
0.5
|
|
Sodium
|
mg/kg
|
--
|
0.5
|
|
Potassium
|
mg/kg
|
--
|
0.5
|
3. Storage Requirements
Avoid direct sunlight and high temperatures between -6℃ and 25℃ during transport and storage.
4. Shelf Life
Storage Temperature(℃)
|
Shelf life (Month)
|
≤10
|
36
|
≤25
|
18
|
≤30
|
12
|
≤35
|
6
|
＞35
|
Test before use
|
5. Material Requirements for Direct Contact with AdBlue®
|
Highly alloyed austenitic Cr-Ni-steels and Cr-Ni-Mo-steels, for example in accordance with EN 10088-1, EN 10088-2 and EN 10088-3 (i.e. 1.4541 and 1.4571), or stainless steel 304 (S30400), 304L (S30403), 316 (S31600) and 316L (S31603) in accordance with ASTM A240, ASTM A276 and ASTM A312
|
|
Titanium
|
|
Ni-Mo-Cr-Mn-Cu-Si-Fe alloys, e.g. hastelloy c/c-276
|
|
Polyethylene, free of additives
|
|
Polypropylene, free of additives
|
|
Polyisobutylene, free of additives
|
|
Perfluoroalkoxyl alkane (PFA), free of additives
|
|
Polyfluoroethylene (PFE), free of additives
|
|
Polyvinylidenefluoride (PVDF), free of additives
|
|
Polytetrafluoroethylene (PTFE), free of additives
|
|
Copolymers of vinylidenefluoride and hexafluoropropylene, free of additives
|
|
NOTE 1
The sequence given in this list does not constitute a ranking of the recommended materials.
NOTE 2
Materials made of plastics can contain various kinds of additives used either for processing or for special kinds of serviceability. These additives can possibly migrate into AUS 32. For this reason, it is advisable that special care be taken for testing the contamination of AUS 32 by additives from plastic materials used in direct contact with AUS 32.
|
6. Packaging used by EB
We use good quality of HDPE bottles for storge AdBlue®.
