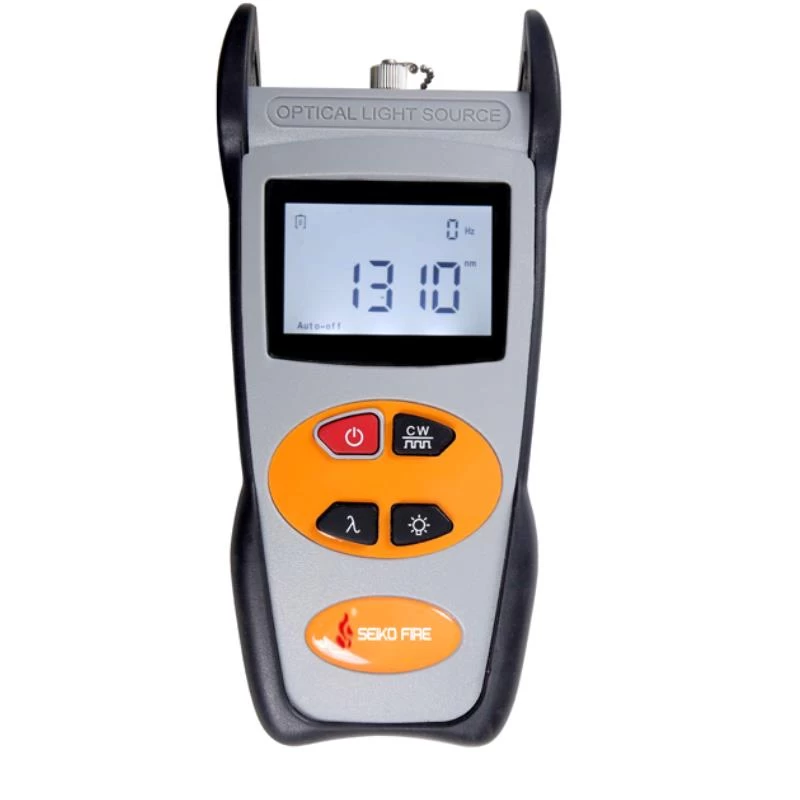

New Portable Light Source S102

High sensitivity large operation scope.

Battery supply, convenience for outside work.



Introduction

Optical light source is one of the latest self developed test instrument. It can provide 2 to 5 wavelength output according to the specific requirements including the 650nm red source, 1310/1550nm wavelength for the single mode fiber and 850/1300nm wavelength for the multimode fiber or other wavelengths according to customer needs. Together with optical power meter, it acts as a perfect solution for the fiber optic network work.


Features


  • Tone generation, 270HZ, 1KHZ, 2KHZ;
  • Output power value is shown on LCD display;
  • Intelligent backlight control (light intensity can be adjusted properly
  • According to ambient light, which greatly reduced power consumption);
  • AA alkaline for power supply;
  • Low battery indication.



Specifications

Operating wavelength(nm)

1310/1550 (others specify on requests; Max wavelength is 5)

Applicable fiber

SM, MM

Laser type

FP-LD (others specify on requests)

Maximum Output Power(dBm)

-7(can be adjustable, others specify)

Stability (dB, 15min, 20)

±0.1

Stability (dB, 30min, 20)

±0.05

Modulation (Hz)

CW, 270, 1K, 2K

Fiber Port

FC/PC or FC, SC, ST interchangeable

Alkaline Battery

3XAA, 1.5V

Battery Operating time(h)

45

Operation Temperature ()

-10+60

Storage Temperature ()

-25+70

Outline sizemm

200 X90 X50

Weight(g)

285
