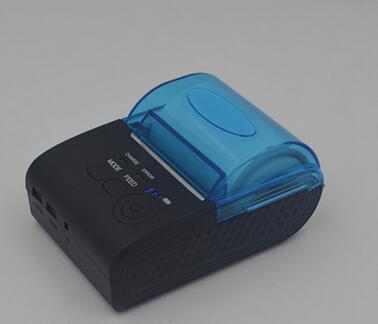

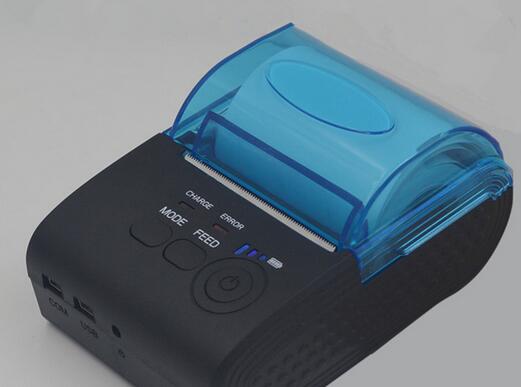

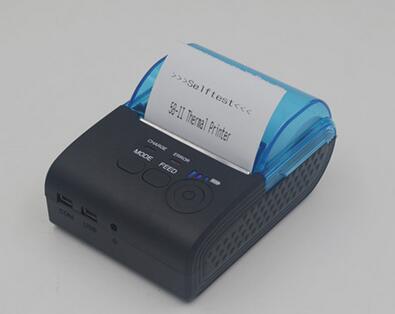

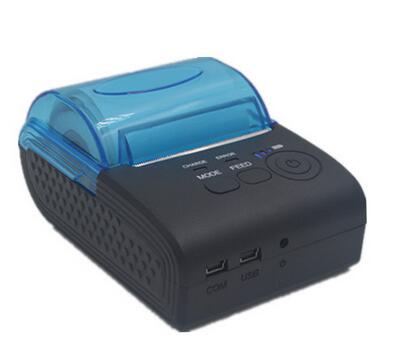

Original TopTruly Brand new Pocket Size Portable Android Wireless Printer Bluetooth
Thermal Bill Printer 5805LD With 58mm Thermal Paper Roll For Restaurant free shipping .
we accept TT/western union,moneygram .
if you wholescale more than 10 ,we send by free dhl /ems for many country .(remote cost do not accept .check address zip)
If you need youe self LOGO on your printer ,please connect me direct
Wechat: w2330961994
Skype: toptruly
QQ：2330961994
EMAIL: benny@toptruly.com
WhatsApp: +86-137-142-807-69
Msn: toptruly@hotmail.com
Item specifics
Print Speed:90mm/s
Application:For Commercial
Black Print Speed:Up to 90mm/s
Products Status:Stock
Style:Black And White
Dot Matrix Printer Type:Universal ticket printer
Interface Type:Bluetooth
Use:Receipt Printer
paper Feed Mode:Automatic and manual
Double-sided Printing:NoVoltage:100-240V
Max. Resolution:203dpi
Supports Network Printing:No
Model Number:Pos-5805LD
Type:Thermal Line Printer
Item:Pos-5805LD
Color:Black
Interface:USB+Bluetooth+COM
Print Command :ESC / POS / STAR Command
Compatible System:Android
Max Paper Size:58mm
Wiehgt:134g
Print SDK:Provide
Battery capacity:1500mah
Plug:UK / US / EU / AU

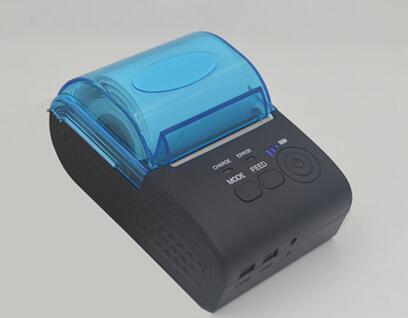

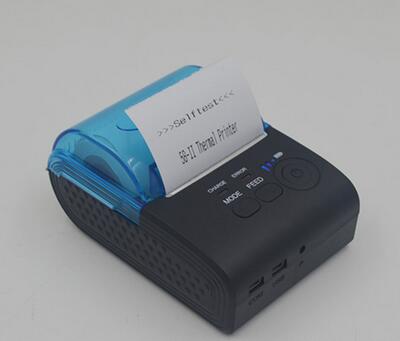

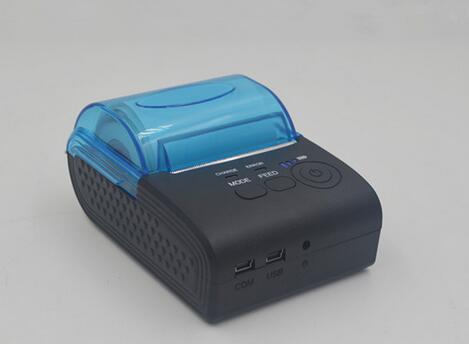

Pocket Size Portable Android Wireless Printer Bluetooth Thermal Bill Printer 5805LD With 58mm Thermal Paper Roll For Restaurant。
Specification
|
Overall Dimension (W×D×H)
|
104×75×45mm
|
|
Weight
|
134g
|
|
Compatible
|
Android
|
|
Color
|
Black
|
|
SDK / Print Demo
|
Provide
|
|
Effective print width
|
48mm
|
|
Print method
|
Thermal line printing
|
|
Print commands
|
ESC/POS/STAR command
|
|
Print speed
|
Up to 90mm/sec
|
|
Resolution
|
8 dots/mm(203dpi)
|
|
Print font
|
12x24/24x24
|
|
Character size
|
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)
|
|
Paper dimensions
|
58.0±0.1mm x 40.0mm
|
|
Paper thickness
|
0.06 to 0.08mm
|
|
Character size
|
The 384 - point/line
The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
The Font B: 9 *17points, 1.1(wide) * 2.1 (high) mm
Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm
Printing Chinese character:Chinese: simplified Chinese 24x24 point.
support 18030 font library, support Taiwan and HK traditional
(complex font) ANK: ANK characters
|
|
Extended characte table
|
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/
West Europe/Greek/Hebrew/EastEurope/
Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/
Arabic/PT151,1251/OEM747/WPC1257/
Vietnam/OEM864/Hebrew/WPC1255/Thai
|
|

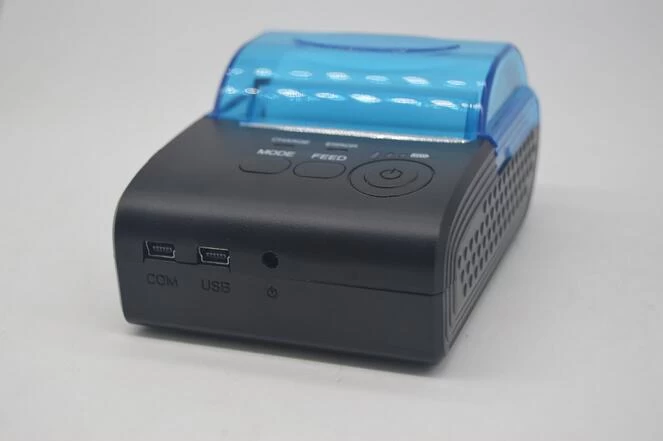

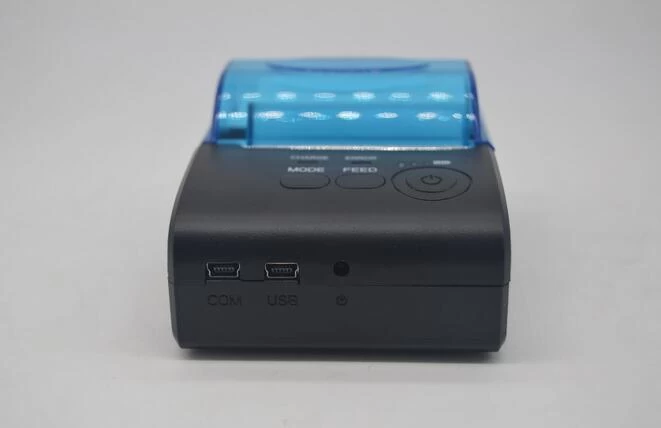

Interface
|
USB, COM, bluetooth
|
|
Data buffer
|
Up to 5K bytes
|
|
Power Adapter
|
9V DC/2A
|
|
Battery
|
rechargeable lithium batteries
|
|
Battery Power
|
7.4V DC/1500mA
|
|
Other features
|
Paper detection, power detection, manual shut down
|
|
Working conditions
|
Temp.:-10 celsius~50 celsius. Humi.:10%~90%
|
|
Storage conditions
|
Temp.:-20 celsius~70 celsius. Humi:5%~95%
|
|
Driver
|
Win 2000, Win 2003, Win XP, Win Vista, Win 7, Linux, Win 8, Win8.1
|
Features

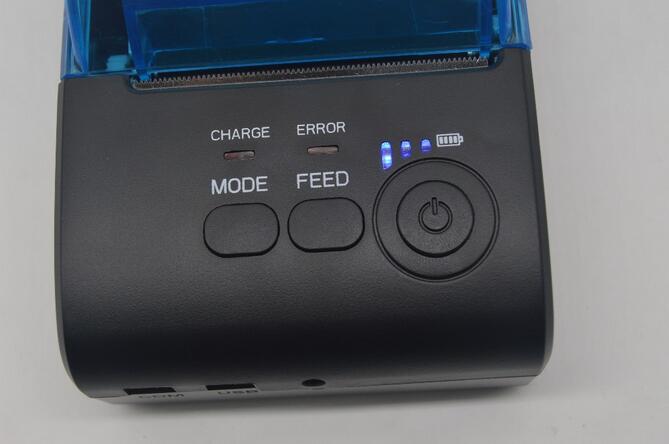

1). Battery capacity display

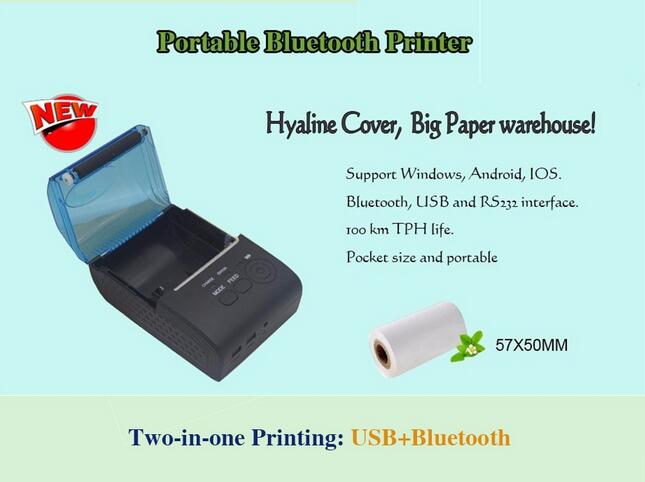

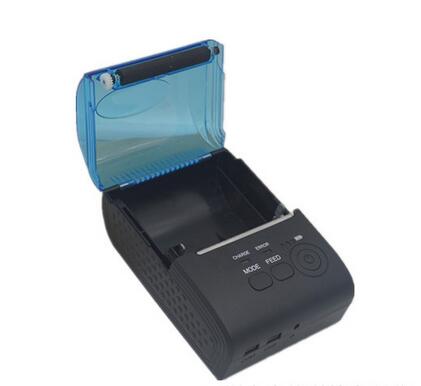

2). 57*50mm paper transparent storehouse, out-of-paper reminding

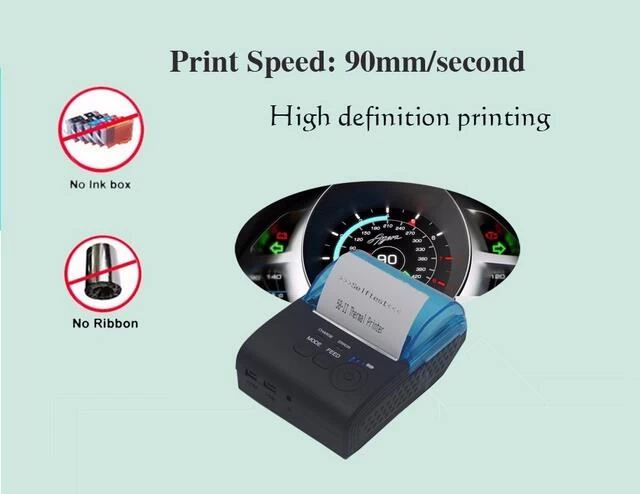

3). 90mm/s and clear printing.
4). Super power lithium electricity, standby time can reach 5-6 days.
5). Auto sleep, auto awake, power saving.
6). Small size, light weight, reliable performance, simple to connect and easy to use.
7). Support multi languages
8). Low operating costs (no ribbons, ink cartridges)
9). Support QR code and barcode
10). 1500mah battery

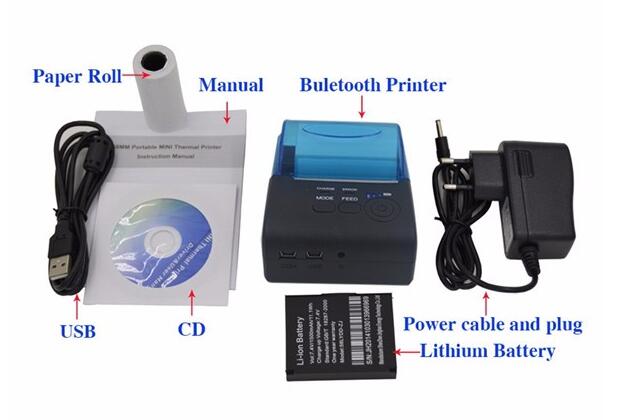

Package Content
1* Bluetooth Printer
1* Adapter
1* USB cable
1* Paper roll
1* User Manual
1* CD Driver

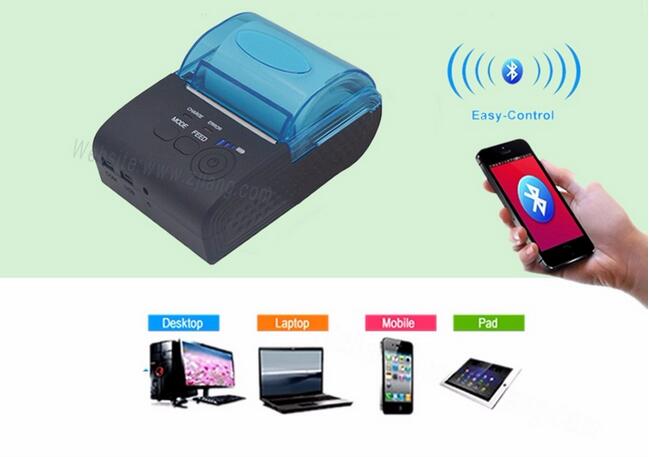

About the Bluetooth Printer
1. If you connect your phone to printer by bluetooth, no need to install driver, only download an application that compatible with the printer bluetooth protocol in your phone, then connect it and print. Well note that Applications are not provided, we only provide Print Demo to test if your phone connect to the printer successfully.
2. Customer will need to install the driver on your computer before using.
3. Not all print applications compatible with this printer mainly because the Bluetooth Protocols is not the same.
System Compatibility
1. Andriod System: Only support android 4.0 above system
2. CAN NOT work on a Mac System
3. Customers will need to have their own printing software if used with Android based devices.
4. Support WINDOWS system, include Win 2000, Win 2003, Win XP, Win Vista, Linux , Win 8, Win 8.1, Win 10.
Packaging Details：
-
Unit Type: set
-
Package Weight: 0.6kg
-
Package Size: 20cm x 13cm x 8cm
