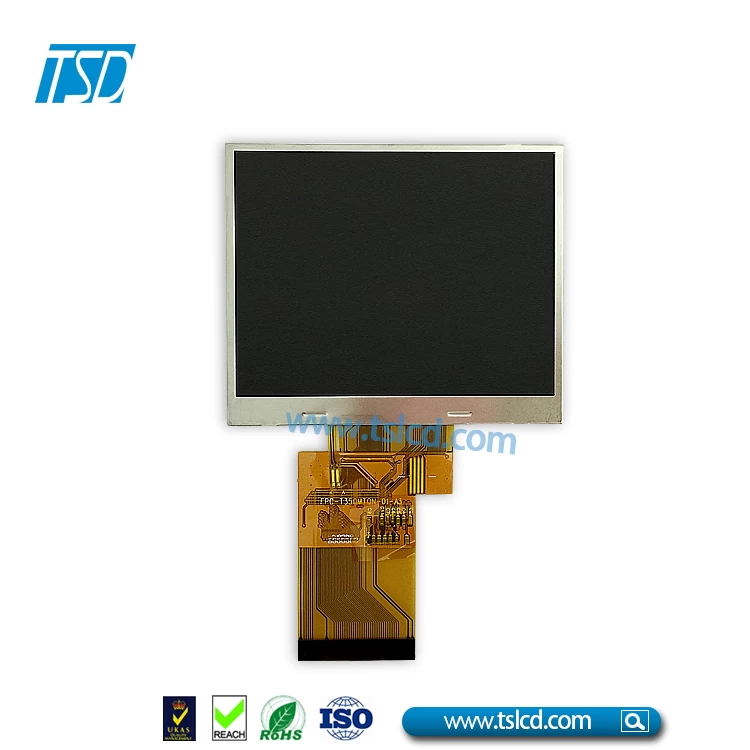

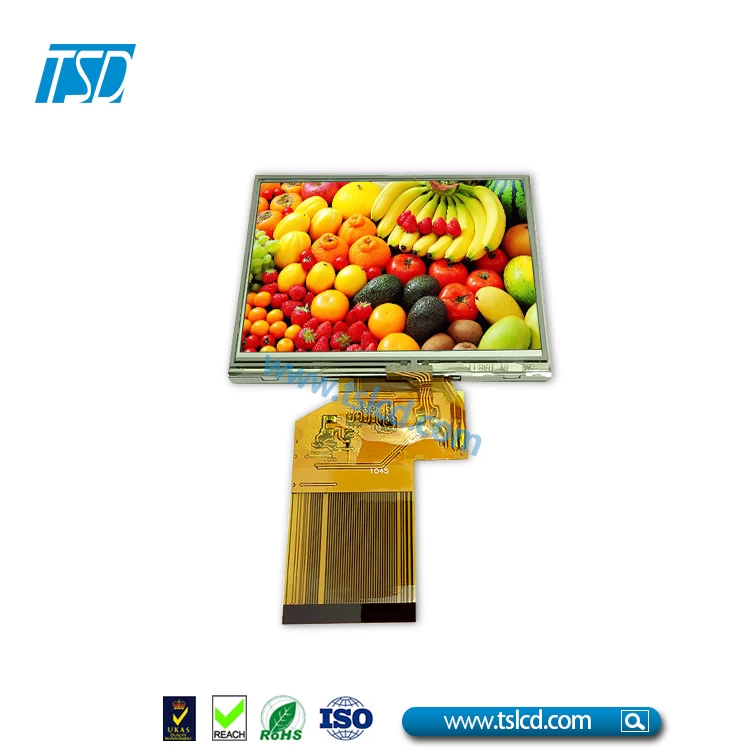

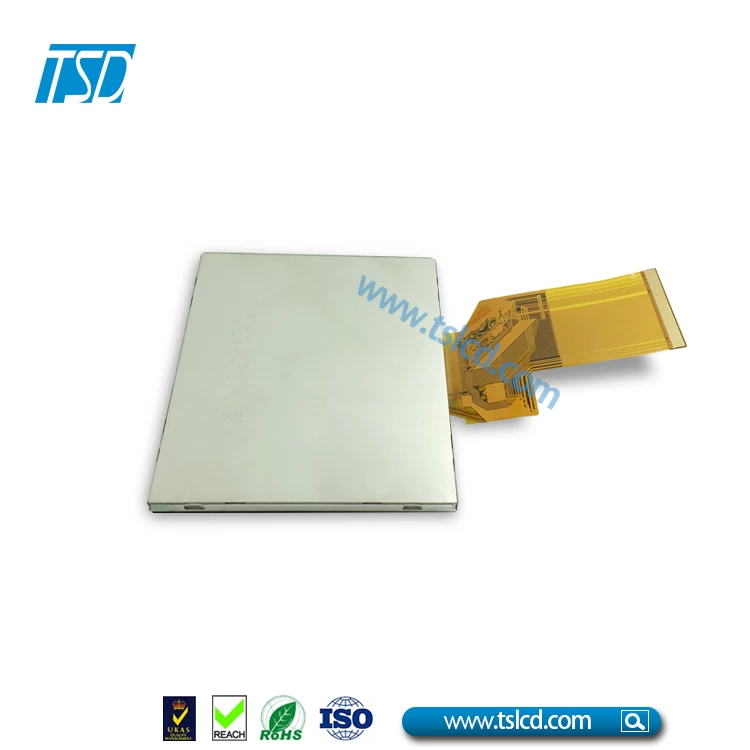

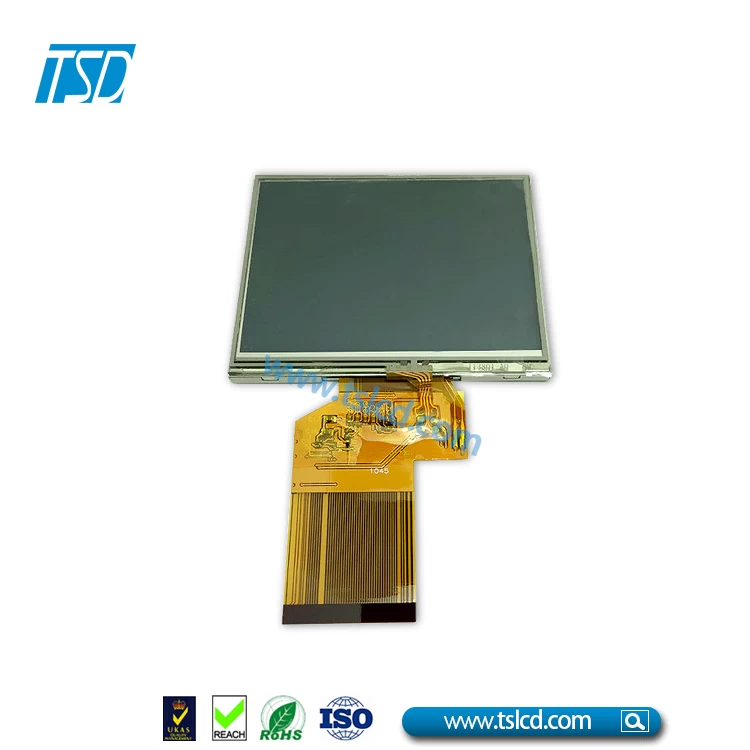

New replacement model 3.5 inch QVGA TFT LCD module with good price

Specification
LCD type 3.5" tft lcd , Transmissive
Display type 3.5" TFT 262k color, normal white
Item description 3.5" QVGA tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 76.75(W) x 63.7(H) x3.27(D)
A.A.(mm) 70.08x52.56
Driver IC HX8238-D
Resolution(dots) 320x240 resolution
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Pixel Pitch 0.219x0.219
Logic Volatge 3.3v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Interface RGB 24 bits parallel interface
Backlight 6 LEDs, White
Weight(g) 20
Interface RGB 24-BIT
Module lifetime(Hours) 50,000-100,000
