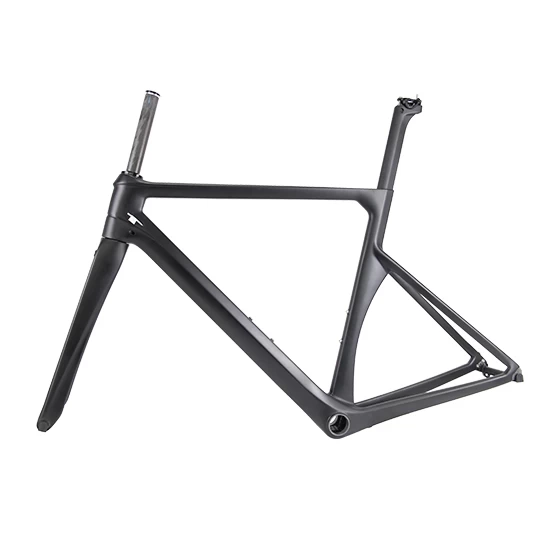

New road frame with direct mount brakes R014-V

- New aero road direct mount bicycle frame
- Direct mount brakes

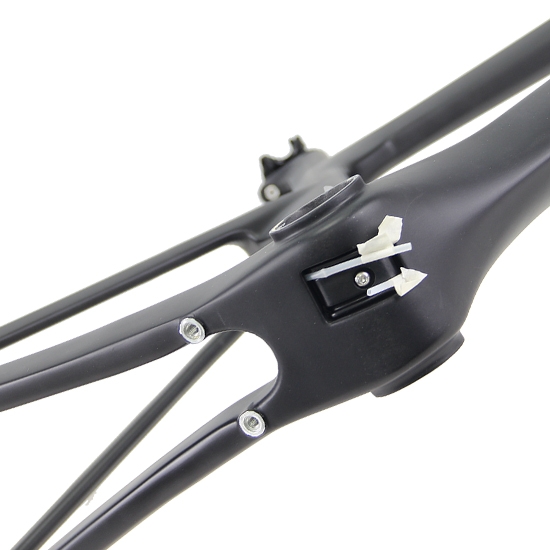

- Full internal cable routing

- Machanical and Di2 groupset compatible
- High modulus carbon fiber

Facebook Twitter Pinterest LinkedIn 分享




Frame

New road frame with direct mount brakes

Material

High modulus Toray T700  carbon fiber

Size

45, 48, 51, 54, 57

Fork

Specify carbon fork

Headtube

Tapered 1 1/8-1 1/2'' head tube

Weight

Fork-370g/Seat post-180g/frame-1090g-54cm

Seatpost

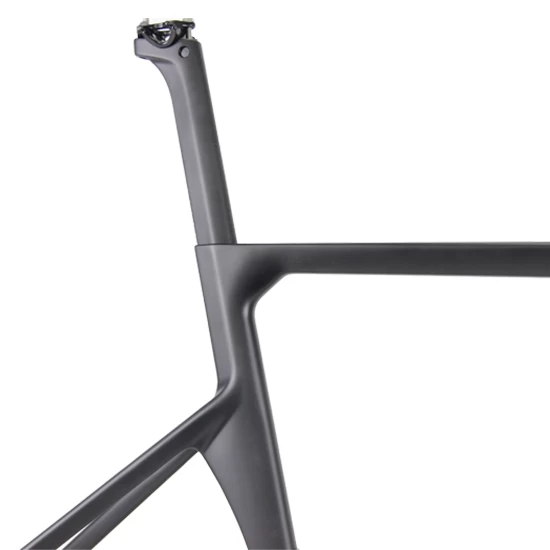

Aero seatpost

Bottom bracket

Press fit BB86

Max tire clearance

700*28c

Brake mount type

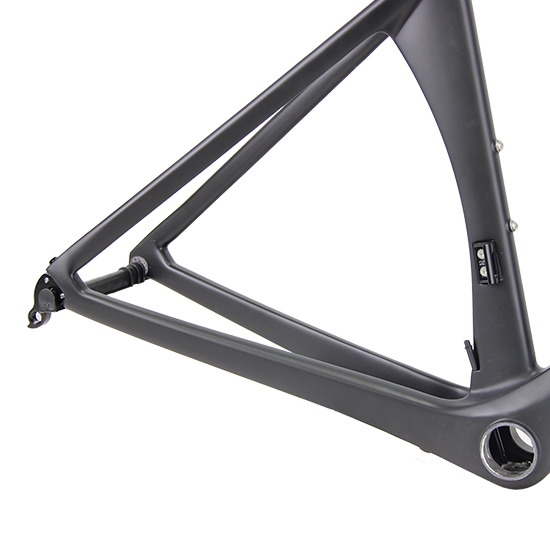

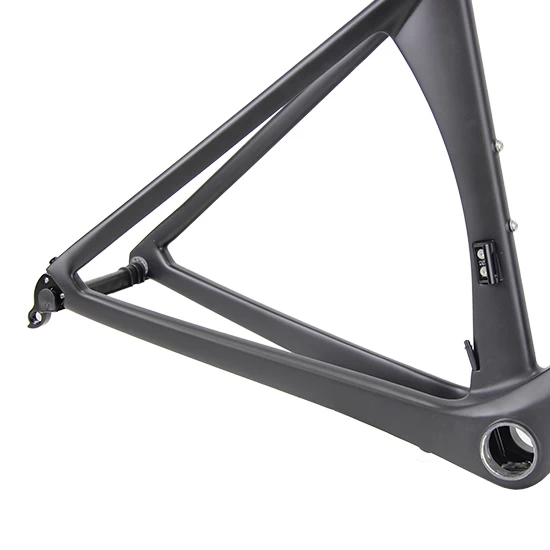

Direct mount/Rear brake install on chain stay

Dropout
 Front 9*100mm |Rear 10*130mm QR
Groupset Mechanical and Di2 compatible
Test Standard ISO4210
Warranty  2 years
