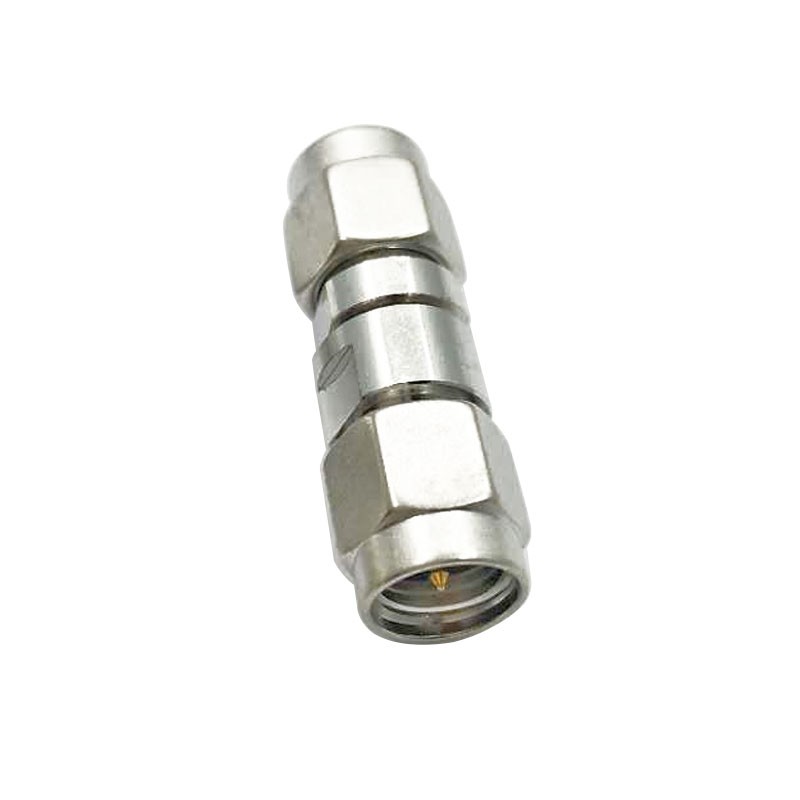

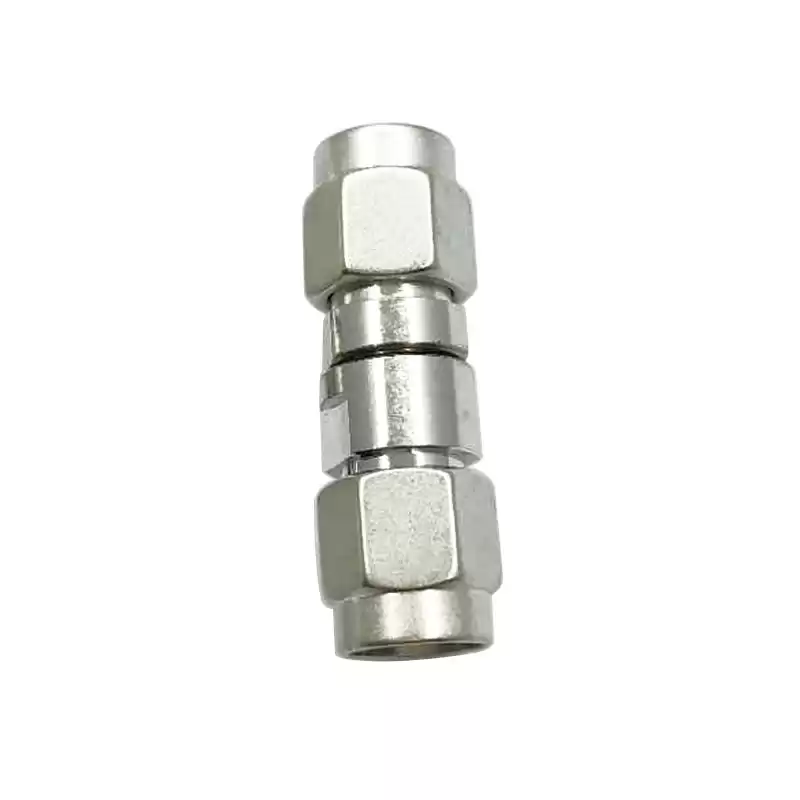

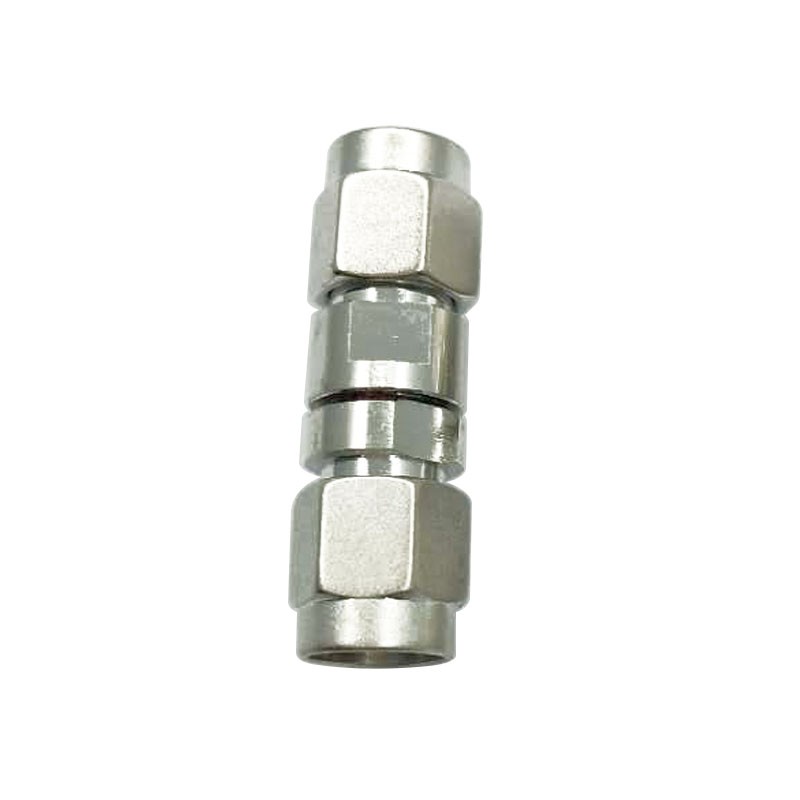

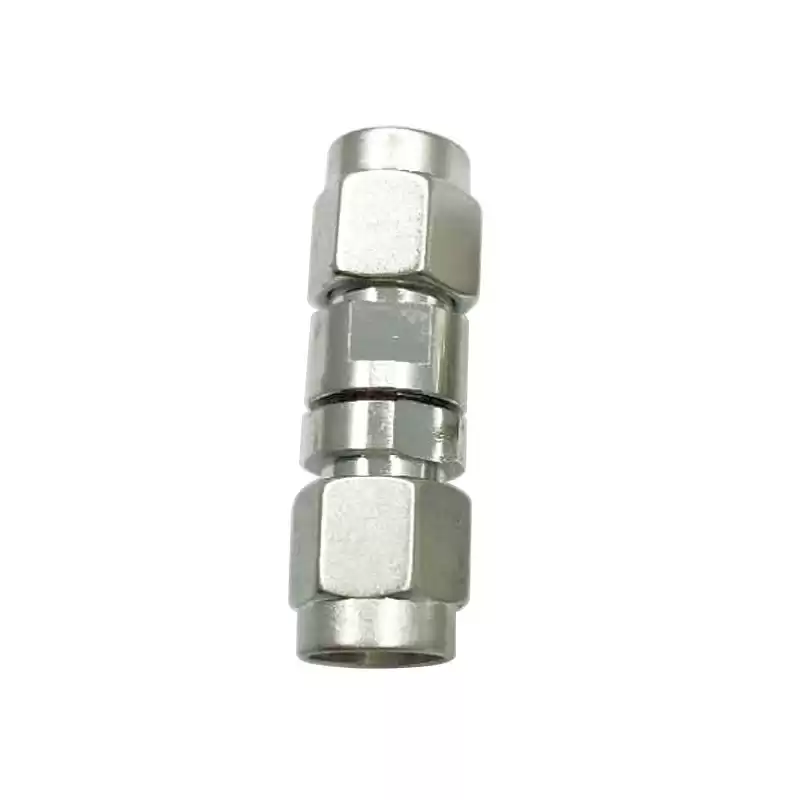

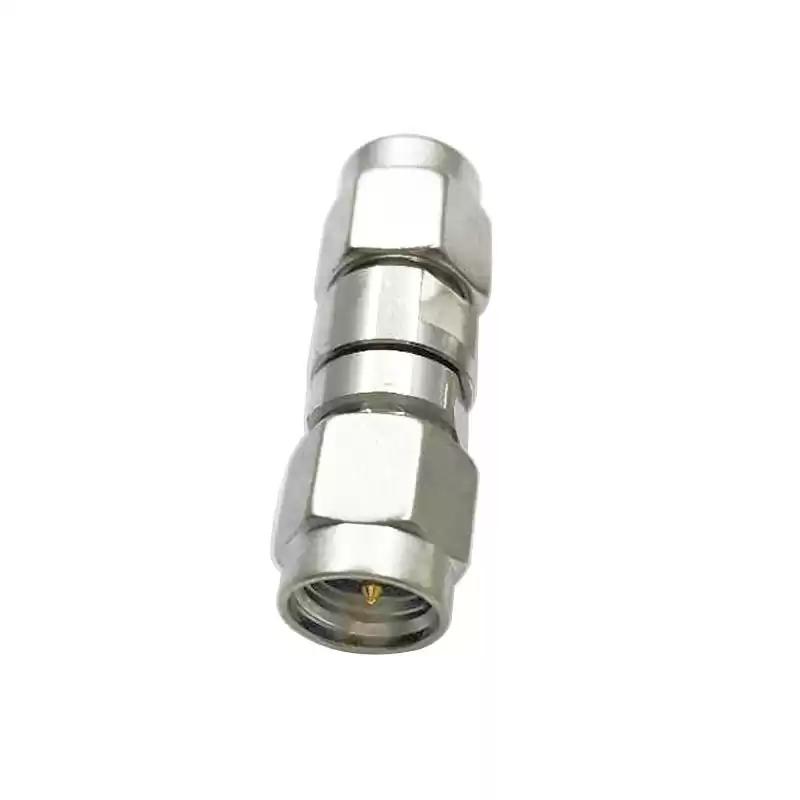

New SMA Male to SMA Male Straight RF Connector Adapter
The SMA Adapter has different SMA to SMA adapter gender. that is between a series coaxial adapter, The SMA to SMA adapters has female to female, male to female or male to male gender. This SMA male to SMA male adapter has a maximum frequency of 18GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA |
|
Adapter Side 1 Series |
SMA |
Adapter Side 1 Style |
Male |
Adapter Side 2 Series |
SMA |
Adapter Side 2 Style |
Male |
Frequency (Max GHz) |
18 |
Impedance (Ohms) |
50 |
Low PIM |
No |
Orientation |
Straight |
Temp (Max Degrees Celsius) |
165 |
Temp (Min Degrees Celsius) |
-65 |
MATERIAL DATA |
|
Body Material
|
Brass or Passivated Stainless Steel |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material |
PTFE |
Applications
- 5G Solutions
- Measurement Systems
- Civil & Military Aeronautics
- Microwave Systems Telecommunications
- Mobile Telephone WiFi Antennas Systems
- Military Equipment, Space
