New Type Coin Cell Cases Gold Coated CR2032
Product Specification
One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring. 300-500A thick Gold coating inside case by plasma sputtering coater
MOQ: 10set/bag
Material: SS304, gold plated.
Aluminum, Platinum, Silver coating on coin cell case inside are available upon request
Optional ( Gold coated Spring & Spacer )
|

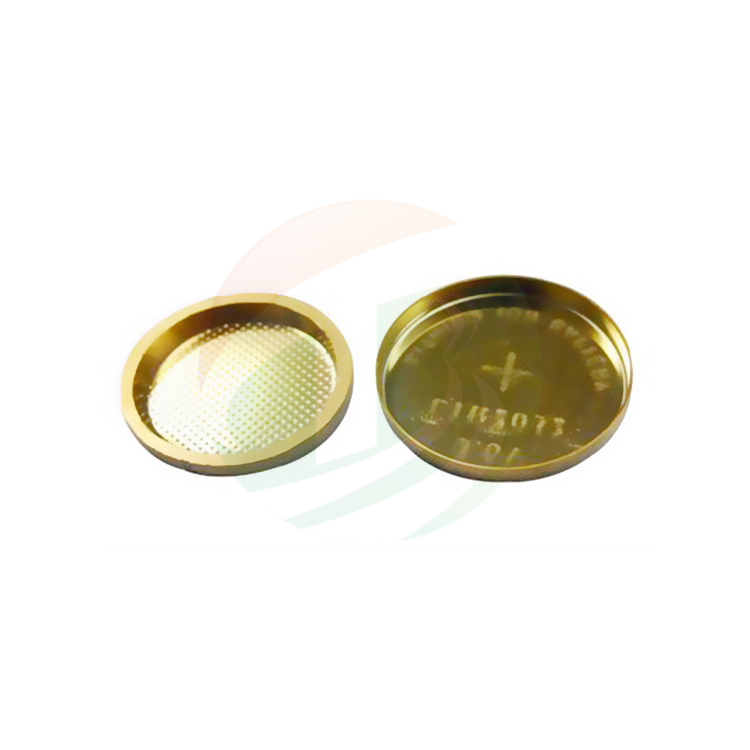

Coin cell cases
|
|
Dimensions (Dia x Height)
|
20 mm x 3.2 mm
|
|
Material
|
Stainless Steel 304 Case
Inner sides are gold coated to improve anti-corrosive resistance
Polypropylene Sealing Gasket
|
|
Weight
|
0.12Oz
|
|

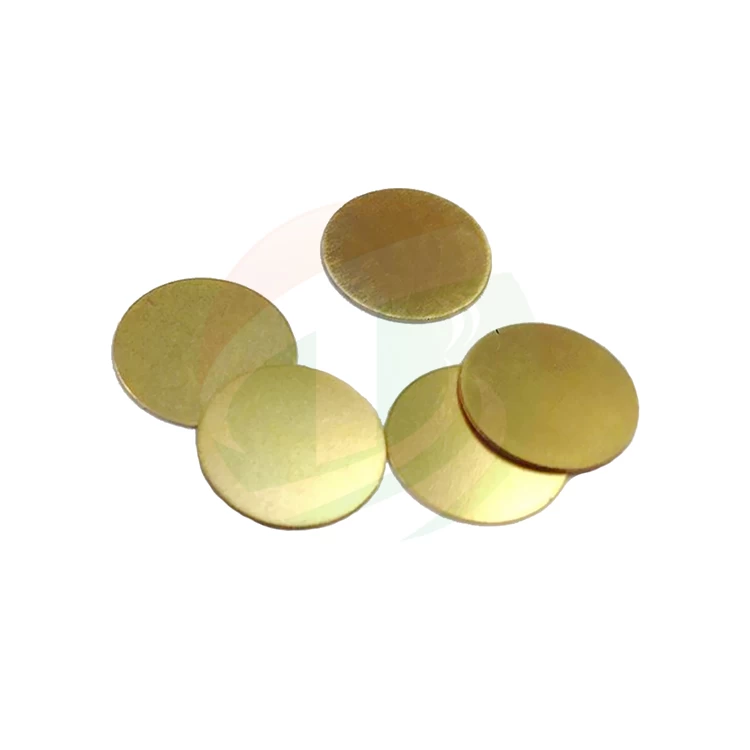

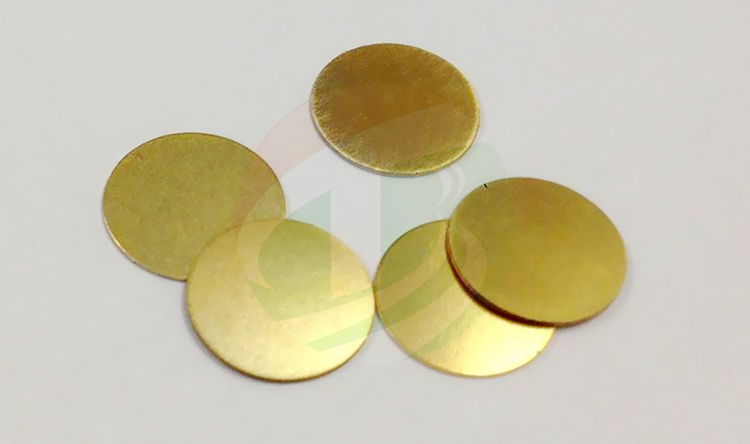

Coin Cell Spacer
|
|
Dimensions (Dia x Height)
|
15.5mm Diam x 0.5 mm (Thickness optional)
|
|
Weight
|
0.1 Oz
|
|

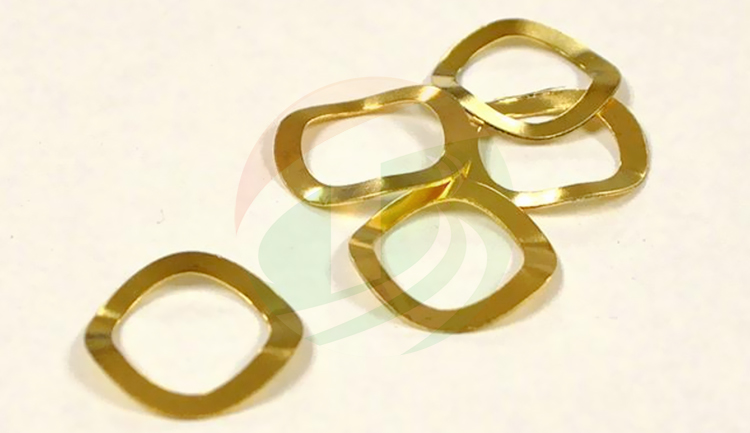

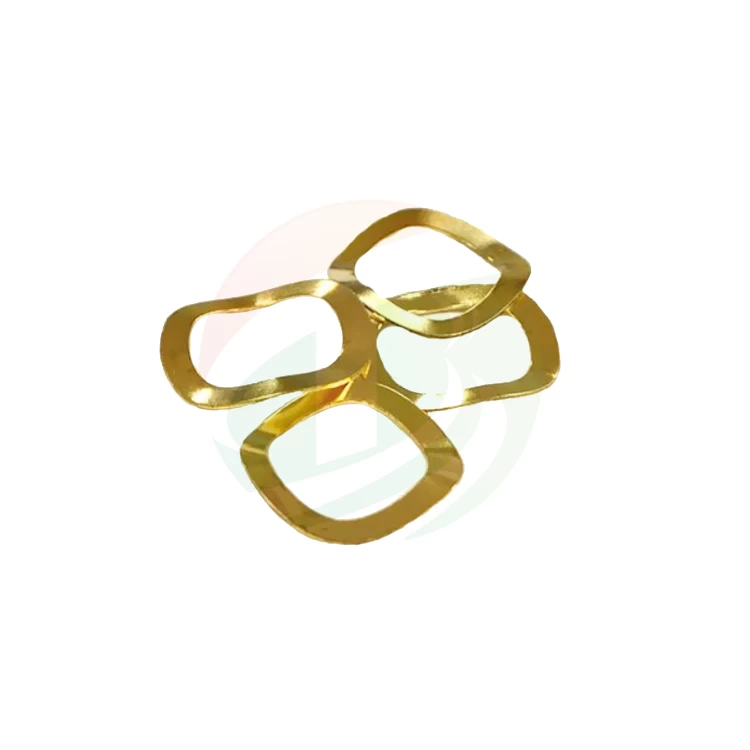

Coin Cell Spring
|
|
Dimensions (Belleville Washers)
|
14.5 mm O.D x 10.25 mm I.D x (1.2±0.05) mm Height
(from Crest to Trough) x 0.3mm Thickness
|
|
Dimensions (Conical spring)
|
15.4 mm dia x (1.2±0.03) mm height x 0.2mm thickness
|
|
Weight
|
0.1 Oz
|
Remark: When you order more than 5000sets, Our also can put your company Logo on to case and give you the wholesale price .
If you are interesting, we also can supply coin cell crimping machine
And stainless steel spacer and stainless steel spring and lithium chips... full set raw materials for coin cell battery.
