Newest 10hz q switch nd yag laser tattoo removal machine
ODI Laser tattoo removal machine adopts sapphire Q switch mode. It can effectively crush the pigments in the lesion tissues by using the laser to transmit strong power in a flash. It is called light explosion principle: high energy laser agglomeration instantaneous emission,the fixed wavelength laser can penetrate the epidermis into the lesion in very short time(only 10ns-20ns), crushing the corresponding pigment quickly, the corresponding pigment group heating expansion, then blasting fragmentation, a part of(epidermal) pigment group pops out of the body, other part of(Dermis) pigment can be fragmented into tiny particle engulfed and digested by human macrophages,finally excreted out of body through body's lymphatic circulatio. The pigments of pathological tissue will fade and disappear gradually while surrounding normal tissue is without damage as do not absorb the fixed wavelength laser.
Working Parameters
|
Laser type
|
Q-switch ND YAG Laser
|
|
Wave length
|
1064nm/532nm/carbon tip
|
|
Laser Pulse energy
|
0~1400mJ
|
|
Laser Pulse width
|
10ns-20ns
|
|
Laser Power
|
800w
|
|
Laser Frequency
|
1-10Hz
|
|
Guiding Light
|
Red infrared light
|
|
Laser Lamp life time
|
More than 1,500,000 shots
|
|
Screen
|
Touched Screen
|
|
Case Material
|
Metal
|
|
Laser Cooling condition
|
Wind + water
|
|
Laser Power source
|
220V/5A or 110V/10A
|
Advantages of YAG laser tattoo removal machine
Great Treatment Result
High energy for tattoo and pigment removal ect.
Convenient Operation
A. Instruction Light: Red infrared indicator
It helps to target small treatment area more accurately, treatment has greatly enhanced point utilization, cost saving.
10 HZ High Frequency
Fast shooting, save treatment time and with good effect
Excellent performance
UK-imported Laser Lamp .Japan imported fan
Water pump imported from Taiwan. Automobile Red Copper Radiator
External Water Tank, which is more easy to change water
Self-test System
It will stop working automatically and warn you which part breaking down if there is something wrong. In this case, it will help you to know and solve the problems more easily.
Quality Guarantee
Medical CE & ISO Certificated
Our strict and smooth production process has been audited BV and Medical CE, ensure the high quality of machines.

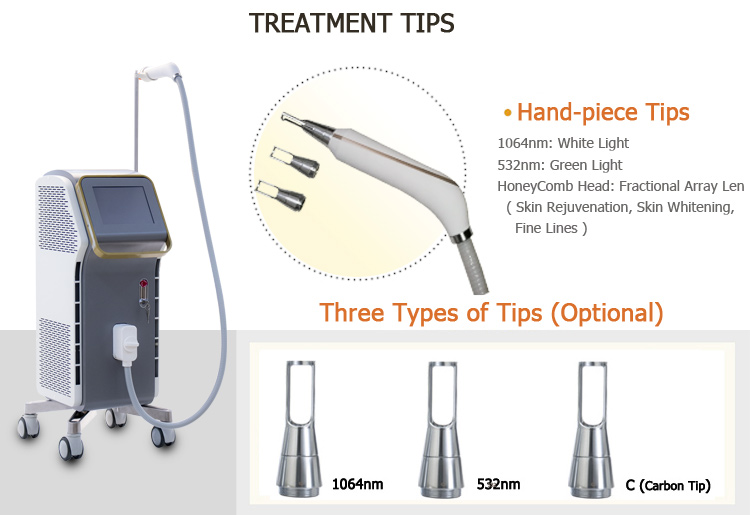

High Quality Handle
Application of q switch nd yag laser machine
1.1. Remove all color tattoo
2.2. Remove tattoo on whole body
3.3. Remove pigment, Nevus of Ota, blue nevus, blue nevus, freckle, age spot etc
4.4. Back doll treatment for skin whitening and rejuvenation, shrinking pore, face deep cleaning etc
Before & After
Notices
1. Please do remember to add enough water before using q switch nd yag laser machine
2. The handle of ODI Laser is equipped with a sophisticated, fragile laser device, hold it tightly to avoid dropping during placing and operation.
