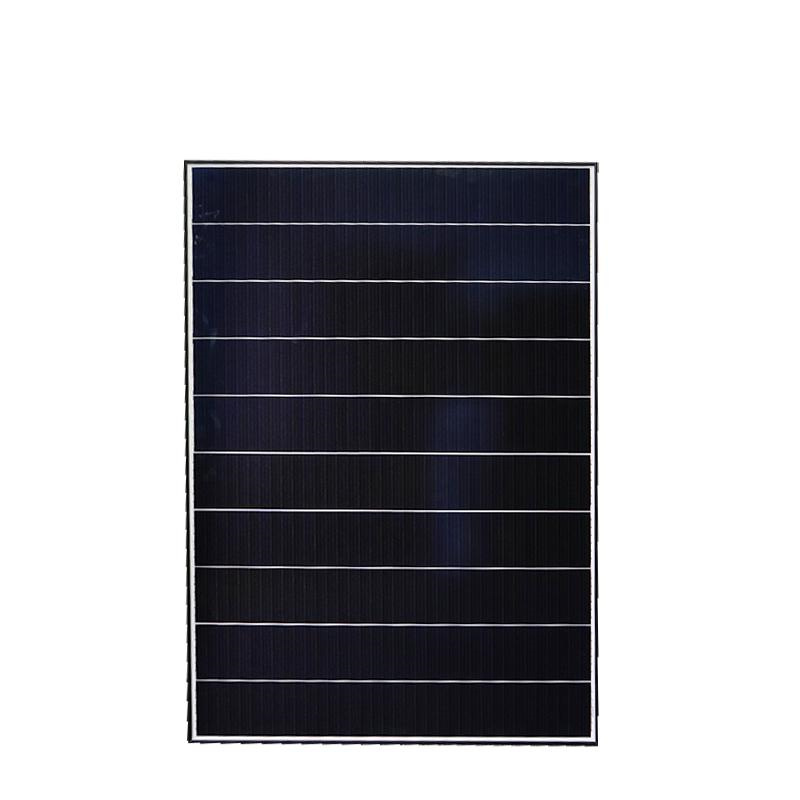

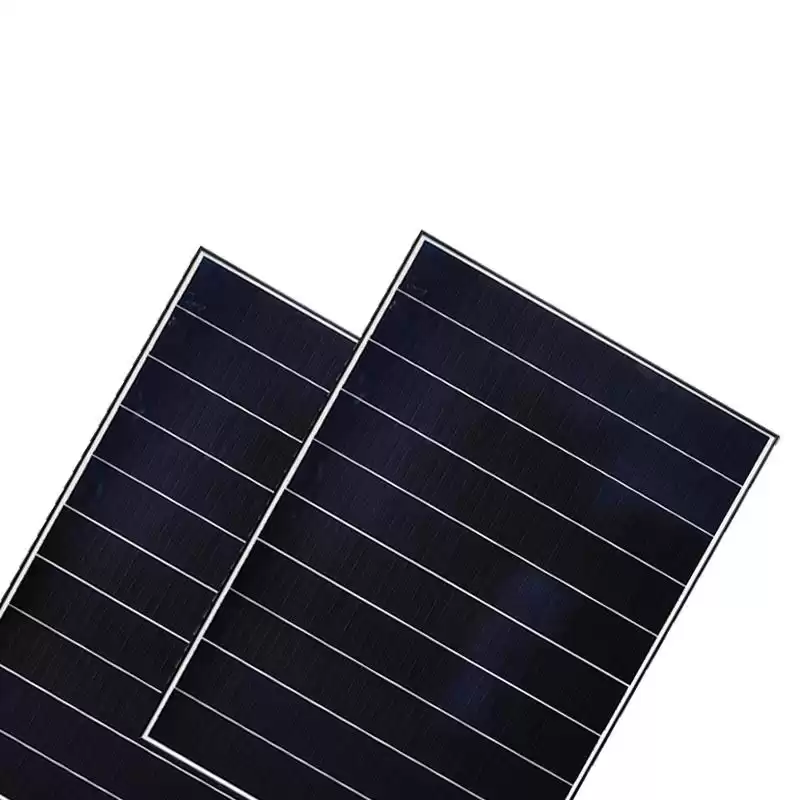

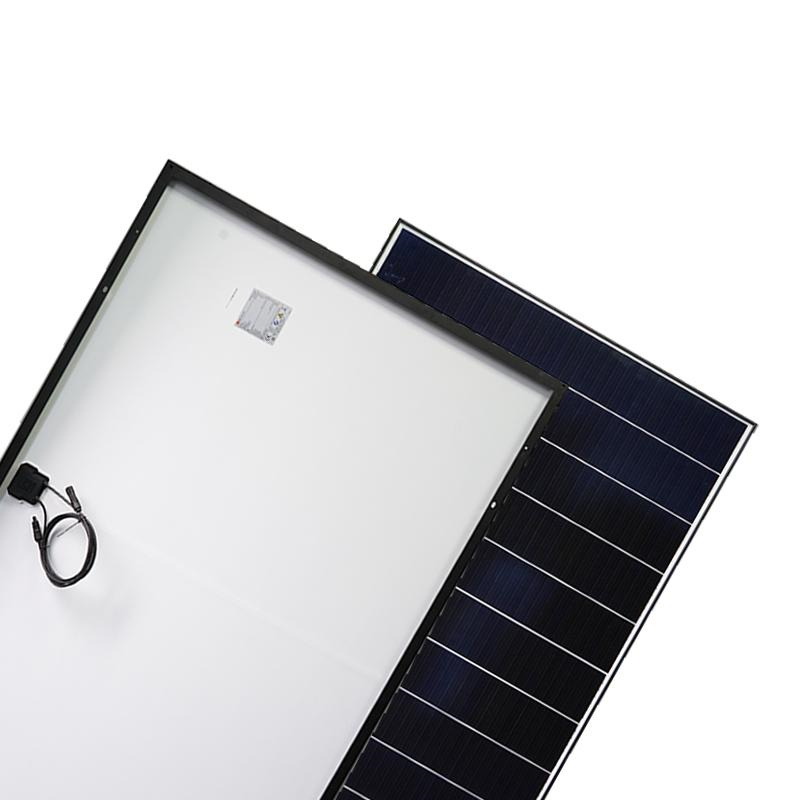

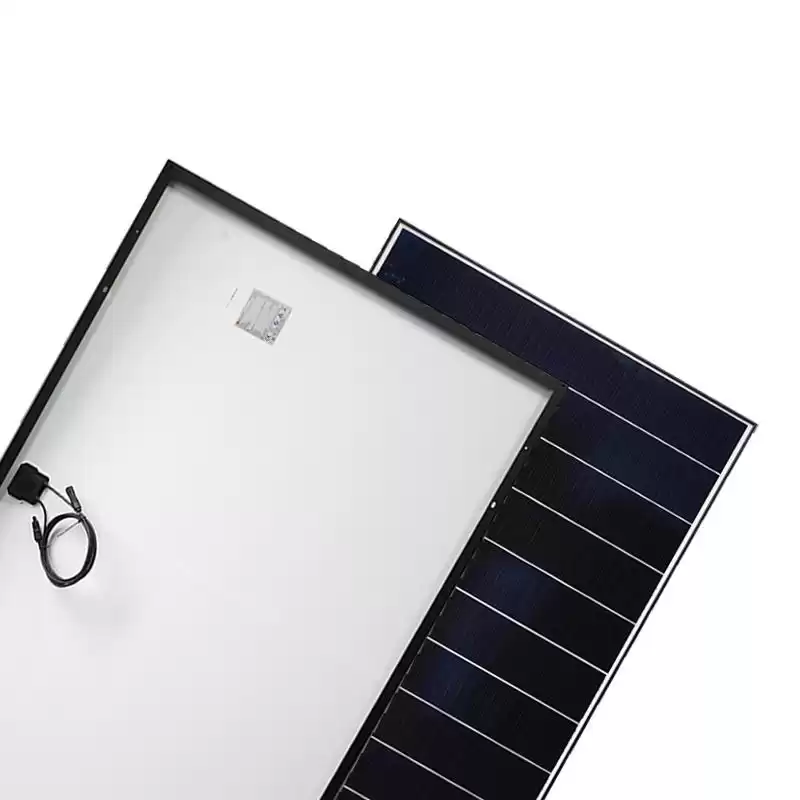

Monocrystalline PERC black frame Singled solar Panel
Product Details
-

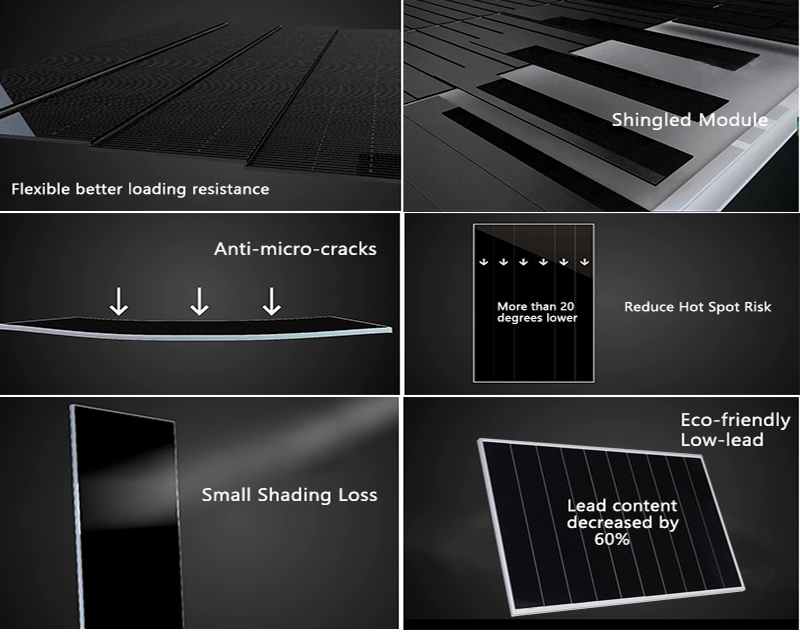

Technology:Innovative structure; Low temperature adhesive;High densitysetting
-
Beautiful appearance: Module’s layout is homogeneous and consistent;With more ;aestheticfeeling of science and technology
-
Safety and reliability:No micro-crack caused by welding; Lower operating temperature; High pressure resistance
-
Lower system cost:High screen-to-body ratiowhich reduce system cost
-
Low hot spot effect:Prolong module lifetime; Reduce electricity loss during generating
-
Lower occlusion loss:Parallel layout brings high effective generation hours
-
Green and environmental friendly:Insist environmental friendly faith; Fluorine-free and low Pb in module
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon
|
|
NO. of Cells
|
360(36*10)
|
|
Dimensions
|
1646*1140*35mm
|
|
Weight
|
20.5kg
|
|

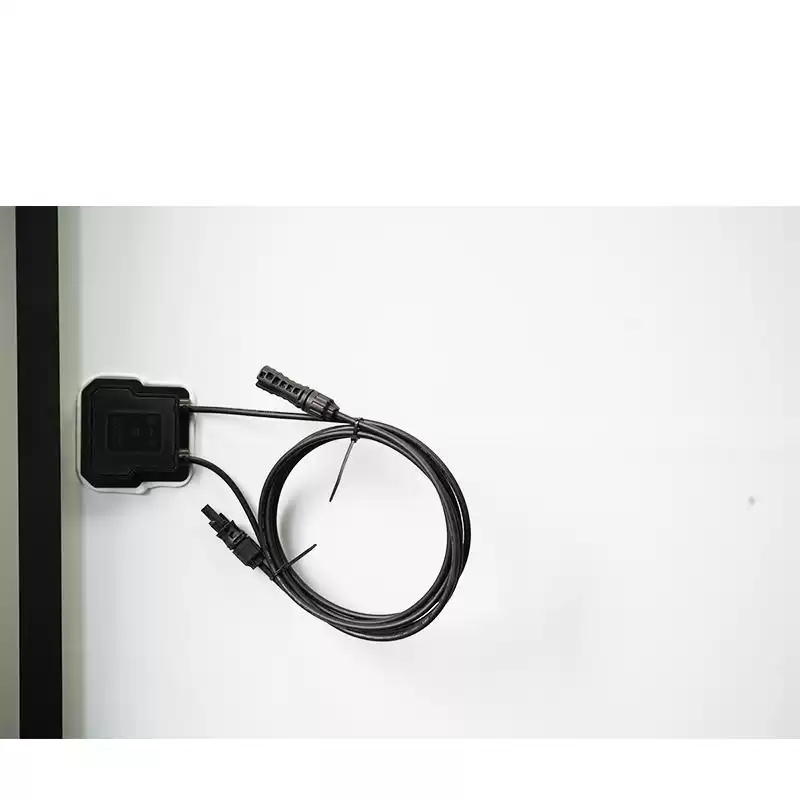

Junction Box
|
IP68, two diodes
|
|
Front Glass
|
AR coating tempered glass, 3.2mm
|
|
Frame
|
Anodized aluminum profile
|
|
Output Cables
|
4.0mm²,800mm（Be customized by customers）
|
|
Connectors
|
MC4
|
|
ELECTRICAL PARAMETERS
|
|
400
|
395
|
390
|
385
|
380
|
375
|
|
Rated Maximum Power (Pmax) [Wp]
|
400
|
395
|
390
|
385
|
380
|
375
|
|
Open Circuit Voltage (Voc) [V]
|
49.5
|
49.4
|
49.3
|
49.3
|
49.1
|
48.9
|
|
Short Circuit Current (Isc) [A]
|
10.12
|
10.07
|
10.03
|
9.98
|
9.93
|
9.89
|
|
Maximum Power Voltage (Vmp) [V]
|
41
|
40.9
|
40.8
|
40.8
|
40.6
|
40.4
|
|
Maximum Power Current (Imp) [A]
|
9.76
|
9.66
|
9.56
|
9.44
|
9.36
|
9.28
|
|
Module Efficiency [%]
|
21.3
|
21.1
|
20.8
|
20.5
|
20.3
|
20
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
DC 1500 /1000 (IEC)
|
|
Maximum Series Fuse Rating
|
20
|
|
Application Class
|
Class A
|
|
Maximum Surface Load Capacity[Pa]
|
5400
|
Difference
|
|
|

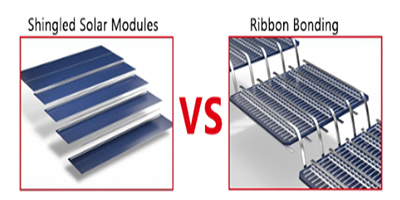

Different welding methods
|

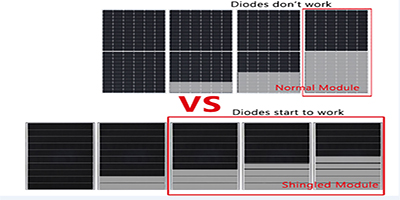

When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.
|

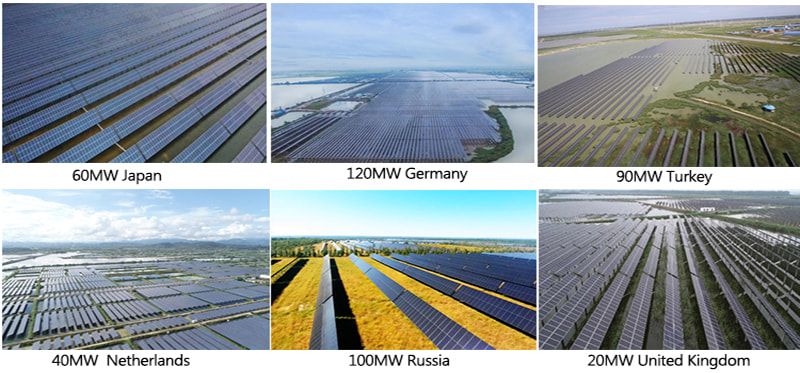

Projects
FAQ
Q1:What is the MOQ?
A1: A pallet if we have stock.But we recommend you to order a 20ft container because of the high sea freight
Q2: What about the lead time?
A2: Sample needs 10 days, mass production needs 2-3weeks.
Q3: What’s the warranty?
A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.
Q5: How can I contact you?
A5: Pls feel free to leave a message on our website, any question will be answered asap.
