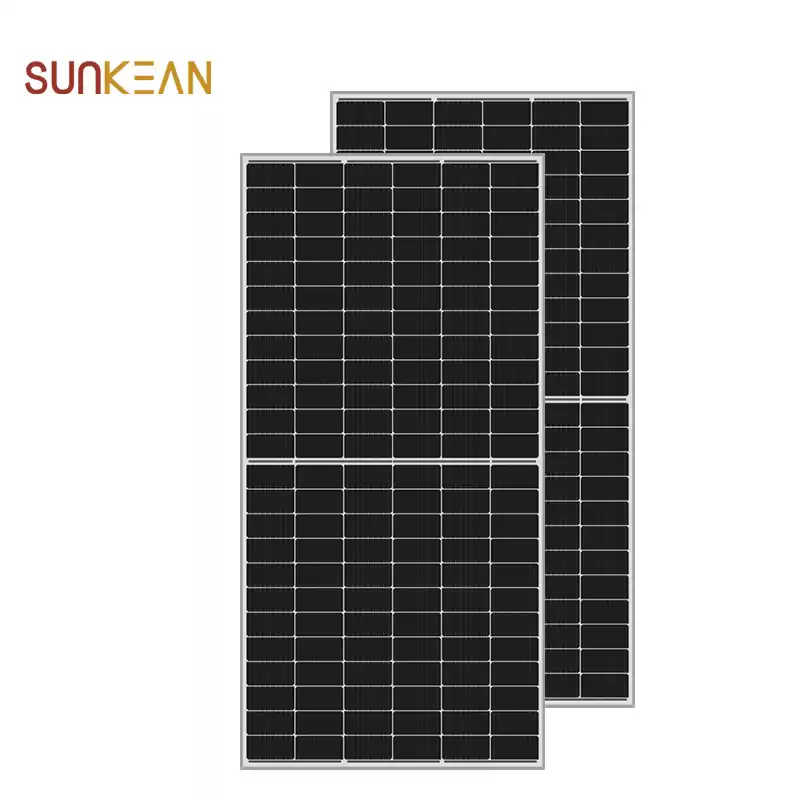

Newest technology 530W 540W pv modules half cell monocrystalline solar panel
For ultra-large power stations, it provides the optimal cost per kilowatt-hour for ultra-large power station systems. The product uses gallium-doped PERC cells, which has better anti-attenuation ability and more efficient power generation.
Product Characteristics:
|

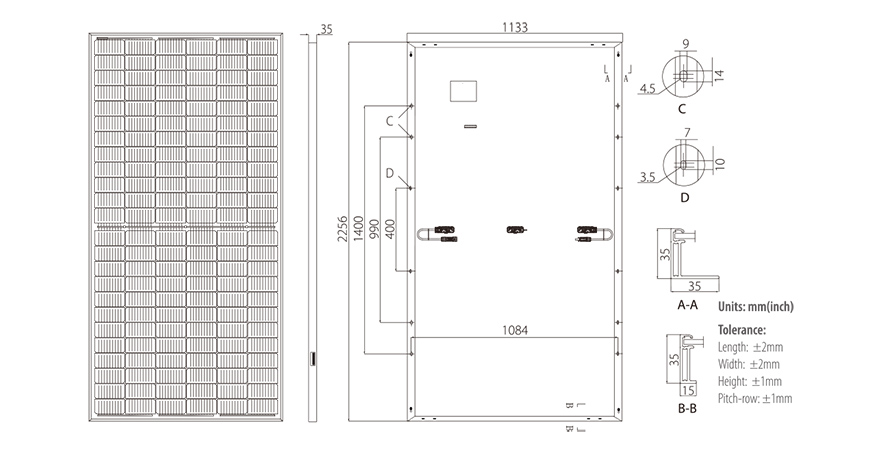

Mechanical Characteristics
|
|
No.of Half-cells
|
144 (6x24)
|
|
Dimensions
|
2256x1133x35 mm
|
|
Weight
|
27.2 kg
|
|
Frame
|
Anodized Aluminium Alloy Frame
|
|
Junction Box
|
IP68, three diodes
|
|
Output Cables
|
4.0mm2, positive pole 400mm,
and negative pole 200mm in length,
length can be customized
|
Glass
|
Single glass
3.2mm coated tempered glass
|
Operating Parameters
|
|
Operational Temperature
|
-40°C~+85°C
|
|
Power Output Tolerance
|
0~+5W
|
|
Voc and lsc Tolerance
|
±3%
|
|
Maximum System Voltage
|
DC 1500V (IEC/UL)
|
|
Maximum Series Fuse Rating
|
25A
|
|
Maximum Series Fuse Rating
|
45±2°C
|
|
Safety Class
|
Class II
|
|
Fire Rating
|
UL type 1 or 2
|
Product Parameter:
Module Type
|
SK5-72HPH-525M
|
SK5-72HPH-530M
|
SK5-72HPH-535M
|
SK5-72HPH-540M
|
SK5-72HPH-545M
|
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
Maximum Power (Pmax/W)
|
525
|
392.1
|
530
|
395.8
|
535
|
399.5
|
540
|
403.3
|
545
|
407.0
|
Open Circuit Voltage(Voc/V)
|
49.0
|
45.98
|
49.2
|
46.12
|
49.35
|
46.26
|
49.50
|
46.41
|
49.65
|
46.55
|
Short Circuit Current(Isc/A)
|
13.65
|
11.04
|
13.71
|
11.09
|
13.78
|
11.15
|
13.85
|
11.20
|
13.92
|
11.25
|
|
Voltage at maximum Power(Vmp/V)
|
41.2
|
38.36
|
41.35
|
38.50
|
41.5
|
38.64
|
41.65
|
38.78
|
41.80
|
38.92
|
Current at Maximum Power(Imp/V)
|
12.75
|
10.23
|
12.82
|
10.28
|
12.9
|
10.34
|
12.97
|
10.40
|
13.04
|
10.46
|
Module Efficiency STC (%)
|
20.5%
|
20.7%
|
20.9%
|
21.1%
|
21.3%
|
*STC(Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
*NOCT (Nominal Operating Cell Temperature: Irradiance 800W//m2, Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1m/S
Solar panel production process:
Packing & Delivery:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, Half cell solar panel, PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
