Product Name

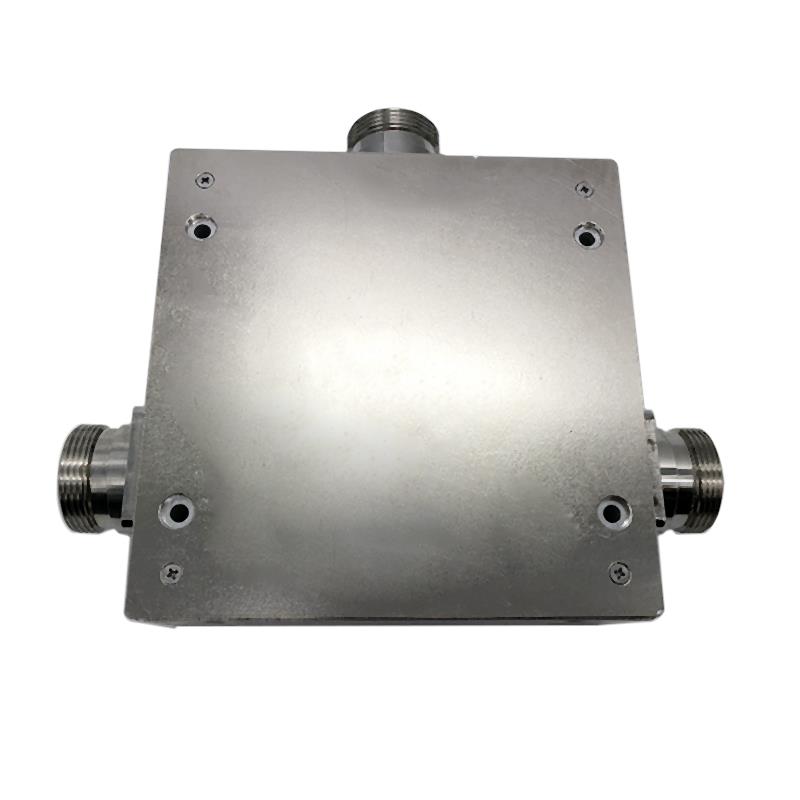

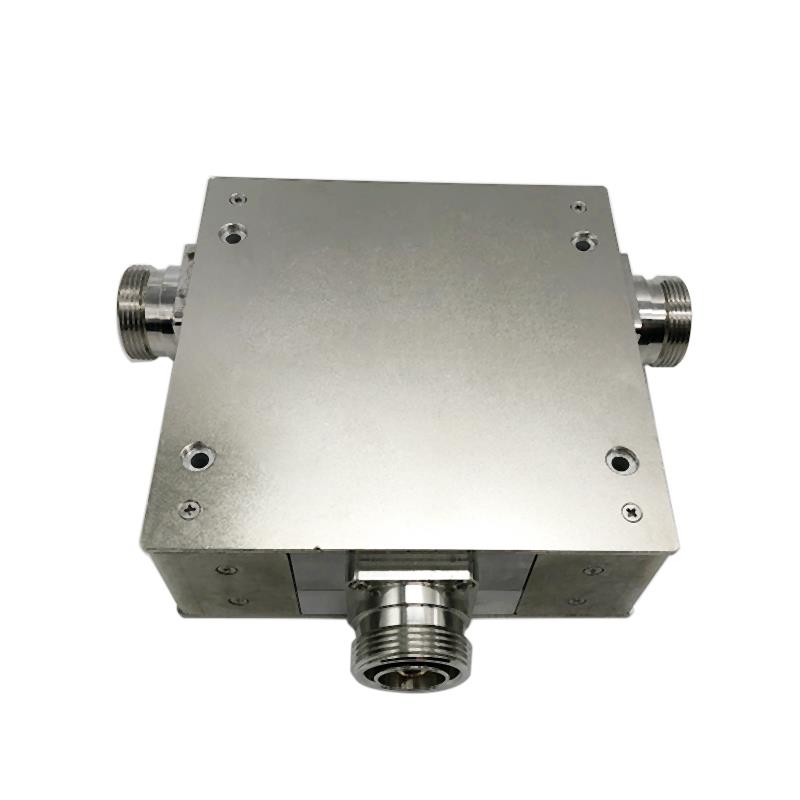

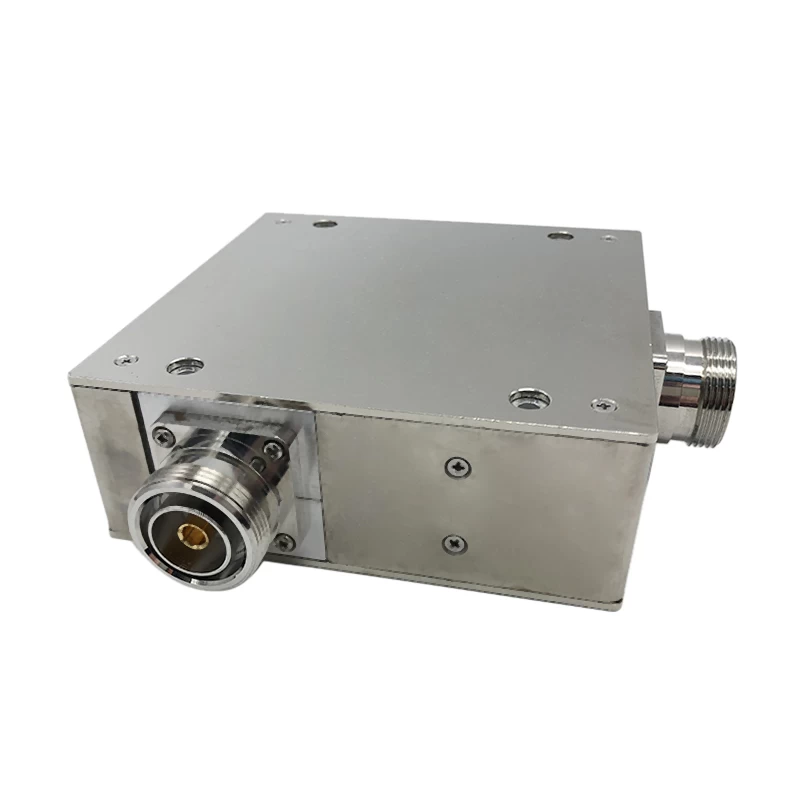

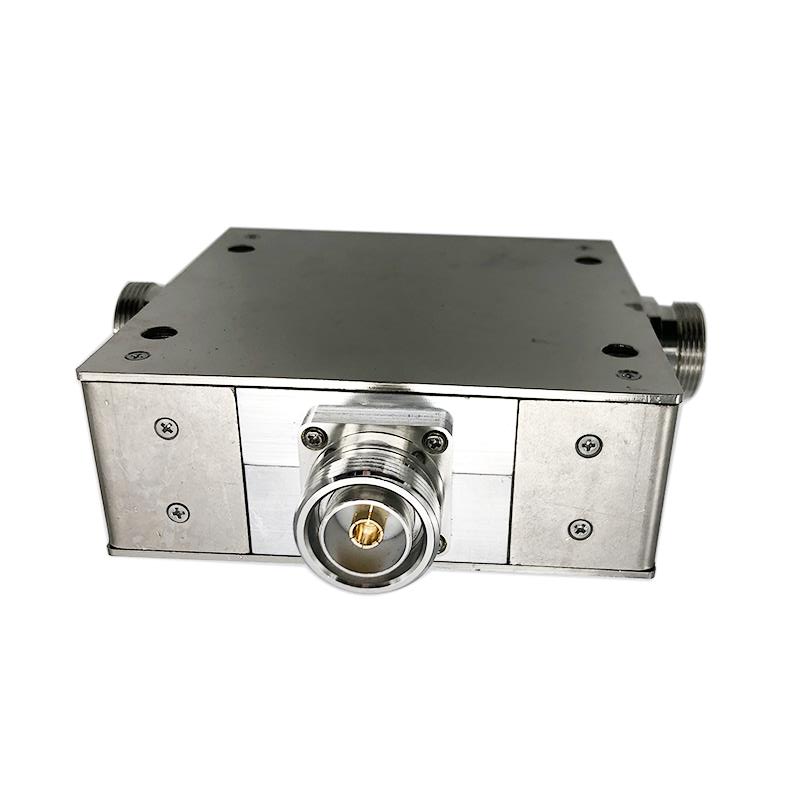

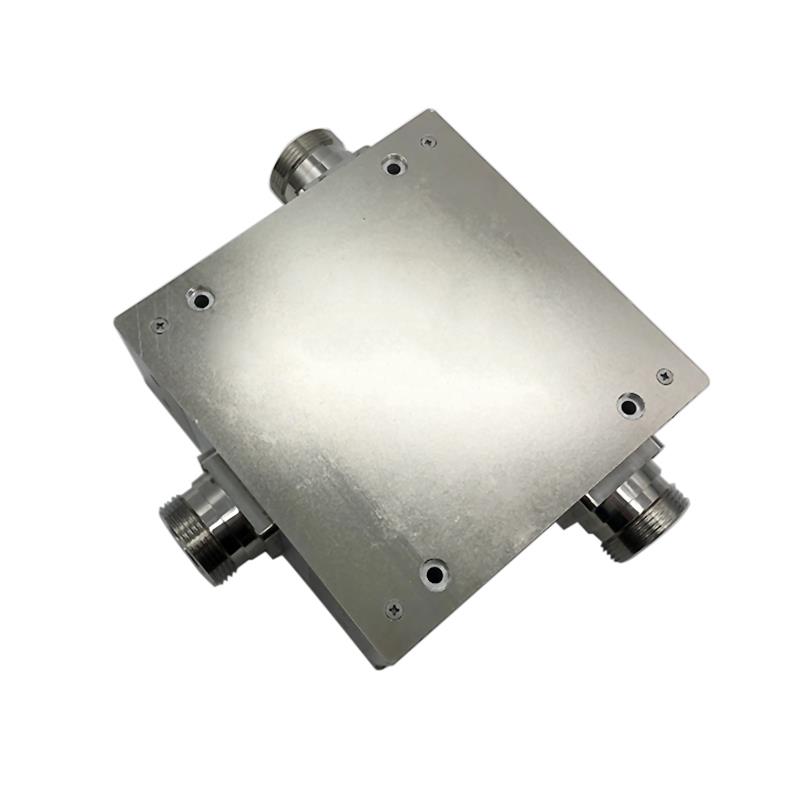

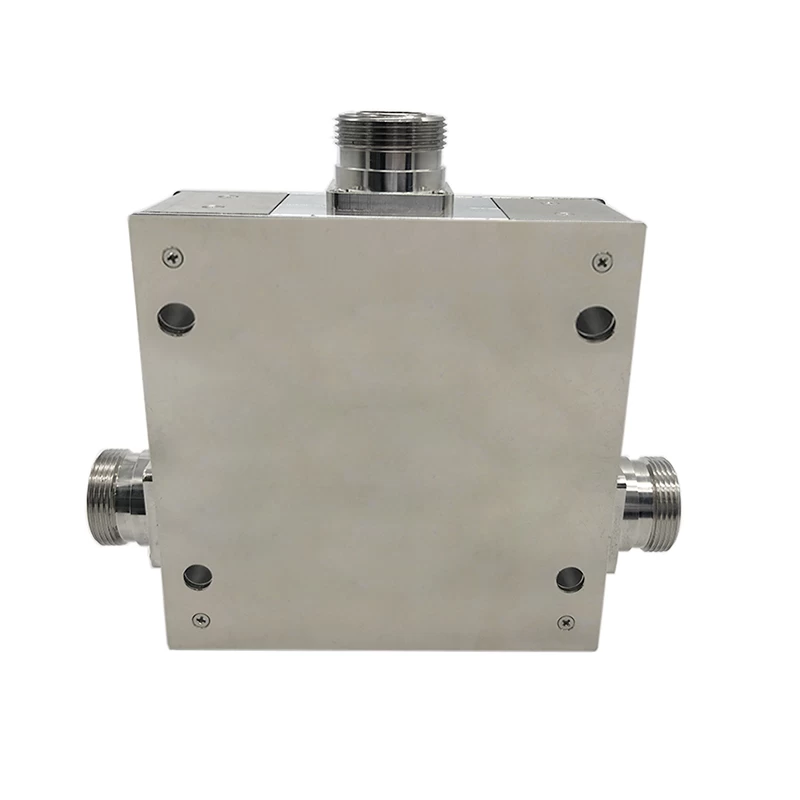

Coaxial Isolator(170-210MHz,DIN connector type,900W)
Product Features
170-210MHz RF Circulator is Low VSWR,Low Insertion loss and High Isolation and L29-F RF Circulator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Frequncy range (频率)
|
170-210MHz
|
|
Peak Power (峰值功率)
|
4500W
|
|
Insertion Loss (损耗)
|
≤0.35dB
|
|
Isolation (隔离)
|
≥20dB
|
|
VSWR（驻波）
|
≤ 1.20
|
|
Power Rating（通过功率）
|
900W/CW
|
|
Operating Temp（温度范围）
|
-30~+60℃
|

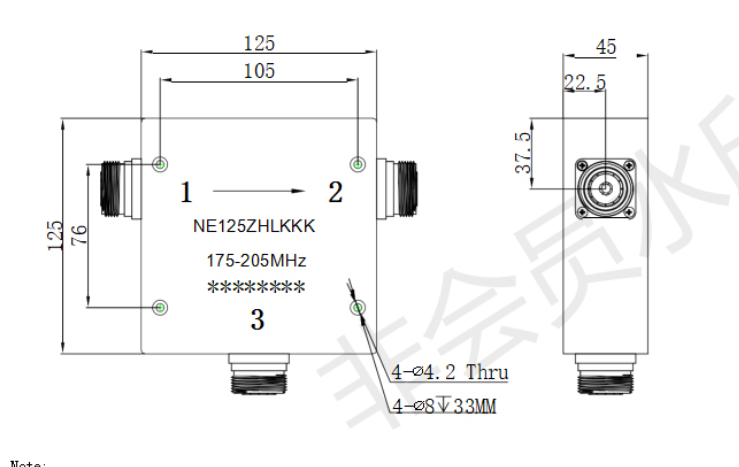

Mechanical Drawing (mm)
