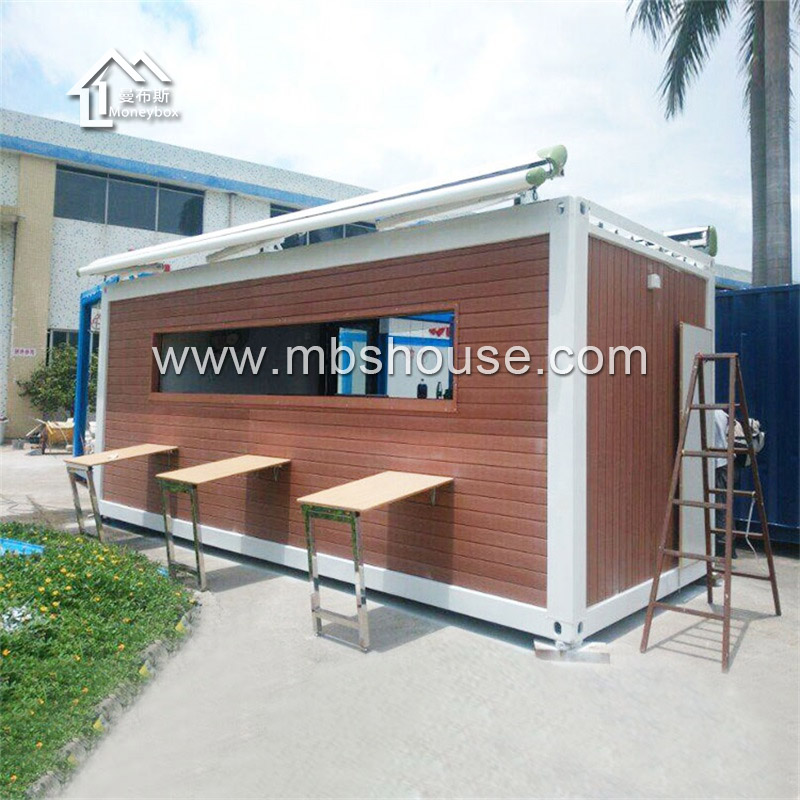

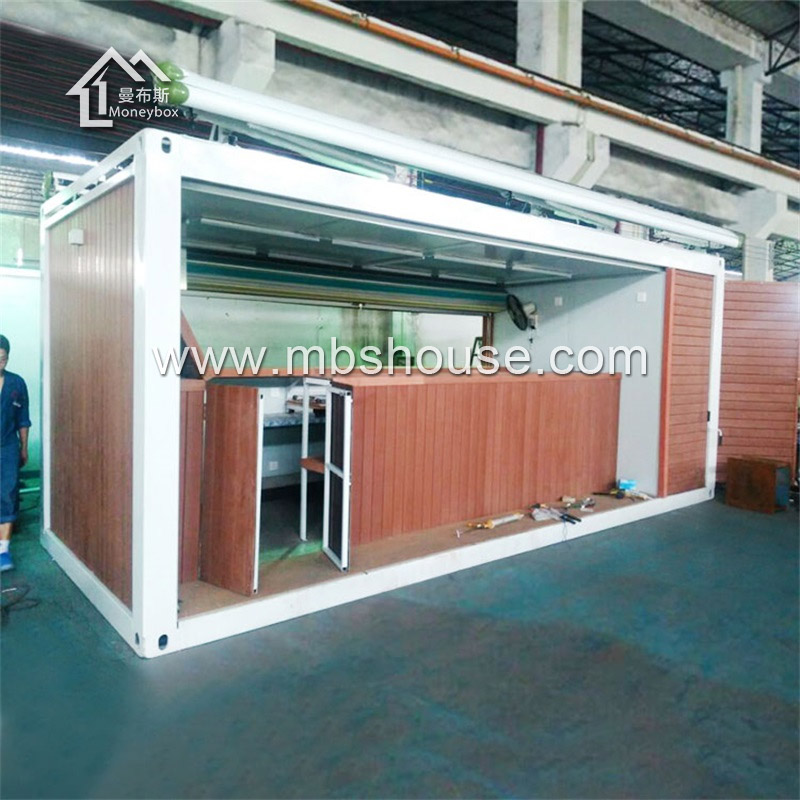

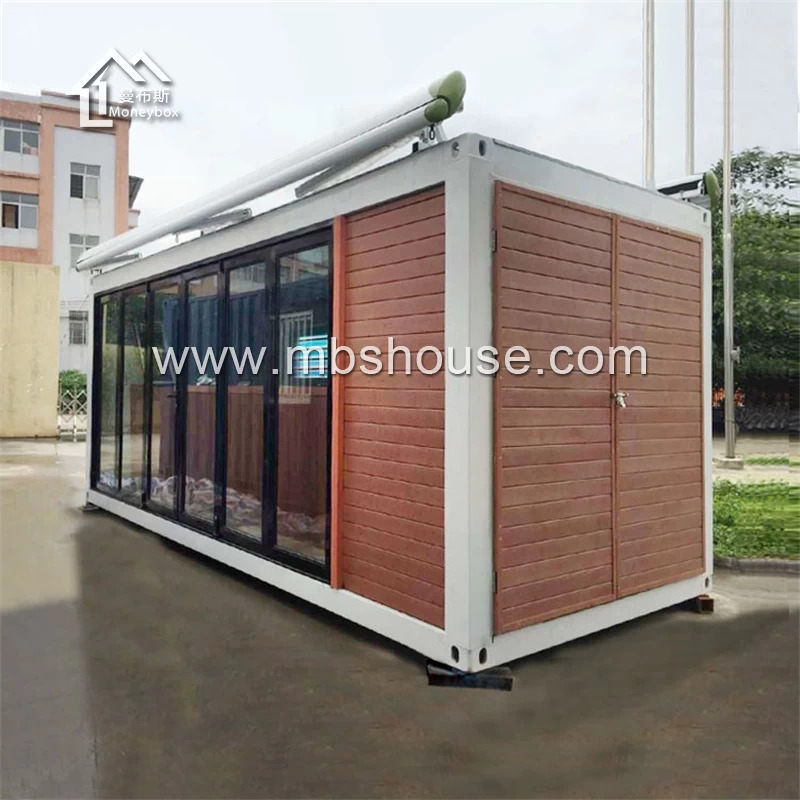

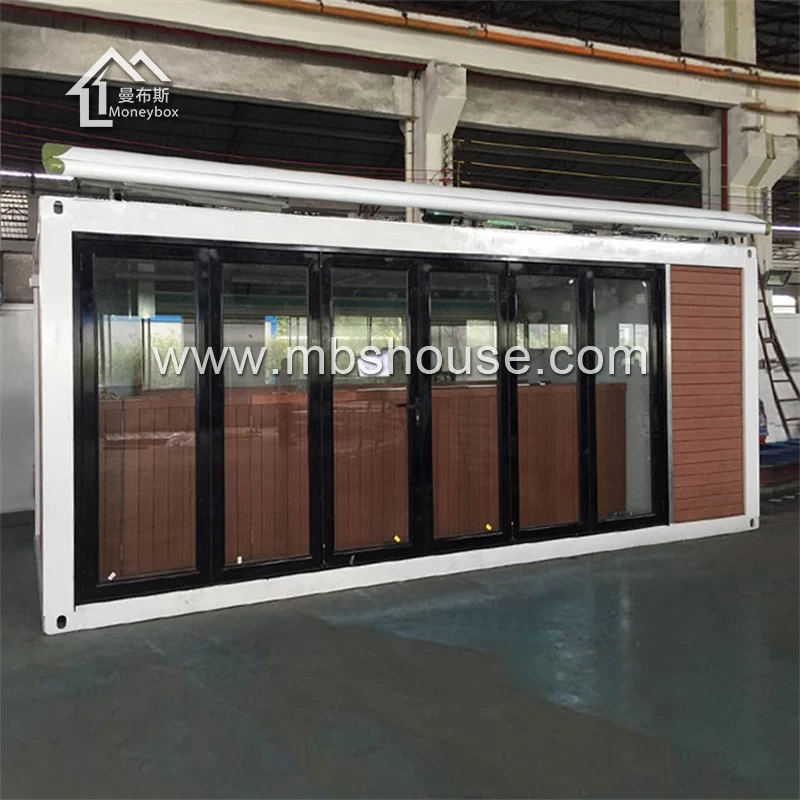

Newly Fashionable Mobile Prefabricated Flat-Pack Container Coffee Shop Design
Product Character:
1.Environment protective no garbage caused
2.Safe,Low cost,easy to installation
3.Flexible fixing,light weight
4.Doors, windows, and interior partitions can be flexibly fixed
5.Beautiful appearance, different colors for the wall and roof
6.Cost saving and transportation convenient
7.Anti-rust and normally more than 15 years using life
|
No.
|
Component
|
Description
|
Thickness
|
|
1
|
Main Steel Structure
|
8#C Steel,Square Tube,Angle Iron,Flat Tube, Round Tube
|
2.0mm
|
|
2
|
Roof Tile
|
PU or EPS Tile
|
20-150mm
|
|
3
|
External Wall Panel
|
50-250mm EPS,PU,Rockwool or EPS Cement with
Two-sides Color Steel Sandwich Panel
|
0.326mm for Color Steel Sheet
|
|
4
|
Door
|
Color Steel Sandwich Panel Door
|
870mm(W) × 2100mm(H)
|
|
5
|
Window
|
PVC Sliding Window
|
1200mm(W) x 1000mm(H)
|
|
6
|
Flooring
|
Plywood or PVC
|
15/20mm
|
|
7
|
Ceiling
|
PVC or Gypsum Board
|
8-12mm
|
|
Technical Parameter
|
|
No.
|
Description
|
Specification
|
|
1
|
Bearing Load
|
150kg/square meters
|
|
2
|
Wind Pressure
|
0.45KN/square meters Equal 10 Grade
|
|
3
|
Earthquake Resistance
|
7 Grade
|
|
4
|
Temperature Resistance
|
(-25°C) to 50 °C
|
|
5
|
Life Span
|
More Than 12 years
|
