Items
|
Specifications
|
|
Model
|
NFAI143-H50
|
|
Number of input channels
|
16-channel input, isolated
|
|
Input signal
|
4 to 20 mA
|
|
Allowable input current
|
24 mA
|
|
Withstanding voltage
|
Between input and system: 1500 V AC for 1 minute (*3)
|
|
Overcurrent protection
|
Provided
|
|
Data refresh cycle
|
10 ms
|
|
Input step response time
|
100 ms
|
|
Transmitter power supply
|
24.0 to 25.5 V (output current limit: 25 mA)
|
|
Setting of 2-wire or 4-wire transmitter
|
For each channel by setting pin
|
|
Maximum current consumption
|
230 mA (5 V DC)
|
|
540 mA (24 V DC)
|
|
Weight
|
0.3 kg
|
|
External connection
|
Pressure clamp terminal, MIL connector cable (*3)
|
|
*HART Communication (2)
|
Available
|

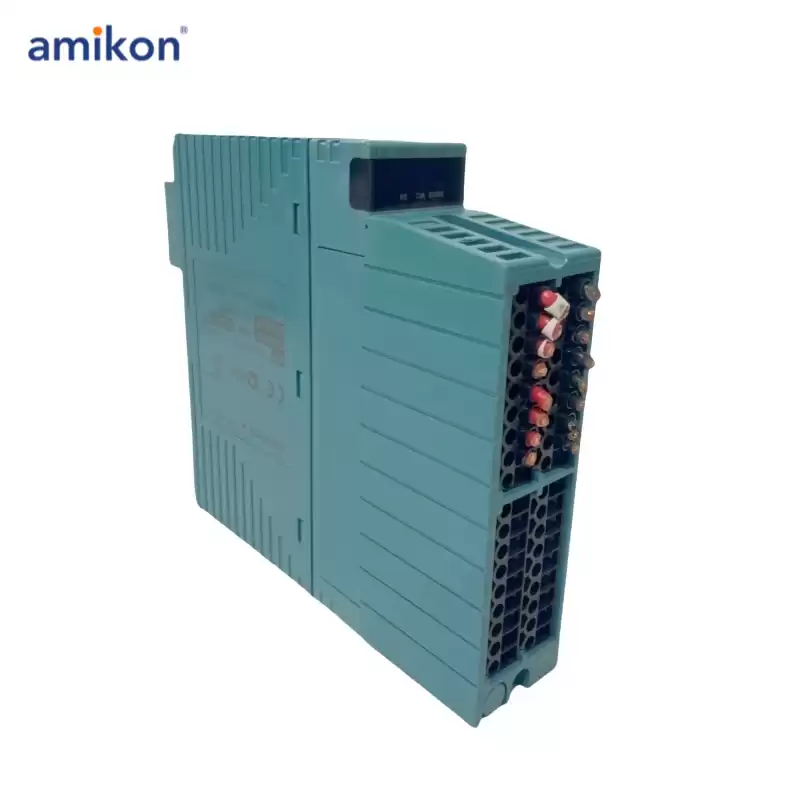

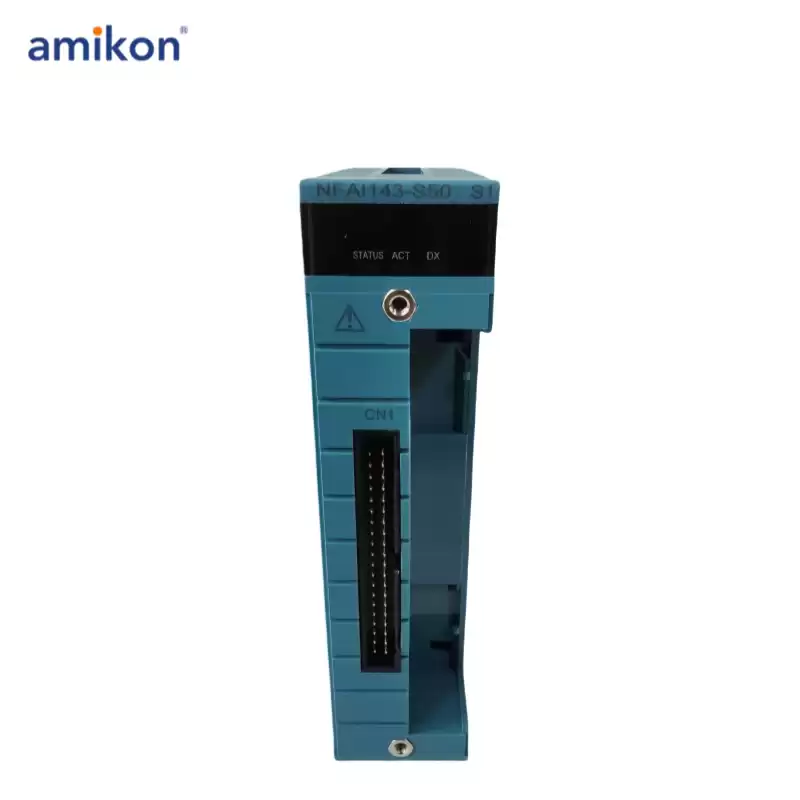

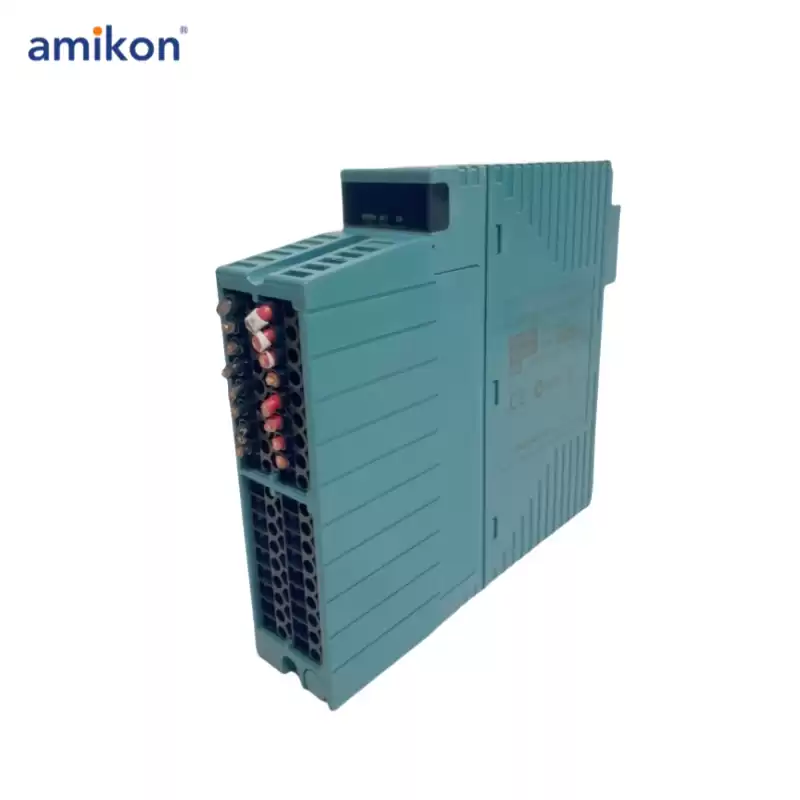

The NFAI143-H50 Yokogawa Base Module is a 19-inch rack-mounted chassis designed to support the assembly of control systems. It can accommodate up to 8 I/O modules and 2 power supply modules, providing a flexible foundation for a range of applications. With a compact design and a maximum power consumption of 0.4 A, this base module is essential for integrating various function modules like CPUs and I/O interfaces, ensuring a reliable and scalable control system setup.
