Attribute
|
Details
|
|
Model
|
NFBU200-S00
|
|
Max Number of Mountable I/O Modules
|
8
|
|
Number of Mountable Power Supply Modules
|
2 (*1)
|
|
Weight
|
1.9 kg
|
|
Dimensions
|
482 × 132.5 × 40.5 mm
|
|
Mounting
|
19-inch rack-mounted
|
|
Maximum Power Consumption
|
0.4 A (max)
|

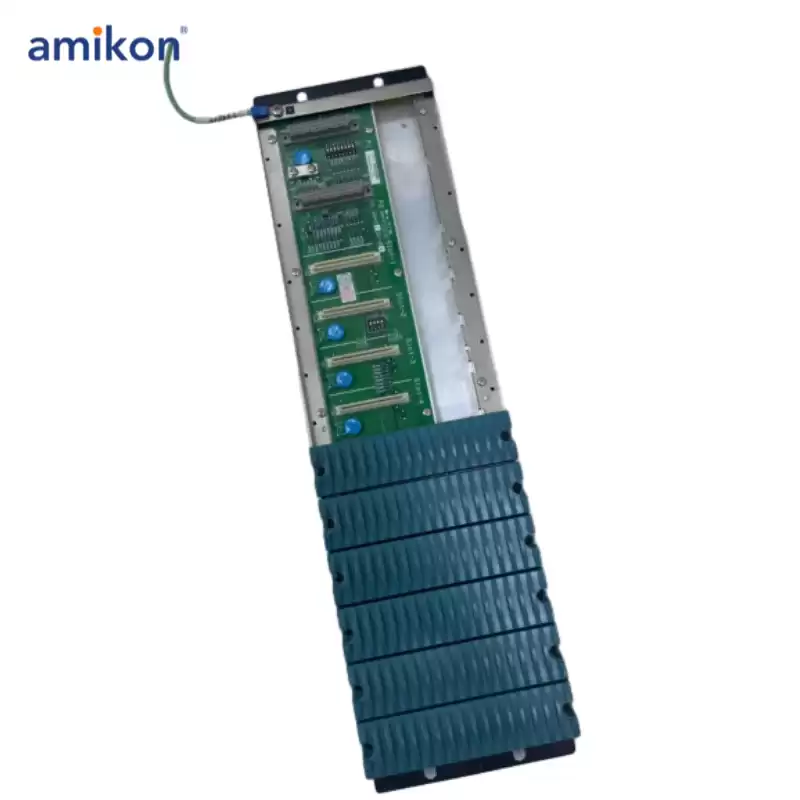

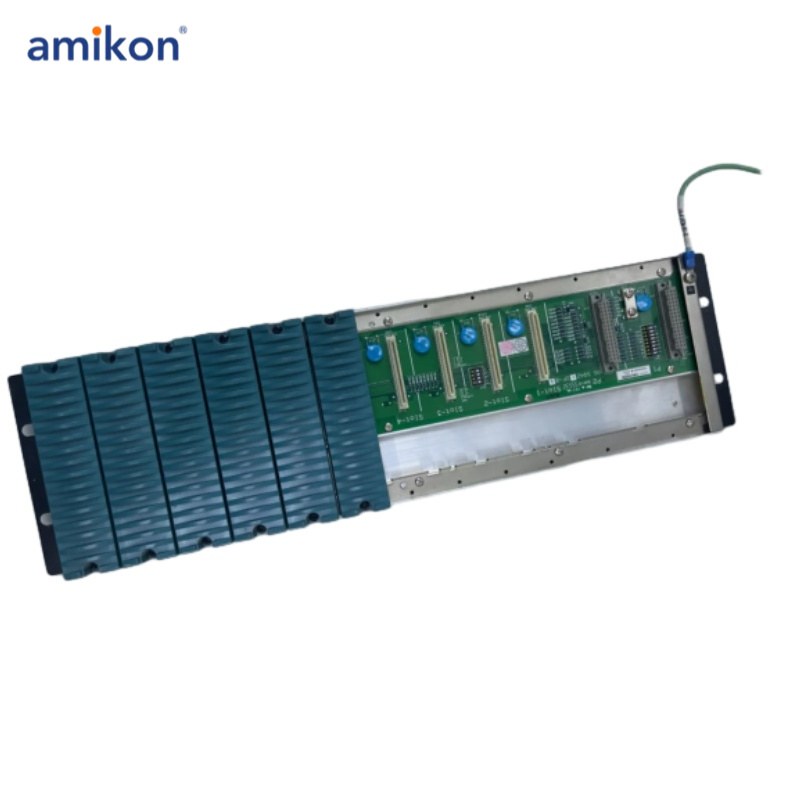

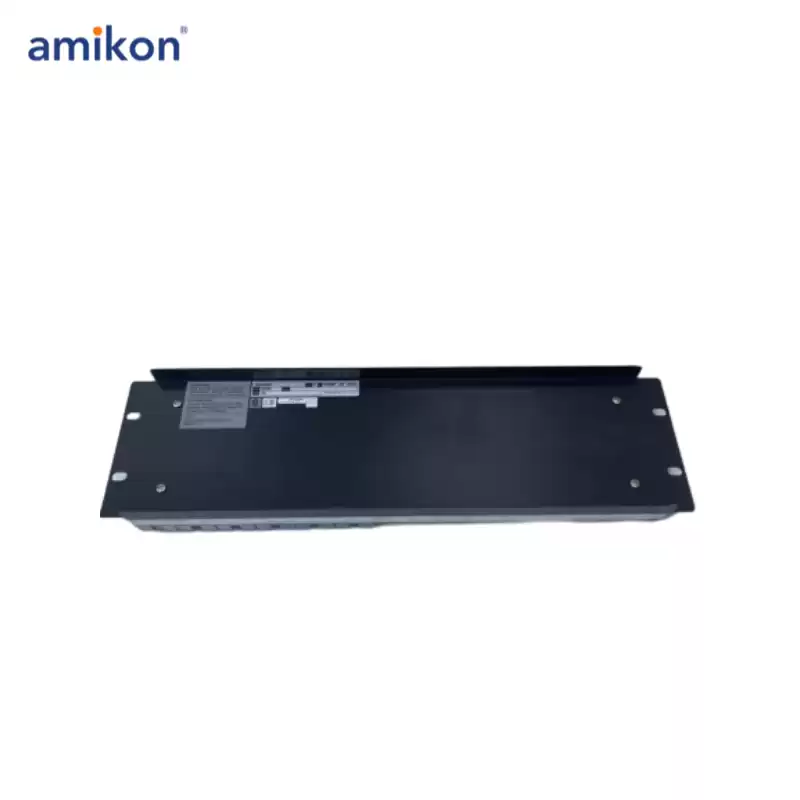

A base module is a chassis on which various function modules such as CPU, power supply, and I/O modules are mounted to configure a control unit.
NFBU200-S00 FEATURES:
• High performance and low power consumption modular controller
• Memory with ECC.
• FCN-RTU can be used wide temperature range and high altitude place.
• Analog and digital I/Os adequate for gas/oil wellhead control built in CPU module
• Four serial ports for plural communications built in CPU module
• Up to eight additional I/O modules (with NFBU200)
• Wide voltage range (10 to 30 VDC input) power supply module (NFPW426)
• Power supply module can be duplexed (NFBU200 with NFPW444)
• Low heat dissipation eliminates the need for a fan
• A wealth of RAS features — CPU self-diagnostics, temperature monitoring, I/O diagnostics, and more
• Additional I/O modules (except CPU embedded I/Os) hot-swappable
