General Description

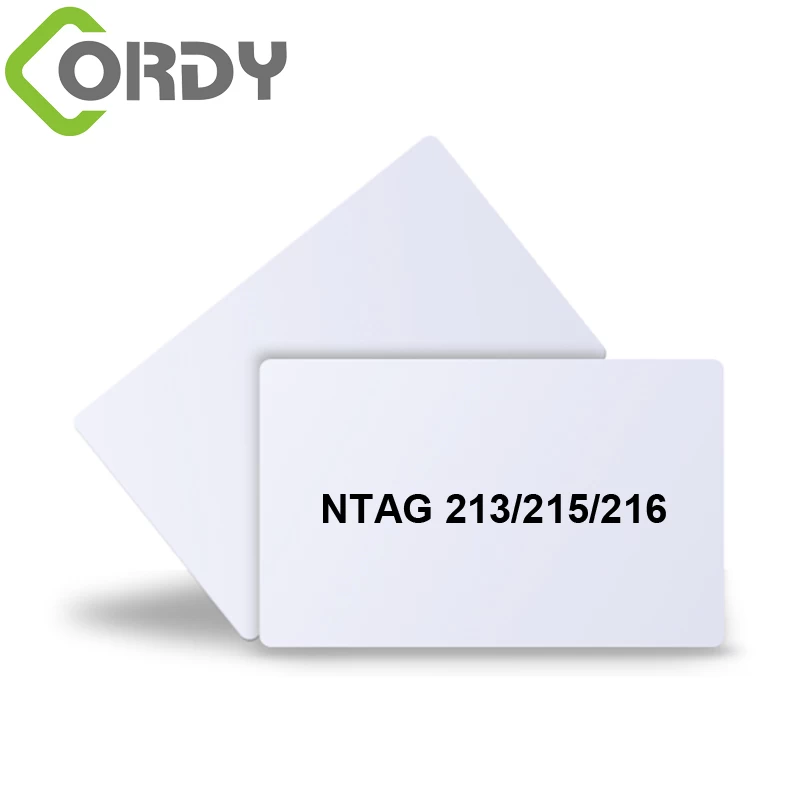

NTAG213, NTAG215 and NTAG216 have been
developed by NXP Semiconductors as standard NFC tag ICs to be used in mass
market applications such as retail, gaming and consumer electronics, in combination with
NFC devices or NFC compliant Proximity Coupling Devices. NTAG213, NTAG215 and
NTAG216 (from now on, generally called NTAG21x) are designed to fully comply to
NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.
2. Features and benefits
Contactless transmission of data and
supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit
coding, bit counting
Operating distance up to 100 mm
(depending on various parameters as e.g. field
strength and antenna geometry)
7-byte serial number (cascade level 2
according to ISO/IEC 14443-3)
UID ASCII mirror for automatic
serialization of NDEF messages
Automatic NFC counter triggered at read
command
NFC counter ASCII mirror for automatic
adding the NFC counter value to the NDEF message
ECC based originality signature
Fast read command
True anticollision
50 pF input capacitance
2.1 EEPROM
180, 540 or 924 bytes organized in 45,
135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available
user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container
with one time programmable access bits
Field programmable read-only locking
function per page for the first 16 pages
Field programmable read-only locking
function above the first 16 pages per double
page for NTAG213 or per 16 pages for
NTAG215 and NTAG216
Configurable password protection with
optional limit of unsuccessful attempts
Anti-tearing support for capability
container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100.000 cycles
3. Applications
Smart advertisement
Goods and device authentication
Call request
SMS
Call to action
Voucher and coupons
Bluetooth or Wi-Fi pairing
Connection handover
Product authentication
Mobile companion tags
Electronic shelf labels
Business cards
