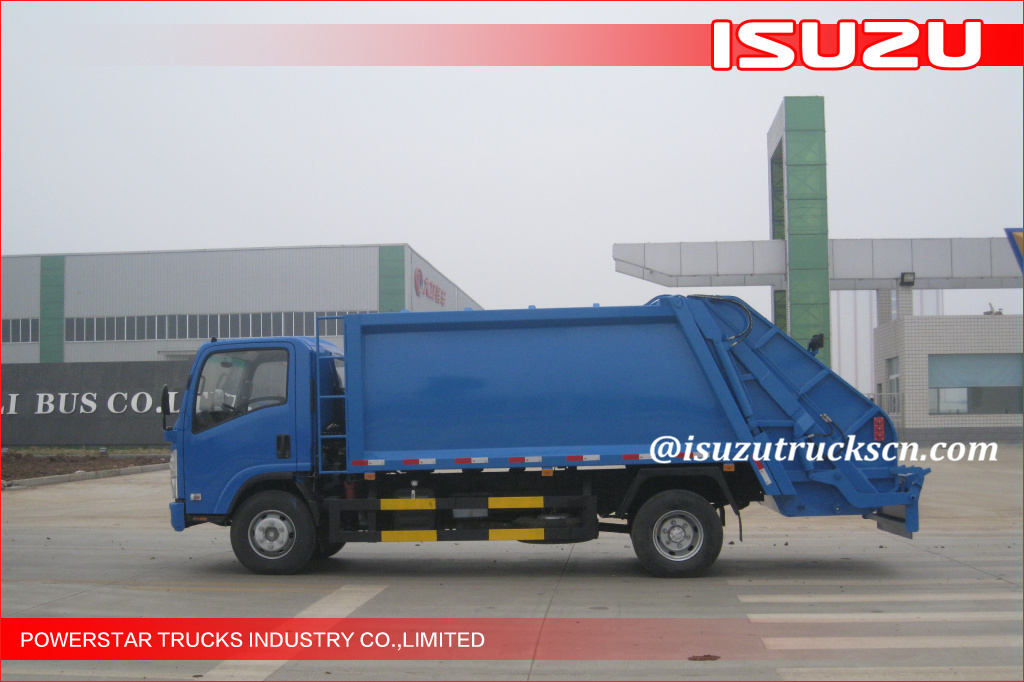

Nigeria 5Tons Isuzu Garage
Truck for waste transportation
Description:
The new generation
Refuse Garbge Compactor is mainly used in collecting and transporting the
scattering refuse of the urban area, community, factory, school yard.
The refined
appearance, the fully sealed truck body, the sealed door of the truck body is
able to prevent the sewage from leaking during transporting so that secondary
pollution is avoided. The imported hydraulic units are of the best quality with
convenience and reliability.
Areas of
Application and Use:
◆ Urban area or community garbage collecting
◆ Schoolyard garbage collecting
◆ Factory garbage collecting
◆ Suburban waste transfer
◆ Non-construction waste collecting
Features:
◆ Easy operation and easy maintenance!
◆ With imported PLC (programmable logic
controller) for integrated control
◆ Collecting refuse in sealed condition,
equipping with waste water tank, preventing re-pollution.
◆ Substantial truss structure, payload
distributed appropriately in hopper lip, no deformation.
◆ Automatic controlled throttle and hydraulic
safety valves, avoiding power wastage, lower oil consumption.
◆ Automatic and manual operating control,
improving operation reliability
◆ The engine power output control, namely the
throttle control, can realize fully automatic control through the electronic
throttle controller, so the engine will automatically change to a higher speed
or idle speed under different operating modes, thus avoiding power loss and
system heat to reduce fuel consumption and realize good economical
efficiency.
◆ Both automatic and manual control modes are
available. Two operation boxes mounted in the cab and at the rear side of the
vehicle respectively can facilitate the operation.
◆ Different bin (hopper) tipping mechanisms are
provided for different users to select in accordance with different garbage
collecting
Main
specifications:
|
Chassis
|
ISUZU
ELF
|
|
Model
|
PT5110ZYS
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
3815
mm
|
|
Overall Dimension
|
7250x2200x2600 mm
|
|
Garbage Container capacity
|
5Tons
|
|
Loading type
|
Rear
loading
|
|
Compression ratio
|
1:
3.2
|
|
Operation control system
|
Electrically hydraulic
control + Manual hydraulic control
|
|
Discharging system
|
Horizontal ejection
|
|
Loading cycle time: (sec)
|
10~15
|
|
Rubbish discharging time: (sec)
|
20
|
|
Max hydraulic pressure (Mpa)
|
16.2
|
|
Feeding equipment lift angle
|
≥90
|
|
Multi-way shuttle valve
|
Imported
|
|
Body material
|
Weather resisting steel
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Engine
|
Model:
|
4HK1-TCG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power:
|
139
KW (190HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
8.25-16
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|
Working
Principles of ISUZU Truck Garbage Compactor
Different
bin (hopper) tipping mechanisms:
Shipment:
Recently Built Garbage Compactor Truck:
