Nigeria lagos 5cbm Isuzu Street Sweeping Garbage Truck



 Nigeria lagos 5cbm Isuzu Street Sweeping Garbage Truck

Basic Description

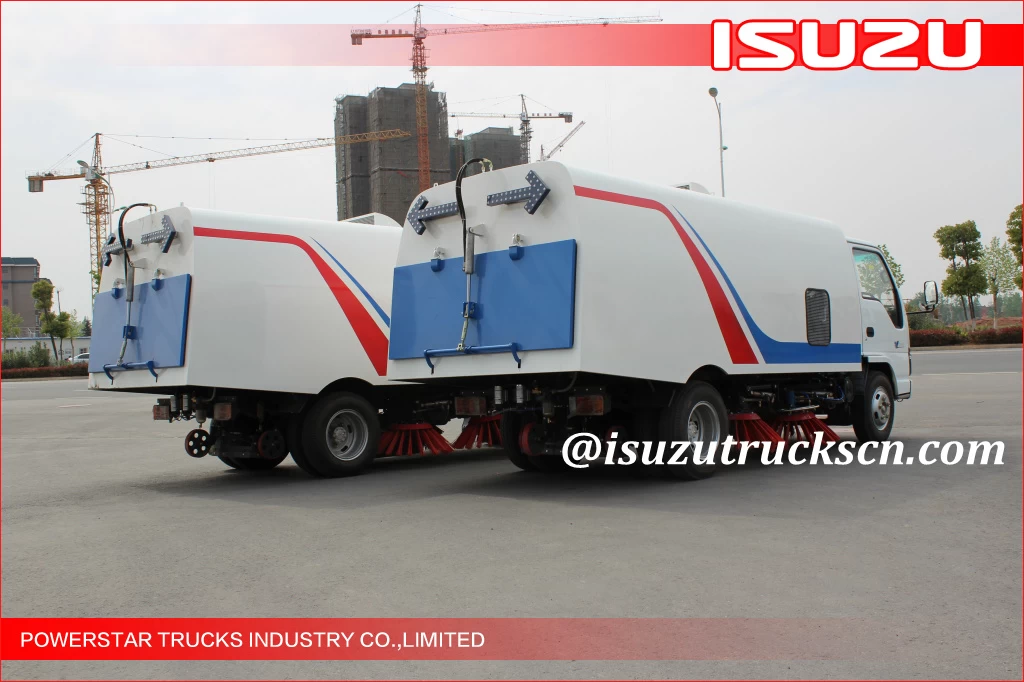

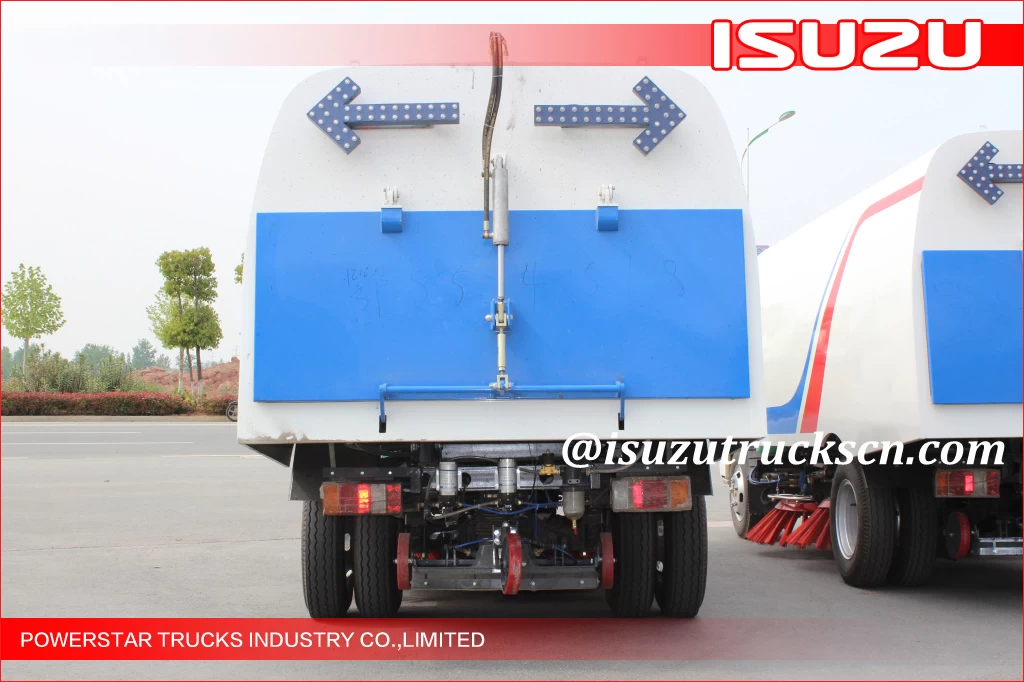

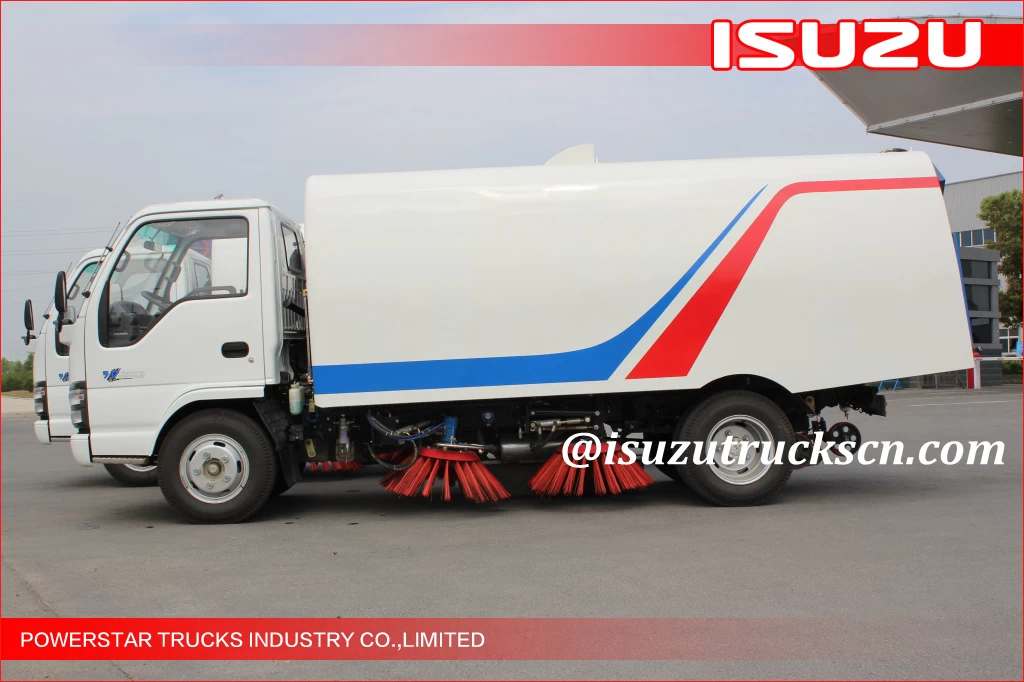

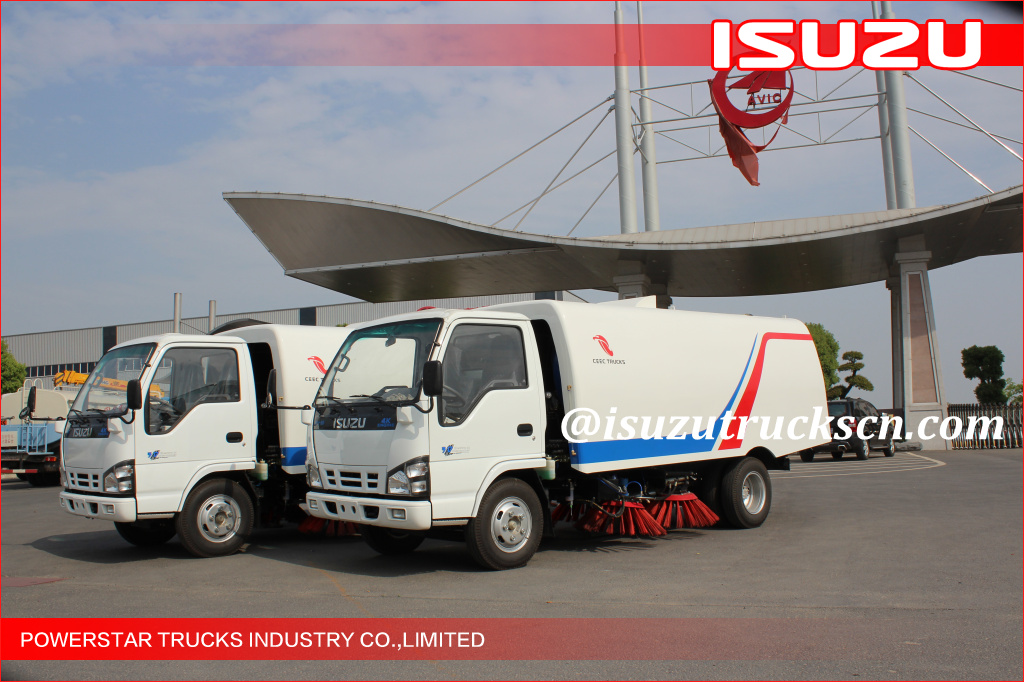

Customer made street sweeper truck (also customer road sweeper truck, waste collection sweeper truck, road cleaner sweeper truck, hydraulic road sweeper truck, vacuum road sweeper, dustbin road sweeper truck, street cleaning truck,brand new road sweeper truck, road brush sweeper truck) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

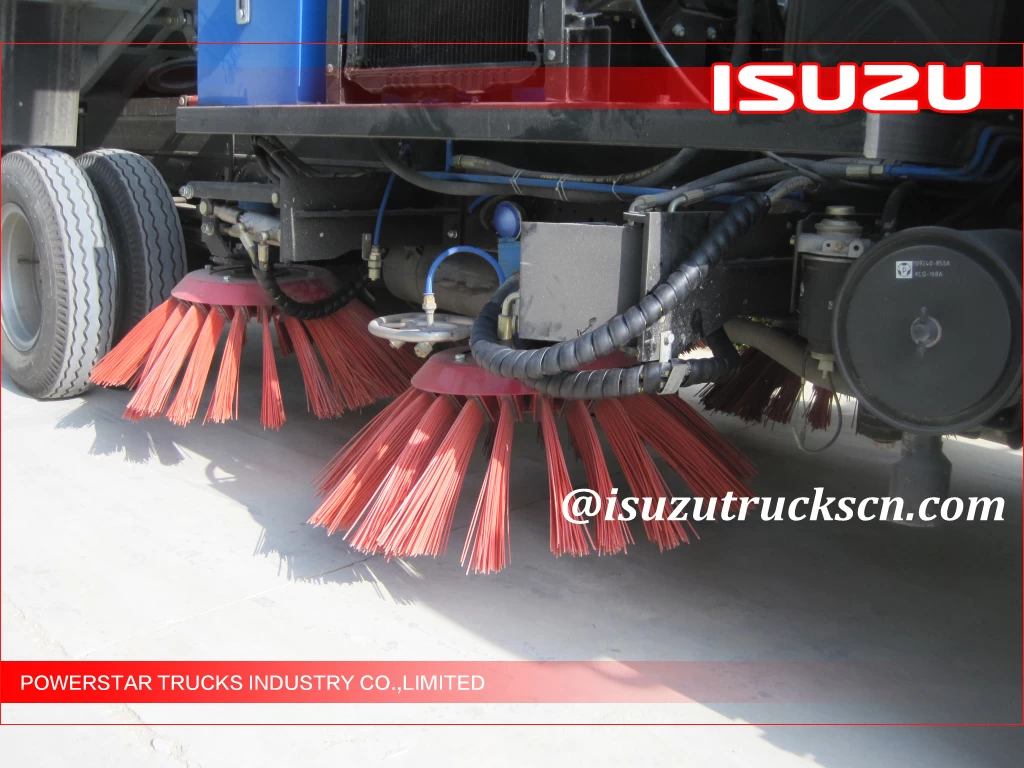

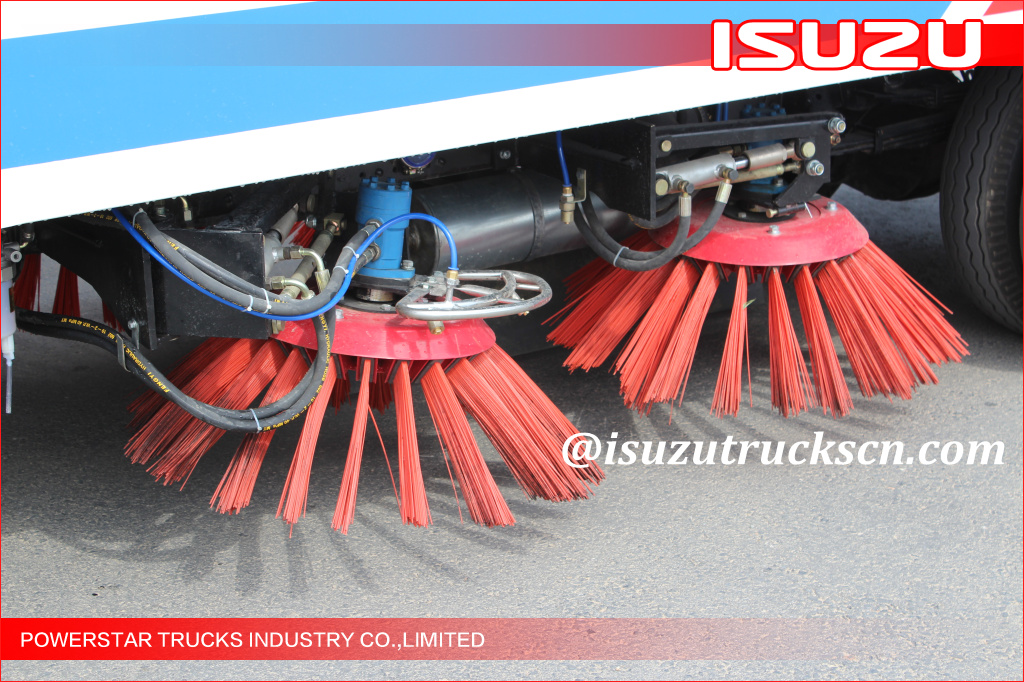

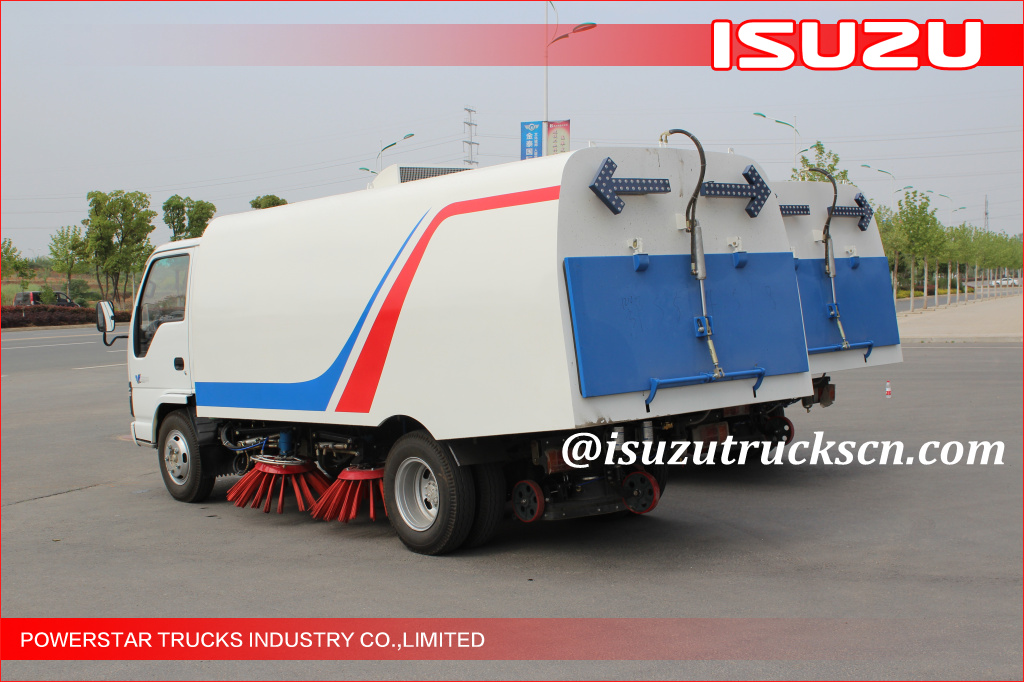

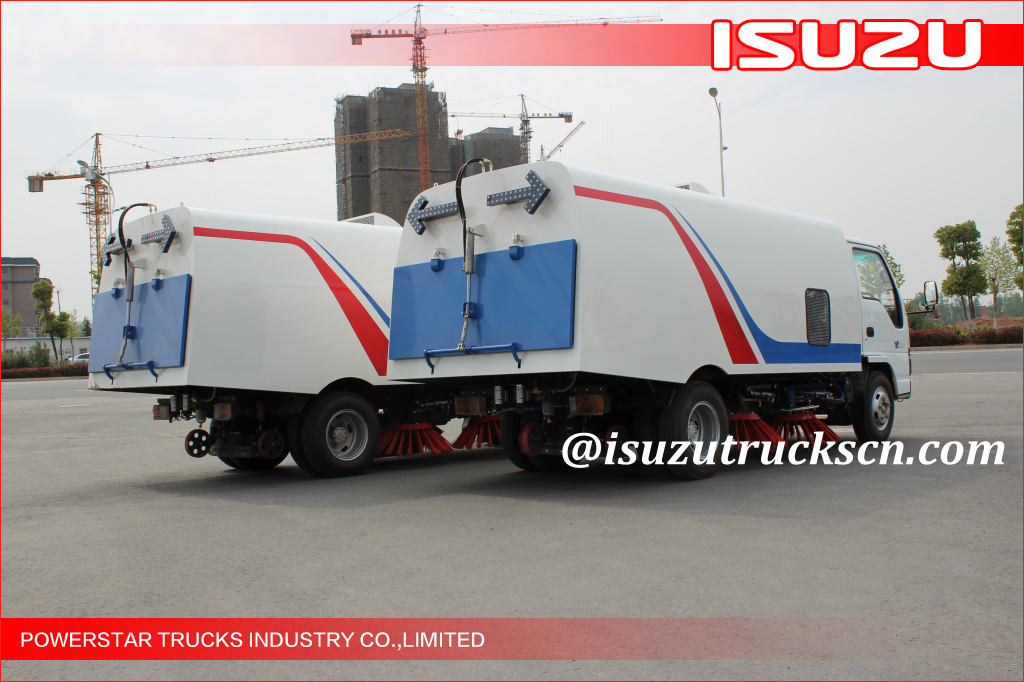

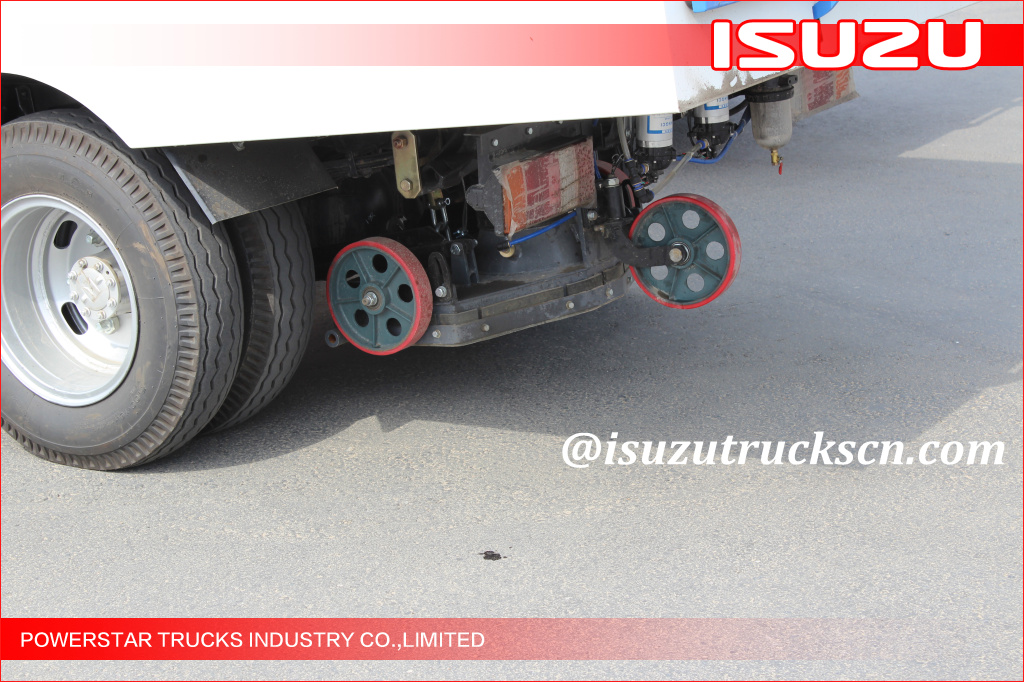

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

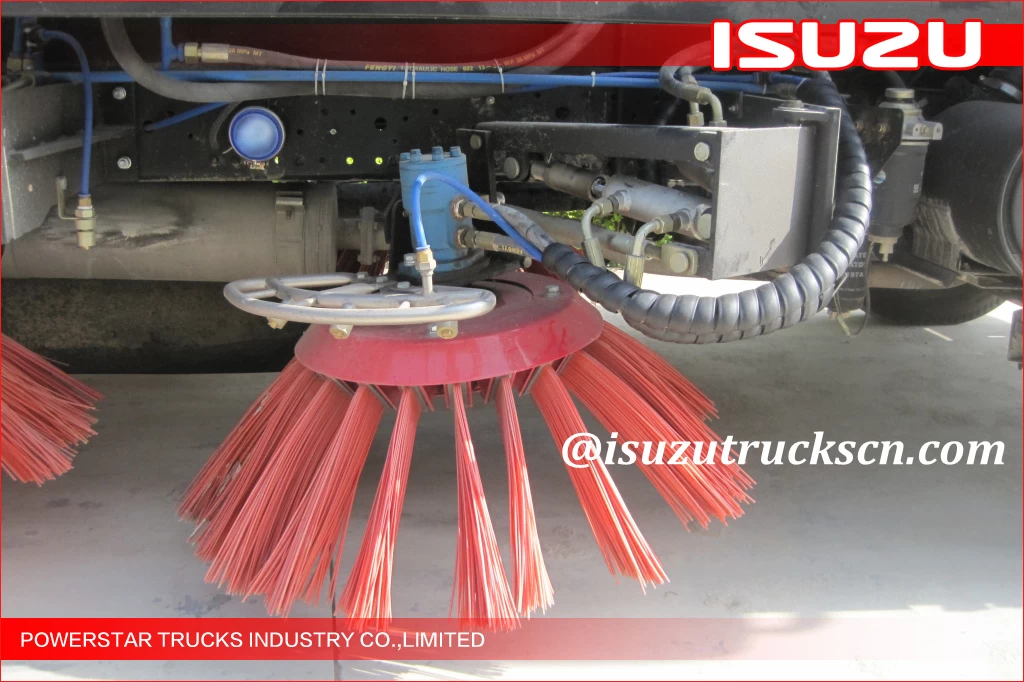

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Key Features

Key Features of road sweeper truck ISUZU    ISUZU NKR Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    Sweeping, Sprinkling and garbage transportation

Key Features of road sweeper truck ISUZU     Stainless steeel garbage bin & Stainless water tank, longer service life

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     POWERSTAR 20 years’ experience on road sweeper truck exporting.

Techical drawing of Isuzu road sweeper trucks






Main specifications

Model

PT5060TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Overall Dimension

5715X2090X2523 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

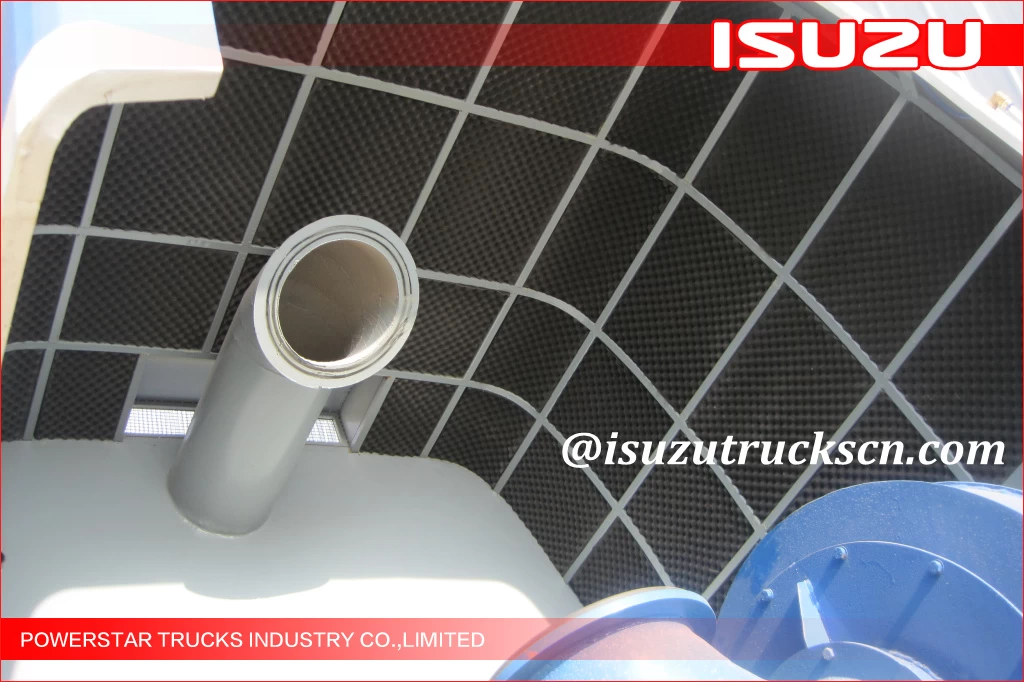

Stainless Steel Hopper Effective Volume

5 CBM

Stainless Steel Water Tank Volume (L)

1200

Sweeping Width (mm)

3000

Sweeping speed (km/h)

3~20

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4JB1CN

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

72 KW (98 HP)

Gearbox

MSB 5-shift, mechanical type, 5 forward and 1 reverse with

Tire

7.00-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h



  • Recently Customer Build Examples:

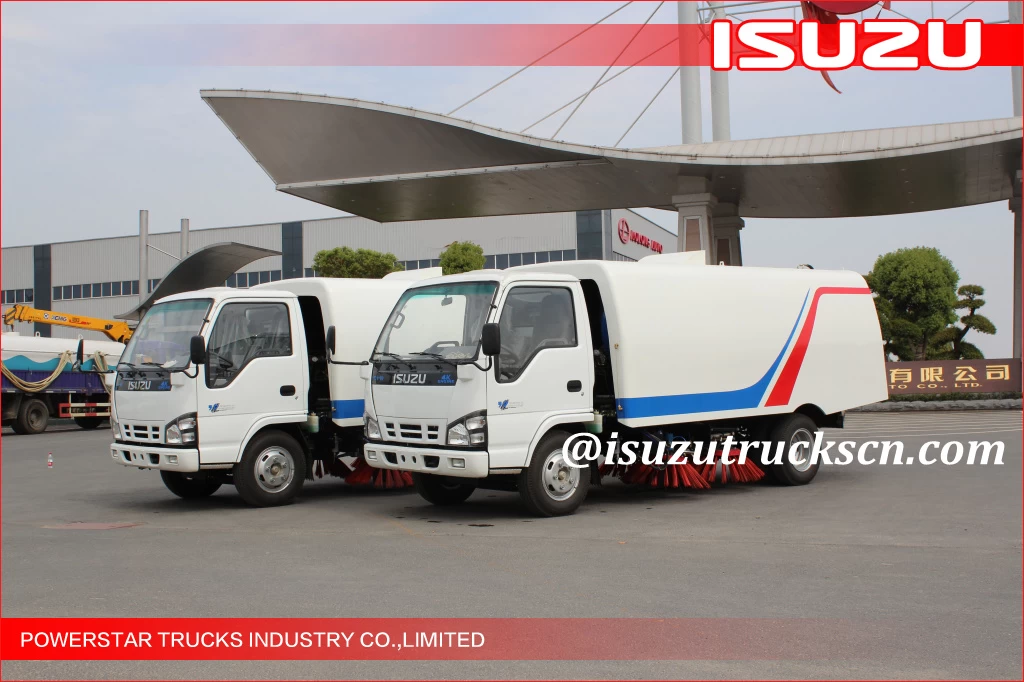

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner

  • 5cbm Isuzu Street Sweeping Garbage Truck city cleaner
