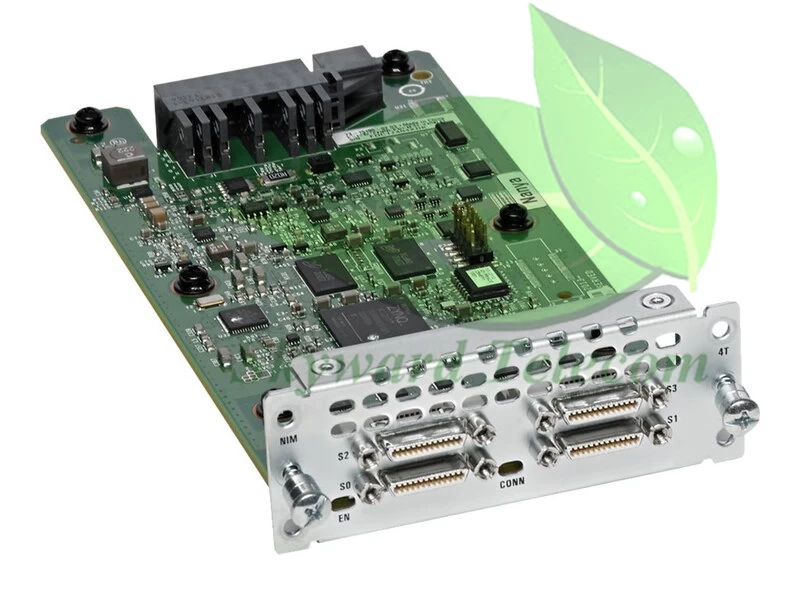

NIM-4T 4-Port Serial WAN Interface card

Cisco Card.



NIM-4T  Overview


WAN Network Interface Module - Serial adapter - RS-232/449/530/V.35/X.21 x 4 - for 4451-X.


NIM-4T Specification


General
Device Type Serial adapter
Form Factor Plug-in module
Networking
Ports RS-232/449/530/V.35/X.21 x 4
Connectivity Technology Wired
Data Link Protocol RS-232, RS-530, X.21, V.35, RS-449, RS-530A
Data Transfer Rate 8 Mbps
Expansion / Connectivity
Interfaces 4 x RS-232/449/530/V.35/X.21
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, CNS 13438
Dimensions & Weight
Width 3.5 in
Depth 7.2 in
Height 1.3 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle
Model No NIM-4T
Warranty 1 year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
