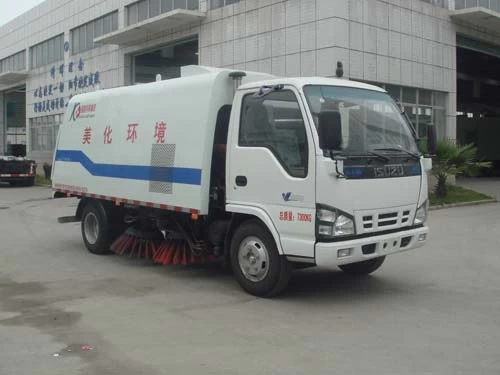

Main Feature of the sweeper:
1, Wet methods of dust elimination ensure clean sweep without dust spread.
2,It’s convenient to operate in the cab. Manual pump installed outside can work in an emergency situation.
3,The blower and working equipment are driven by sub-engine so that power can meet the work demands in any case.
4,When sub-engine starts with no-load and stops, a centrifugal clutch, fitted between sub-engine and blower, can ensure sub-engine departing from blower automatically, which simplifies the operation and reduces the impact against sub-engine.
5,Sweeping trays have the function of avoiding obstacles and reposition automatically.
6,Rotating speed of sweeping tray can be adjusted according to working condition.
7,Advanced & efficiency air blower have the capability of seismic resistance and anticorrosion.
8,Independent water tank made by special anti-corrosive material can be easy to clean.
Main Parameters of the sweeper:
Model of Chassis
|
NKR77
|
Model of Engine
|
4KH1-TC
|
Overall dimensions
|
5700*1980*2500(mm)
|
Total quality
|
6436kg
|
Curb mass
|
4990kg
|
Maximum width of sweeping
|
3000mm
|
Stainless steel trash box volume
|
5m³
|
Stainless steel water tank volume
|
1000L
|
The auxiliary engine model
|
JX493G3
|
Tonnage
|
3ton
|
Chassis Parameters of the sweeper:
Model of Chassis
|
NKR77
|
Wheel Base
|
3360mm
|
Front Track
|
1504mm
|
Rear Track
|
1425mm
|
Plate spring amount
|
8/6+5
|
Tire Type
|
7.50-15,7.50R15,7.00-16,7.00R16
|
Steering Gear Type
|
Steering Wheel
|
Axles Amount
|
2
|
Tire Amount
|
6
|
Fuel Type
|
Diesel
|
