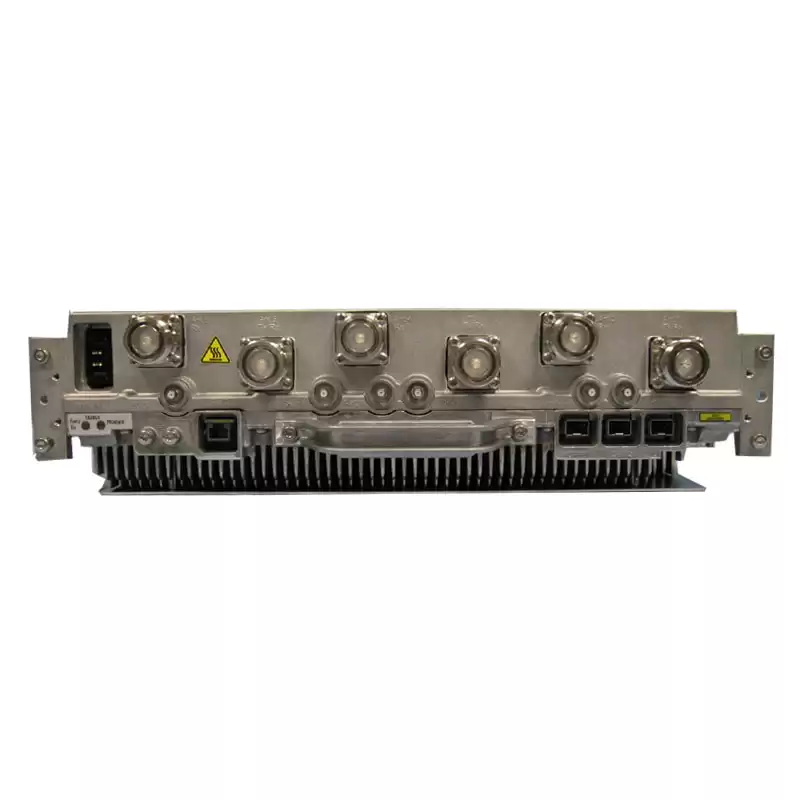

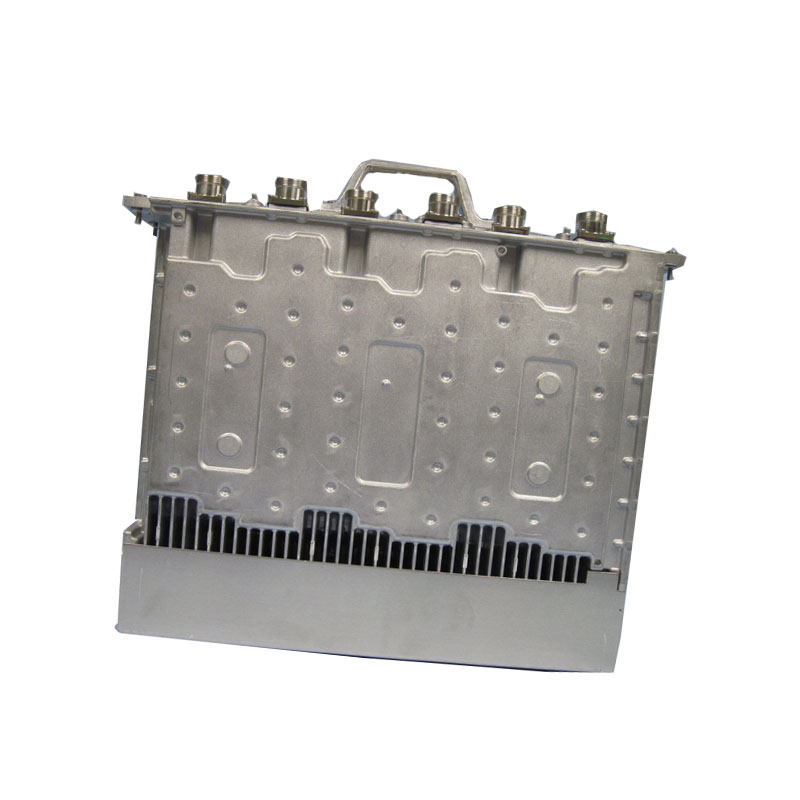

Nokia 472142A FXCA Flexi RF Module 850 MHz Triple 70W

Product Description

 The module consists of three independent branches, capable of transmitting and receiving signals of multiple radio technologies concurrently:

• Up to 6 GSM carriers with 400 KHz minimum carrier separation
• Up to 4 WCDMA carriers with 4.6 MHz minimum carrier separation
• Multi-carrier LTE signal with 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz, and 35 MHz carrier bandwidth
• Multi RAT operation with combination of GSM, WCDMA, and LTE

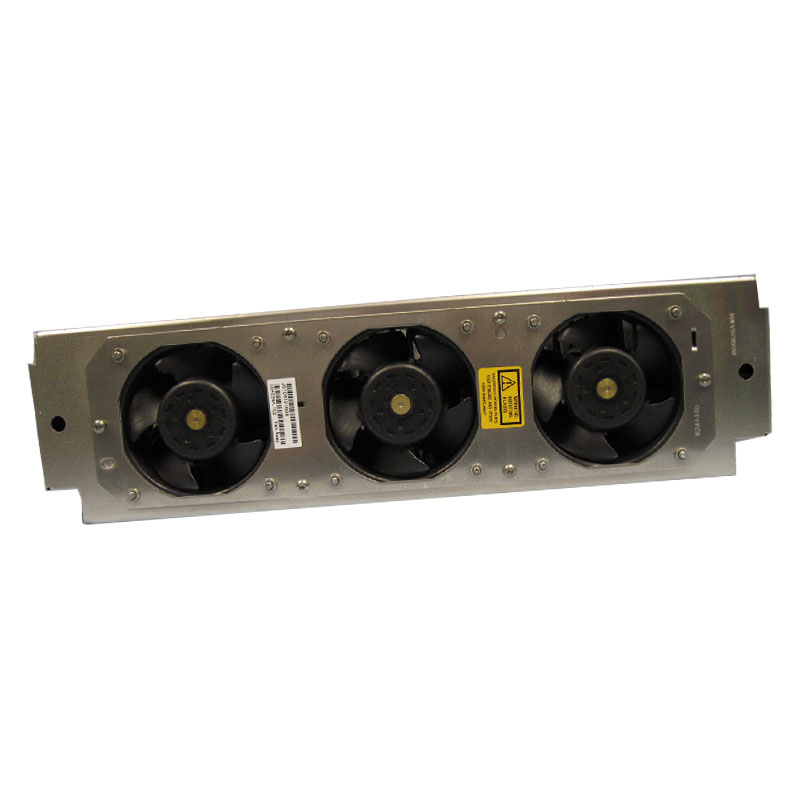

The RF Modules FXDA, FXDJ, FXEA, FXCA, and FXFA/ FXFB are referred to as 70W RF Module variants. RF Modules FXEB and FXDB are referred to as 90 W RF Module variants. Each branch consists of a transmitter and two receiver chains. FXxA and FXFB (70W) variants have front end software tunable filters (STuF). 90 W RF Module variants have fixed full band filters. FXxx is a 3U high module with an integrated, replaceable 3-fan assembly for module cooling. The supported functions are:

• Chaining up to three RF Modules with OBSAI RP3_01
• 2-way receive diversity in the receiver chains
• Integrated antenna line supervision
• MHA, Antenna Hopping, EGPRS2, and VAMOS support
• Digital and control circuitry, optical interface, DC/DC power conversion, and other necessary functionalities
• Integrated DC line OVP, Class II rated to 5kA pulse (FXFB, FXDB/FXEB)
• Remote Electrical Tilt (RET) support (FXFB, FXDB/FXEB)

Flexi Multiradio BTS GSM/EDGE modules are equipped with an integrated air guide plate providing full thermal compliance without casings. This allows installation of the modules without casings in Flexi cabinets and enclosed 19″ racks. Casings and covers are recommended in standalone 19″ racks (no cabinet) for safety reasons. Casings are not part of the FXxx delivery package. If the configuration requires casings, Flexi BTS Module Casing (EMHA) kits must be ordered.

The Flexi Multiradio RF Module variants are:

Product Details

Our Advantages

We have NOKIA FXCA  472142A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

NOKIA FXCA  472142A, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

NOKIA FXCA  472142A represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
