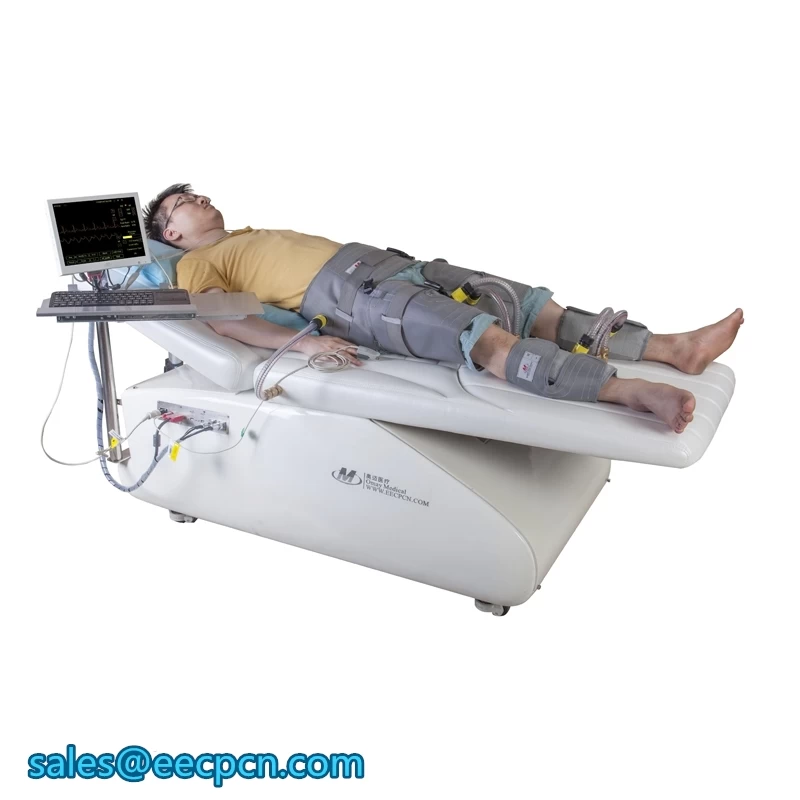

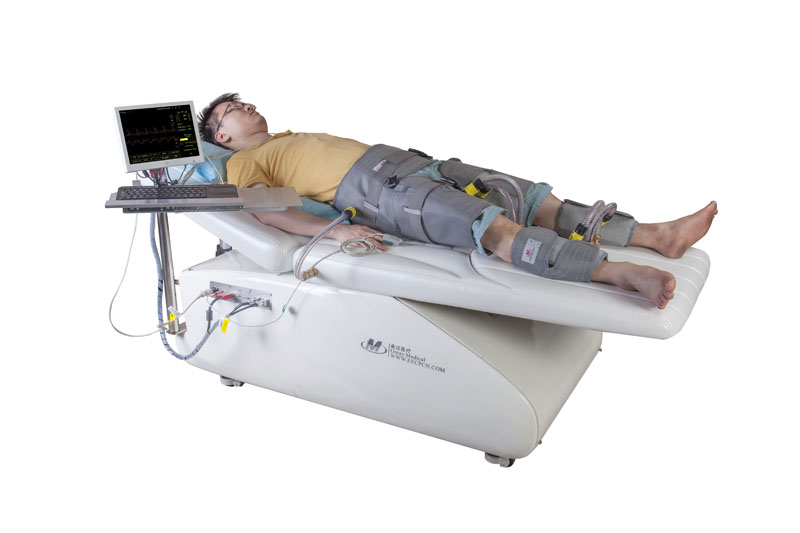

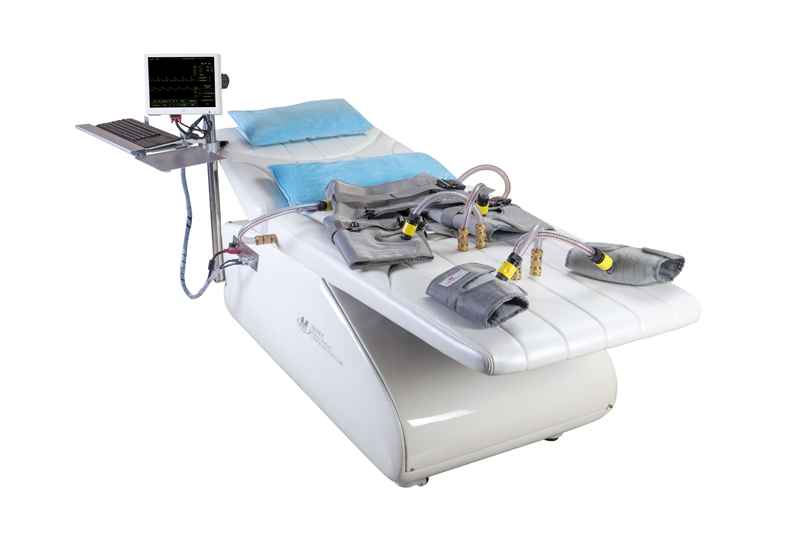

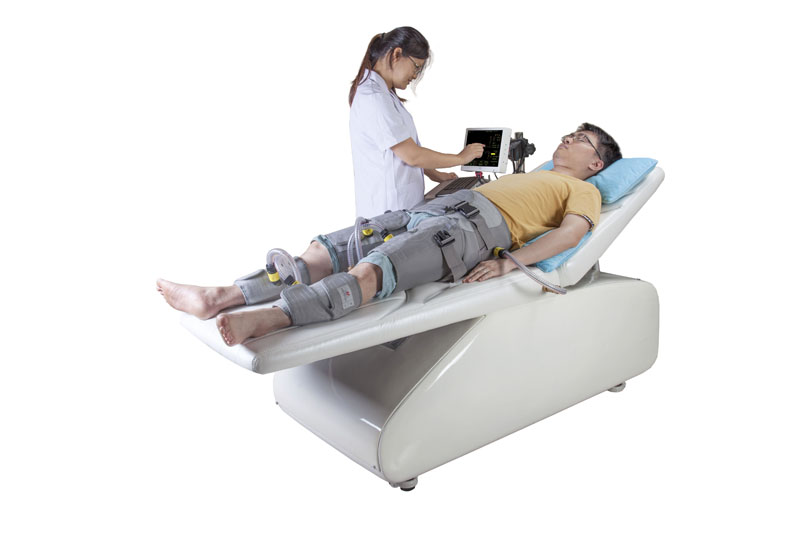

Product Item:Non-hospitalization EECPS machine for heart failure
Omay ECP advantages:
Omay ECP machine designed by our engineer Dr.Zhou in 2008,who is a cardiologist with more than 20 years experience in EECP,the only student of Dr.Zheng zhen sheng(The father of EECP in the world).In 1995s, Dr.Zhou joined in the development of EECP MC-3 and exported to Vasomedical who named it TS-3.In 2008,Dr.zhou setted up his own company Omay Medical.Meanwhile,he also worked as a director of ECP hospital with more than 200 beds in JieYang city,Guangdong province.Omay ECP machine improved a lot based on his rich clinical datas and ECP practice.Followings please find our advantages:
a.Compressor adopted is Gardner Denver imported from Germany,stable and durable.with a lifetime more than 50,000hours.
b.AirTac valves we are using which is a famous brand and quick reponse,low temperature and low noise when working,lifetime more than 25,000hours.
c.Monitor is industrial computer which can work normally in bad industrial environment,durable and stable.
d.Copper fastener instead of screw thread connector which is good for installation and not easily to abrade.
e.Steel wire reinforced tube which can minimize the losses of pressure and with longer lifetime.While corrugated tube that other ECP company using will expend when pressure go through them,it have pressure losses and easily to wear off.
f.Handheld emergency button for the convenience of patients touching and stopping the machine when an emergency.
g.Omay ECP machine with remote diagnosis function,Any software problems can be diagnosed and solved in our office.
Omay ECP Features:
1.The most important hardware accessories like compressor and valves are imported from Germany and Taiwan famous company.Compressor with a liftspan more than 10years.
2.Omay EECP with remote dignosis function,which enable us to diagnose and solve any software problems in our factory
3.The deflation and inflation time can be adjustable based on different patients.
4.With customer managerment system,can save and print out each patients data.
5. With"demostrate function",will automatically check whether all systems are properly working before doing treatment for patients.
6.Real-time ECG and SpO2 monitor function during treatment,showing the D/S ratio,intuitive observation of treatment effect.
7.It adopts scientific designed system to reduce noise and heat.
8.High efficiency cuffs for energy-saving:low pressure can generate high treatment effect
9.Stable and durable industrial personal computer adopted
10.Stable software system:Embedded software system,virus can’t attack.
11.The angle of the backrest can be adjusted on the basis of patient's physiological situation.
12.Omay ECP: got CE,ISO13485 and SFDA
Omay ECP machine Technical Parameter:
ECG Amplifier
|
Input impedance: >2MΩ
Common-mode rejection ratio: >80dB
Bandwidth: 1-20 Hz on display
|
SpO2 Oxygen Saturation
|
Oxygen saturation range: 0 to 100%
|
Accuracy SpO2 (±1 Saturation Deviation)
|
60-100% ± 2 digits for adults using the Finger Clip Sensor
60-100% ± 3 digits for adults using Flex or Reflectance Sensor
60-100% ± 4 digits using Ear Clip Sensor
|
Triggering Method
|
External trigger: R-wave of patient ECG
External trigger ratio: 1:1 or 1:2
ECG triggers range: 35-125 ± 1 bpm
|
Filter Technique
|
Low-pass digital filter eliminates 50/60Hz and high-frequency interference
|
Treatment Pressure Range
|
Adjust from 5-350 mm Hg
|
Cuffs
|
One Set---Calves, lower thighs, and upper thigh/buttocks
|
Treatment Session Timer
|
Set treatment time from 15 to 60 minutes maximum. System automatically stops when set time expires.
|
System Protection
|
Three circuit breakers -Mains and Compressor, and an emergency stop.
|
Electrical Performance
|
Power Requirements:
220V±22V AC, 50/60Hz, 1350W
|
System Dimension
|
Dimension: 2000mm×760mm×600mm
Net Weight: 220 kg
|
Operating Environment
|
Temperature 14 to 104 (-10°C to 40°C )
Relative Humidity <80% (no condensation)
Atmospheric Pressure 700 to 1060 hPa
Atmospheric Free of corrosives gas
|
Transport and Storage Environment
|
Temperature 14 to 140 (-10 °C to 60°C)
Relative Humidity 30 to 85% (no condensation)
Atmospheric Pressure:500 to 1060 hPa
Atmospheric Free of corrosive gas
|
