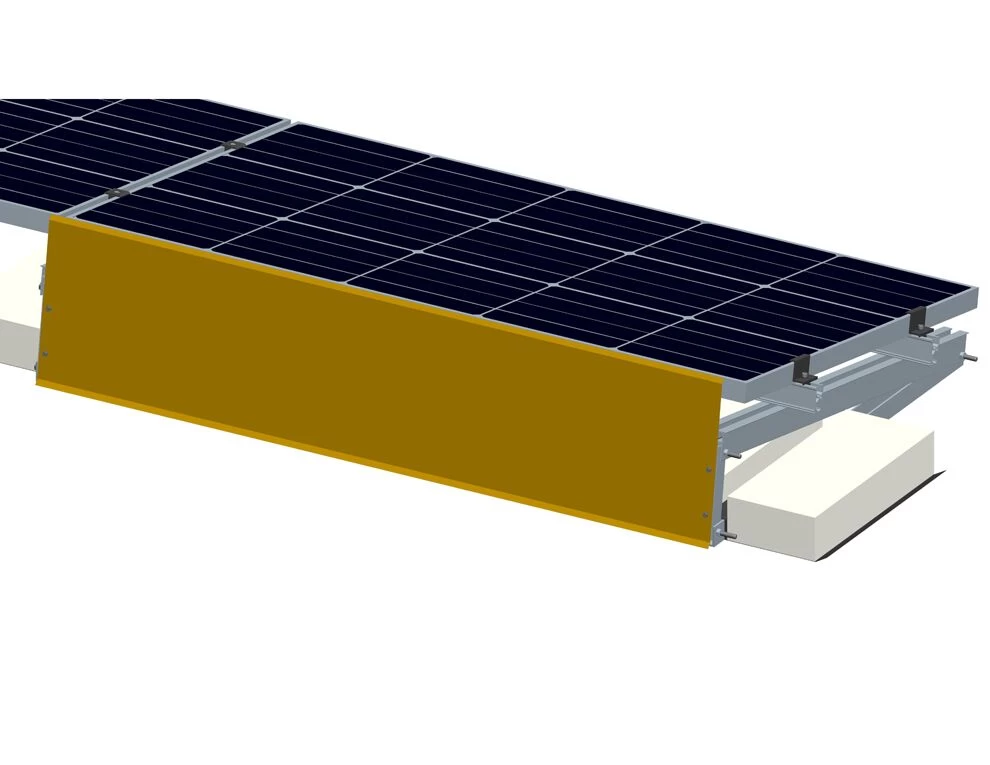

Non penetrating ballast mounting rack
ββ Fast installation with simple modular system
Non-penetrating Ballast Solar Racking is designed for PV mounting on commercial or residential flat-roof. The low pitch allows minimum ballast with an optimum of profit, ideal solution for use on industrial buildings with low admissible additional loads. The system is delivered in compact form to save logistics cost, unfold at site saves valuable time. No need to anchor and damage the roof membrane. It utilizes high strength aluminum components and corrosion resistant hardware for long term reliability. Variable ballast weight allows for local wind rating requirements to be meet on an individual basis.

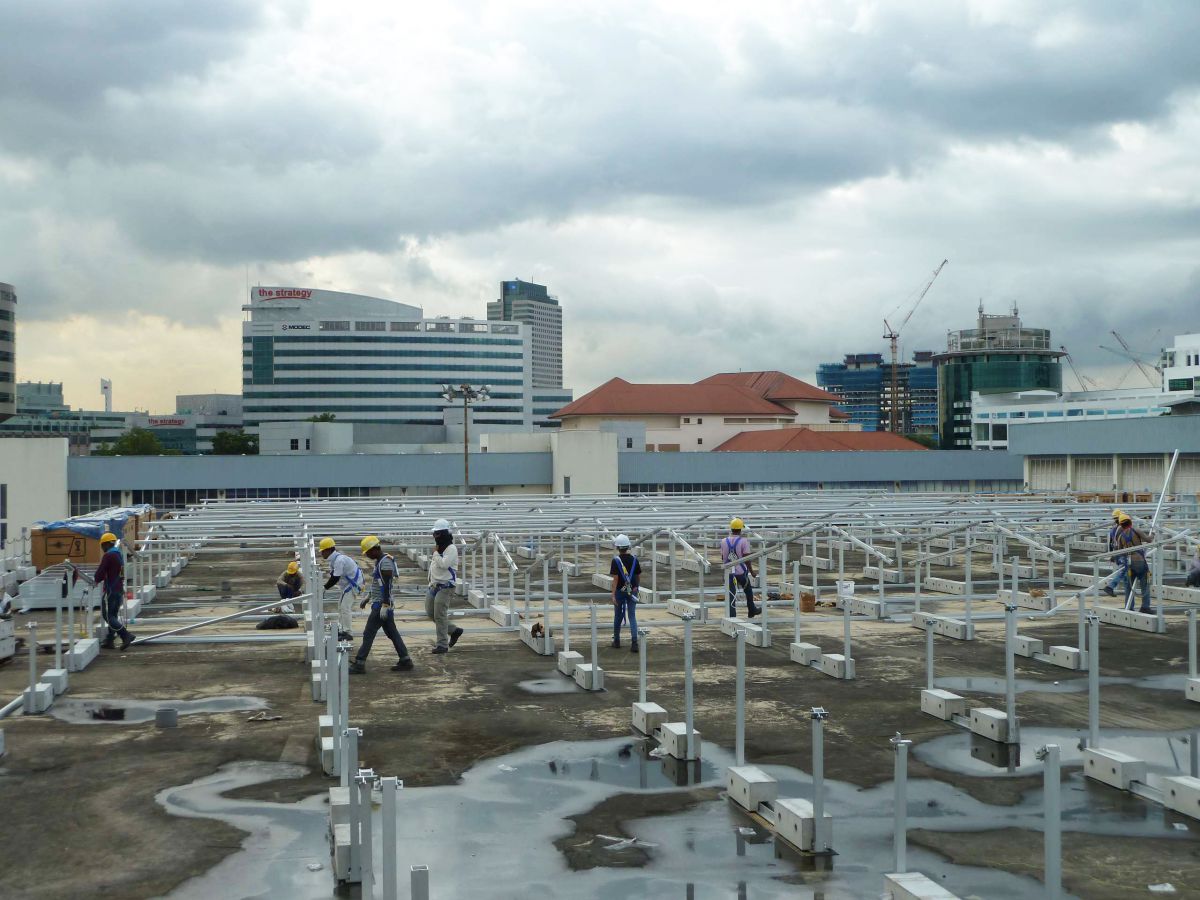

1MW installed in Singapore
1.Variable ballast weight allows for local wind rating requirement.
2.Roof surface can be protected with non-penetrating and low additional loads.
3.Compact delivery saves logistics cost and easy for upload.
4.Static stability ensured by high strength aluminum components.
5.Anodized aluminum 6005-T6 pre-assembled support.
|
|

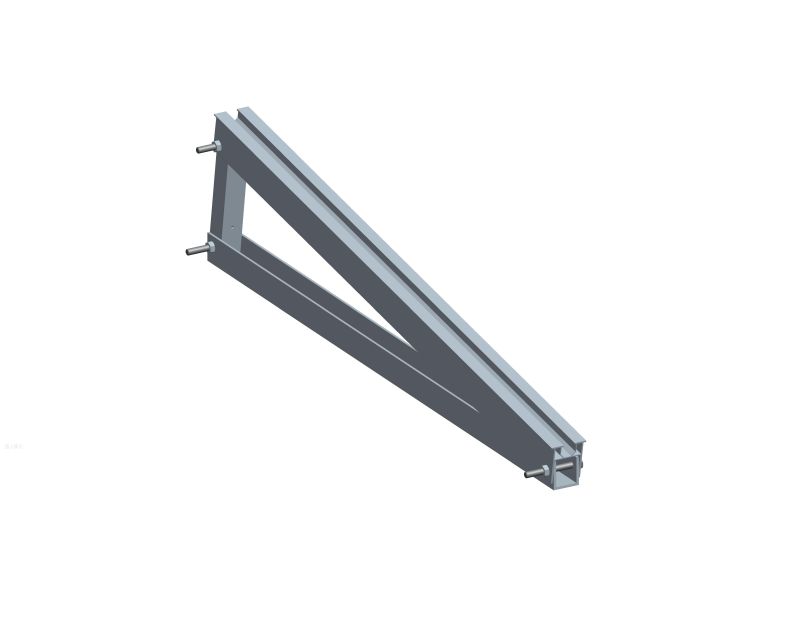

Solar tripod
|

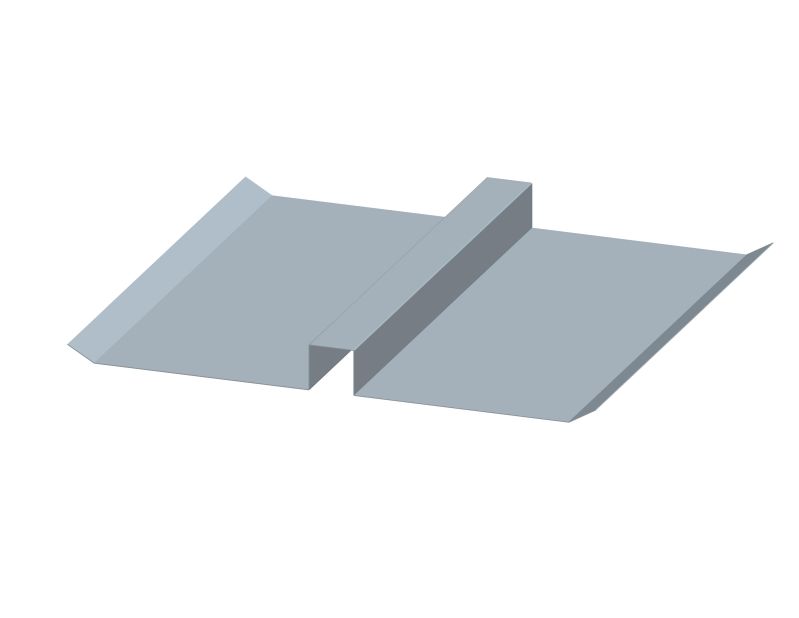

Ballast tray
|
|
|
Inter clamp
|
End clamp
|
|
|

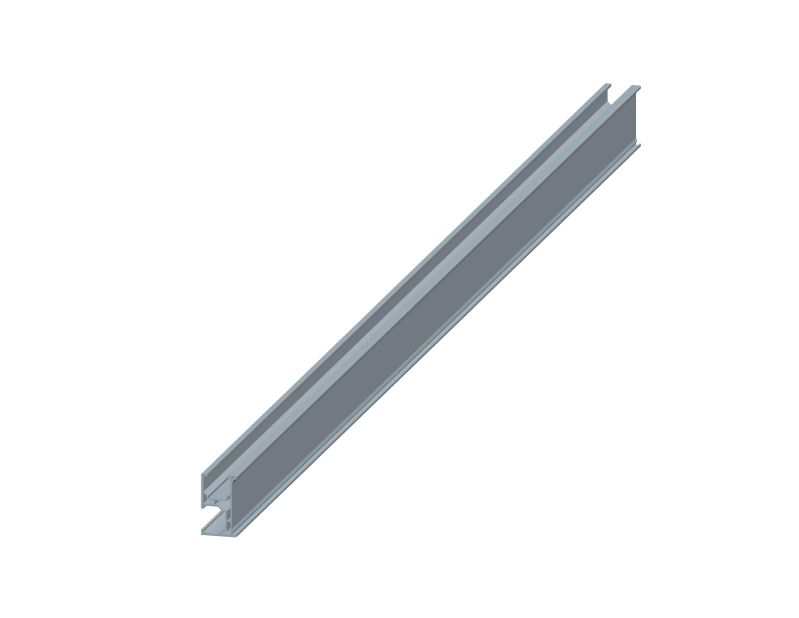

Rail
|

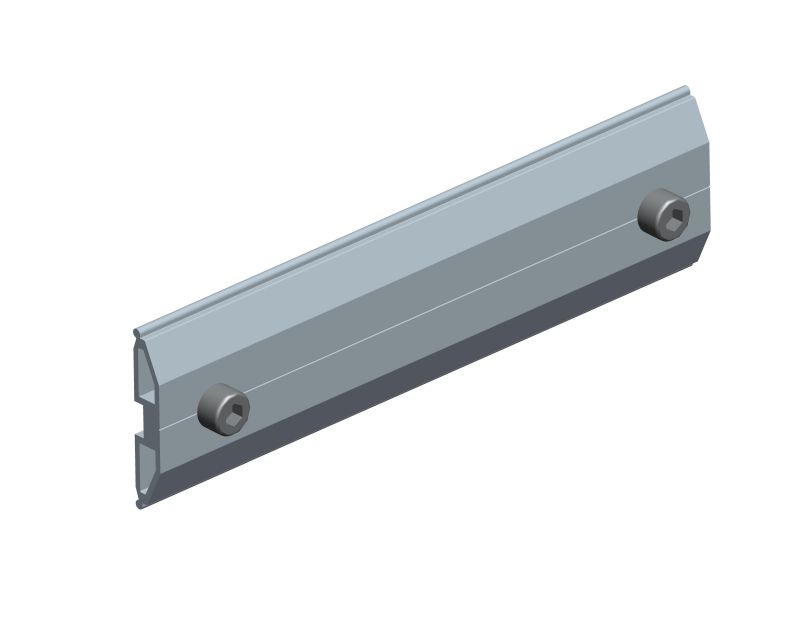

Rail splice
|
|
|
