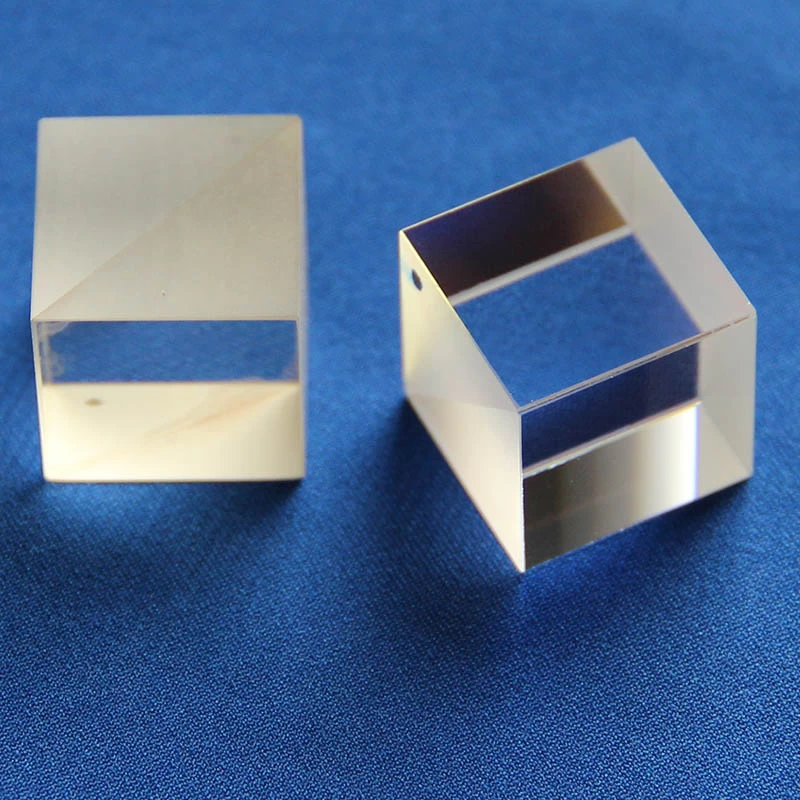

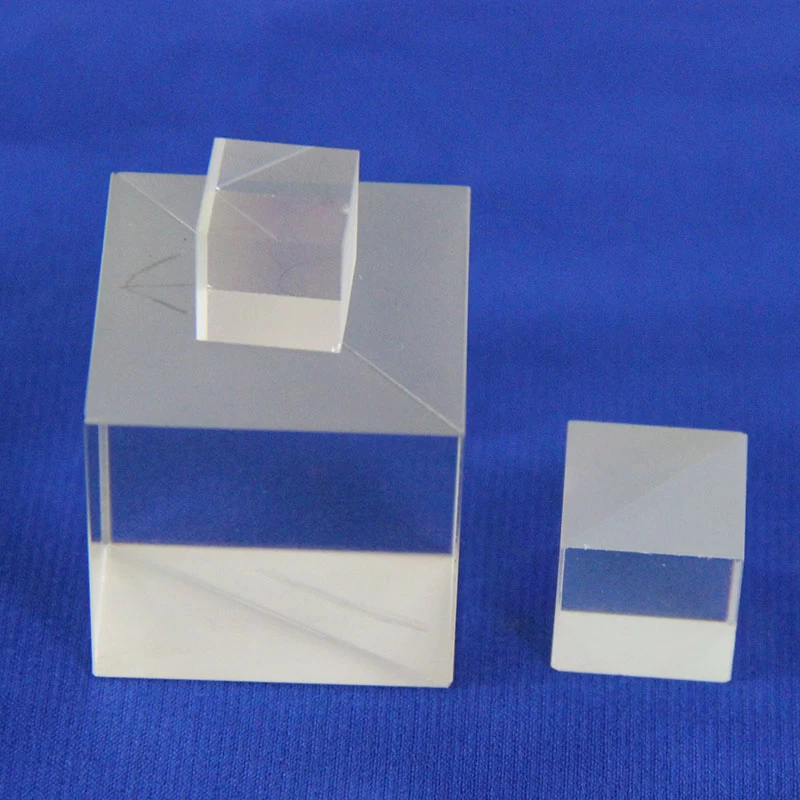

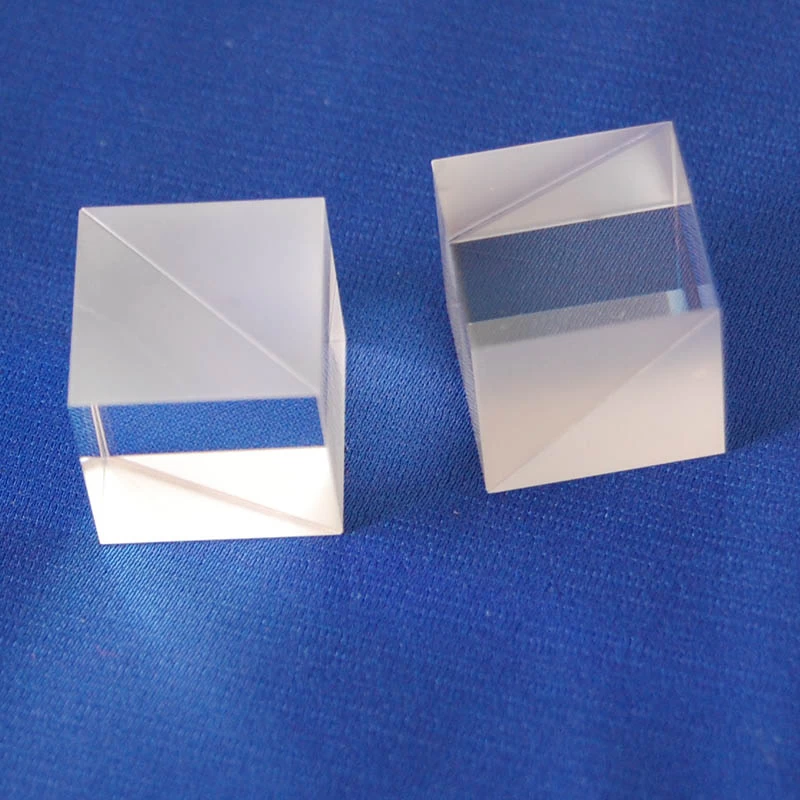

Non-Polarizing Cube Beamsplitters (NPBS)
Non-Polarizing Cube Beamsplitters also called NPBS Cube is a more sophisticated type consisting of two right- angle prismscemented together at their hypotenuse faces.The cemented face of one prism is coated.Before cementing, with a metallic or dielectric layer having the desired reflecting properties, both in the percentage of reflection and the desired color. The absorption loss to the coating is minimal and transmission and reflection could be designed to 10%, 20%, 30%, 40%, 50% etc.
|
Specifications:
|
|
|
Material:
|
BK7 grade A optical glass
|
|
Dimension Tolerance:
|
+0.2, -0.2mm
|
|
Thickness Tolerance:
|
±0.2mm
|
|
Surface quality:
|
60/40
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ/4 per 25mm@633nm
|
|
Parallelism:
|
±3'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Hypotenuse surface :Partial reflective coating
|
|
|
Entrance/Exit surfaces :AR coating
|
|
|
Reflectance/Transmittance R/T=50/50% ±5% ;
|
|
|
Other ratio is available: 10:90, 30:70, 50:50, 70:30, or 90:10 Split Ratios
|
|
|
( R,T are the average of S- and P-pol) ,AOI= 0°
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
5.0x5.0x5.0
|
18.0x18.0x18.0
|
|
10.0x10.0x10.0
|
20.0x20.0x20.0
|
|
12.7x12.7x12.7
|
25.4x25.4x25.4
|
|
15.0x15.0x15.0
|
30.0x30.0x30.0
|
