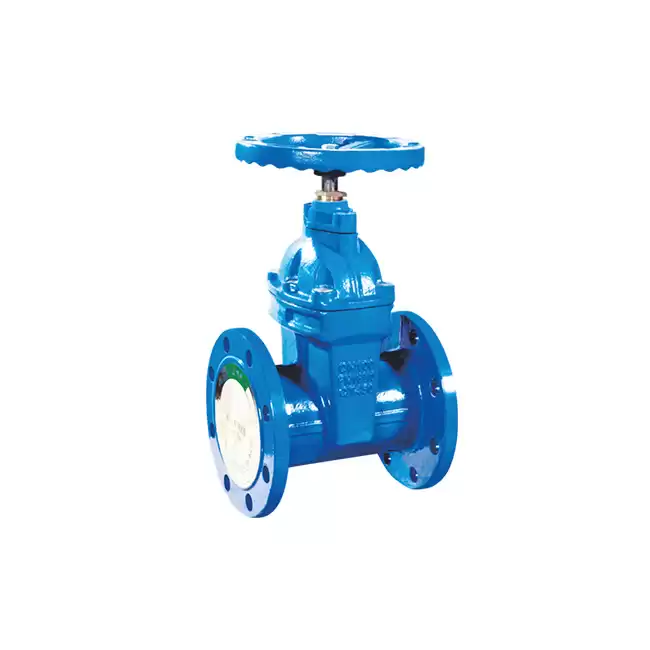

Non Rising Stem Gate Valve DN100 PN10/16 GGG50 (QT450)

DIN3352 Non Rising Resilent Gate Valve

DN100,PN10/16,GGG50,GGG50+EPDM,Handwheel

Manufacture STAVAL Factory Offer.

Key Specification

Type	Gate Valve
Size	DN100
Pressure	PN10/16
Construction	Non Rising Stem, Bolt Bonnet, Full Bore, Reslient Wedge
Connection	RF End
Body/Bonnet Material	GGG50 (QT450)
Wedge Material	GGG50+EPDM
Stem Material	2Cr13
Seat Material	EPDM
Bolt/Nut	Carbon Steel
Design Standard	DIN3352
Face to Face Dimension	DIN3202-F4
End Connection	DIN2532 /DIN2533/ EN1092-1
Inspection & Test Std.	API598
Temperature Range	-29℃~+425℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
