non-standard skateboard bearing 608zz with extended inner ring

non-standard bearing inner ring addition 608 6200 6800 6900 626 606 688 6900 606 6005 bearing smooth rotation, low noise, long service life,  use for  doors and Windows, hinges, fitness equipment, children's car transmission machinery

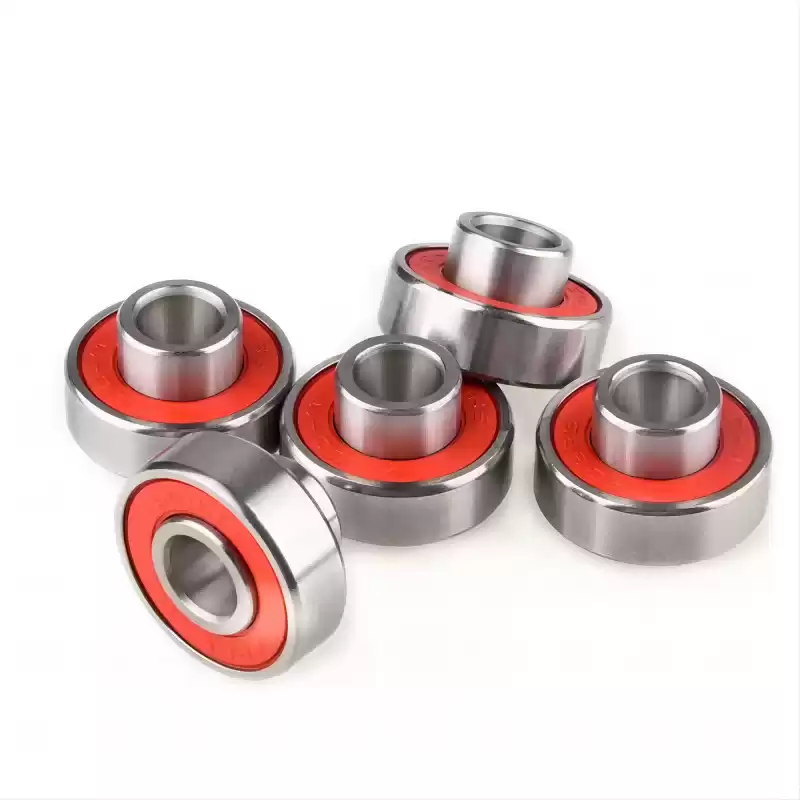

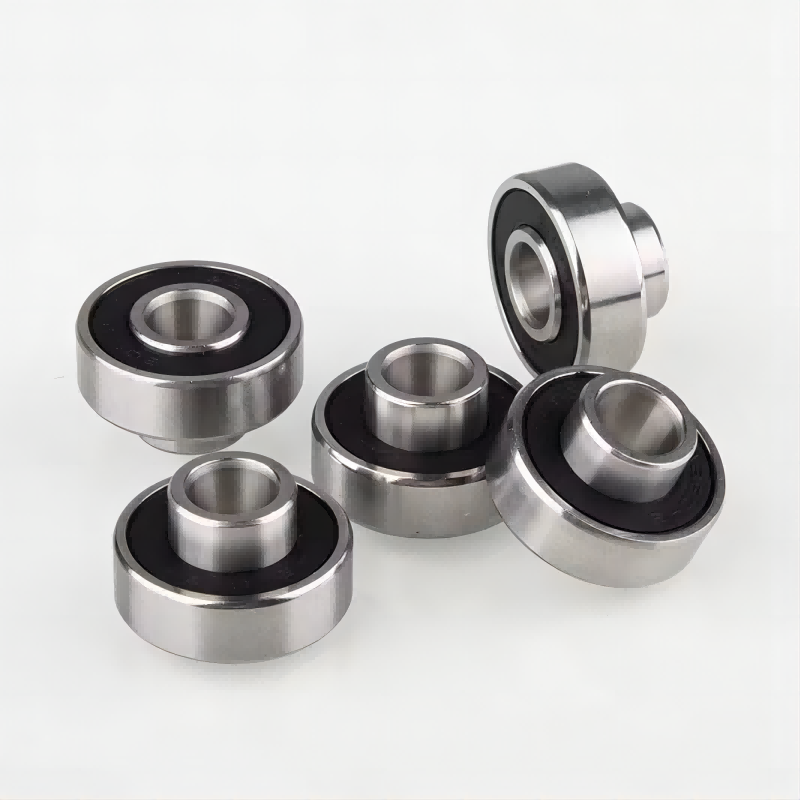

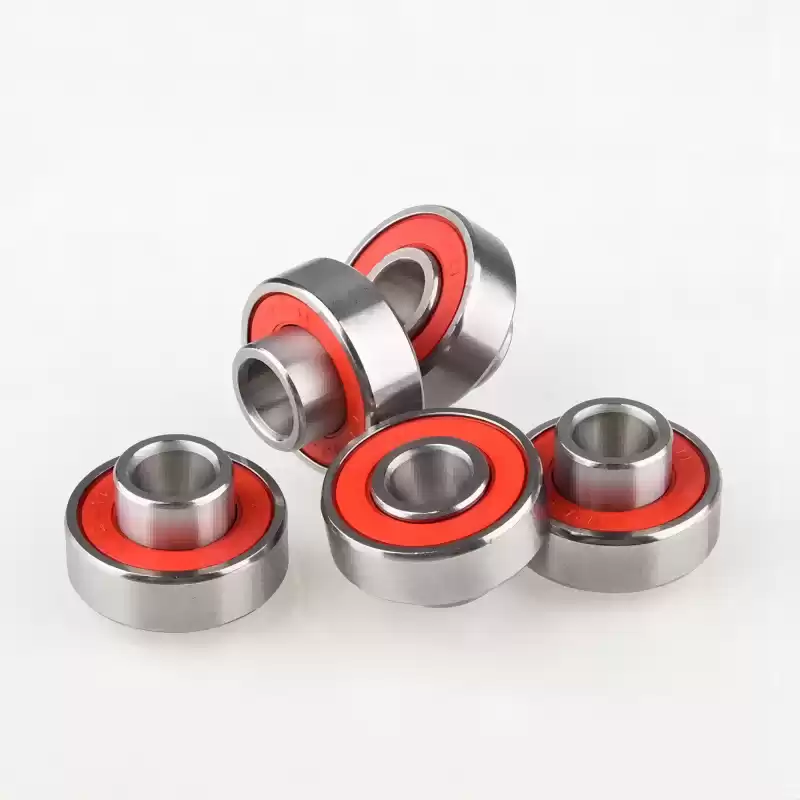

Non-standard skateboard bearing 608zz with extended inner ring

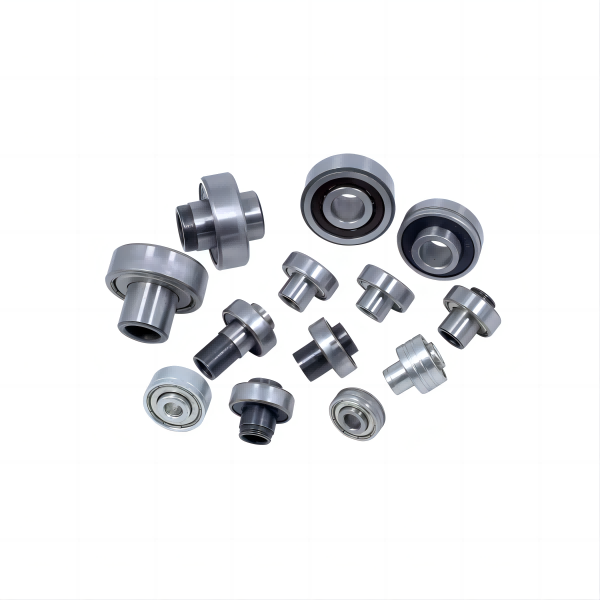

Non-standard bearings are bearings that do not conform to the outline dimensions stipulated by the national standards, that is, the outline dimensions are different from all bearings stipulated by the national standards. Non-standard bearings have low versatility and are mostly used in special equipment and special occasions.

Wison bearing work closely with customers to develop unique bearing solutions with specialized features to meet application requirements and solve functional problems. Our innovations in special bearings range from nearly standard bearings with slightly modified dimensions to intricate assemblies which integrate the bearing function into a complete mechanism.

In many cases, the overall cost of equipment can be reduced by incorporating special or customized bearings.

The performance and installation benefits to be gained from using custom-designed bearings include:

· Improved assembly reliability

· Enhanced rigidity or stability of the system

· Better location control through proper bearing orientation

· Reduction in handling operations and contamination

· Improved alignment of the rotating assembly

· Weight reduction

· Improved resistance to temperature extremes



· Reduction in tolerance stack up



Welcome contact with us for your special bearing solution.

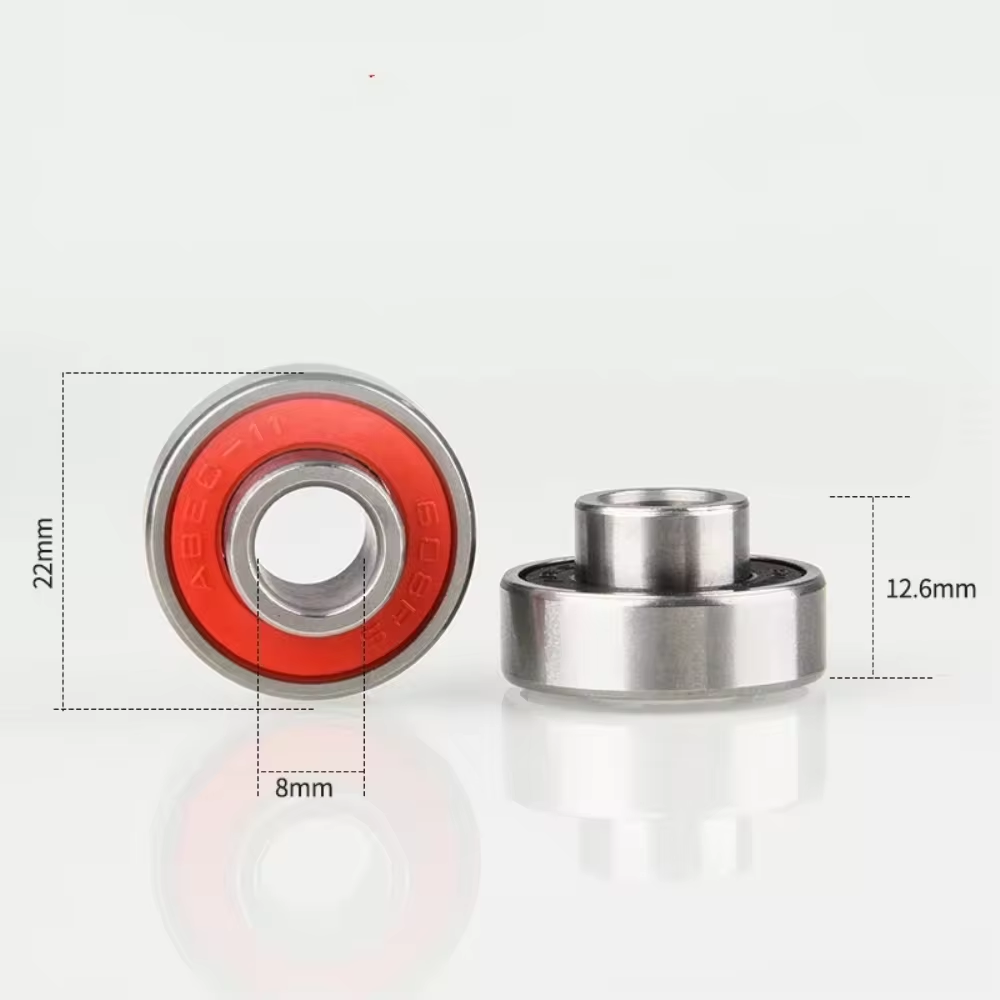

Product details

Bearing No.

608zz

Inner Diameter

8 mm

Outer Diameter

22 mm

Width

12.6mm

Seal type

rubber sealed




More Related Models :

Bearing NO.

Shape Dimension(mm)



d(mm)

D(mm)

B(mm)

r min(mm)

822

8

22

14.9/10.3

0.3

1026

10

26

16.0/12.0

0.3

1228

12

28

16.0/12.0

0.3

62011/2

12.7

32

10

0.6

62021/2

12.7

35

11

0.6

62031/2

12.7

40

12

0.6

620113

13

32

10

0.6

620213

13

35

11

0.6

620313

13

40

12

0.6

6202-14

14

35

11

0.6

317

15

32

11

0.6

279

15

35

13

0.6

348

15

38

19

0.6

6203-15

15

40

12

0.6

319

15

43

13

0.6

392

15

52

16

1

62015/8

15.873

32

10

0.6

99502H

15.873

34.925

11

0.6

62025/8

15.873

35

11

0.6

62035/8

15.873

40

12

0.6

62045/8

15.873

40

12

1

620216

16

35

11

0.6

620316

16

40

12

0.6

62033/4

16

40

12

0.6

62043/4

16

40

12

1

W204

20

47

12

1

Advantage of WISON Bearing:

  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WISON bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WISON bearings give you on time delivery

  • Free sample provided
