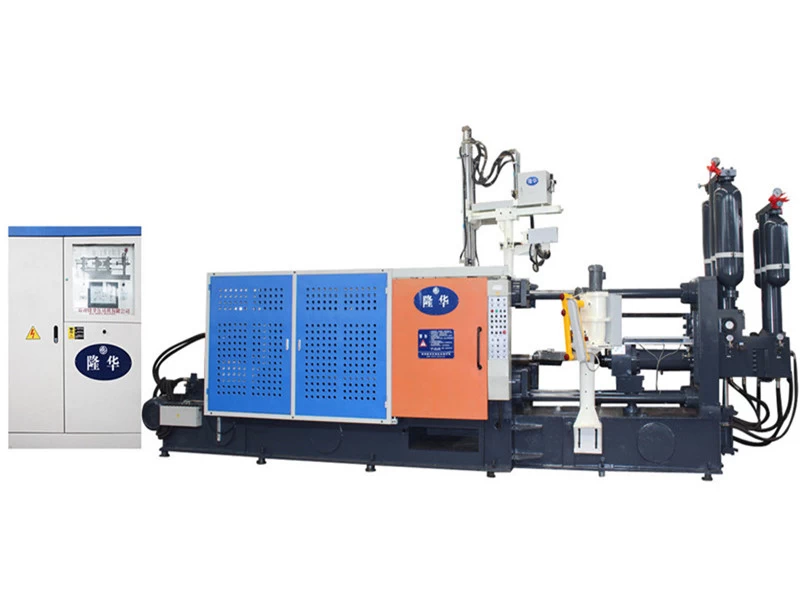

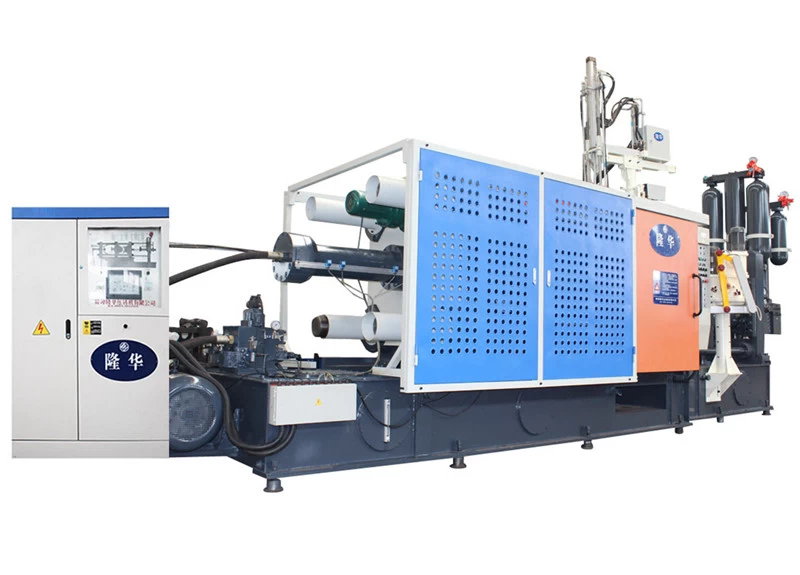

Nonferrous metal die casting machine with photos(LH-700T)
Product Description
The die casting machine has the characteristics of high quality and high rigidity.
The wear-resisting pressing plate is designed by finite element analysis, with uniform stress distribution, small deformation and high precision of mould locking.
LH SERIES OF STANDARD PARAMETER TABLE (LH-700 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
7000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
750*750
|
|
TIE BAR DIAMETER
|
MM
|
￠170
|
|
DIE OPENING STROKE
|
MM
|
650
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
670
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
295
|
|
INJECTION POSITION
|
MM
|
0 -- 250
|
|
PLUNGER DIAMETER
|
MM
|
￠70----￠100
|
|
INJECTION STROKE
|
MM
|
715
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
153/117/92
|
|
CASTING FIANGE PROTRUSION
|
MM
|
15
|
|
CASTING FIANGE DIAMETER
|
MM
|
165
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
1750
|
|
LNJECTION WEIGHT(AL)
|
KG
|
11
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
350～900
|
|
EJECTOR FORCE
|
KN
|
315
|
|
EJECTOR STROKE
|
MM
|
260
|
|
MOTOR CAPACITY
|
KW
|
30
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
8.4*2.2*3.1
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
30
|
|
OIL TANK CAPACITY
|
L
|
1250
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

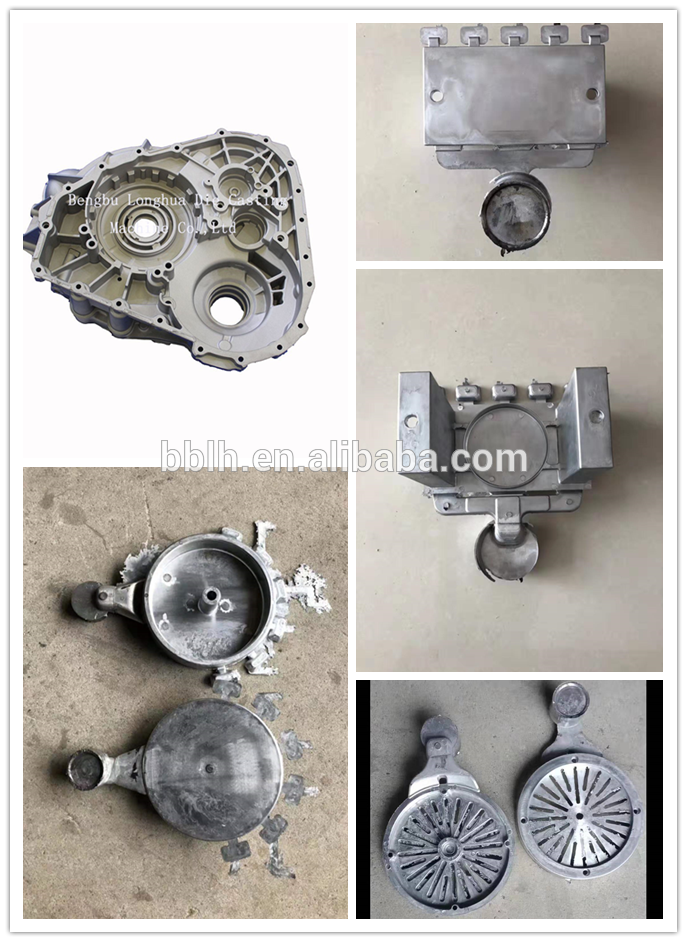

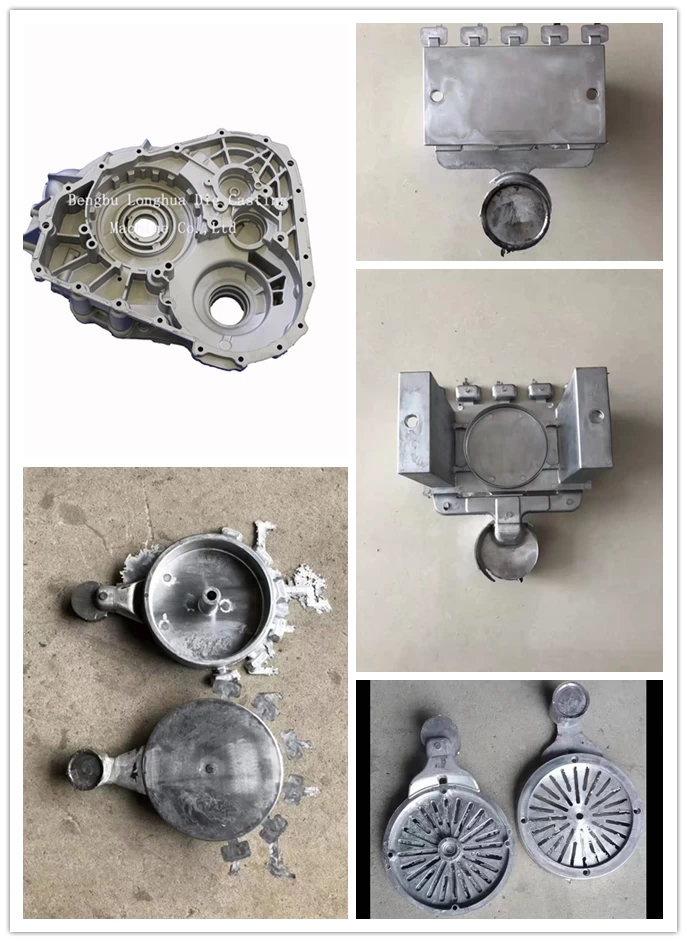

Die casting Application
This machine is suitable for aviation, ships, automobiles, electrical appliances, instrumentation, petrochemical, daily hardware and other industrial departments, mass production of aluminum, zinc, copper and other small non-ferrous alloy die casting.
Die casting machine peripheral machines
Die casting machines should be used in conjunction with electric or natural gas furnaces.
Our electric furnace has reliable humanized circuit design, low failure rate, simple operation.
And electric furnace Uses German technology, save electricity more than 30% than traditional electric furnace.

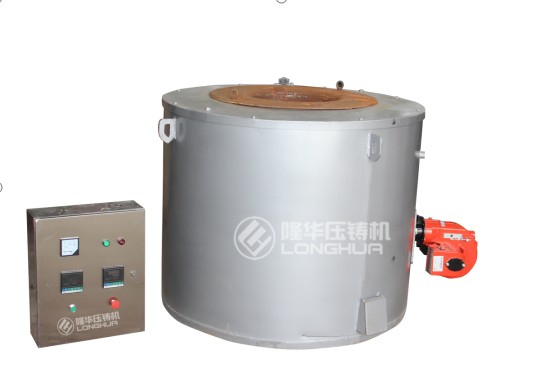

Longhua natural gas furnace with natural gas (liquefied natural gas) as fuel, clean and safe, tidy workshop, easy to manage.
The international brand burner is used to make the gas completely combustion and the exhaust gas emission completely free from pollution.
Multiple heat flow channels are designed to make full use of the energy generated by the burner, greatly improving the thermal work efficiency and saving energy.
After-Sales Service
After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug die casting machines. Training the operator until you learn so far.
Contact Us
For die casting machine,If you have any questions please contact us immediately.
