Product Item:

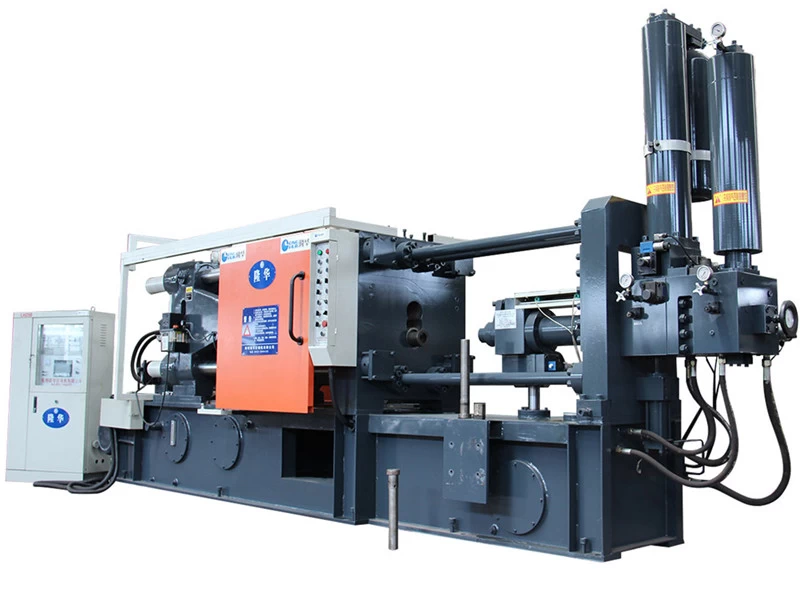

Nonferrous metal die casting machines for making aluminum armatures(LH-220T)
LH SERIES OF STANDARD PARAMETER TABLE (LH-220 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
2200
|
|
SPACE BETWEEN TIE BARS
|
MM
|
510*510
|
|
TIE BAR DIAMETER
|
MM
|
￠90
|
|
DIE OPENING STROKE
|
MM
|
400
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
270
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
140
|
|
INJECTION POSITION
|
MM
|
0 -- 140
|
|
PLUNGER DIAMETER
|
MM
|
￠50----￠70
|
|
INJECTION STROKE
|
MM
|
345
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
112/78/57
|
|
CASTING FIANGE PROTRUSION
|
MM
|
10
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
160-679
|
|
LNJECTION WEIGHT(AL)
|
KG
|
3
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
220～600
|
|
EJECTOR FORCE
|
KN
|
120
|
|
EJECTOR STROKE
|
MM
|
90
|
|
MOTOR CAPACITY
|
KW
|
15
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
5.6*1.6*2.4
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
8.2
|
|
OIL TANK CAPACITY
|
L
|
680
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
LongHua Die Casting Machine Main Features:
1.the injection system with unique vibration force makes the injection more powerful and greatly improves product quality stability.
2.injection and boost accumulator are independently separated, and injection is independently adjusted to ensure the stability of injection pressure.
3.the injection adopts a four-tie rod structure, which is more stable and reliable.
4.the maximum air pressure shooting speed is ≥8M/s, and the pressurized building time is ≤20ms.
5.low speed segment: it can be precisely controlled to avoid the problem of air entrapment.
6.high speed break: high speed can be reached quickly, and filling time and casting forming effect can be effectively controlled.
7.supercharging section: the supercharging speed can be changed according to the process to enhance casting density without causing deformation.
