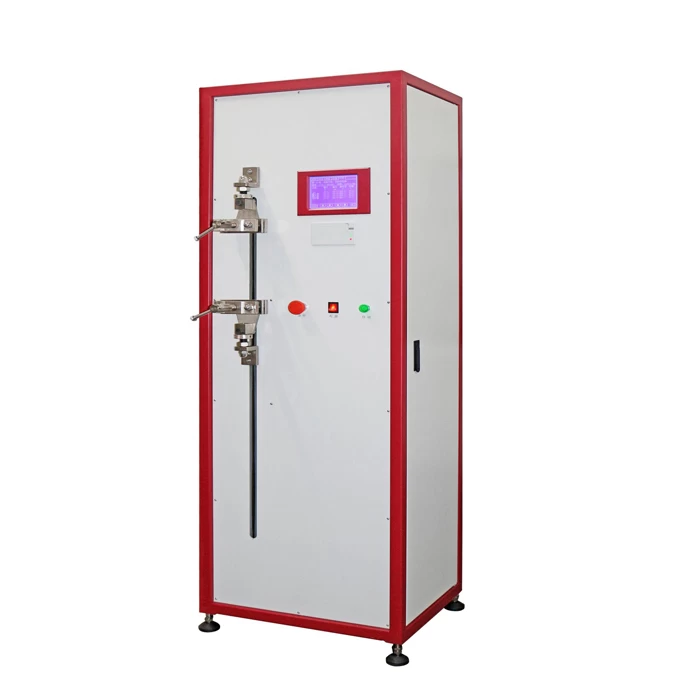

Nonwovens Strength Tester GT-CN01

Nonwovens Strength Tester can be used to test nonwovens absorption, adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, and between lining apparel fabrics, linings and fabrics, and coating adhesions various tensile and peel strength.

Facebook Twitter Pinterest LinkedIn 分享

Nonwovens Strength Tester GT-CN01


Product Introduction

Application:

Nonwovens Strength Tester can be used to test nonwovens absorption, adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, and between lining apparel fabrics, linings and fabrics, and coating adhesions various tensile and peel strength.


Feature

  • Touch screen display, human-machine interface in English.
  • Vertical cabinet structure, generous appearance, and smooth operation.
  • Stepping servo drive, the deceleration box is equipped with synchronous belt deceleration, accurate testing and stability.
  • Equipped with online interface, developed of testing software professionally, can be used to check and analysis the results of test.
  • By setting the parameters, the clamping distance will be automatically positioned.
  • The first sample testing and data processing software adopts multi-thread processing in China, and the test doesn't have to wait.


Key Specifications



Model

GT-CN01-5

GT-CN01-10

GT-CN01-50

Testing Range

50N

100N

500N

Force Measure Range

1%~100% of the Testing Rnage

Operating Mode

Constant velocity extension principle(CRE), microcomputer control, LCD Chinese display, support online communication

Sampling Frequency

1000 times/second

Stretching Speed

50~1000mm/min

Maximum Elongation

800mm

Clamp Width

60mm

Test Accuracy

≤0.2%F·S

Dimensions

520×400×1600mm

Power Supply

AC220V  50HZ  200W

Weight

60kg

Standards

GB/T3923.1/2, FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011
