HC01 motor thermal protector for auto parts
HC01/6AP car motor protector is actuated by current passing through it and by the heat received from the ambient temperature.HC01 motor protector used in automotive motors is small but safe,widely used in car window motors, wiper motors, seat motors and so on.It can effectively protect the motors from overheating.
Features
Small size, long life and high reliability.
High level bimetal ensure that it can withstand the current of normal circuit.
The combination of bimetal and heater strip can action snappily.
Accurate trip off time can prevent motor from overheating.
Both temperature and current sensitive.
Each type of parts strictly implemented European ROHS environmental standards.
Terminals are optional and customized.
Available terminal specifications: A. same insert B. opposite insert C. same terminal D. opposite terminal E.
Wires are optional and customized.
Specifications
|
Item No.
|
HC01/6AP
|
|
Electrical specifications
|
45 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
28 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
30°C-180°C (optional and customized)
|
|
Temperature tolerance
|
±5°C,±8°C,±10°C
|
|
Trip off current range
|
1-45A
|
|
Trip off time
|
4-10s
|
|
Case material
|
Metal
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

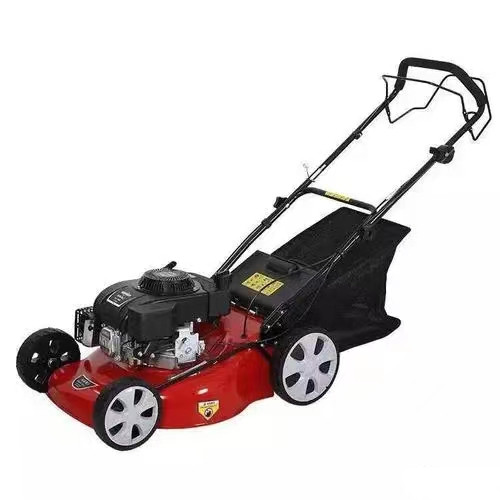

| Lawn mowers |

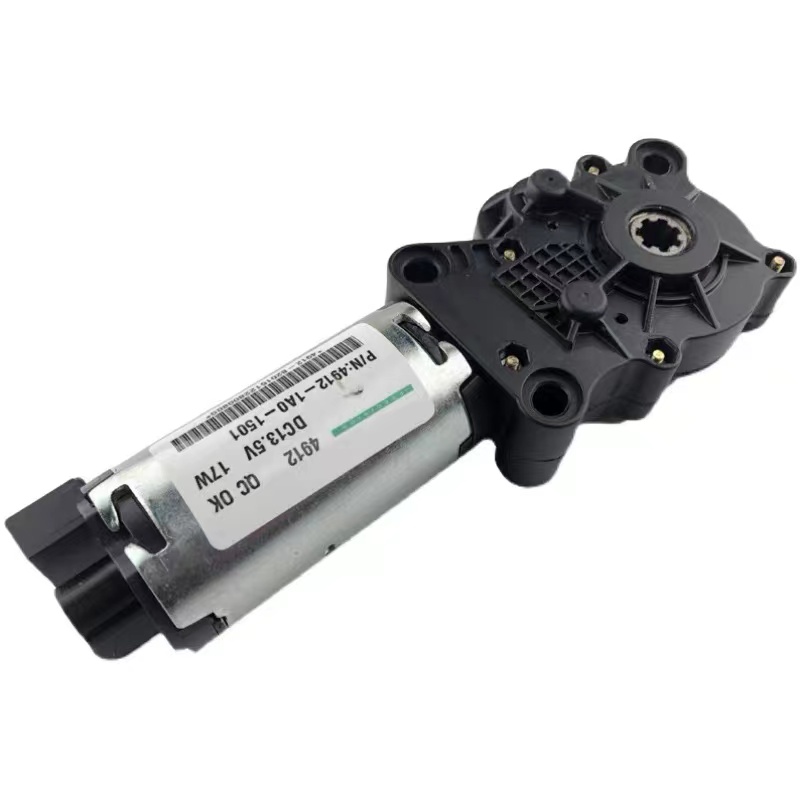

Seat motors |

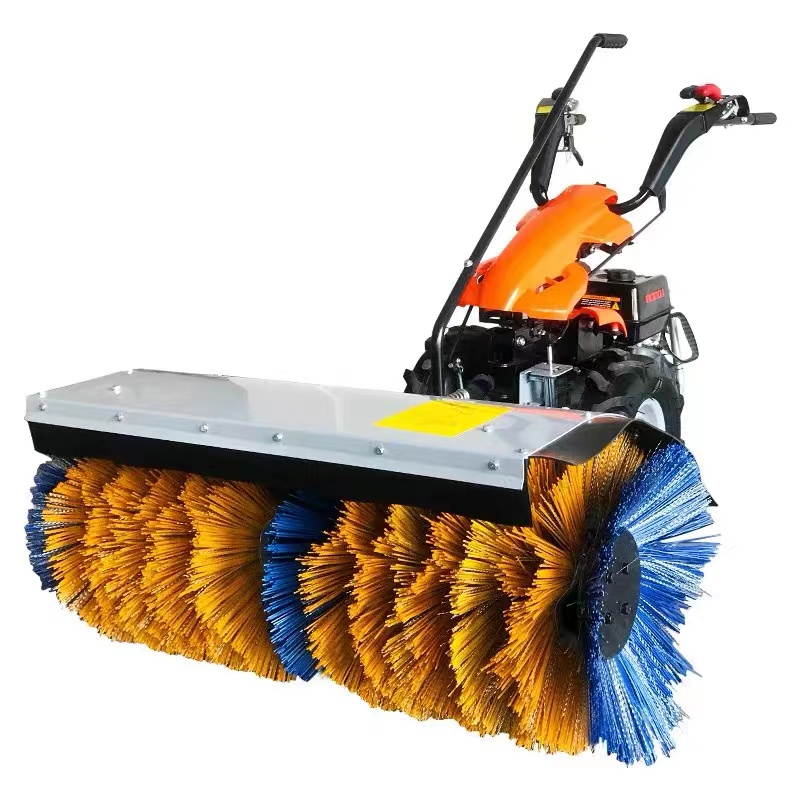

Snowplows |

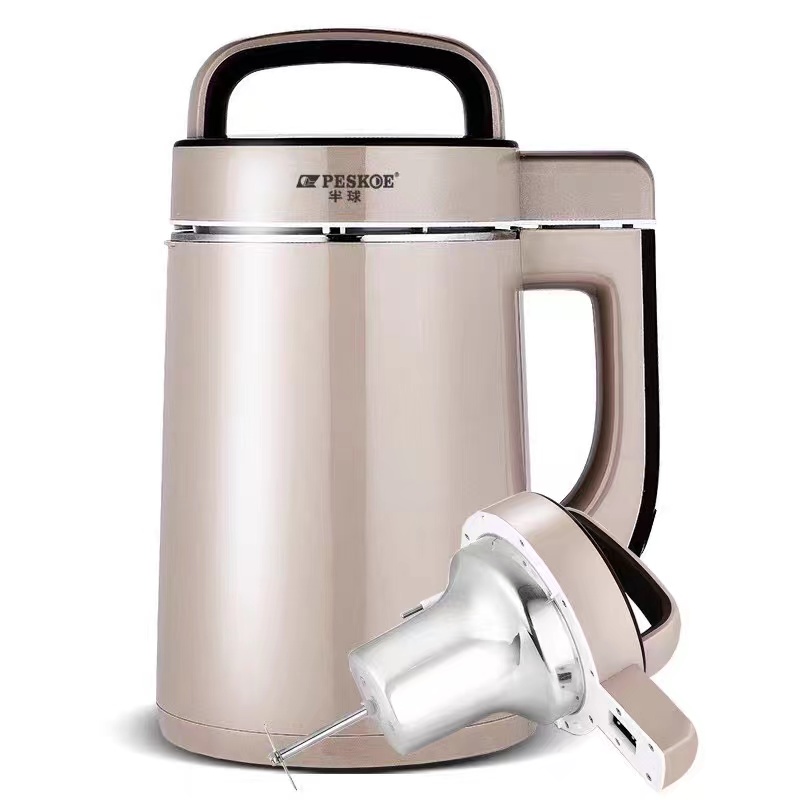

Soybean milk machines |
 |
 |
 |
 |

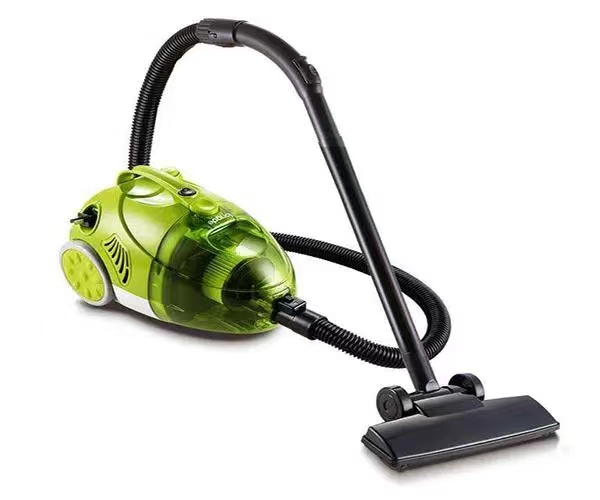

| Vacuum cleaners |

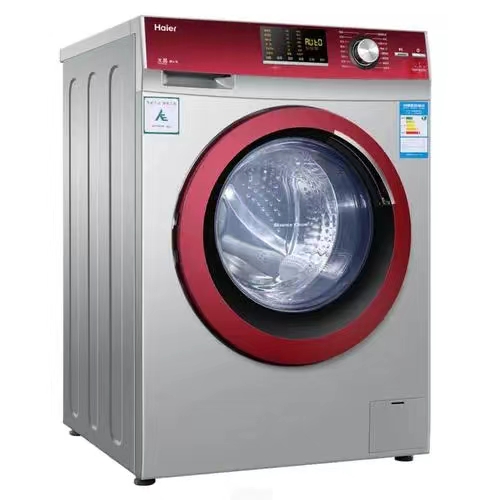

Washing machines |

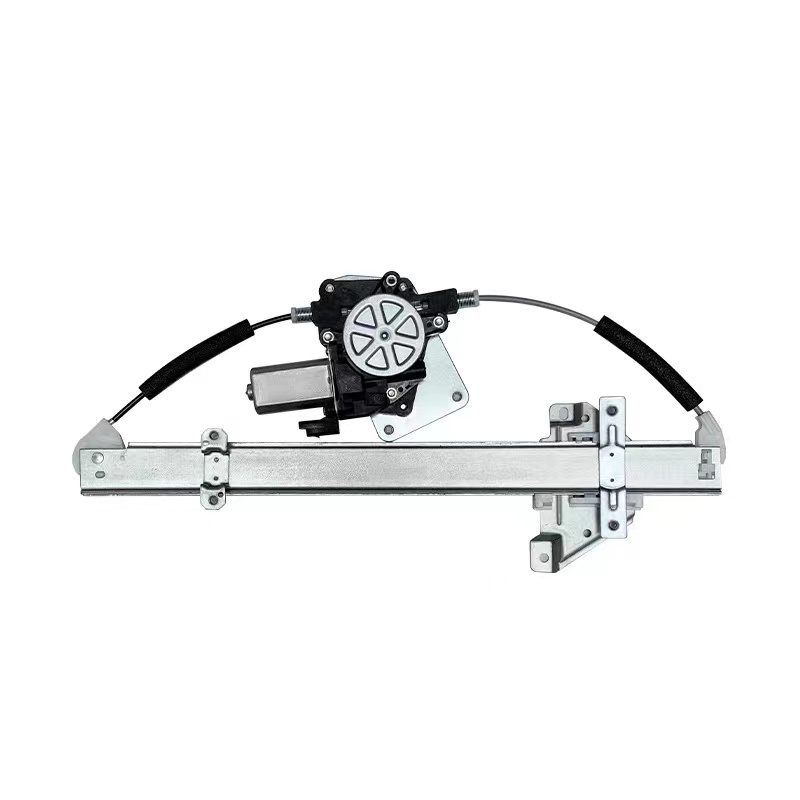

Window motors |

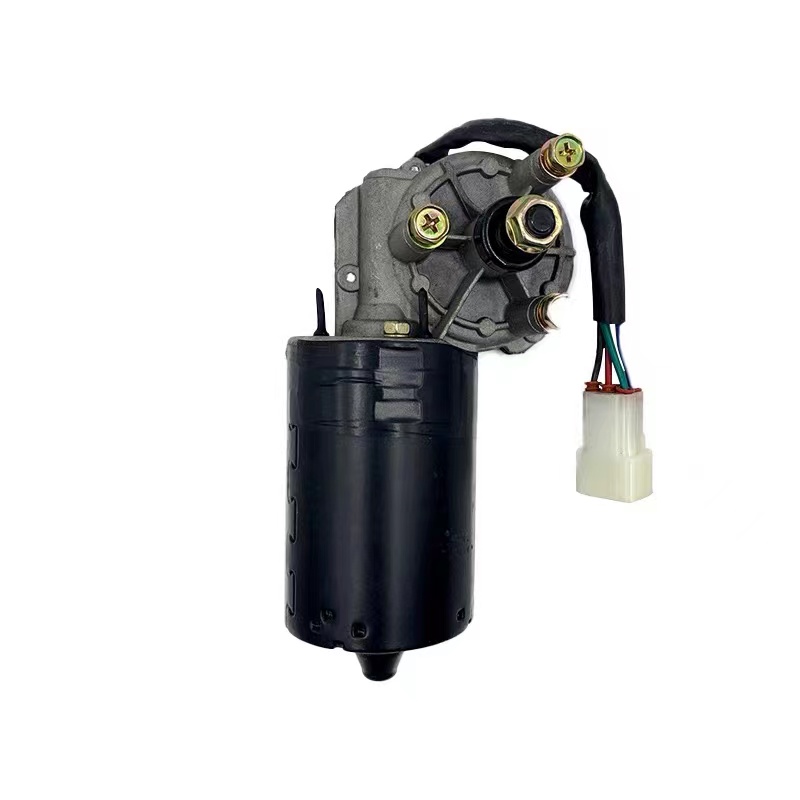

Wiper motors |

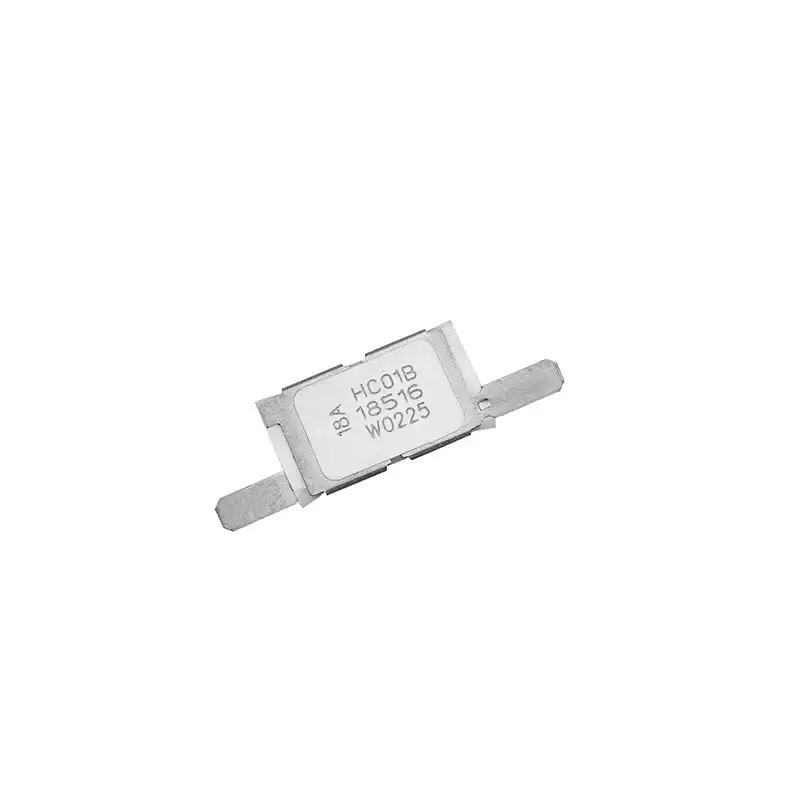

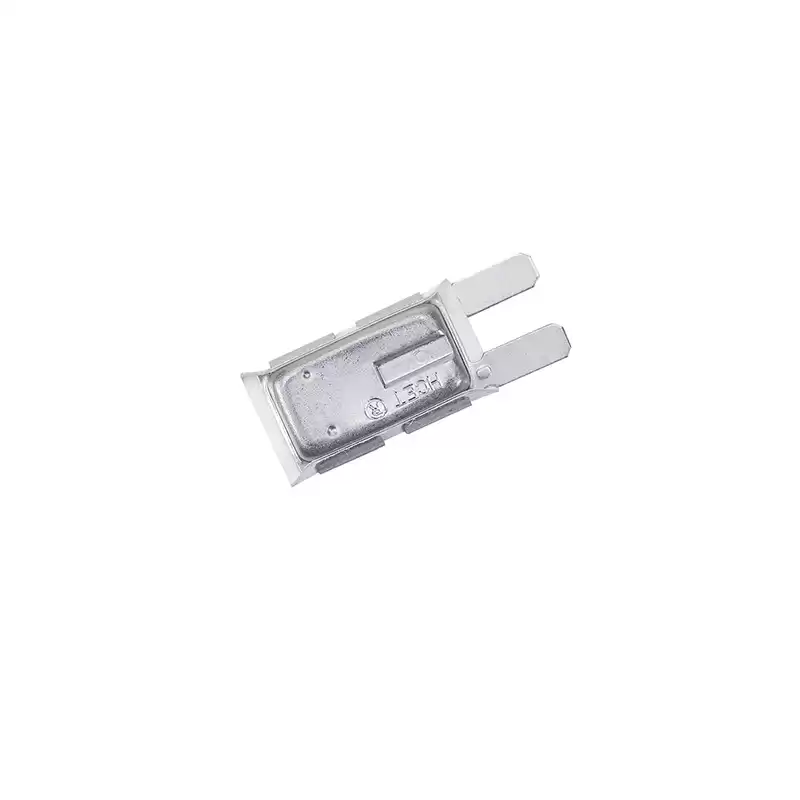

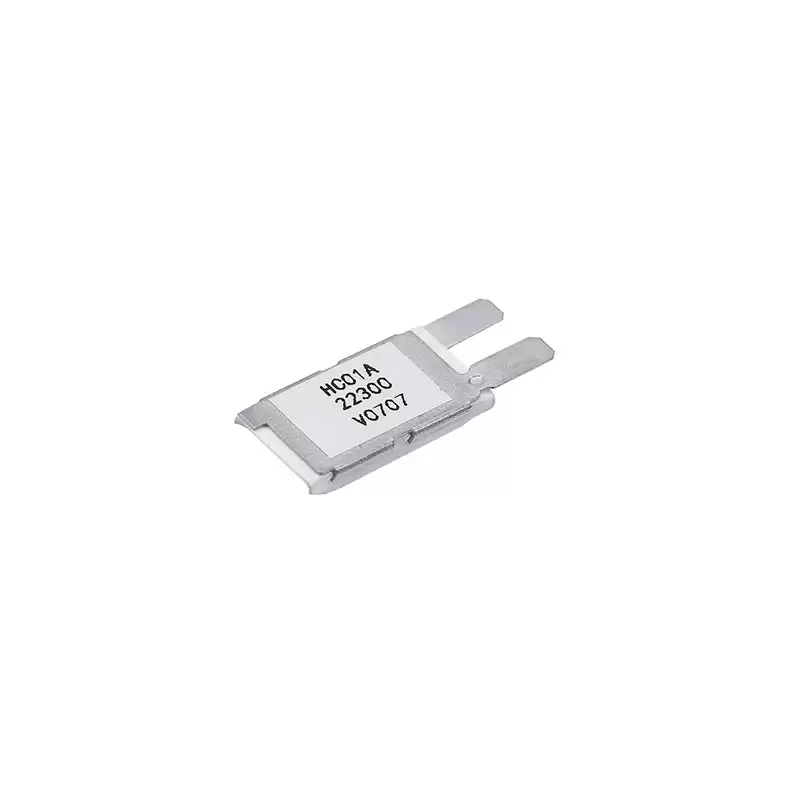

Product display

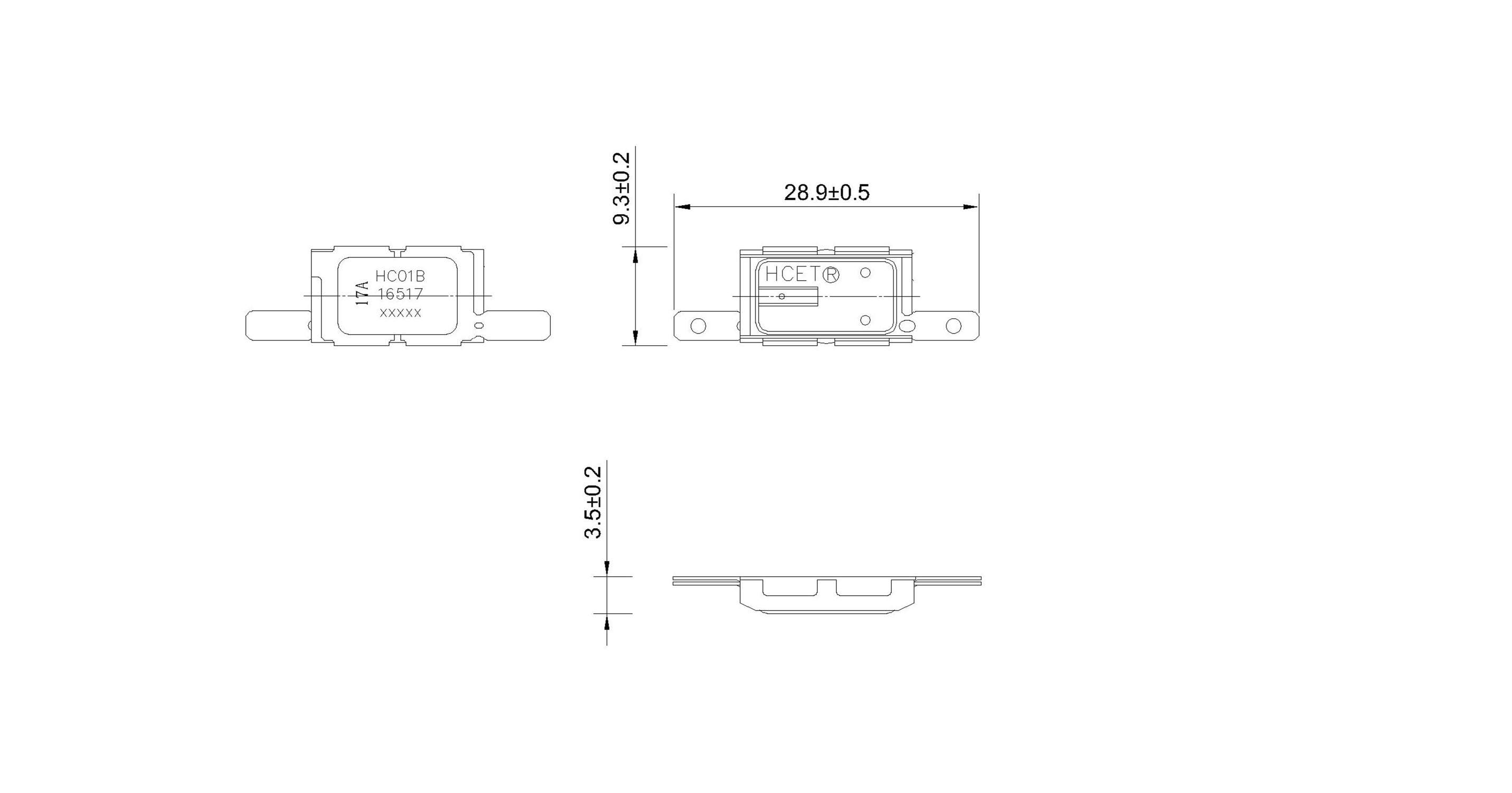

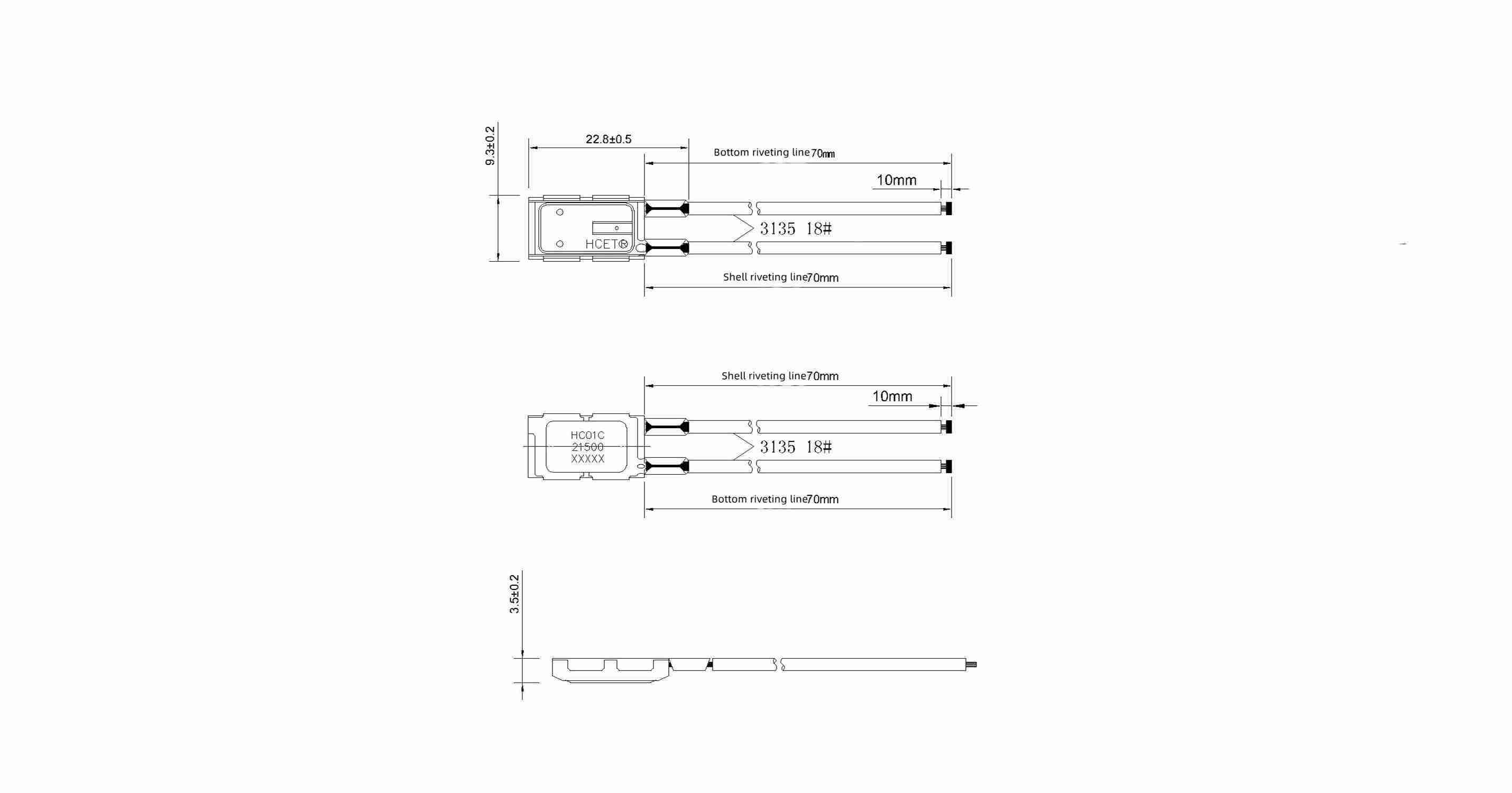

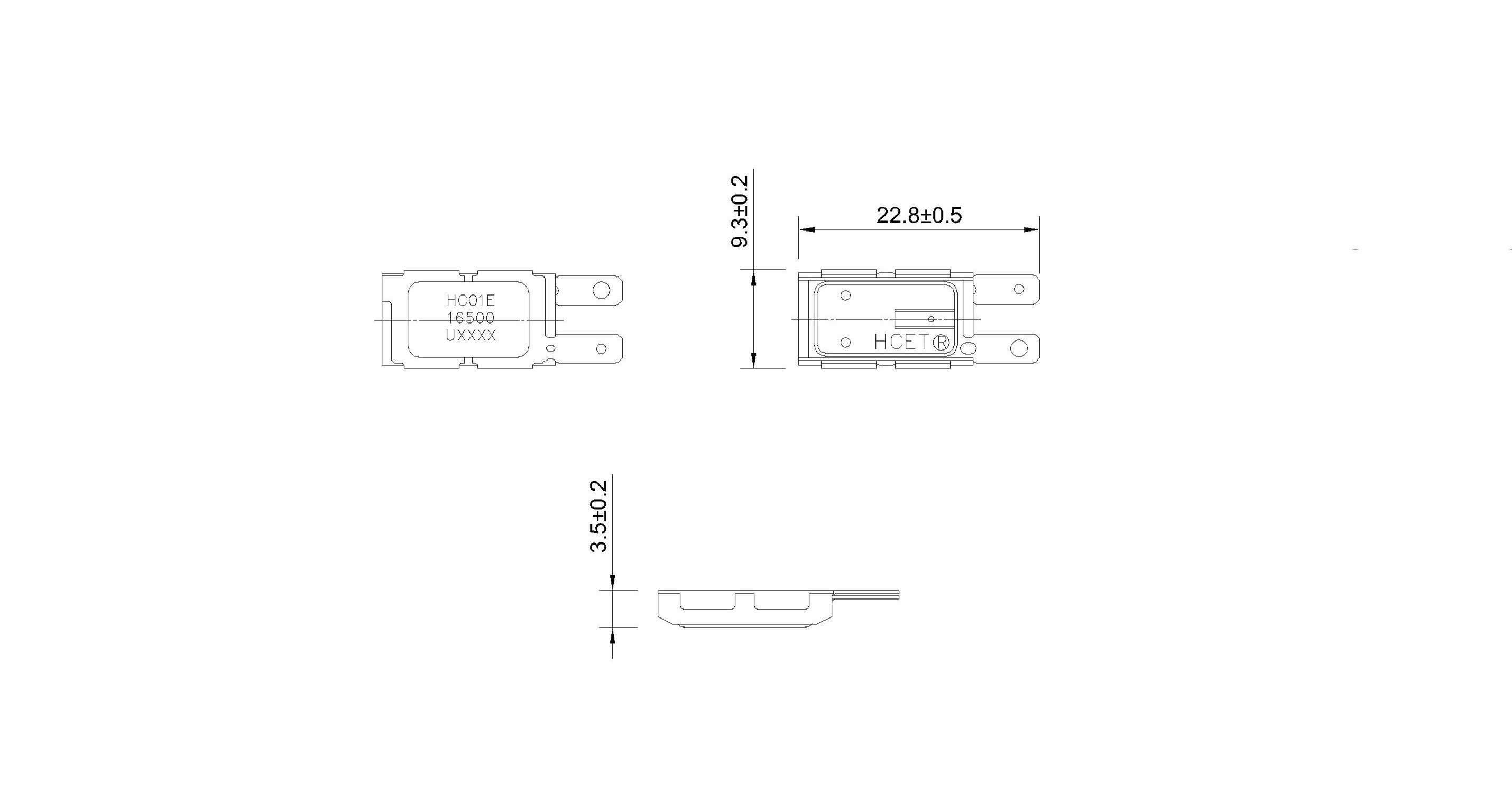

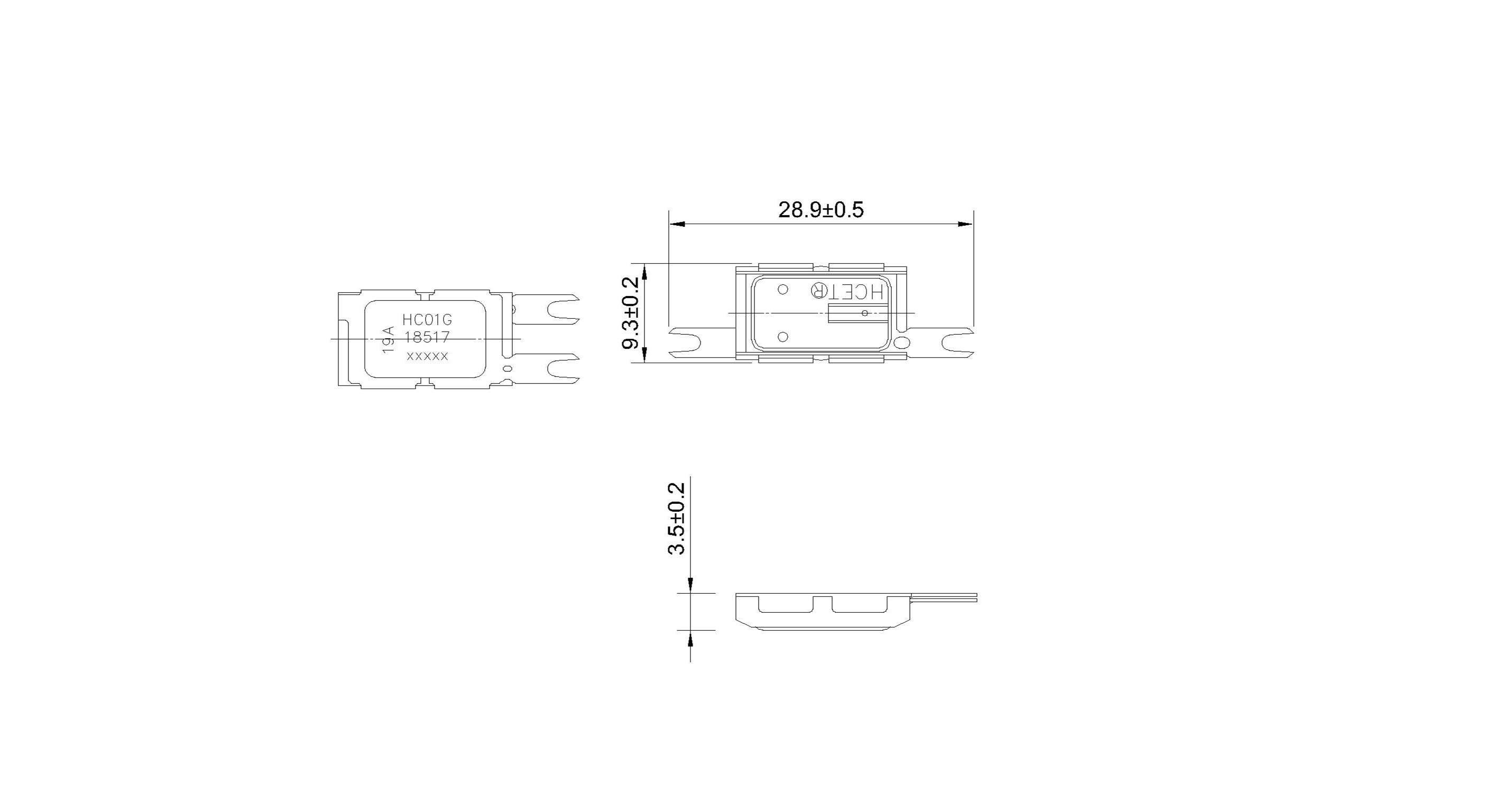

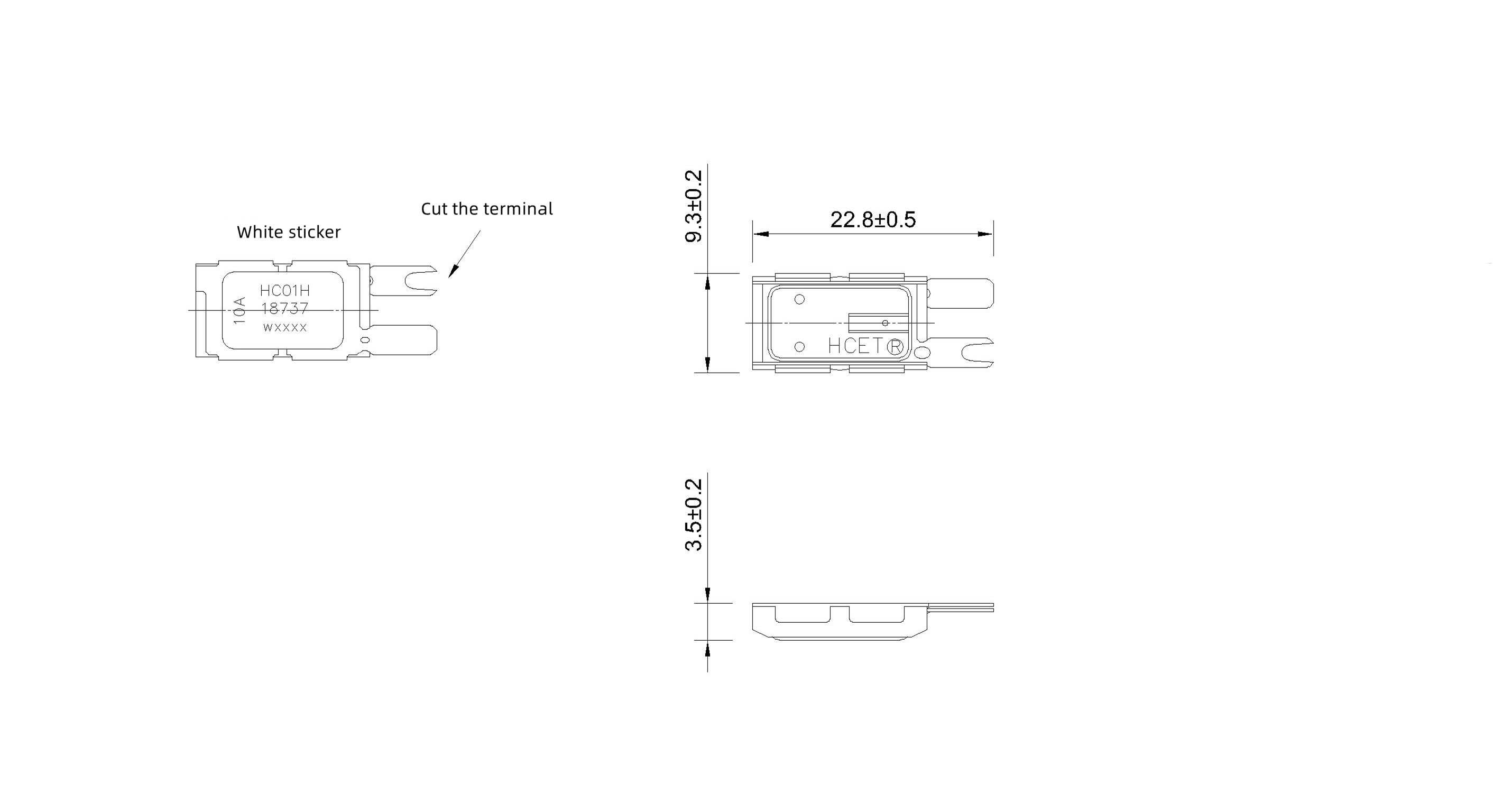

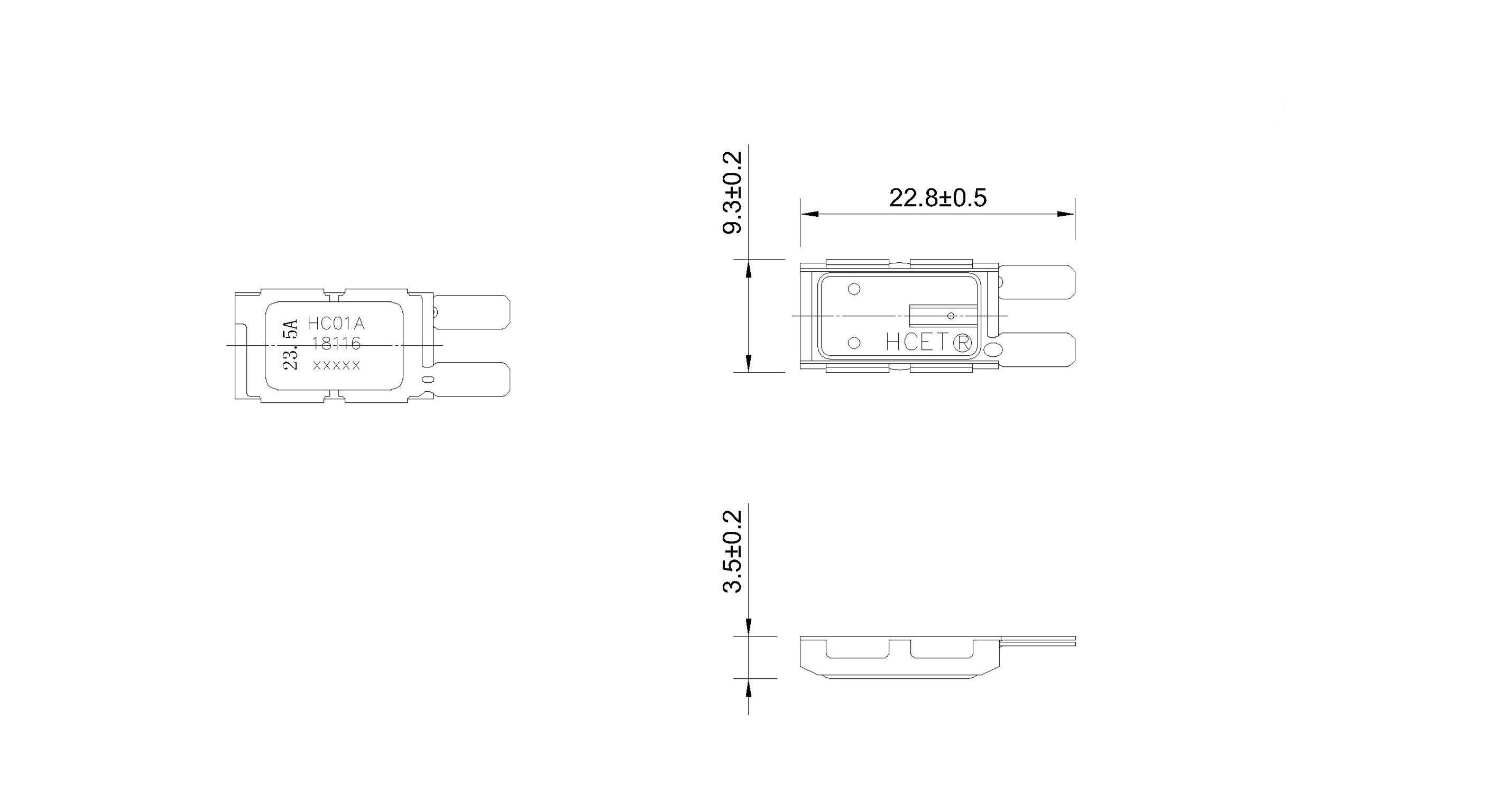

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
