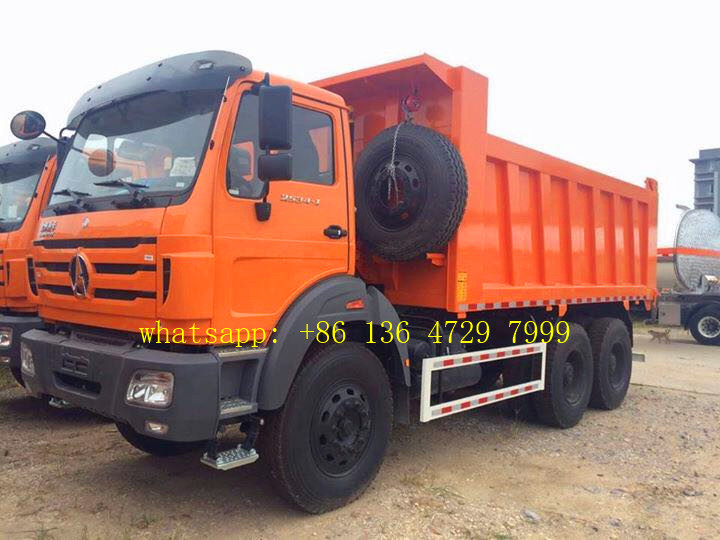

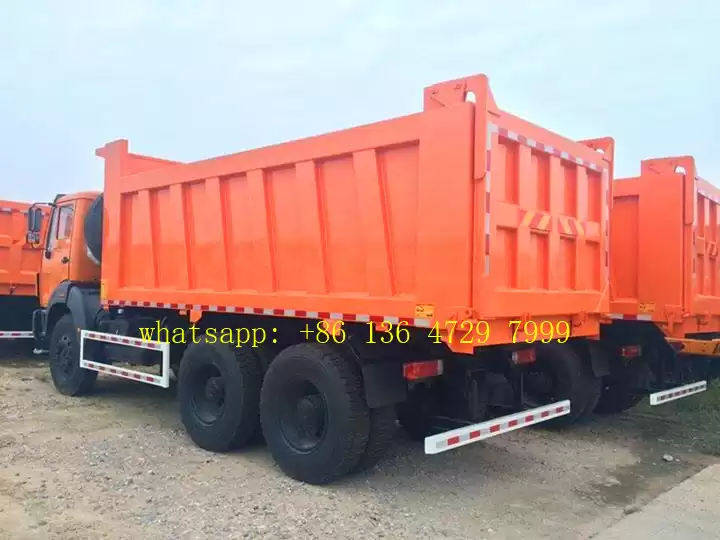

north benz 2538 dump truck

china north benz dump trucks, with germany benz technology NG80B cabin, excellent 7 T front axle, 16 T axle double rear axle , 12.00R20 tyre


  • Production time30 days
  • Payment termsT/T, L/C



beiben dump truck



 Applications:



Beiben 2638 dumper, also called as beiben 2638 tipper , beiben 2638 dump truck, beiben 380 hp engine dump truck is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.



CEEC TRUCKS dumper trucks all use reliable china famous brand hydraulic lifting device, with Front & Middle lifting optional.



The beiben dump truck  Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz chassis, perfect performance

---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Dumper body capacity from 15 to 25 CBM .

---- China famous lifting device easy operation and maintenance.

---- Front lifting & middle lifting are available.



 Specifications:



africa Dump Truck Beiben (40 T)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

8500*2490*3340 mm

GVW / Kerb Weight

45,000 kg / 14,800 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

380 HP (279 KW)

Displacement

9726 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

3800+1450 mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body Capacity

16 CBM

Tilting Device

Front lifting device

Hydraulic Cylinder

China brand

Discharging model

Rear discharging

Dump Body Dimension
5600*2300*1500 mm

Thickness

Side Board: 8mm

Floor Board: 10 mm

Control panel

English or Your language

All standard accessories: basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.






---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

   beiben dump truck







---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



beiben dumper truck spare parts

beiben dumper truck parts





---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...








---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

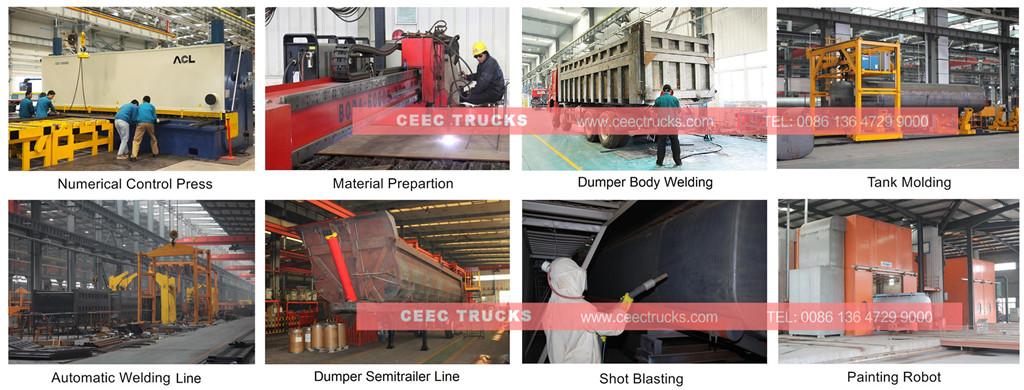

beiben dumper truck factory advantage





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



beiben dumper truck export review





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



beiben dumper truck export review
