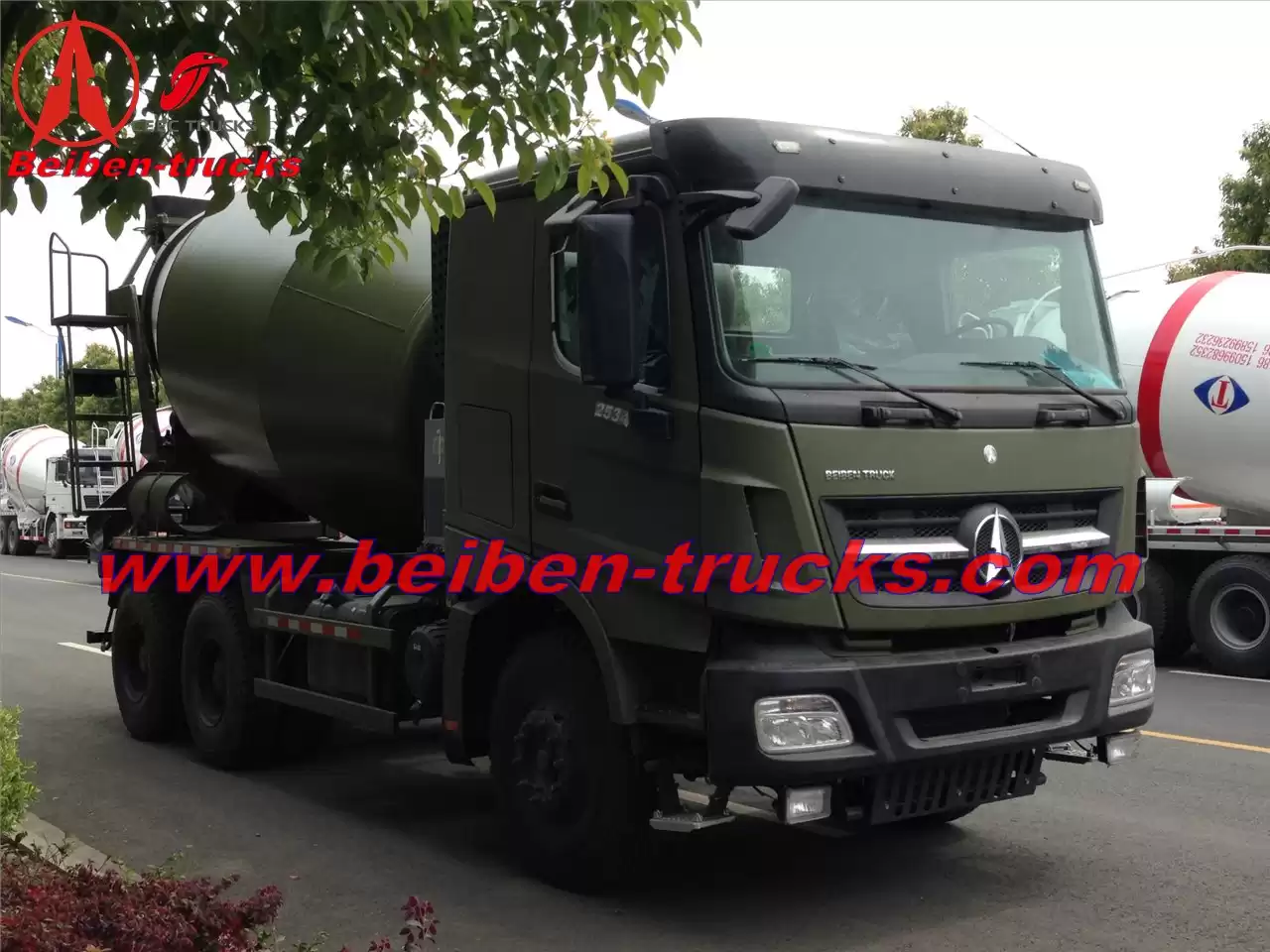

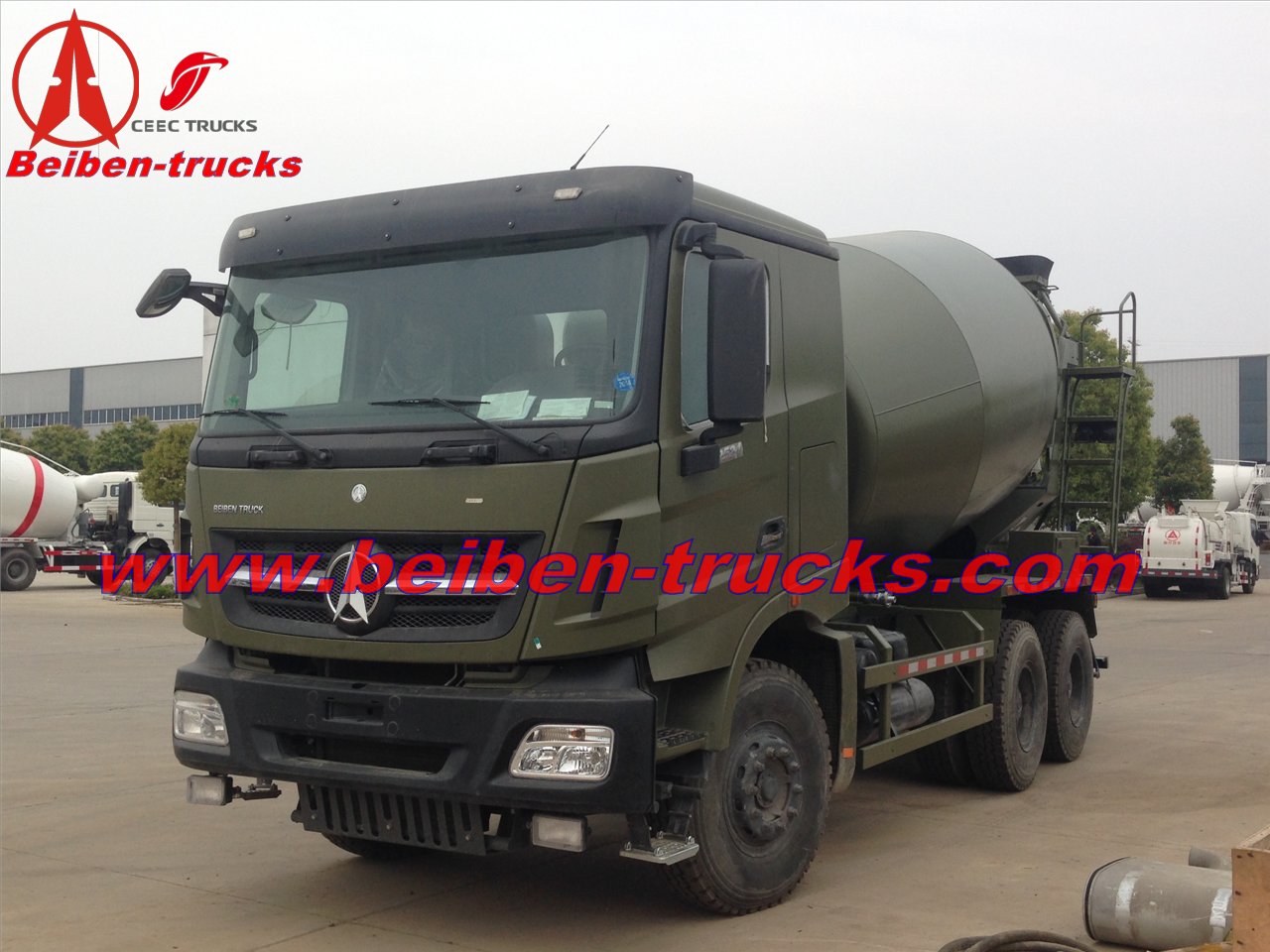

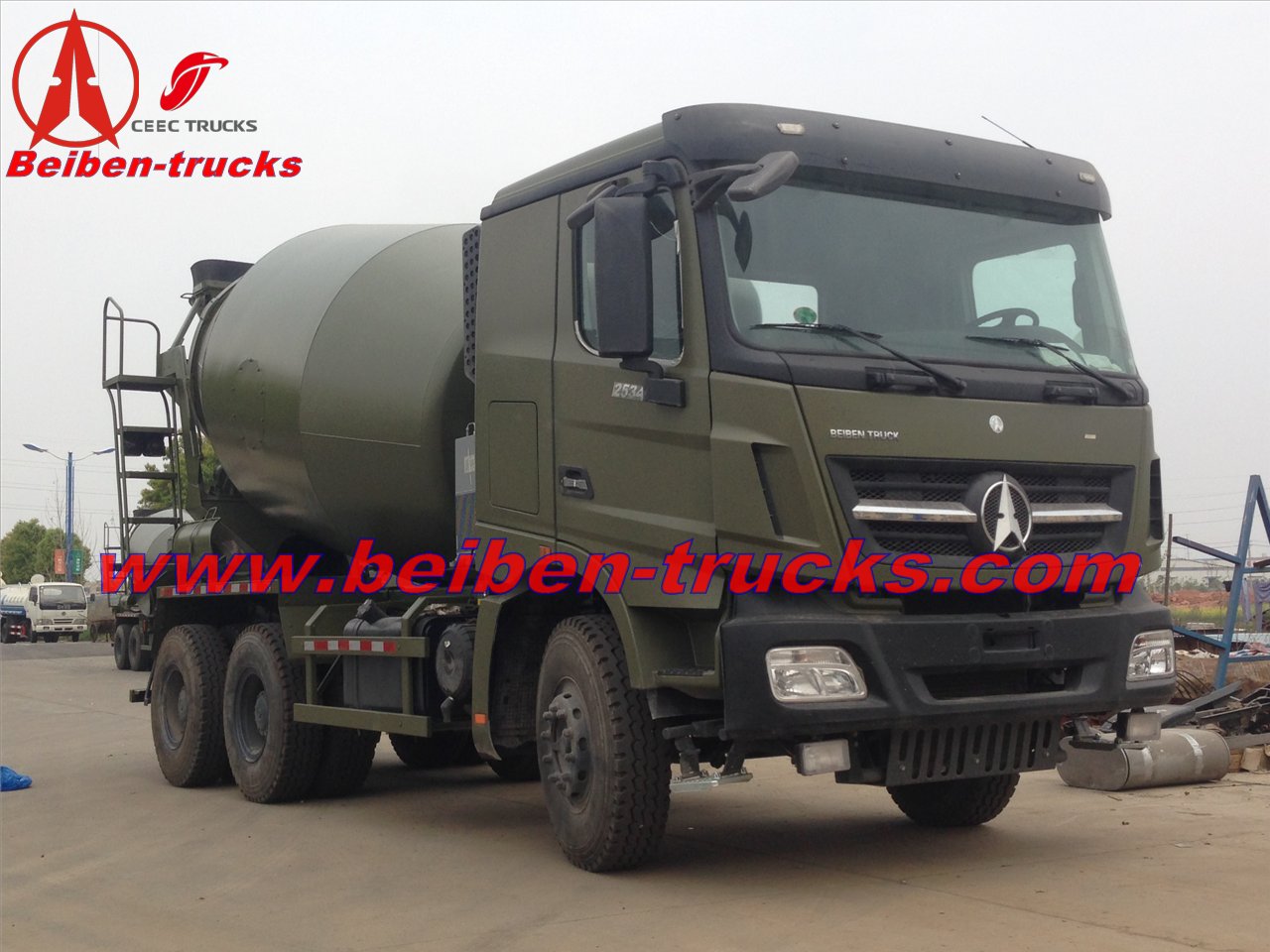

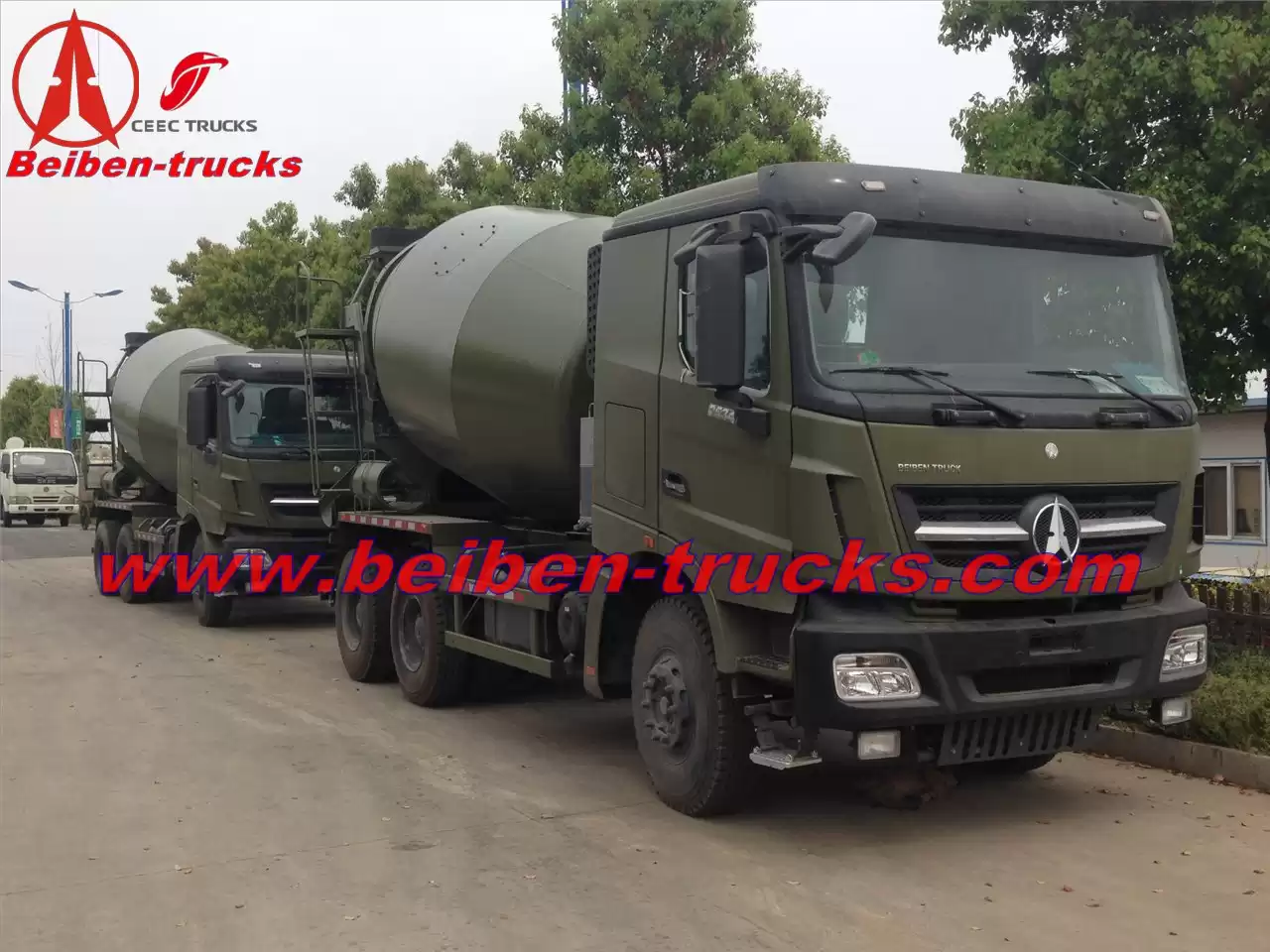

north benz 2538 v3 cement mixer truck

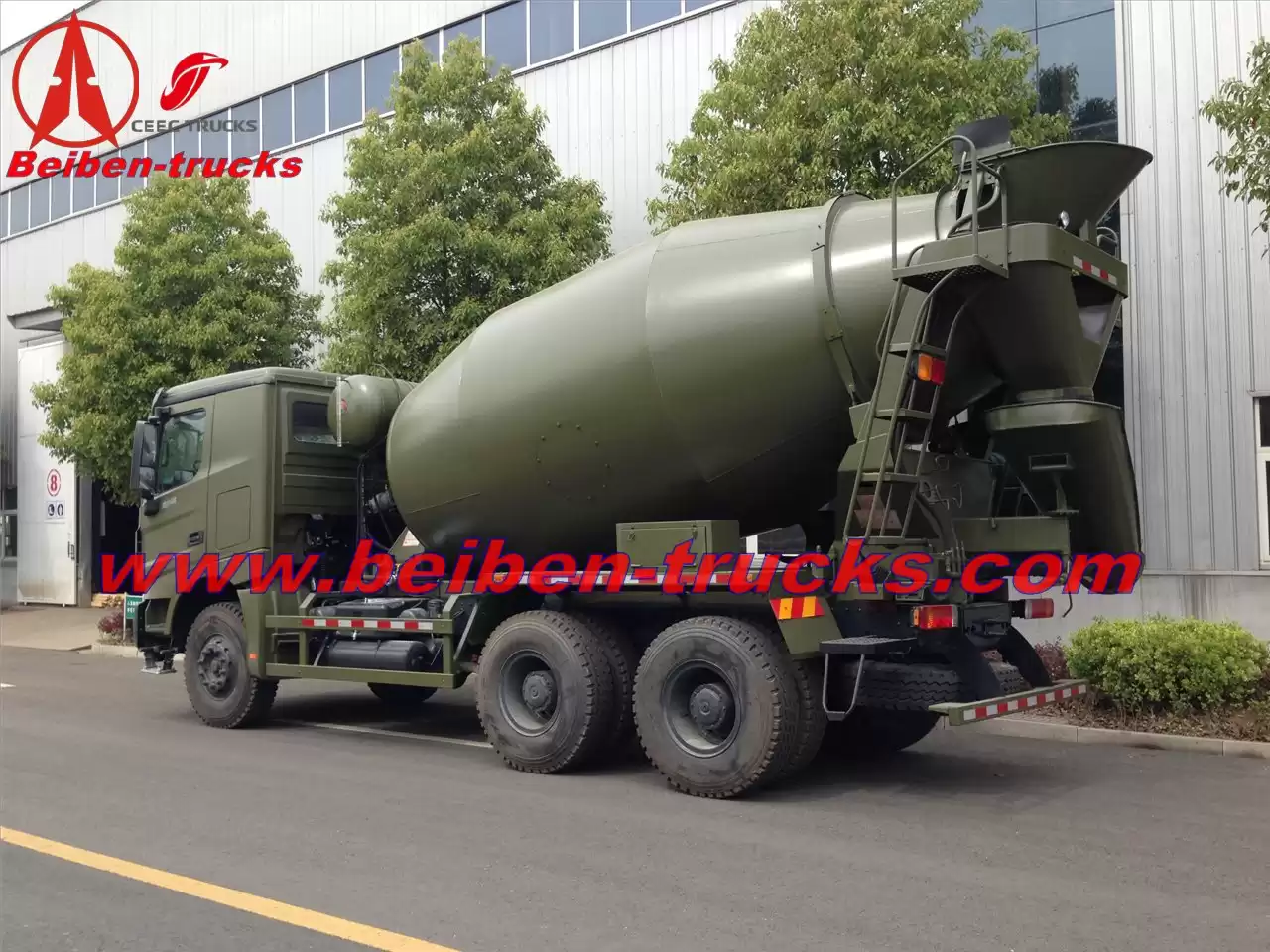

1.High-performancemixing drum
CEEC TRUCKS transit mixer, The combination of the large capacity mixingdrum and the uniquely-designed double logarithmic variable pitch helical bladeenables the beiben mixer truck getperfect balance between the concrete mixing quality and discharging speed, itnot only meets the requirements of pumping while discharging at idle speed butalso ensures our beiben cement mixer trucks the uniformity of concrete mixing.

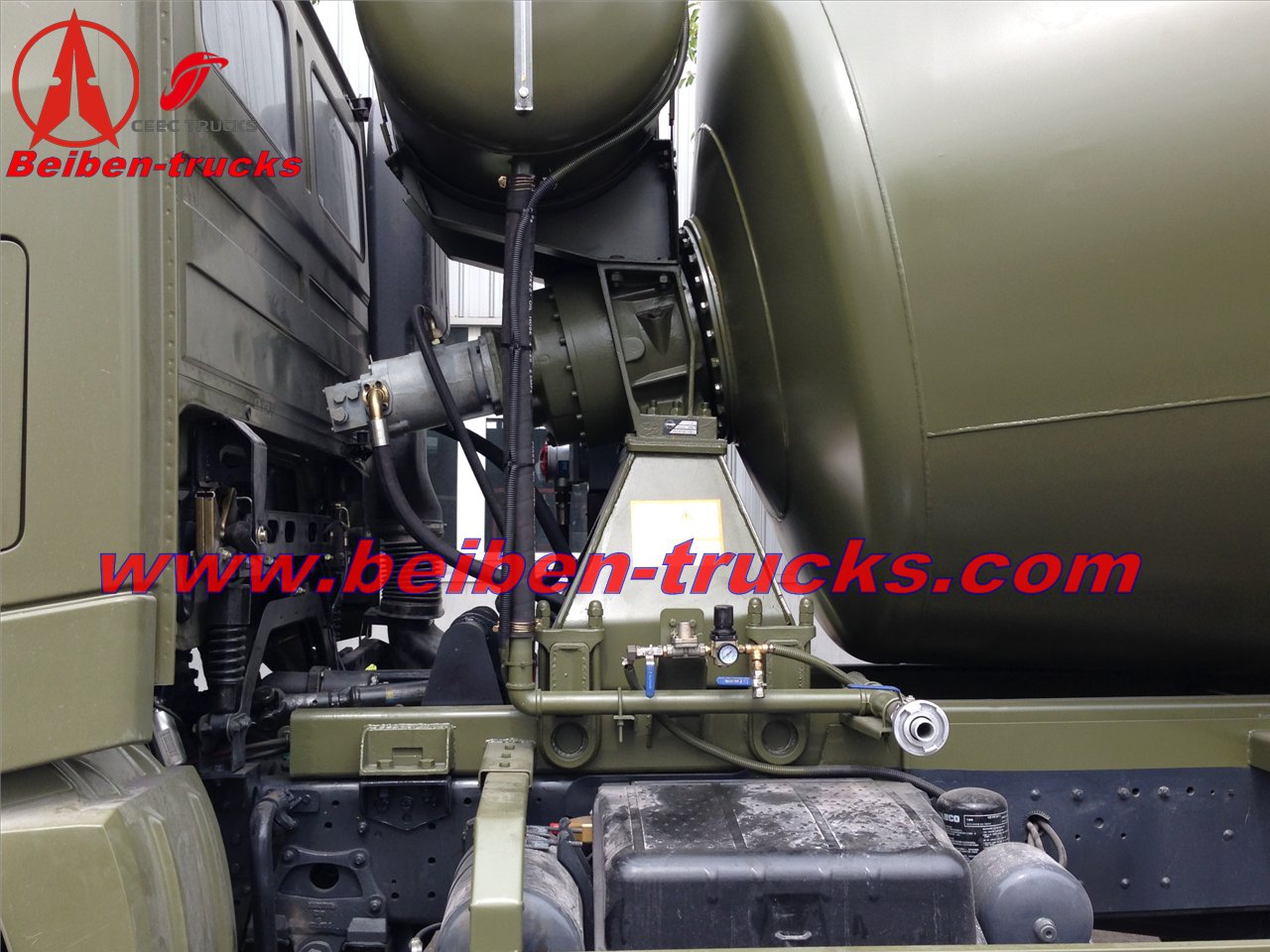

2.Worldfamous hydraulic transmission parts:
Qualifiedhydraulic transmission part is the important guarantee of the reliability of beibentruck-mounted concrete mixer, thusour products adopts the world famous components.
Hydraulic oil pump: Rexroth, EATON, , ARK
Hydraulic motor: Rexroth, EATON, , ARK
Reducer: AF, SAUER, PMP, TOPUNION
Radiator: AKG, ASA and domestic famous brands
3.Convenientand flexible operation system in different styles:
Connectingrod operation mode is applied in driver’ cab and both side at the rear part ofthe beiben concrete mixer truck , itcan realize three axle linkage which features convenient and simple inoperation.
The operation mode of controller with soft shaft features more safe andreliable for north benz mixer truck.
Operation of electric control mode features energy-saving, comfortable and fullof humanness.
4.Water-supplysystem:
Electricwater pump and pneumatic types are optional.
mixer drumcapacity: 6 M3 ,8 m3, 10 m3, 14 M3 .
mixer engine :Cummins, Hino, Weichai
mixerhorse power : 260- 375 HP
| Sales No.
|
beiben 2634GB mixer trucks
|

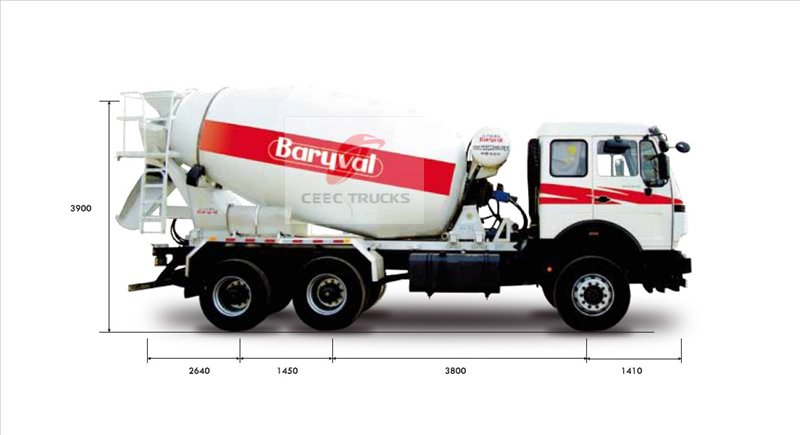

| Dimension（mm)
|
Long
|
9300
|
|
Wide
|
2500
|
|
High
|
3900
|
| Wheel base（mm）
|
3800+1450
|
| Drive
|
6×4
|
| Engine
|
Model
|
WP10.340E32/WP10.336
|

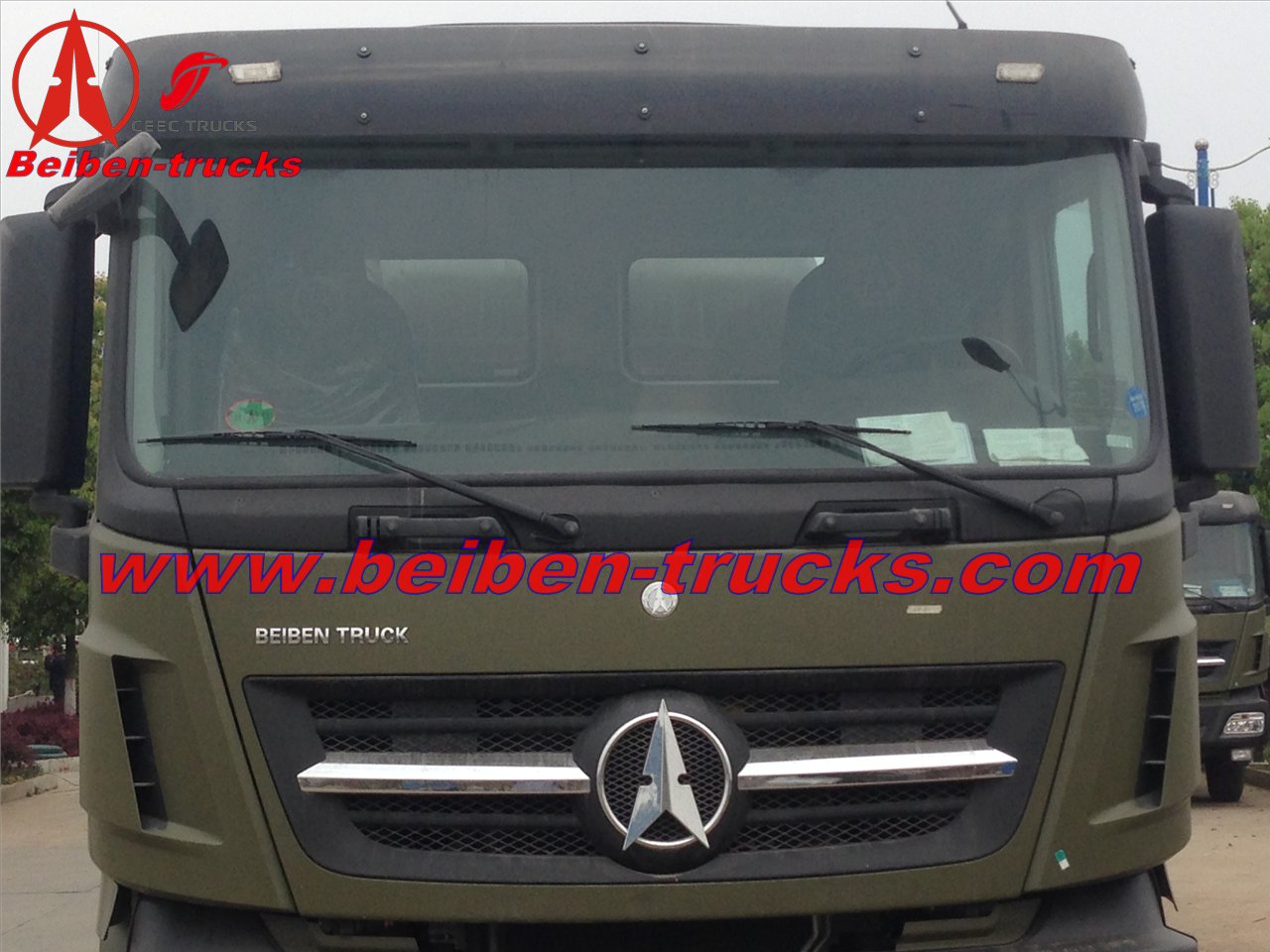

| Cabin
|
NG80B / Long cab
|
| Clutch（mm）
|
Φ430
|
| Front Axle
|
7.5T
|
| Rear/Mid Axle
|
Model/speed radio
|
Double Reduction Driving Axle /5.263
|
| Steering System
|
ZF8098
|
| Braking System
|
Dual Circulation Air Brake System
|
| Fuel Tank（L）
|
400L
|
| Frame/mm
|
317×70×8.5+7
|

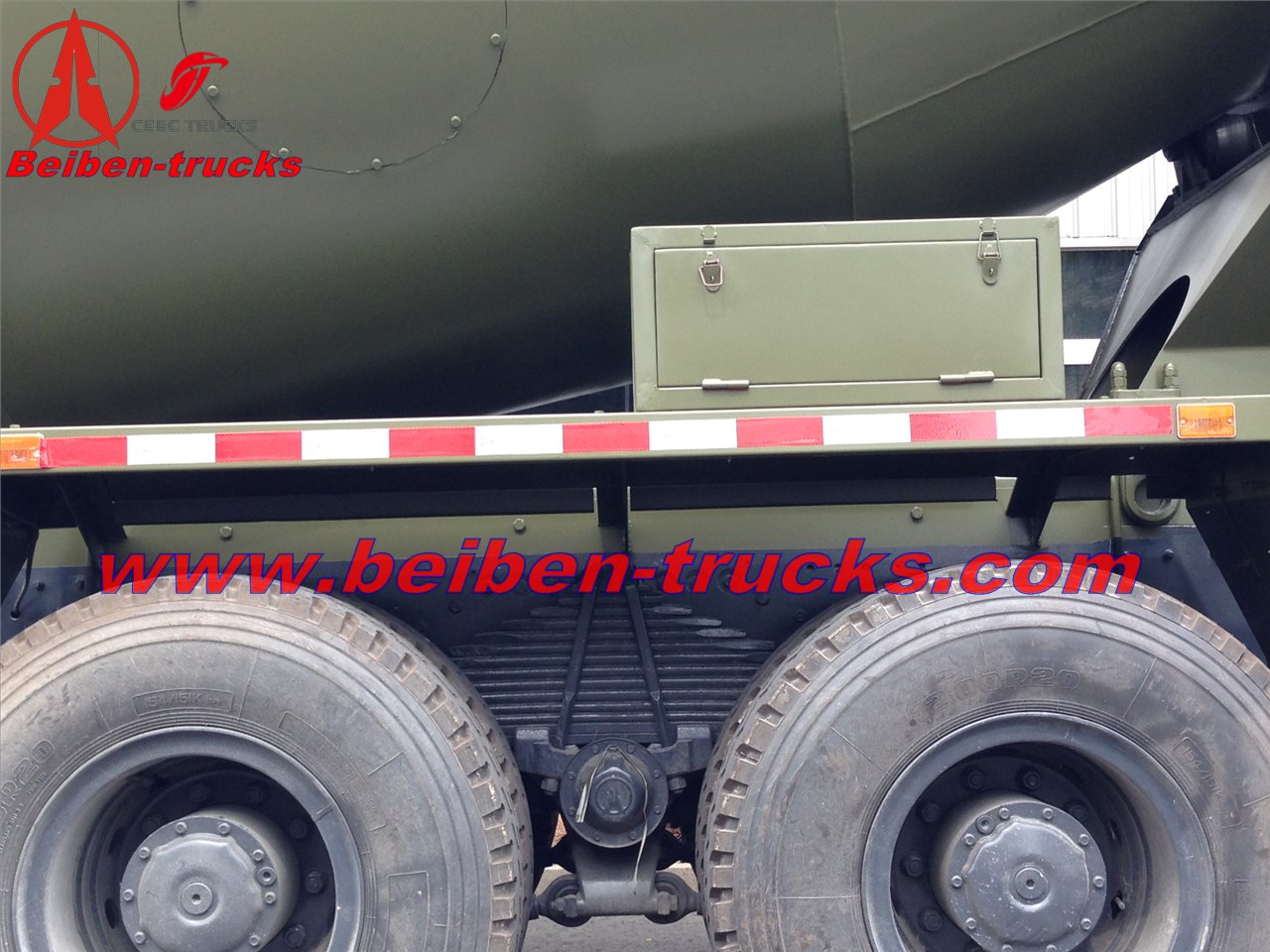

| Tire
|
12.00R20
|
| Front/Rear Overhang
|
1410/2640
|
| Transmission
|
9T-160
|
| Curb Weight（kg)
|
13650
|
| Up Body Volume(m³)
|
9
|
| Max Speed（km/h)
|
90
|
