Model

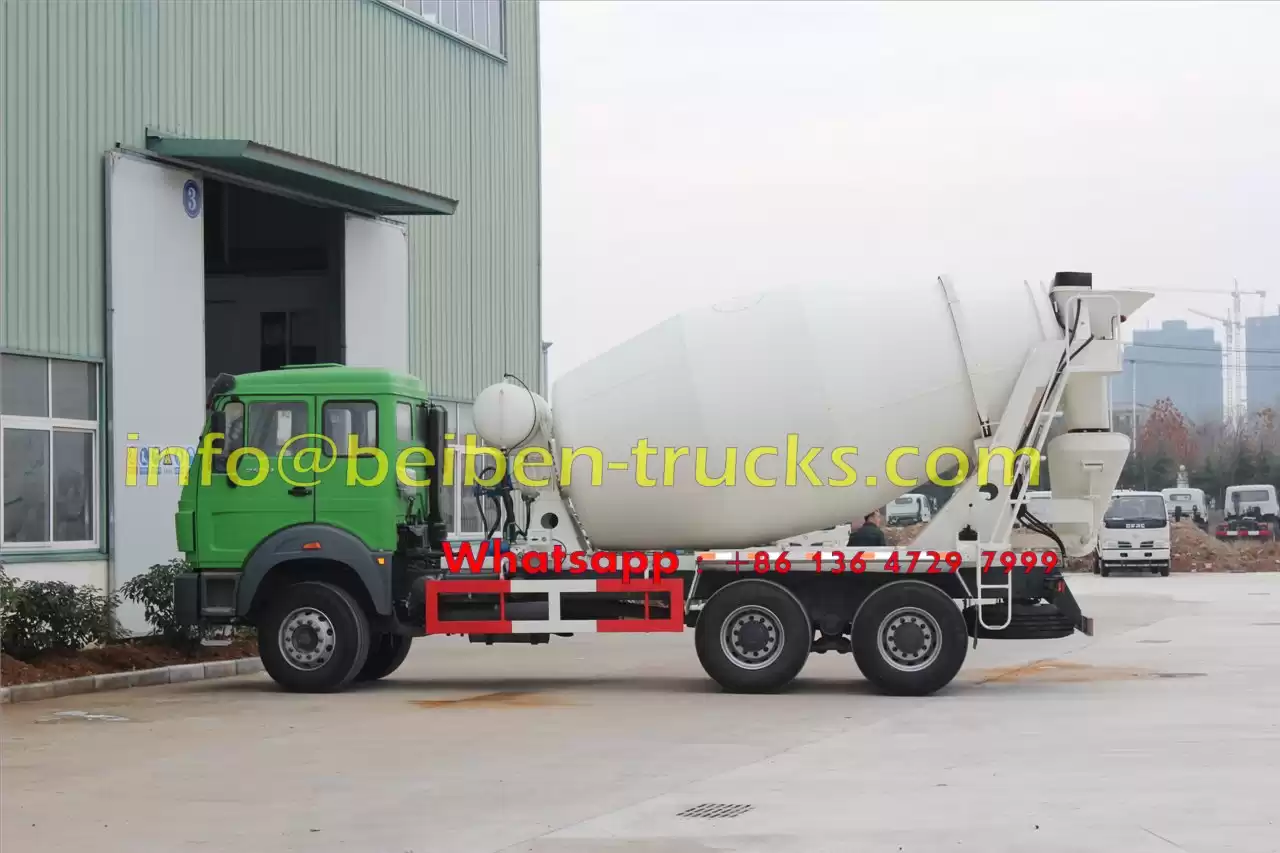

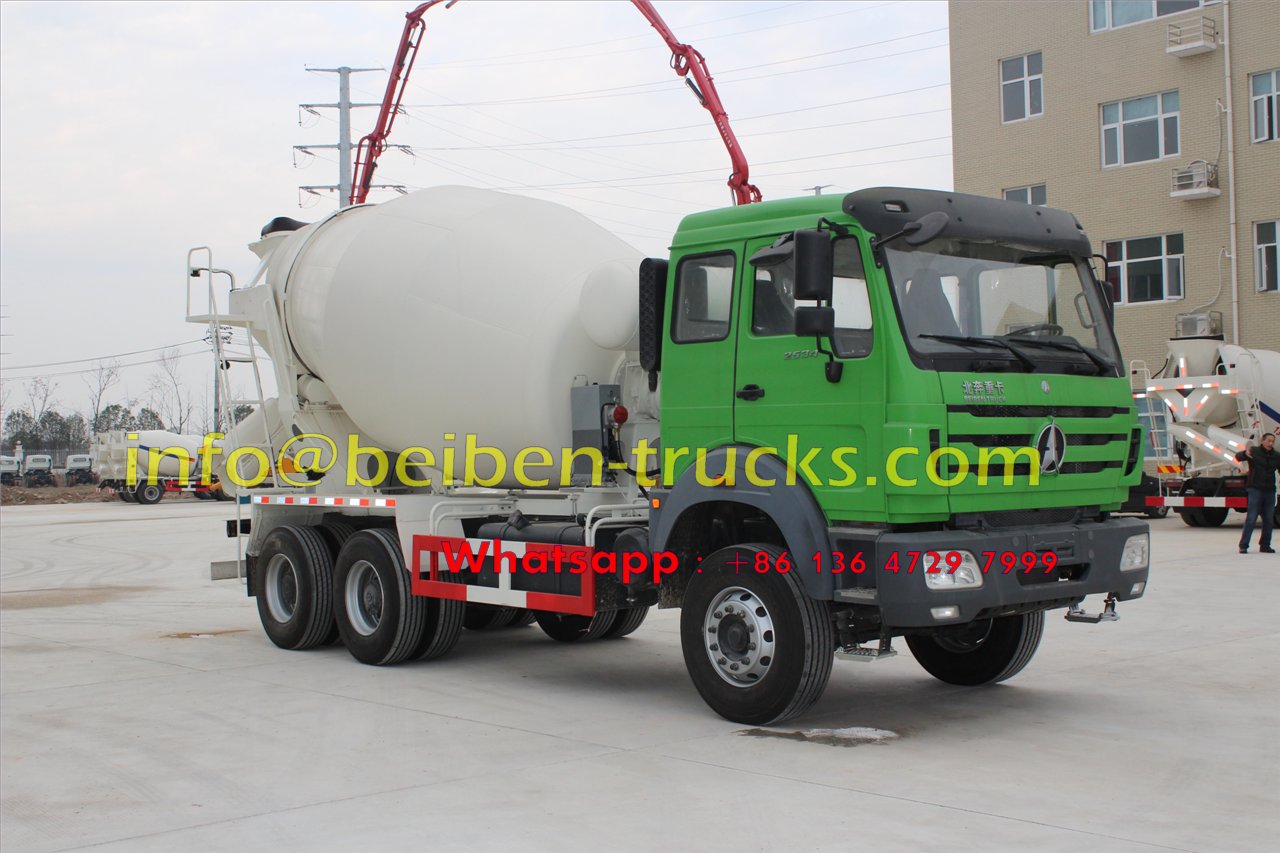

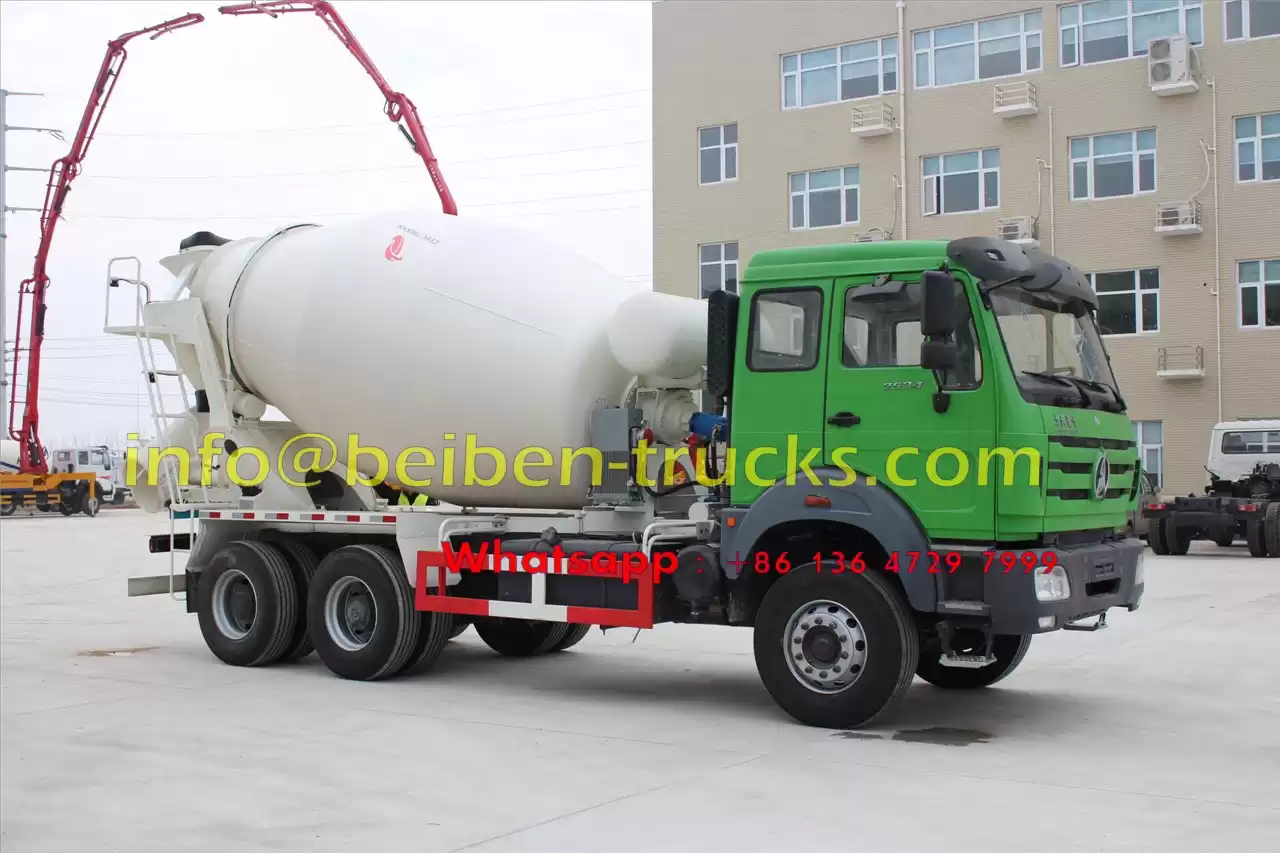

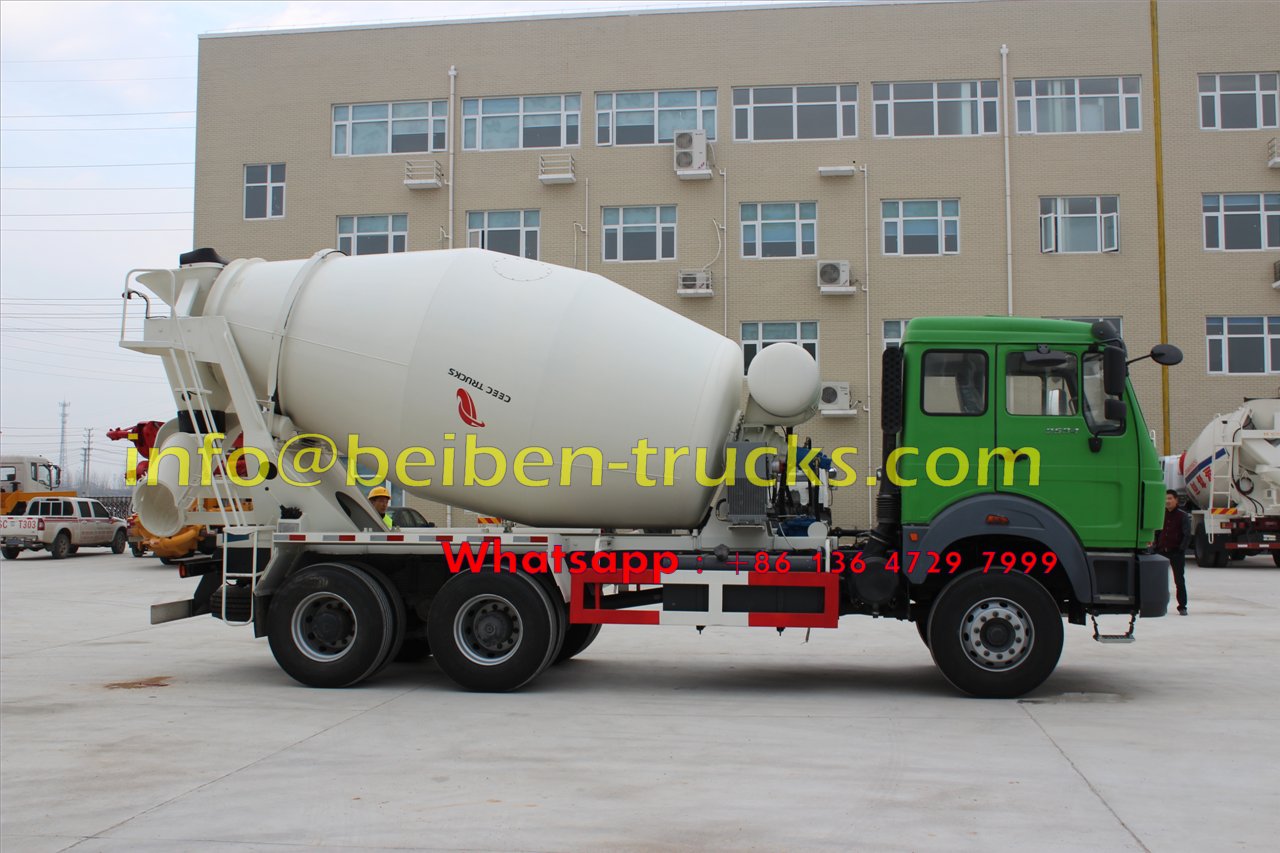

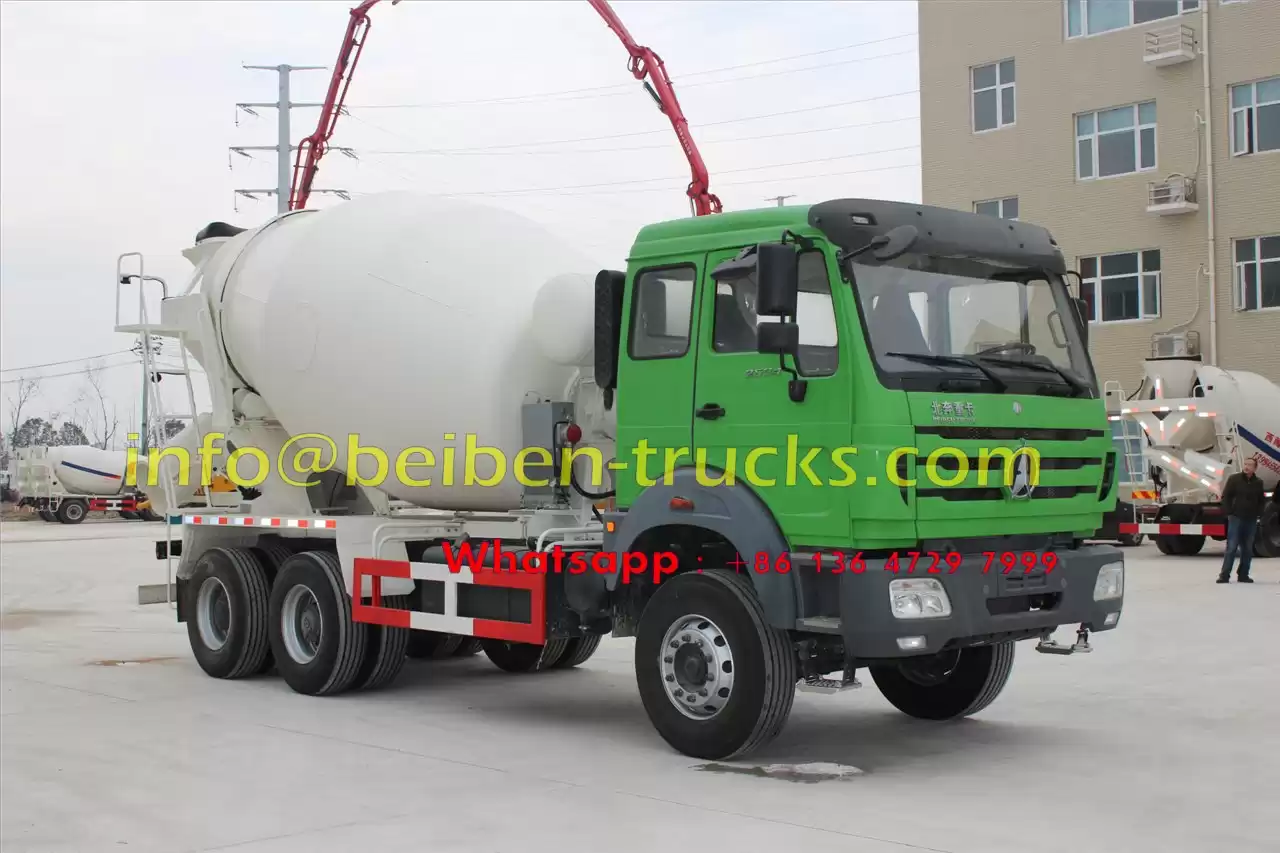

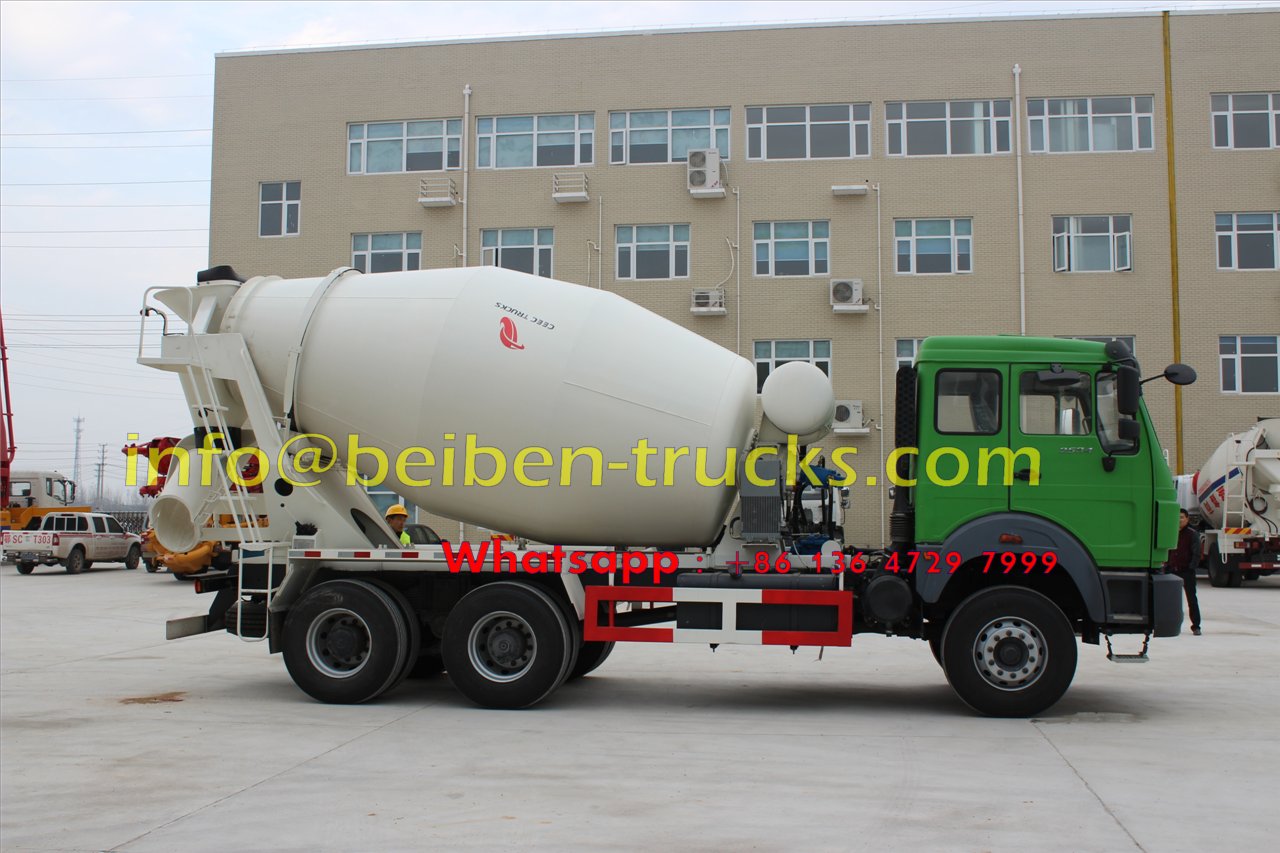

6x4 4.5m3 concrete mixer truck

Whole Vehicle Performance & Parameters

Chassis

BEIBEN

Curb Weight (Kg)

12870

Total Vehicle Weight (Kg)

25000

Outline Dimension(L*B*H) (mm)

9400x2500x3900

Wheelbase (mm)

4100+1450

Front Overhang (mm)

1410

Rear Overhang (mm)

2640

Max

Traveling speed

85

Vehicle Configuration

Clutch

Dry Single Disc Clutch (φ430)

Gear Box

FAST 9T-1680

Driving Type

6x4

Steering Mechanism

TAS85

Service Brake

Dual-circuit Air Brake

Parking Braking

Spring-powered Air-cut-off Brake

Auxiliary Brake

Engine Exhaust Brake

Tyre

12.00R20 radial tyre

Engine Parameters

Model

WP10.340E32

Type

Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Emission Standard

Euro 3

Max Power (KW)

340HP(2200r/min)

Max Torque

1500 N.m

Mixing Drum Parameters

Max Mixing Cubage (m³)

4.5

Feeding Speed (m³)

≥3.5

Discharging Speed (≥m³)

≥3

Leftover Rate

Nearly Zero

Max Rotating Speed (r/min)

14---16

Mixing Drum Obliquity (°)

10

Max Mixing Drum Diameter (mm)

φ2412

Driving System

Hydraulic Pump

Italian TOP089

Hydraulic Motor

TOP 089

Speed reducer

TOP P68

Water supply mode

Water pump; pneumatic pump
