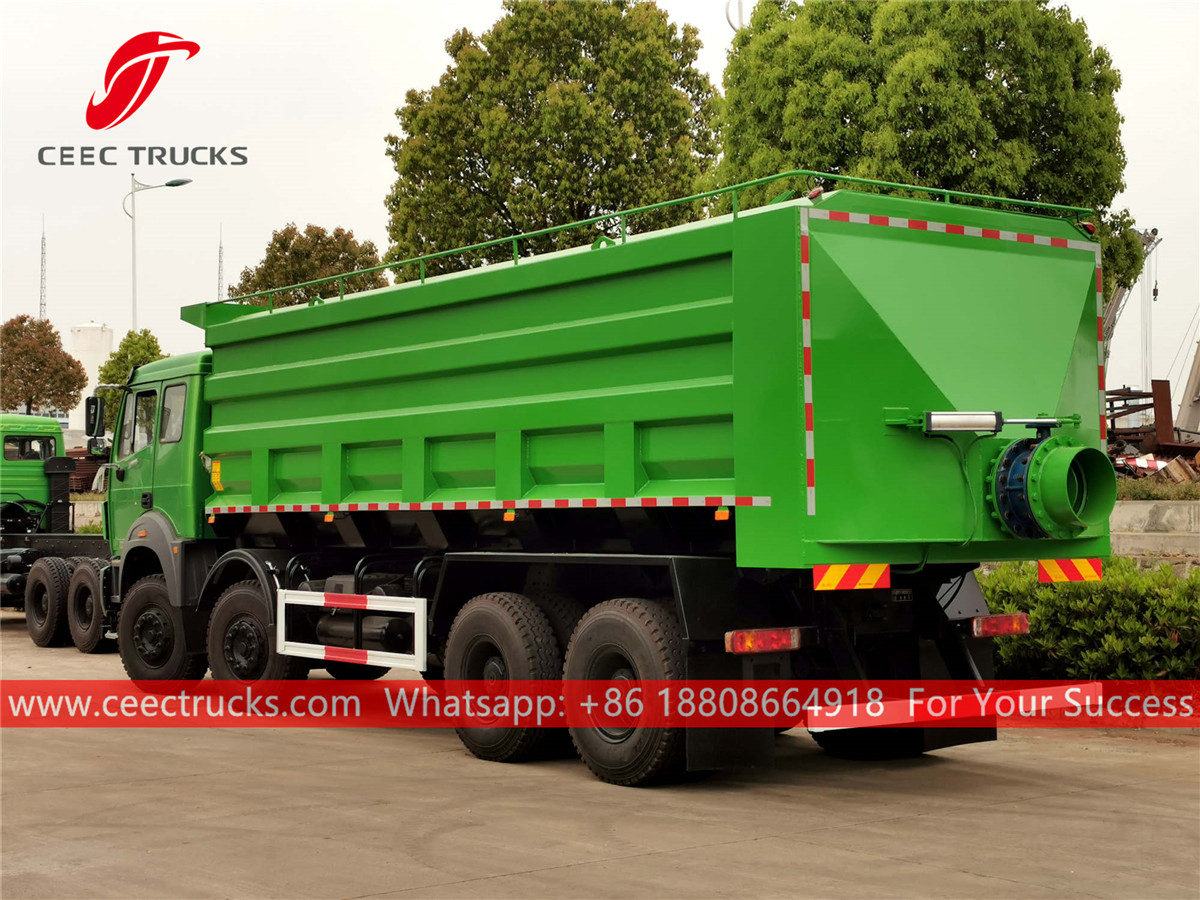

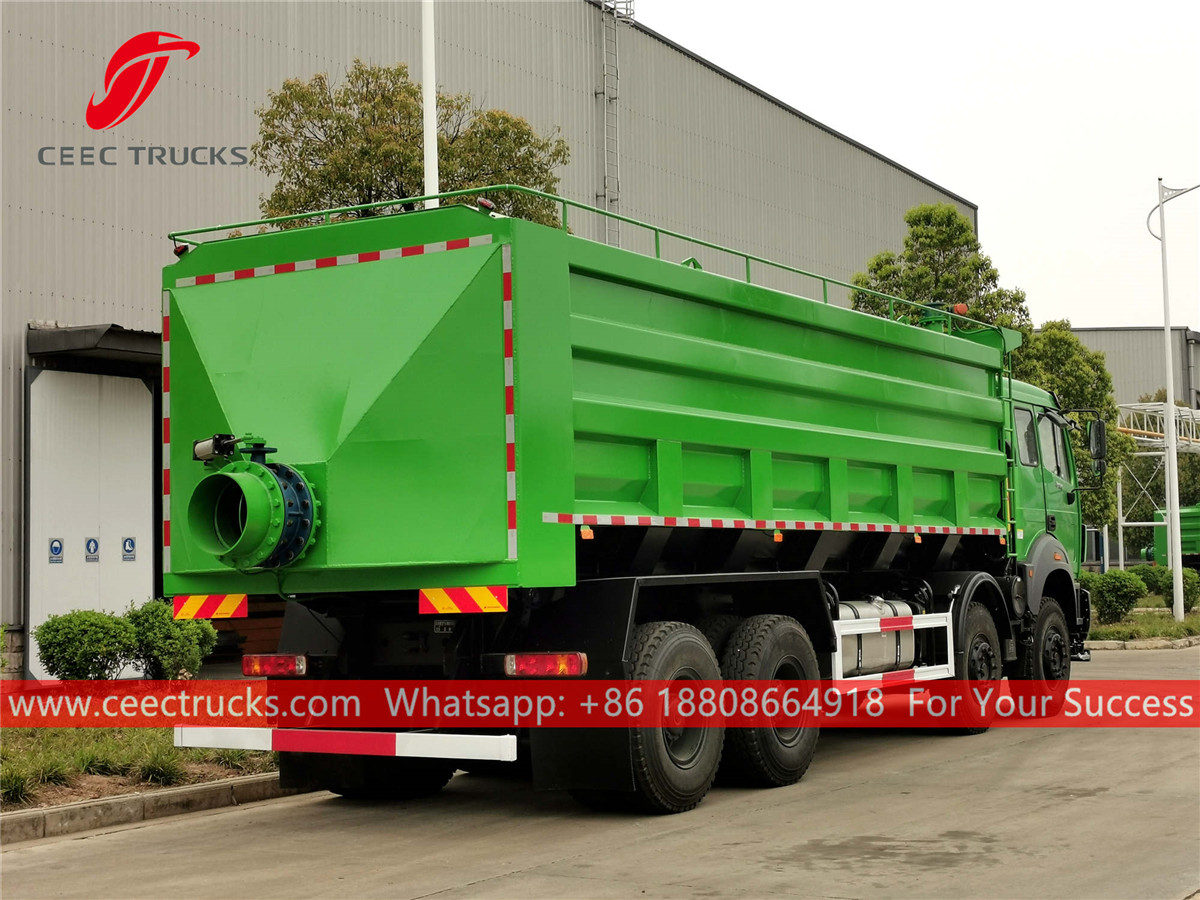

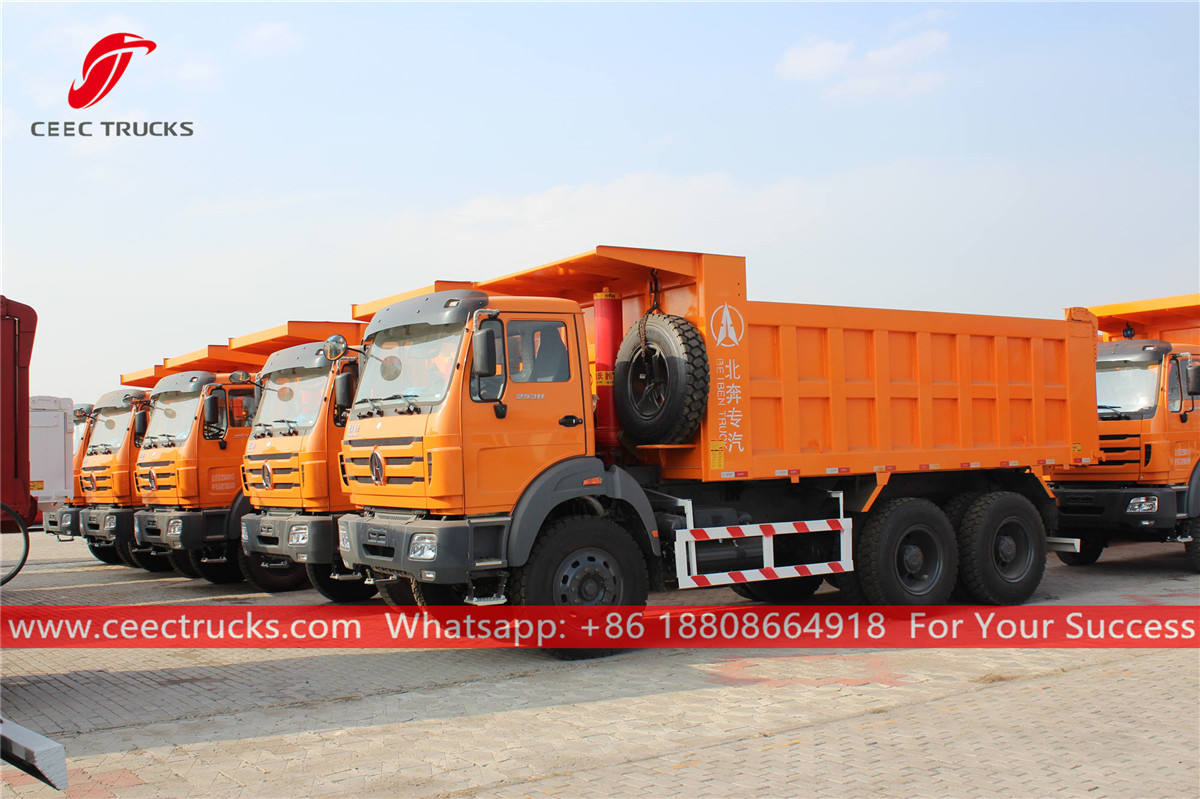

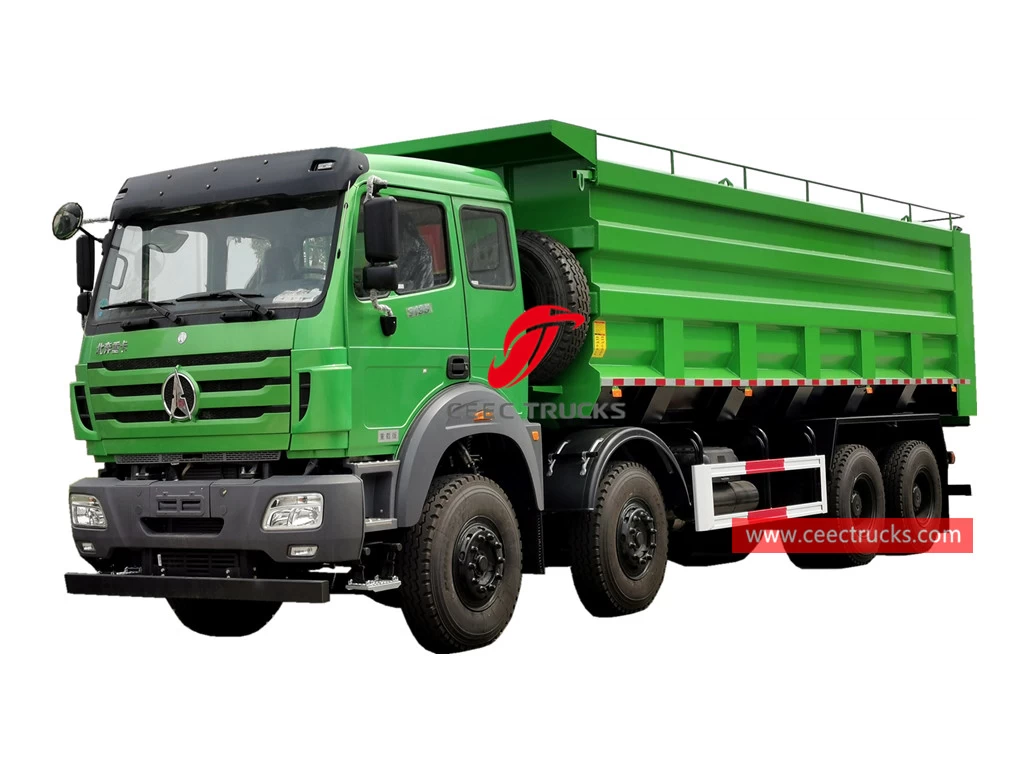

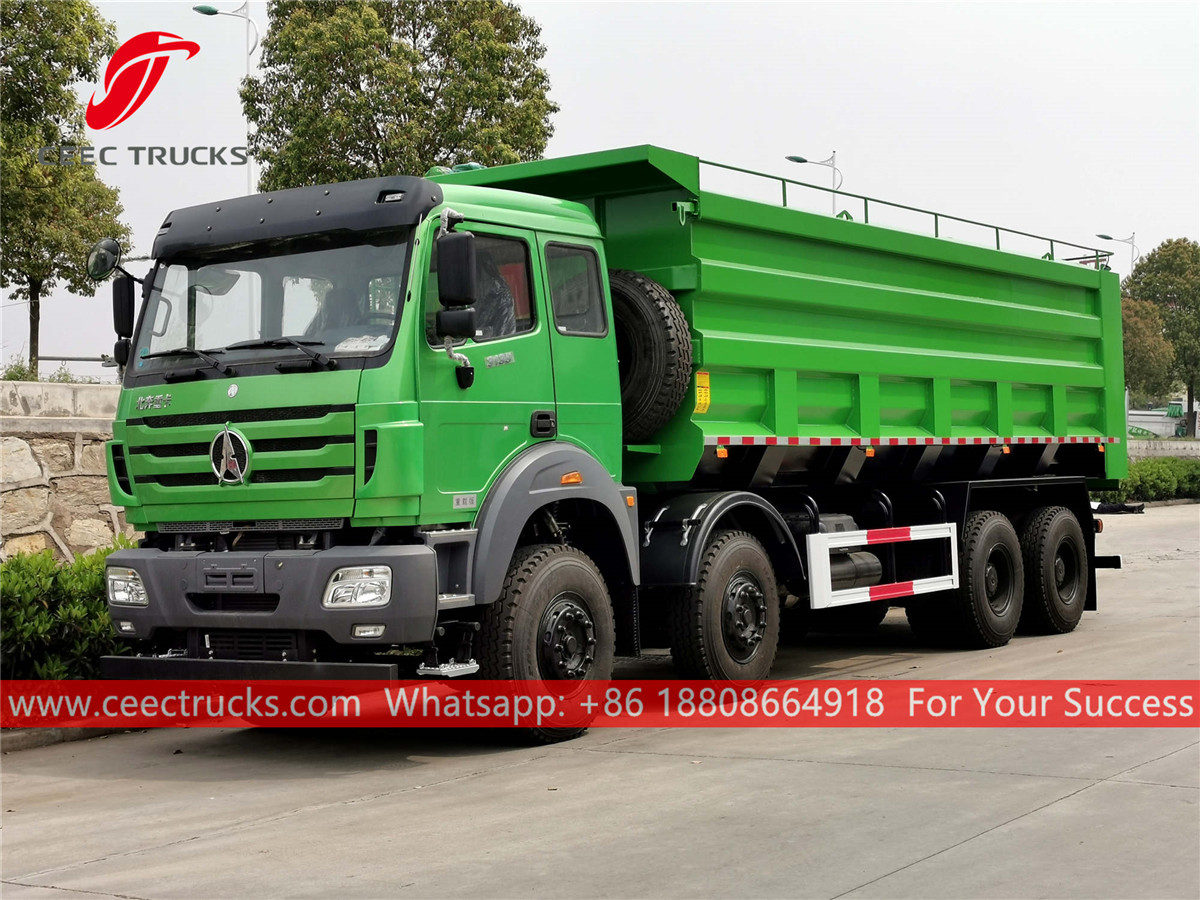

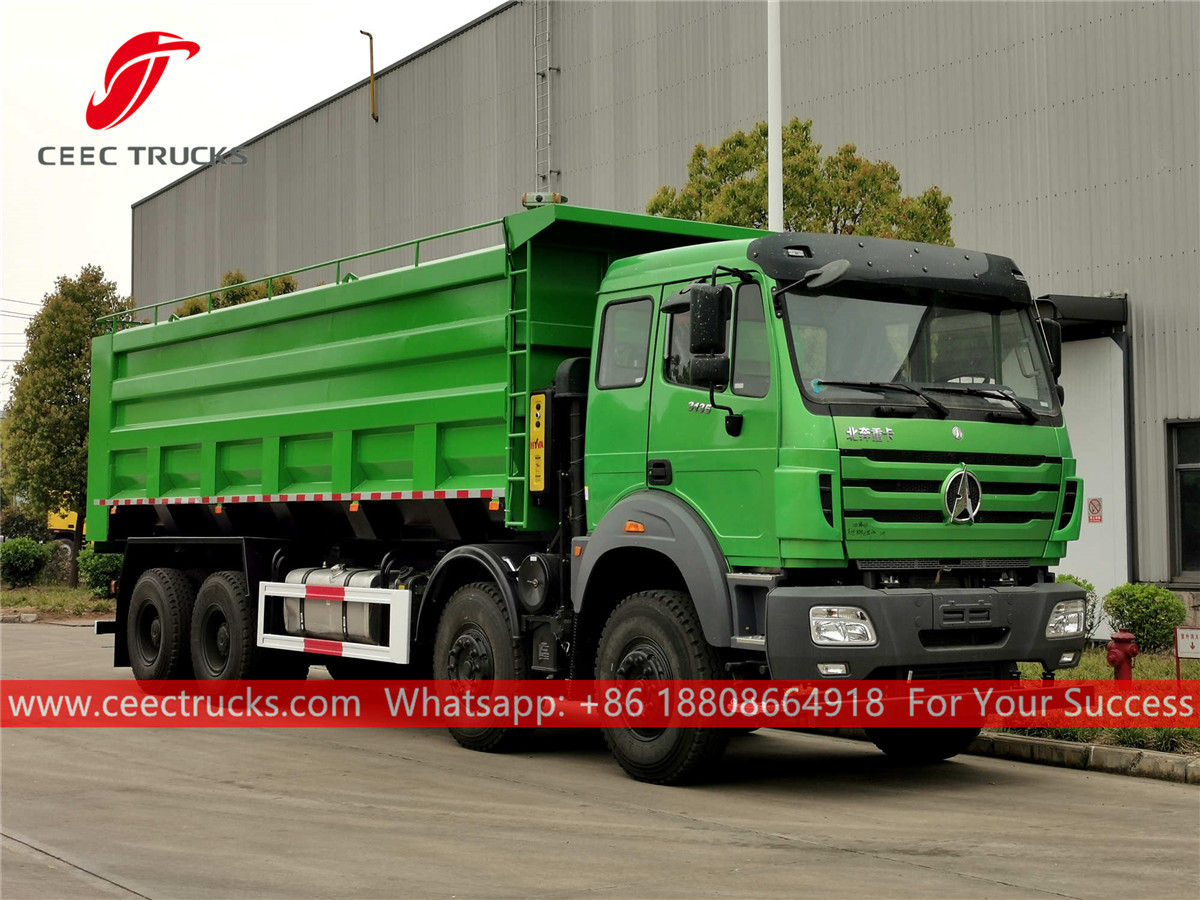

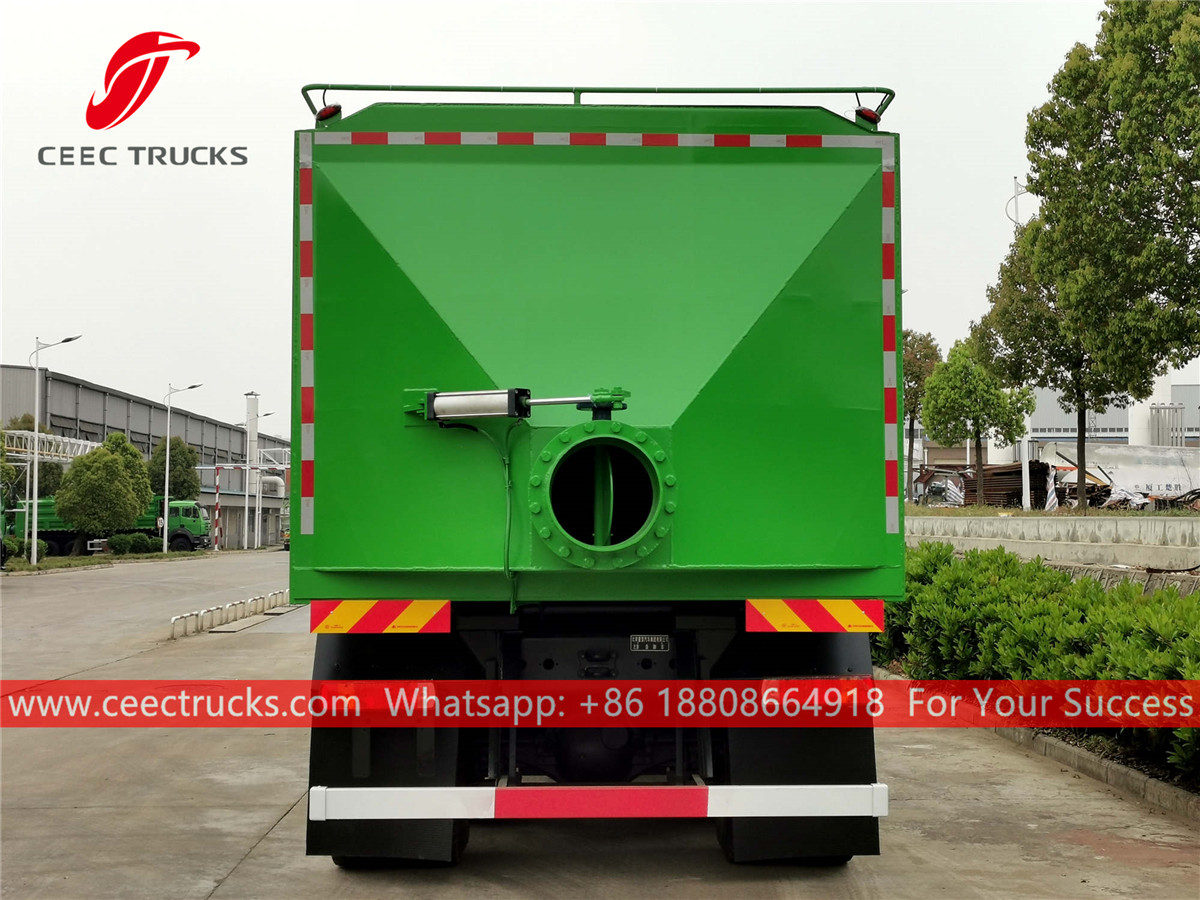

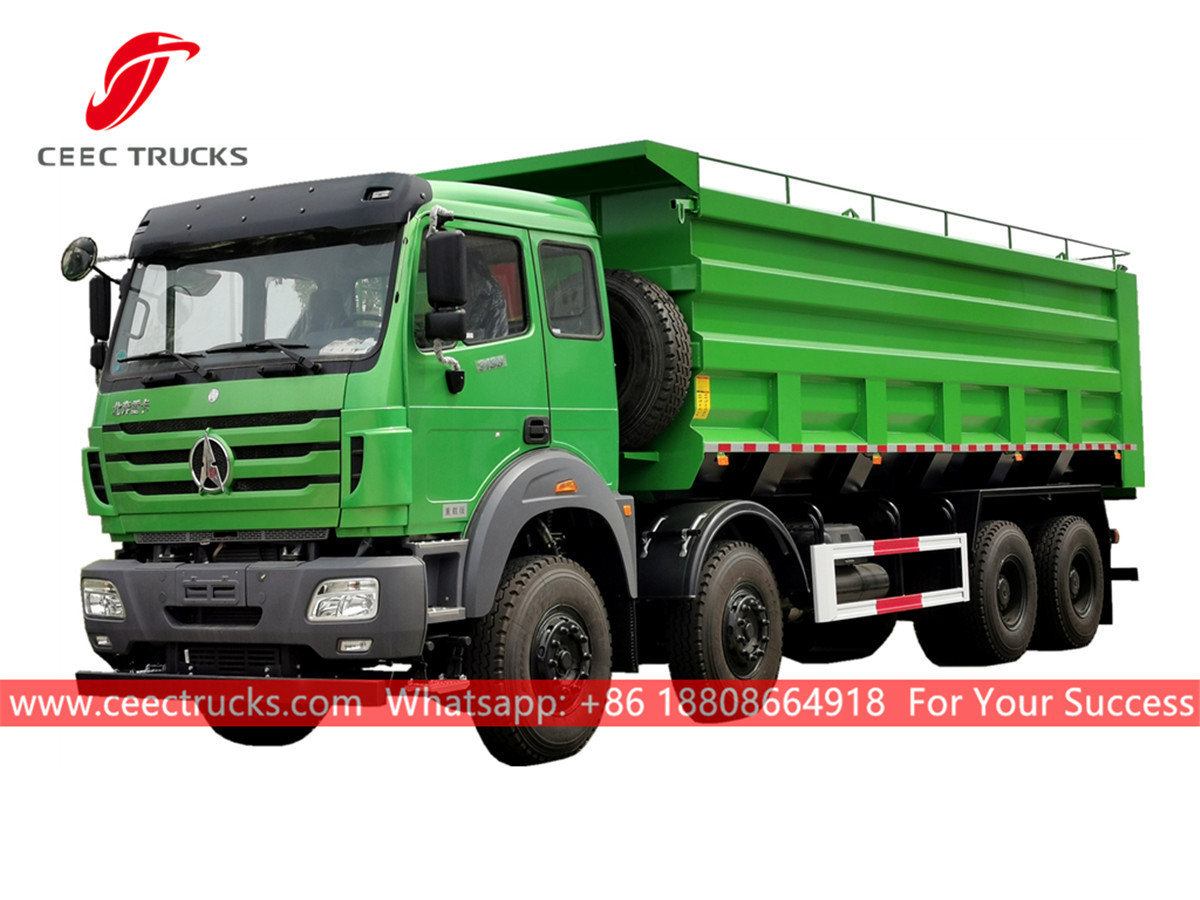

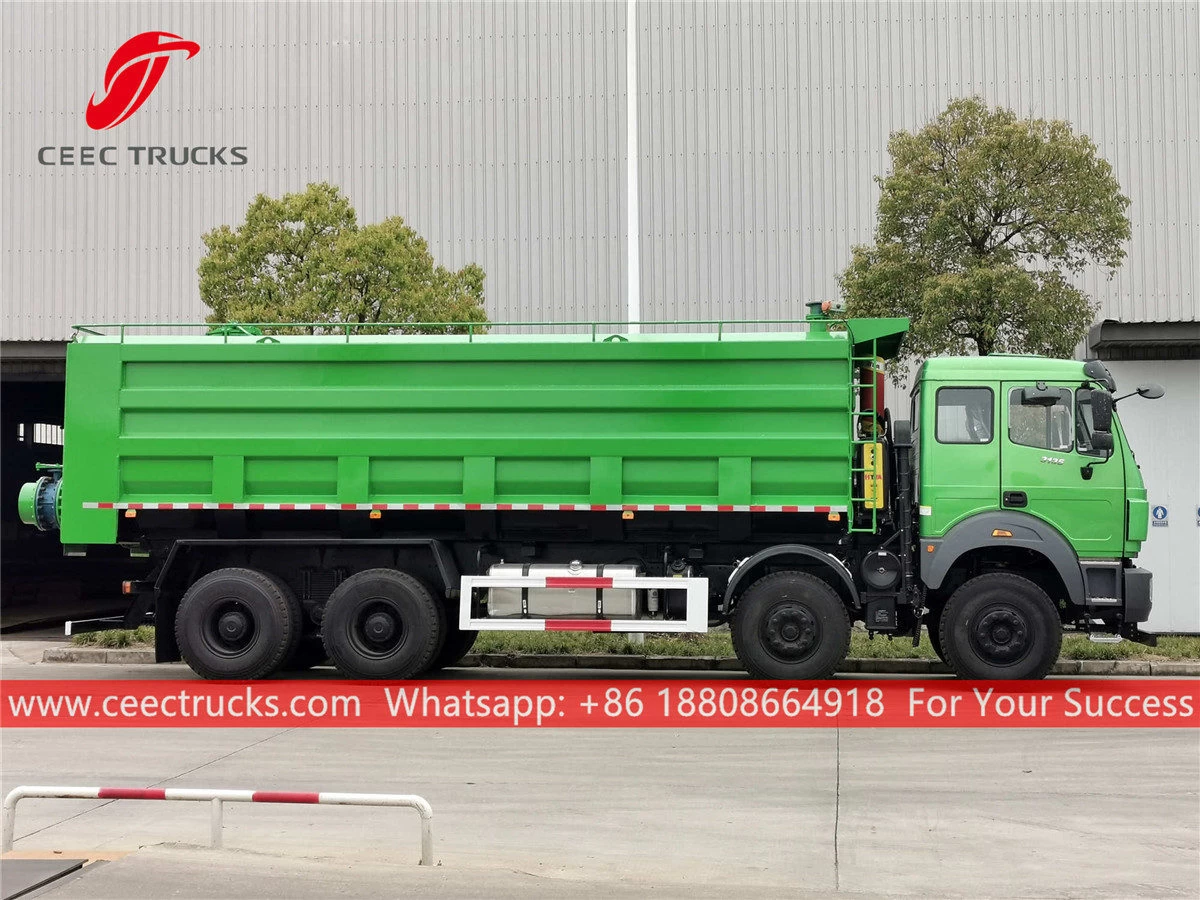

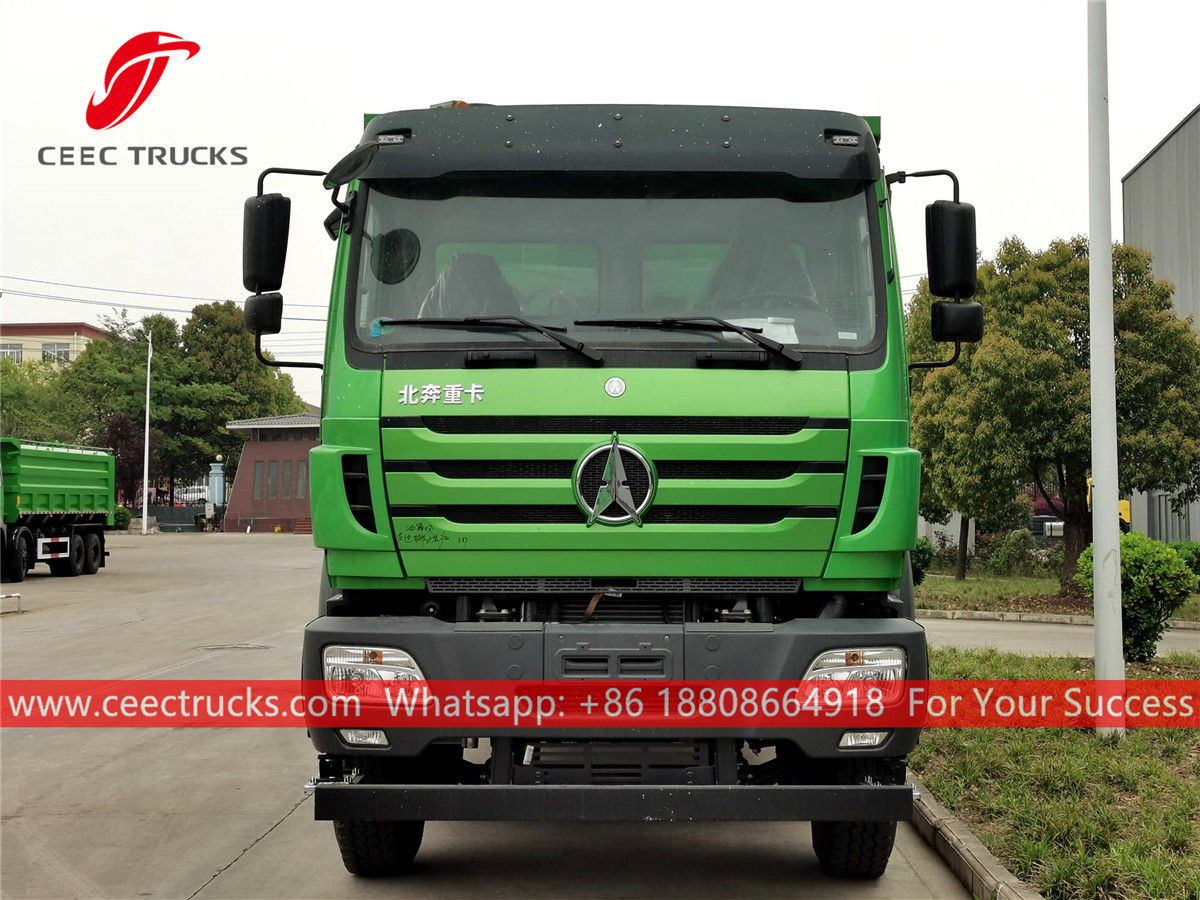

North benz 8x4 Tipping truck

Beiben 50Tons dumper truck, Beiben 8x4 chassis, FAST 12-shift manual gearbox, famous Chinese brand WEICHAI 375HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.



Factory price beiben tipper lorry



 Applications:

North benz 8*4 tipper truck (also called Beiben tip-truck, Beiben heavy dumper truck, 12 Wheel tipping truck, 50tons tipper-truck, HYVA dump truck, brand new beiben dumper vehicle, construction tipper lorry, factory price tipper truck) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.

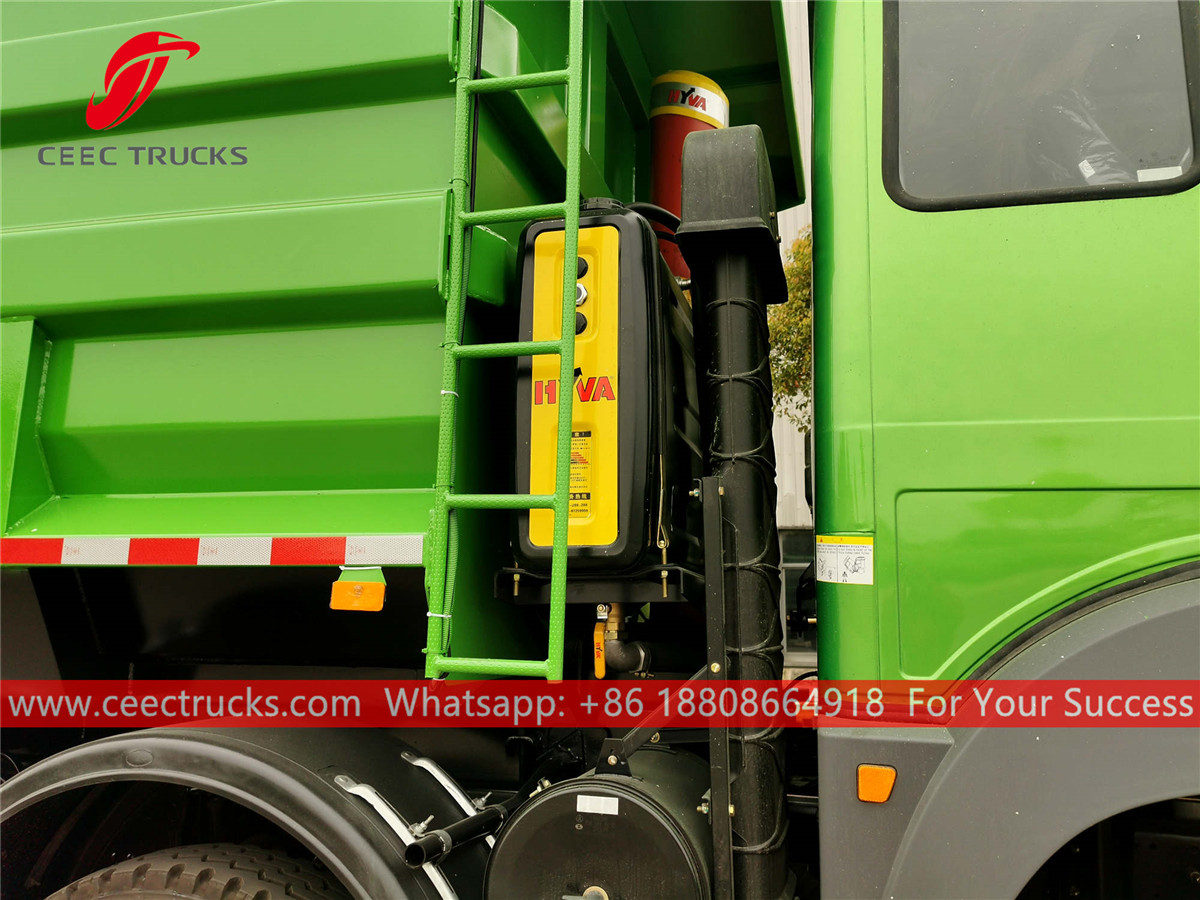

CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- Beiben heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



Beiben 8*4 dumping truck (50 tons)

General

Vehicle Brand

CEEC

Chassis Brand

Beiben

Overall Dimension

9800 * 2500 * 3480 mm

GVW / Kerb Weight

31,000kg / 14,760kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

375 HP (275 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

8X4 (LHD or RHD)

Transmission

FAST  12 speed levers with 2 reverse

Wheelbase/No. of axle

1950+3100+1450 mm / 4

Tire Specification

12.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

80 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

50 Tons

Cargo body

6800*2300*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 180 or HYVA 150

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.
