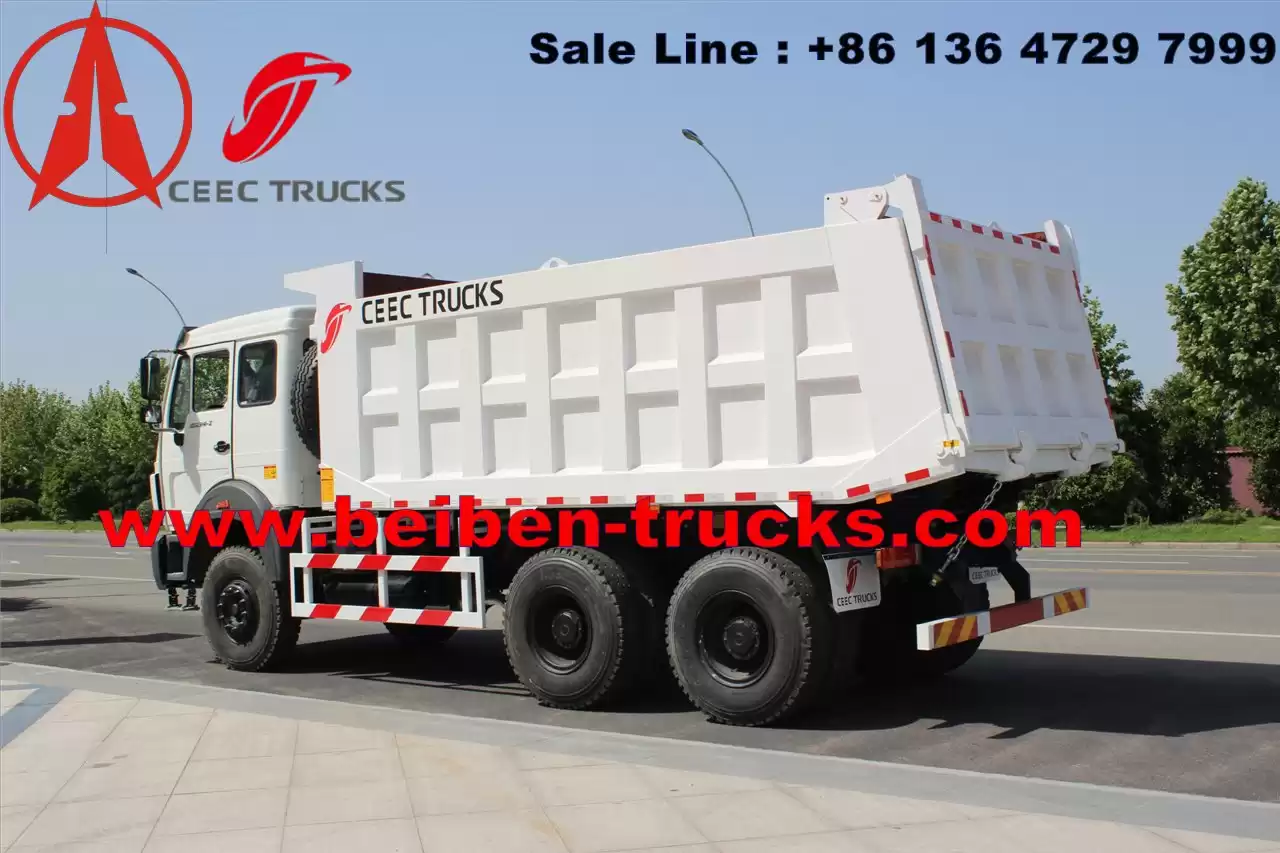

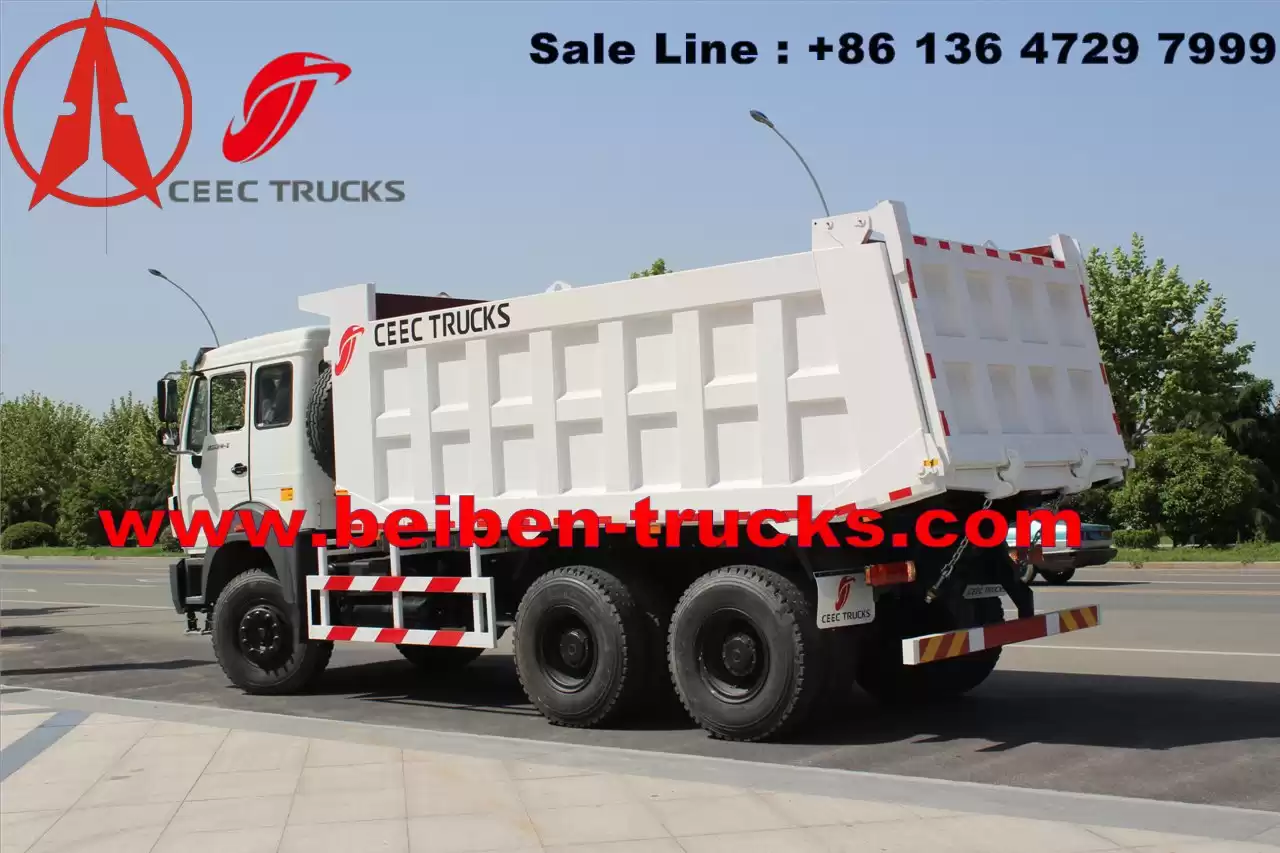

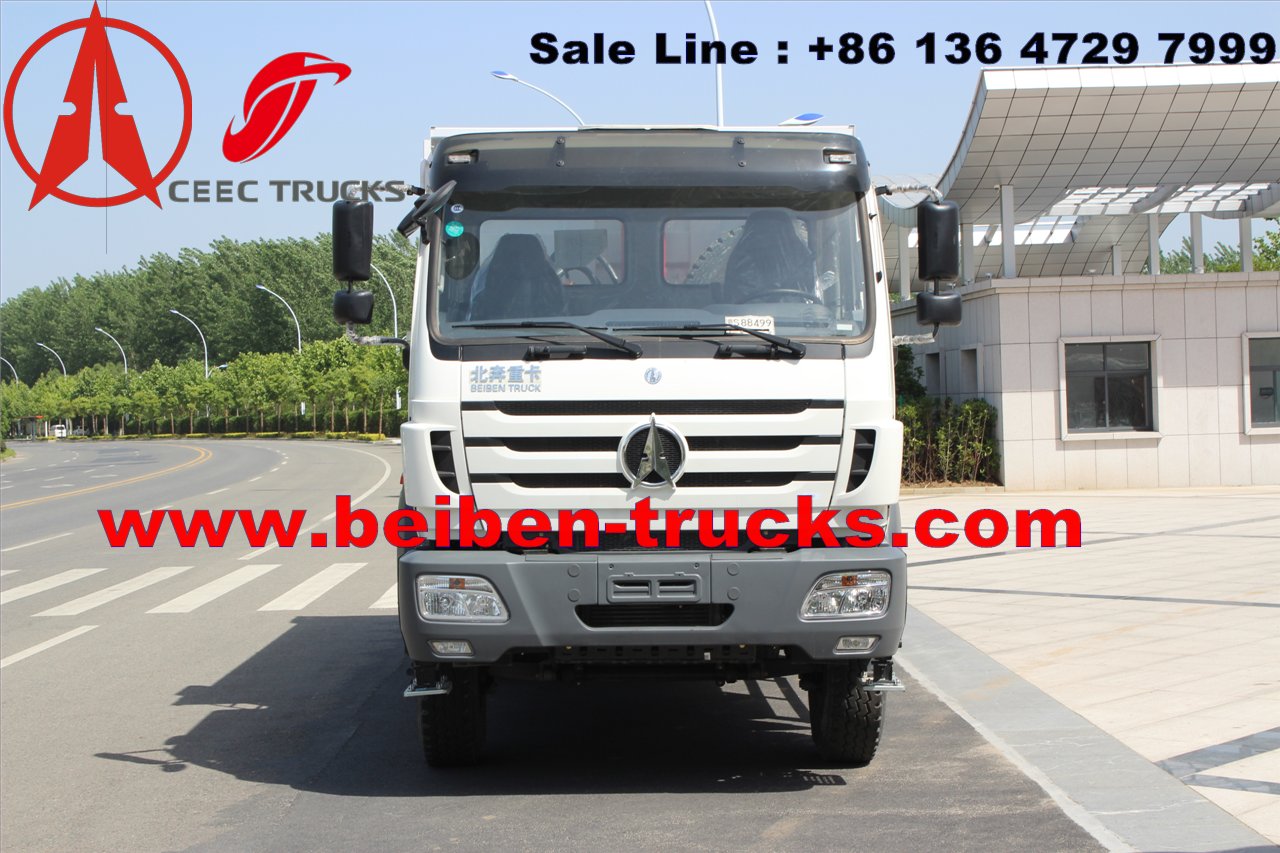

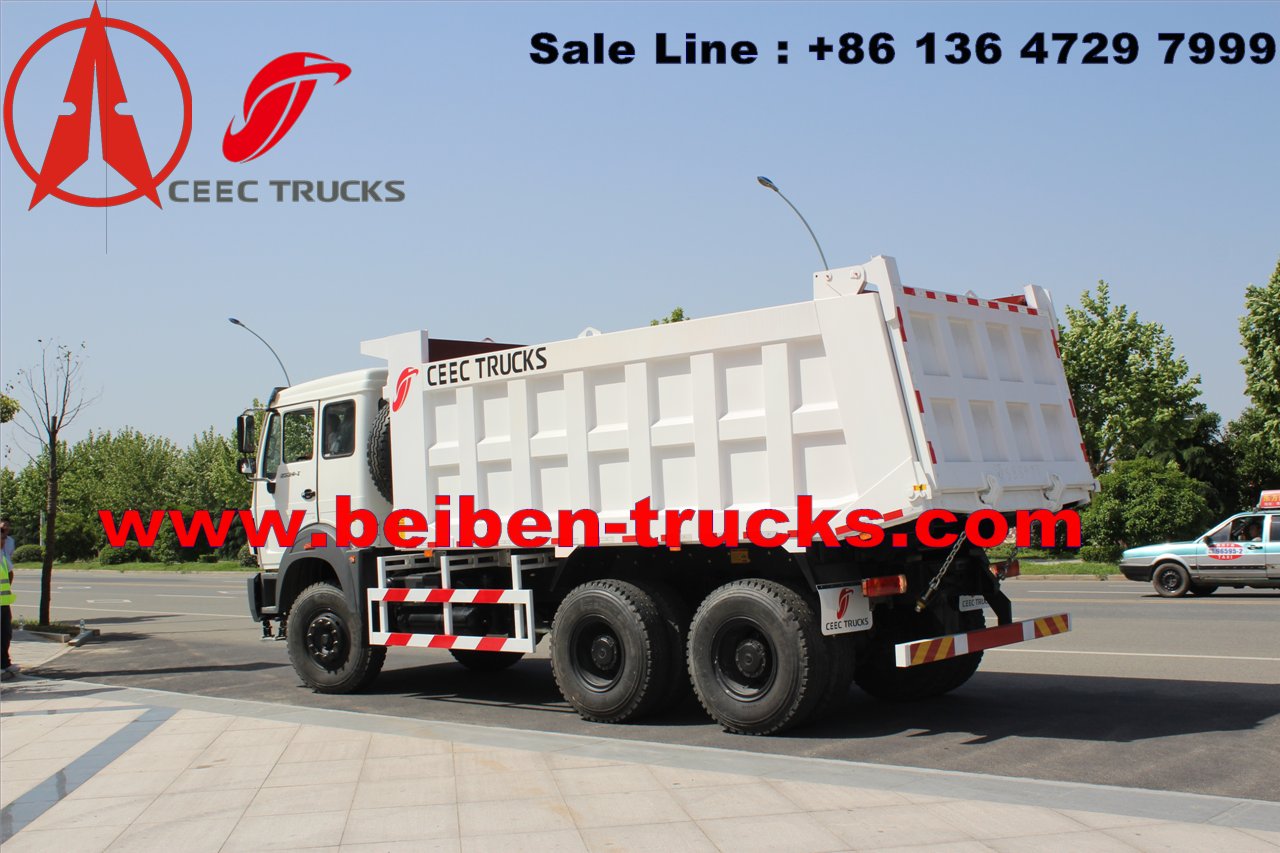

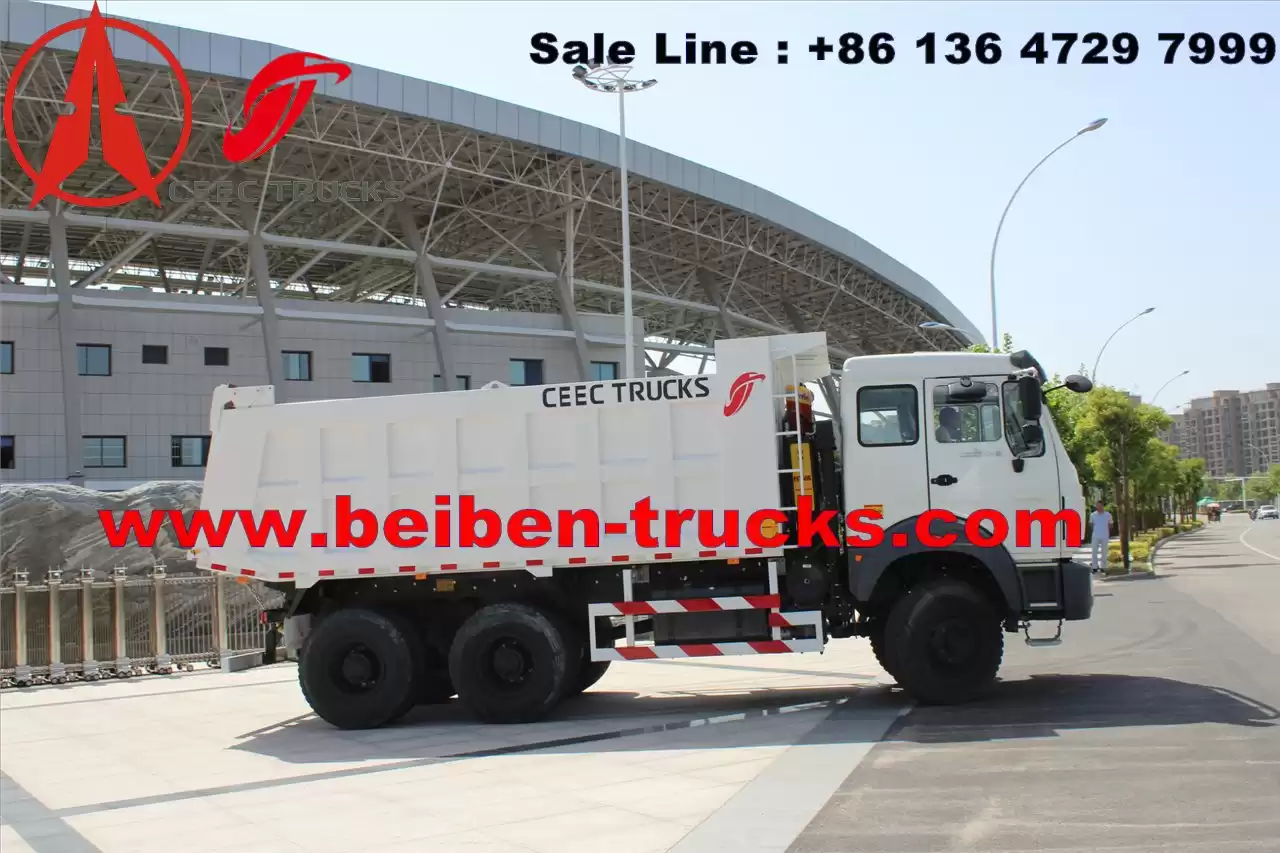

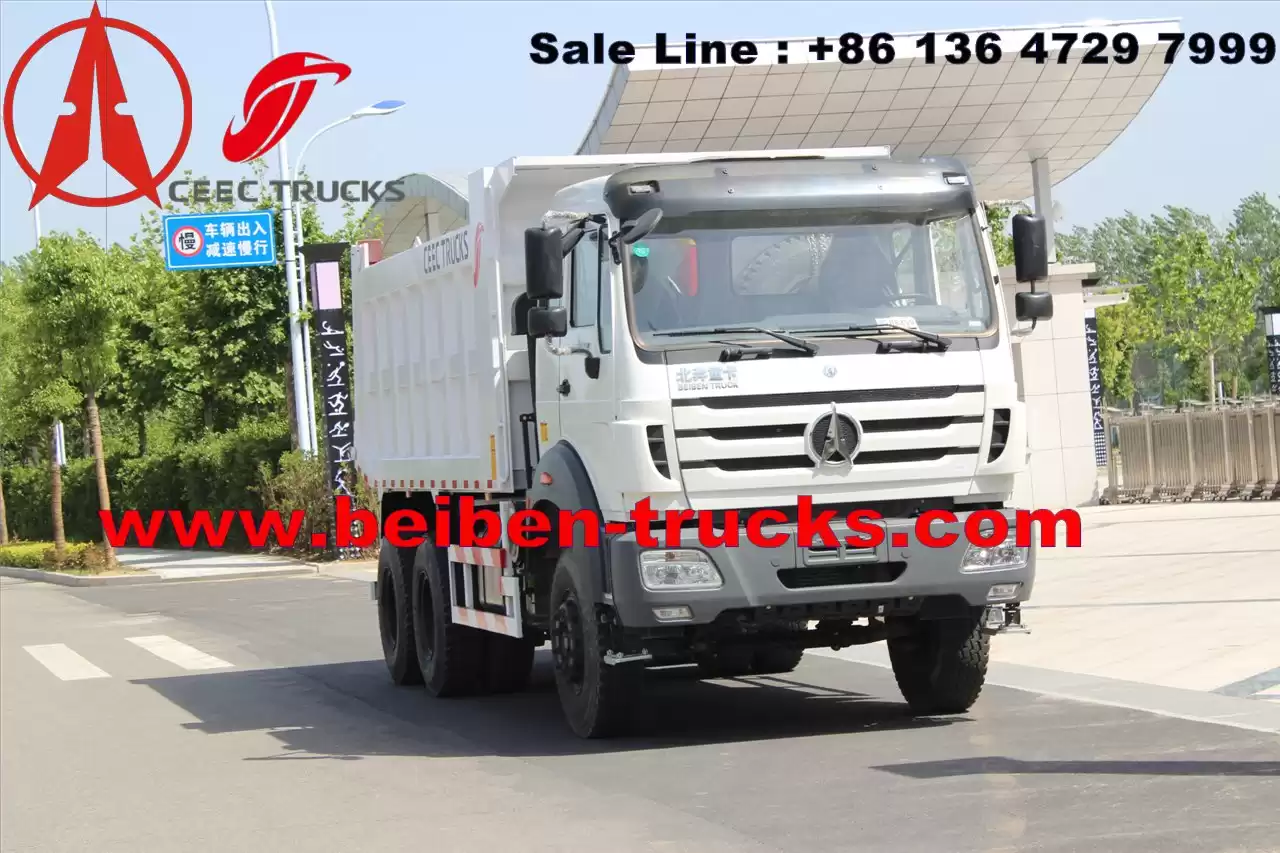

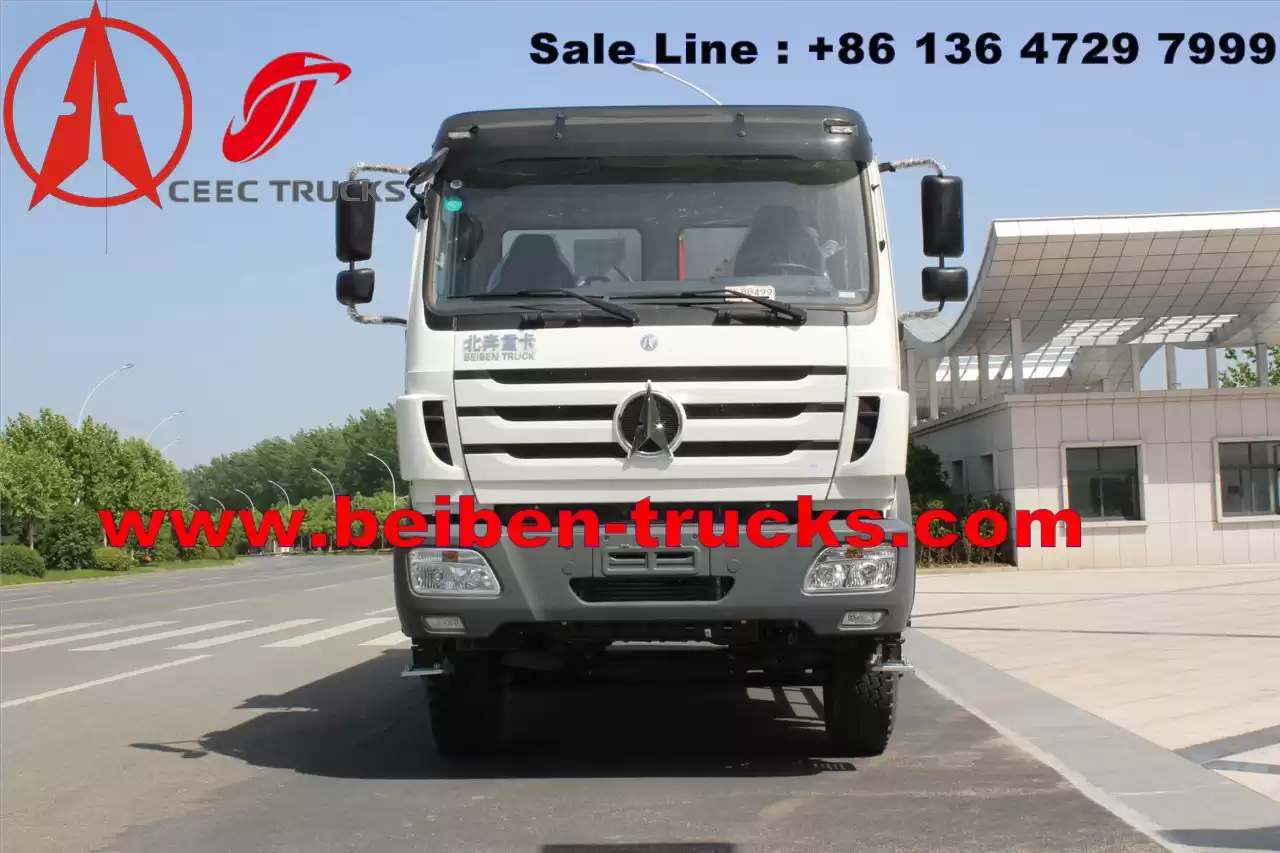

North Benz Beiben 340hp 10 wheels tipper dump truck sale

Diesel, 4-stoke Direct injection,6-cylinder in

 line, radiator, turbo-charging, water-cooling, EGR(Exhausted Gas Recycling),


340HP/250kW



North Benz Beiben 340hp 10 wheels tipper dump truck sale

Feature

1.BEIBEN 340HP tipper dump truck

2.Beiben V3 middle length cabin with single sleeper and air-conditioner

3.High quality and competitive price

4.Quick delivery time

5.Best after-sales

Product Description



SPECIFICATIONS

Traction type

6x4

Driving type

Left Hand Driving

Overall Dimension(LxWxH)

9880*2500*3430mm

Bucket Dimension(LxWxH)

7000*2300*950mm

Wheel base(mm)

4750+1450

Curb weight(kg)

12280

Front overhang/rear overhang (mm)

1515/2215

Front track/rear track(mm)

1995/1800,1800

Approach angle/Departure angle

23/31

Engine Steyr technology,

 made in China

WP10.340E32

Diesel, 4-stoke Direct injection,6-cylinder in

 line, radiator, turbo-charging, water-cooling, EGR(Exhausted Gas Recycling)

Displacement(L)

9.726

Bore X stroke (mm)

126mm/155mm

Max power(kw/rpm)

340HP/250kW

Max torque(Nm/rpm)

1250NM@1400~1600

Min rate of consuming fuel

(g/(kw.h))

196g/kW.h

Emission

III

Max speed(km/h)

90

Fuel tanker(L)

300 Al fuel tank

Clutch

Model

D430 diaphragm type

Gearbox

Brand

Fuller (Fast)

Model

12JS160T

Shift mode

12 forward speeds;

2 reverse speeds

Steering system

Model

ZJ120D

Frame

300mmx90mmx8+6+8mm

Front axle (Mercedes Benz  Technology)

7.5T Benz technology front non-driving steering axle

Middle and Rear axle

(Mercedes Benz Technology)

13T double reduction driving axle, inter-wheel differential lock



Ratio:5.921

Tyre

12.00R20 Radial Tire

Number of tyre

10+1 spare

Suspension

Leaf spring type

Front/rear: 10/13

Color

Optional

Electrical

Battery

12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

Beiben V3 middle length cabin with single sleeper and air-conditioner
