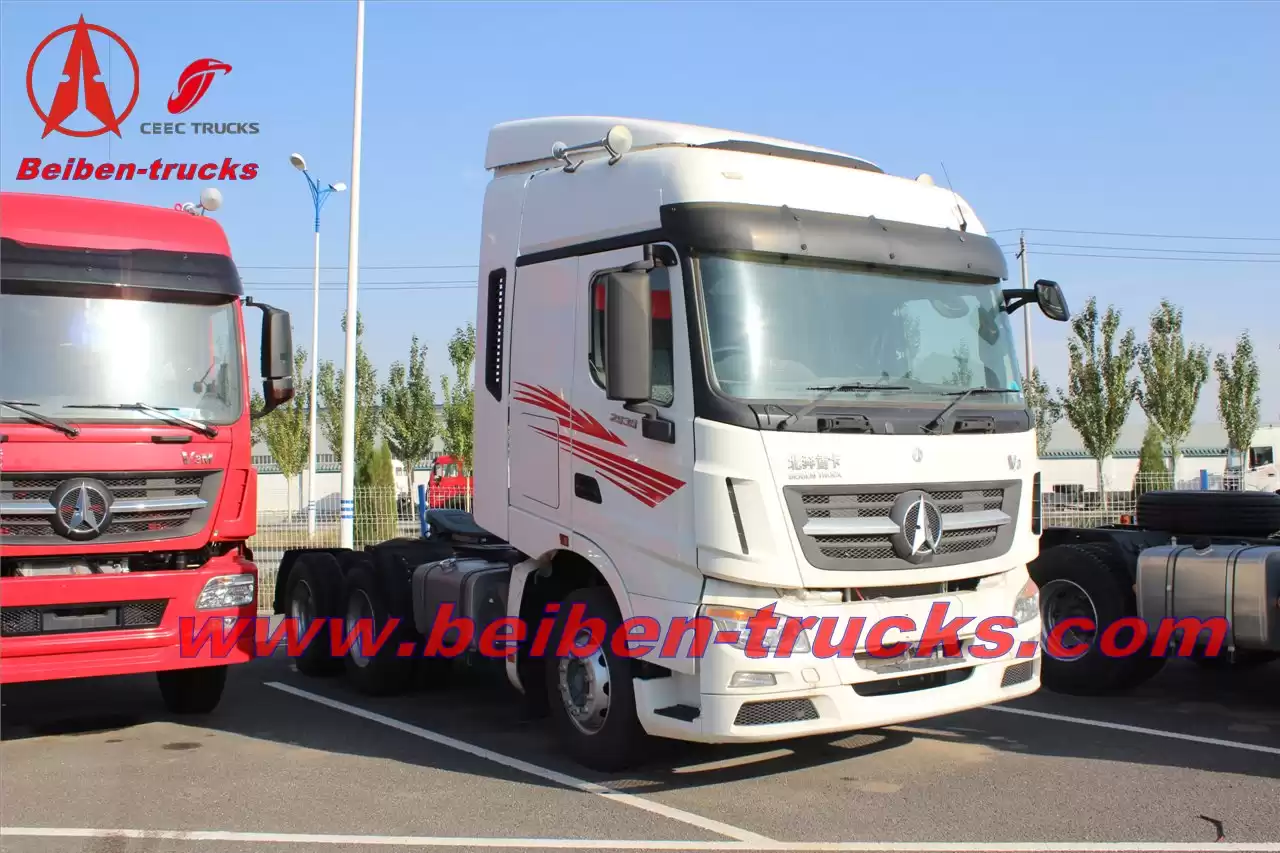

North benz beiben 6x4 tractor truck /340hp tractor trailer

Mercedes Benz technology
Engine: WEICHAI
Certificate: CCC, ISO, GCC
with air-conditioning



Tractor Truck

Driving type: 6x4 Based on MAN Design platform

Cabin

BENZ technology cab, single sleeper, Manual Window, with air-conditioning

Engine

Diesel, 4-stoke Direct injection,6-cylinder in line, radiator, Turbo-charging.

Model:

WP10.340E32/250

European technology WEICHAI



MAX Horse power:

340HP/250KW



Displacement(L):

9.726liter



Max torque:

1600NM@1200~1600



Bore/stoke:

125mm/155mm



Fuel consumption:

197g /kwh

Gear box



Applied American technology



Model:

FAST 12JS160TA



Speed:

12speed,2reverse Max torque:1600NM

Axle(front/rear)

Front axle

Benz technology 6.5ton front axle

Tandem

13TON Benz strengthened axle (punching-welding axle housing)

(Driving axle)

double reduction driving axle, inter-wheel differential lock

Clutch

D430 diaphragm type

Brake

Service brake: Double circuit pneumatic brake



Parking brake: Spring-Power drum brake

Steering

ZF technology, driver sit at the left hand side

Electric Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

300mmx80mmx 8mm (inner: 275mm*70mm*5 mm )

Tyre

10+1 spare tyre with wheel



295/80R22.5 Rim:8.5-20

Suspension system: Leaf spring type



Front/Rear

9/13

Overall dimension(mm): 6800x2500x3180(Length x width x height)

Wheelbase

3200+1350mm

Track:




Front/Rear

2045/1800/1838



Approach/Departure angle

16/60



Front /Rear overhang

1410/840



Max speed

110km/h

Kerb weight:

8450kg

Diesel tank

300L
