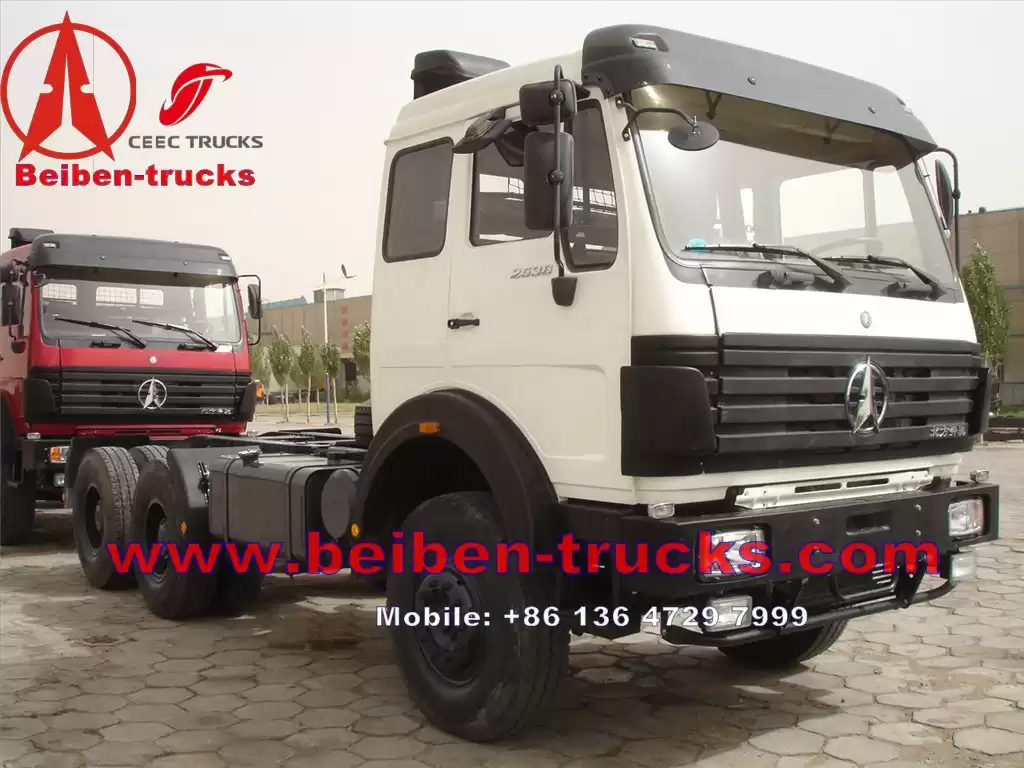

380hp Tractor Truck for Congo
Engine:
Brand
|
WEICHAI
|
Model
|
WP10.380E32 / WD12.380
|
Engine type
|
Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
|
Displacement
|
9.726 liters
|
|
Max torque
|
1250NM@1400-1600rpm
|
Bore/Stroke
|
126/130
|
Compression ratio
|
15.5:1
|
Fuel consumption
|
<=198g /Kwh
|
Gear box
|
12JS160T
|
|
Clutch
|
430 Diaphragm type
|
|
Steering
|
ZF8098
|
|
Front axle: Benz front axle 7.5ton
Rear axle: BENZ strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
Tyres: 12.00R20 Springs: 13/13
Dimension:
Wheel base(mm)
|
3450+1450
|
Front/rear overhang(mm)
|
1410/825
|
Frant/rear track(mm)
|
1995;1800/1800
|
Approach/departure angle(º)
|
26/50
|
Overall dimension(mm)
|
7135×2500×3180
|
Weight:
Kerb mass(kg)
|
8800
|
Total mass(kg)
|
25000
|
Fuel tank capacity (L): 400L
