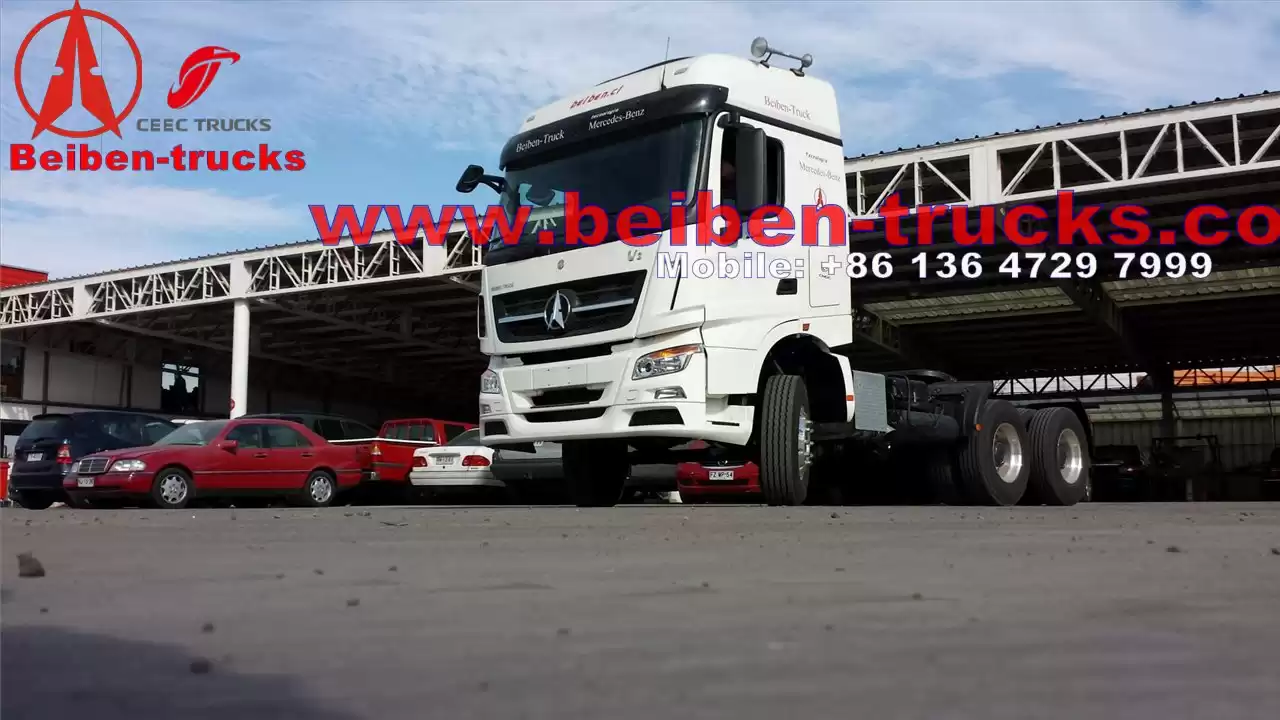

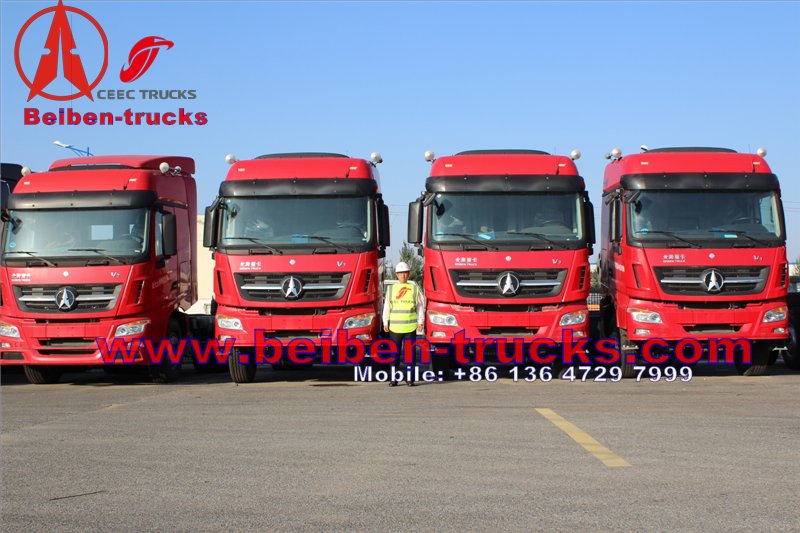

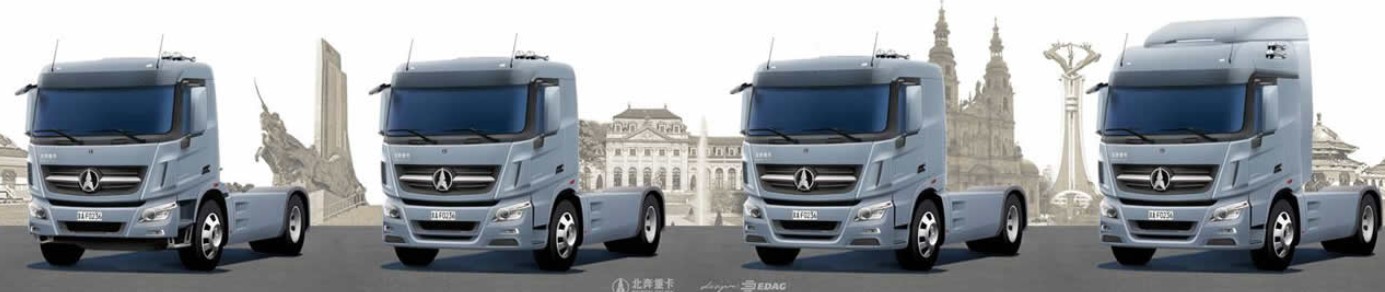

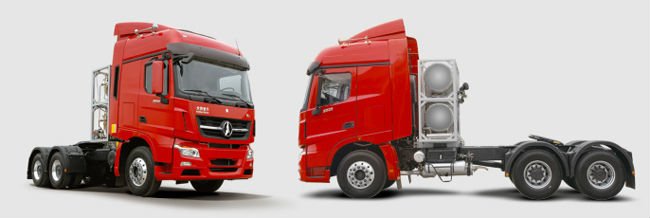

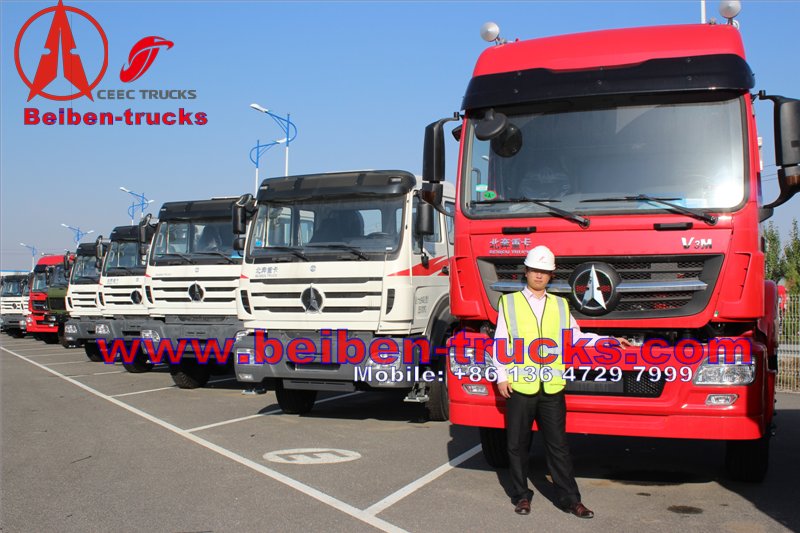

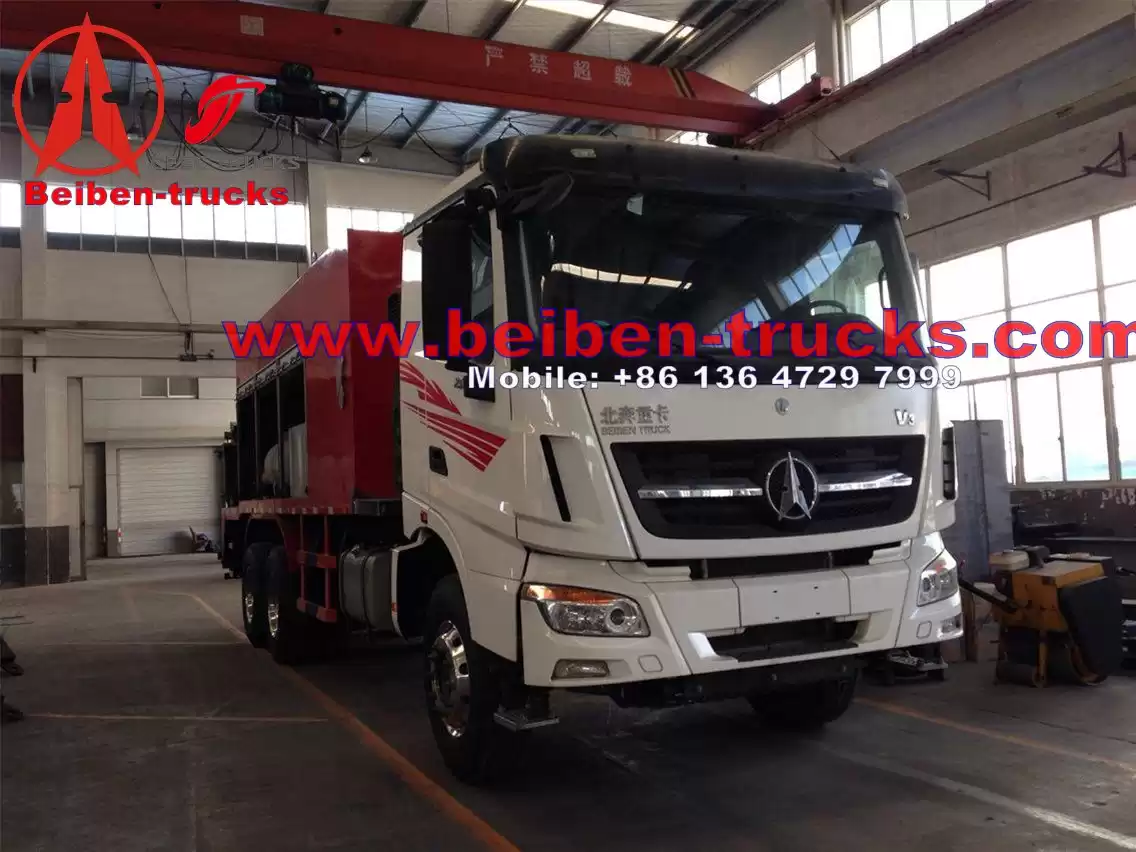

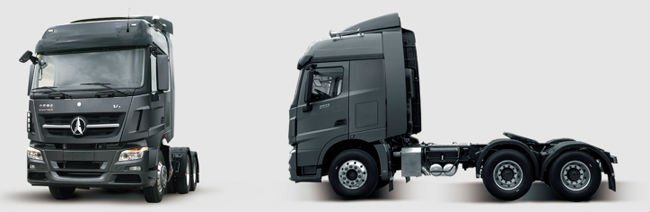

China Mercedez-benz Actros, China beiben V3 trucks.
We are the most professional supplier on beiben V3 tractor trucks,
beiben V3 2534, 2538,2540,2542,2548 tractor trucks. The best full
solution for customer logistic solutions on north benz V3 tractor
trucks.
Our beiben V3 tractor trucks are ideal versions instead of imported
benz actors. With outstanding performance and high quality, . Now our
beiben V3 trucks are sold to the worldwide countries and areas, such as
Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria,
and so forth.
|
Dimension
|
6100*2500*3600mm
|
|
Approaching angle/Departure angle
|
16/43°
|
|
Overhang(front/rear)
|
1515/1085mm
|
|
Wheel base
|
3500mm
|
|
Max speed
|
110km/h
|
|
Curb weight
|
5800kg
|
|
Standard towing weight
|
34260kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
12070kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP12.375E50，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
11.596L/Diesel
|
|
Stroke
|
126/155mm
|
|
Max. power
|
276/1900 (kw/rpm)(375 HP)
|
|
Max.torque
|
1800/1000-1400（Nm/rpm）
|
|
Emission stantard
|
EuroV with OBD
|
|
Fuel tanker capacity
|
300L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting.WABCO Clutch
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2
reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00
R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic
shock absorber with stablizer bar suspension
|
|
Rear
|
Non-free standing stablization spring,
balance suspension system
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and
rear wheels
|
|
Steering system
|
D50,whole circulation in ball, hydraulic
booster
|
|
Frame
|
Fish belly shape, variable width,
variable sections
|
|
The Fifth wheel
|
Model
|
JOST ∮90 single
direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving
steering axle
|
|
Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake, ductile
casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
315/80R22.5
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
V3 Long-high roof cabin with double
sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
The most professinal supplier on Beiben V3 tractor trucks, CEEC TRUCKS , For your Success.
| Model |
Engine Model |
Rated Power |
Payload |
Driving Mode |
| Beiben 2542 |
WP10.420 |
420 Hp |
50 Ton |
6*4 |
| Beiben 2548 |
WP12.480 |
480 Hp |
80 Ton |
6*4 |
| Beiben 2534 |
WP10.340E32 |
340 Hp |
40 Ton |
6*4 |
| Beiben 2542 |
WP12.420E32 |
420 Hp |
55 Ton |
6*4 |
| Beiben 2538 |
WP10.380E32 |
380 Hp |
45 Ton |
6*4 |
