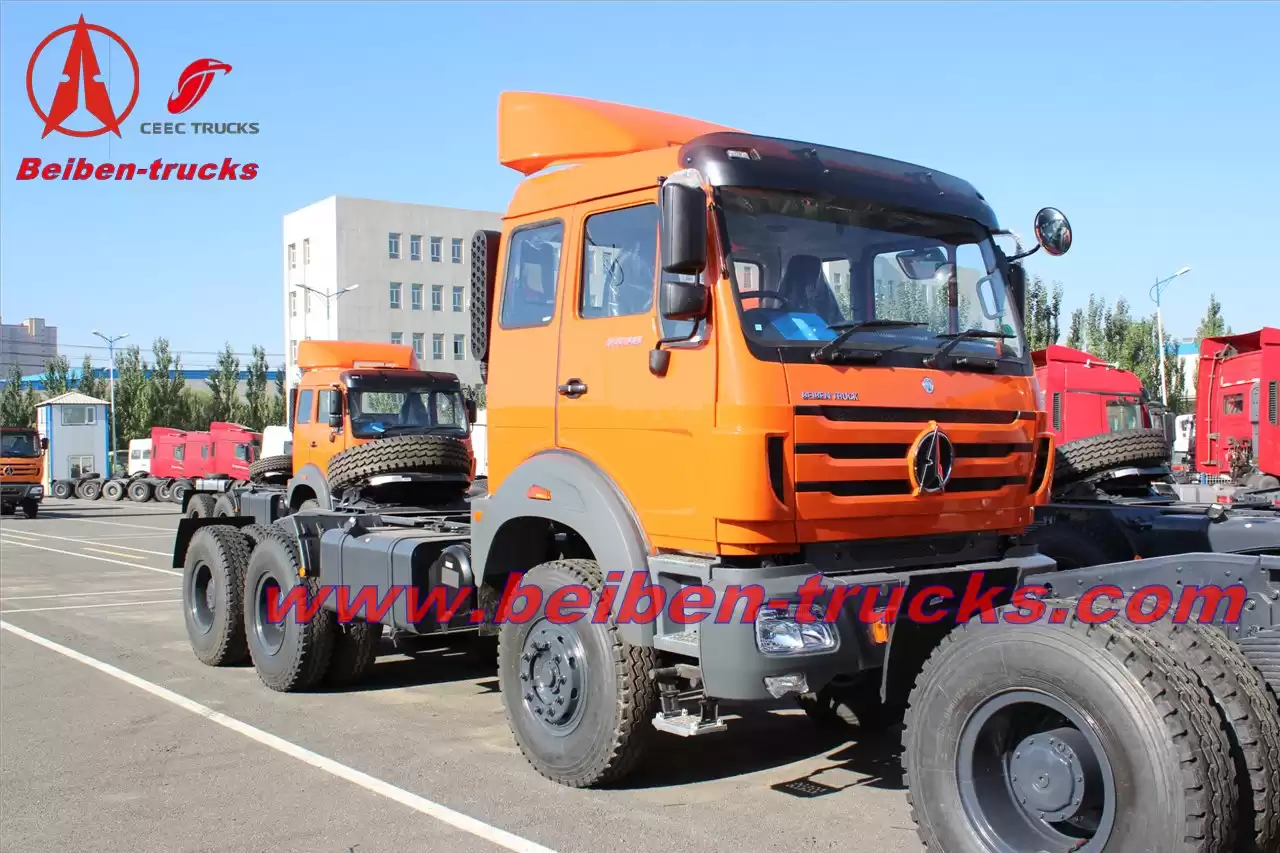

NORTH BENZ MILITARY QUALITY HEAVY DUTY TRACTOR TRUCK
Wheel base (mm)
|
3450+1450
|
Curb weight kg
|
9300
|
Engine
|
Model
|
WD12.420(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection
|
Displacement L
|
12/Diesel
|
Power, max kw/rpm
|
309/2200
|
Emission
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
φ430, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
12JS200T(Fuller transmission,mechanism,12 forward gears,1 reverse gear,manual,made in China)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098
|
Frame
|
Fish belly shape, variable width, variable sections
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20 radial
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.
|
The Fifth wheel
|
50#single (JOST)
|
We also supply other types of
truck head for exporting for sale with great discount, welcome to visit more and best wishes for you!
