North benz NG80 6x4 336hp water tank truck for sale in constructon

1.North Benz water tank truck 6x4

2. Engine: WP10.336

3. NG80 long and flat roof cabin, air conditioner

4.18000 liter tank mounted on the chassis.



North benz NG80 6x4 336hp water tank truck for sale in constructon

North benz NG80 6x4 336hp water tank truck for sale in constructon

Feature



1.North Benz water tank truck 6x4

2. Engine: WP10.336

3. NG80 long and flat roof cabin, air conditioner

4.18000 liter tank mounted on the chassis.



Product Description



Model



ND5252GGSZ

Cabin

NG80B Long cabin,two seat,with one sleeper, full steel structure cab, with air conditioner.



,Adjustable steering,air driver seat. Sun cover.

Engine

Diesel, 4-stoke direct injection,6-cylinder in line, Inner cooling,radiator, Turbo-charging



air compressor,two inlets cyclone air filter.

Model:

 WP10.336

WEICHAI Engine



MAX Horse power:

336hp



Displacement(L):

9.726L



Max torque:

1250NM@Max 2200rpm



Fuel consumption(full load):

192g /kwh

Gear box

Fuller Technology

9JS135, 12JS160T

Axle(front/rear):         7.5Ton non-driving steering Front axle

Rear axle

13Ton driving axle, hub redactor, double reduction

Clutch

430 diaphragm type,single dry frictional disc.hydraulic boosting.

Brake

Service brake:  Double circuit penumatic(air) brake



Parking brake: Spring-Power drum brake



Engine brake: Engine exhaust brake(EVB)

Steering

TAS85-LHD

Electric  Equipment



Operating voltage:

24V negative grounded



Starter

24V,5.4KW



Alternator

28V,1.5KW



Battery voltage

2X12V/165Ah

Frame

Made of strengthened high intensity steel,parallel ladder with U-profiles,

Tyre

12.00R20            Tube tyre

Suspension system: heavy duty leaf spring type



Front/Rear

9/12

Overall dimension(mm):   9455x2500x3155,3375  (Length x width x height)

Wheelbase

4450+1450 mm

Track:

Front/Rear

1995/1800



Approach/Departure angle

26/25



Front /Rear overhang

1410/2415



Max speed

85km/h

Tare weight

12270kg

Diesel tank:

400L

Tank Volume

18,000Liter

Compartments

3

Material of tank

Carbon Steel,

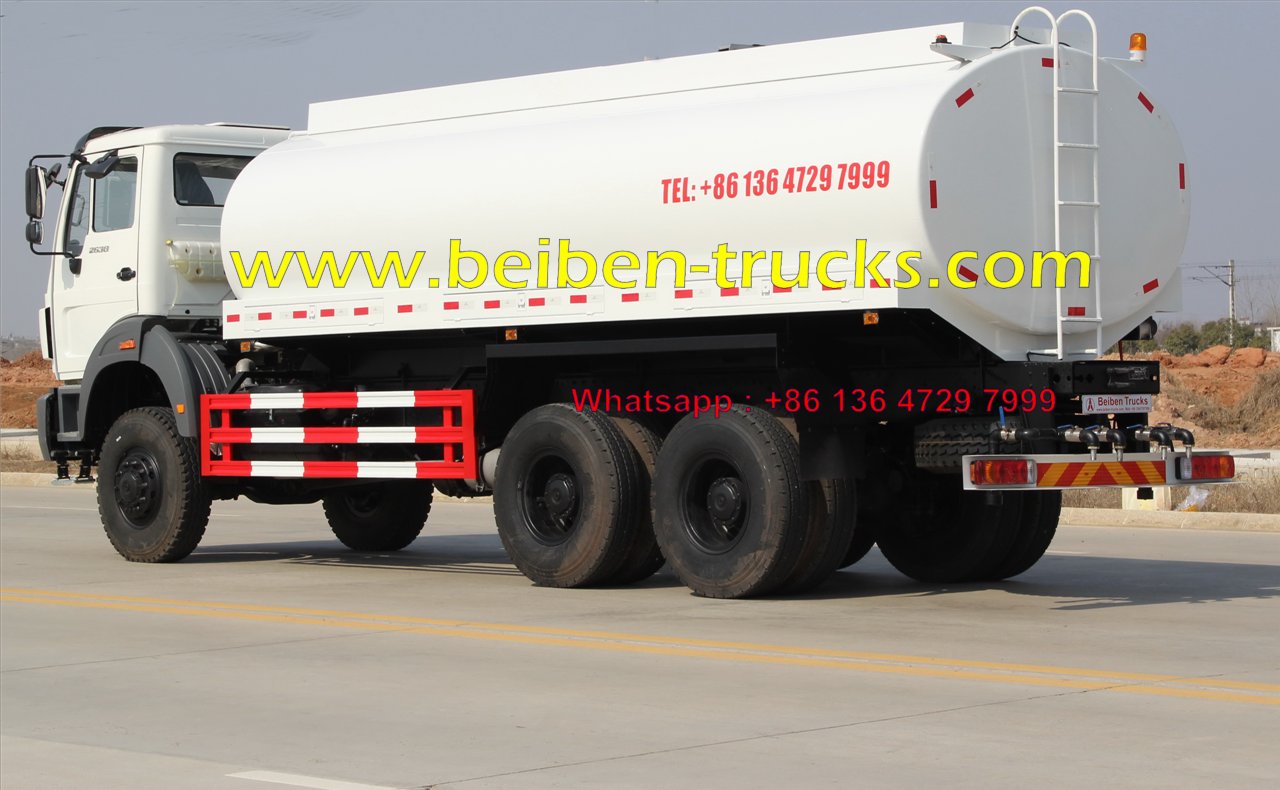

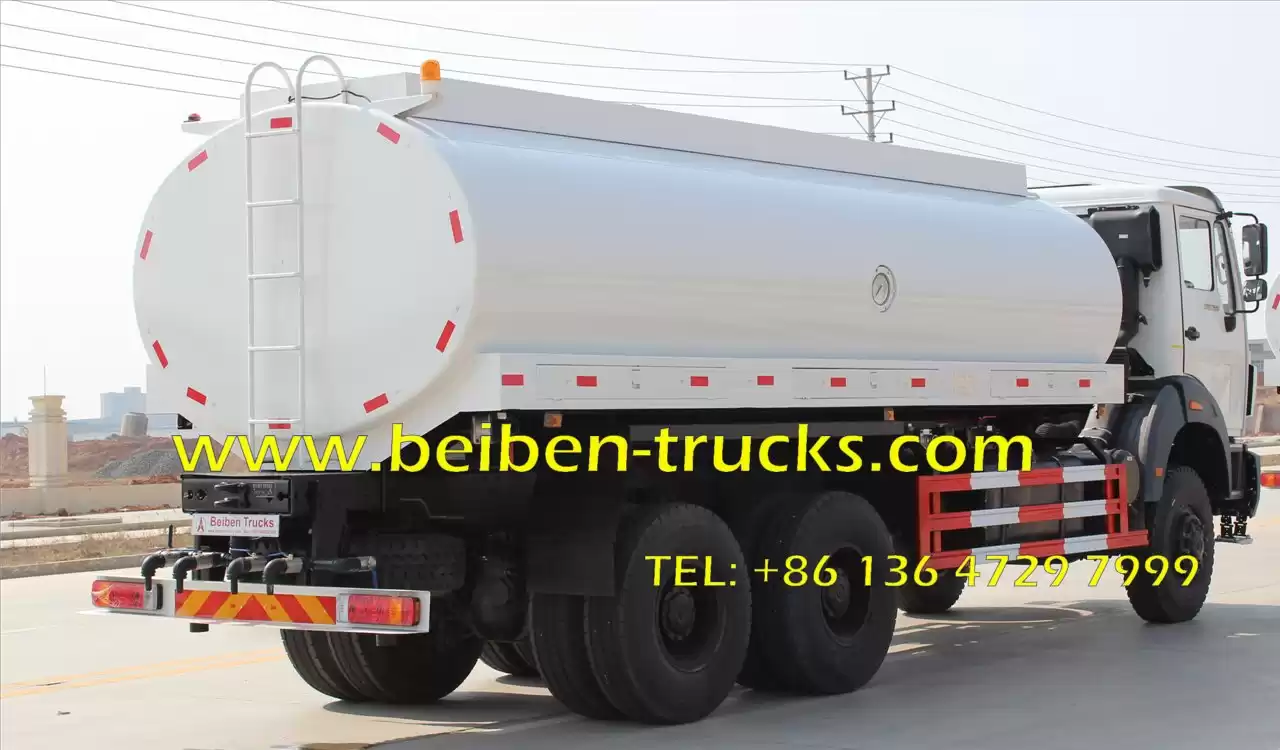

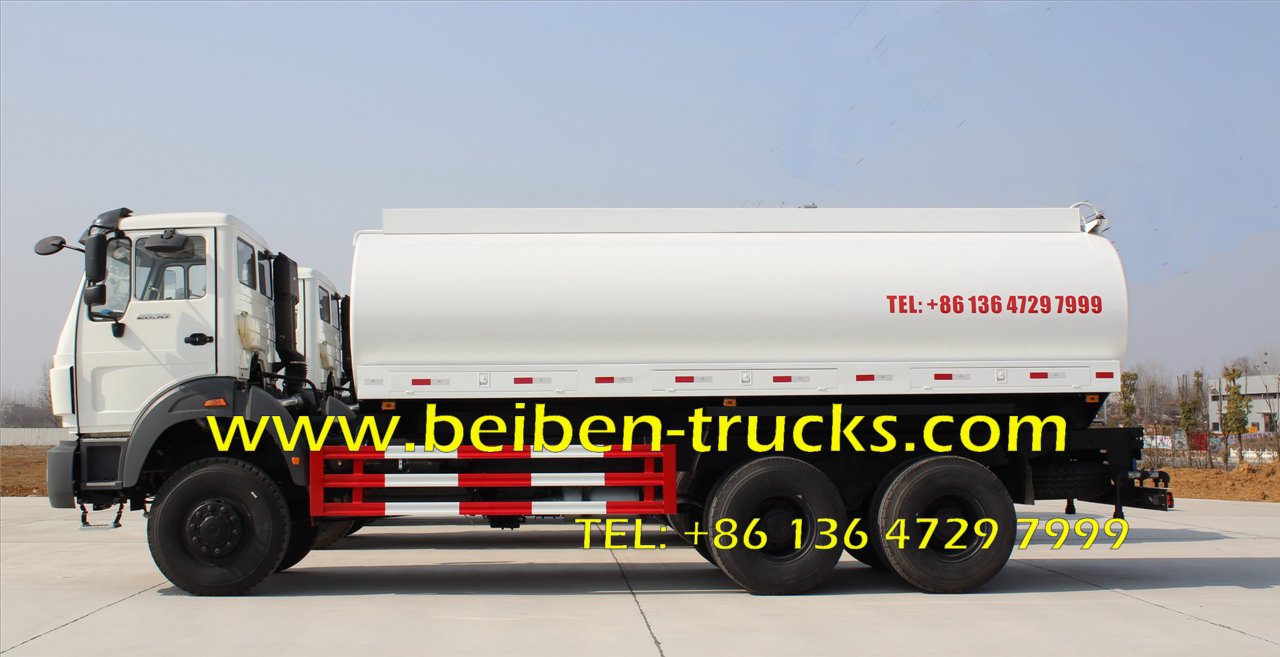

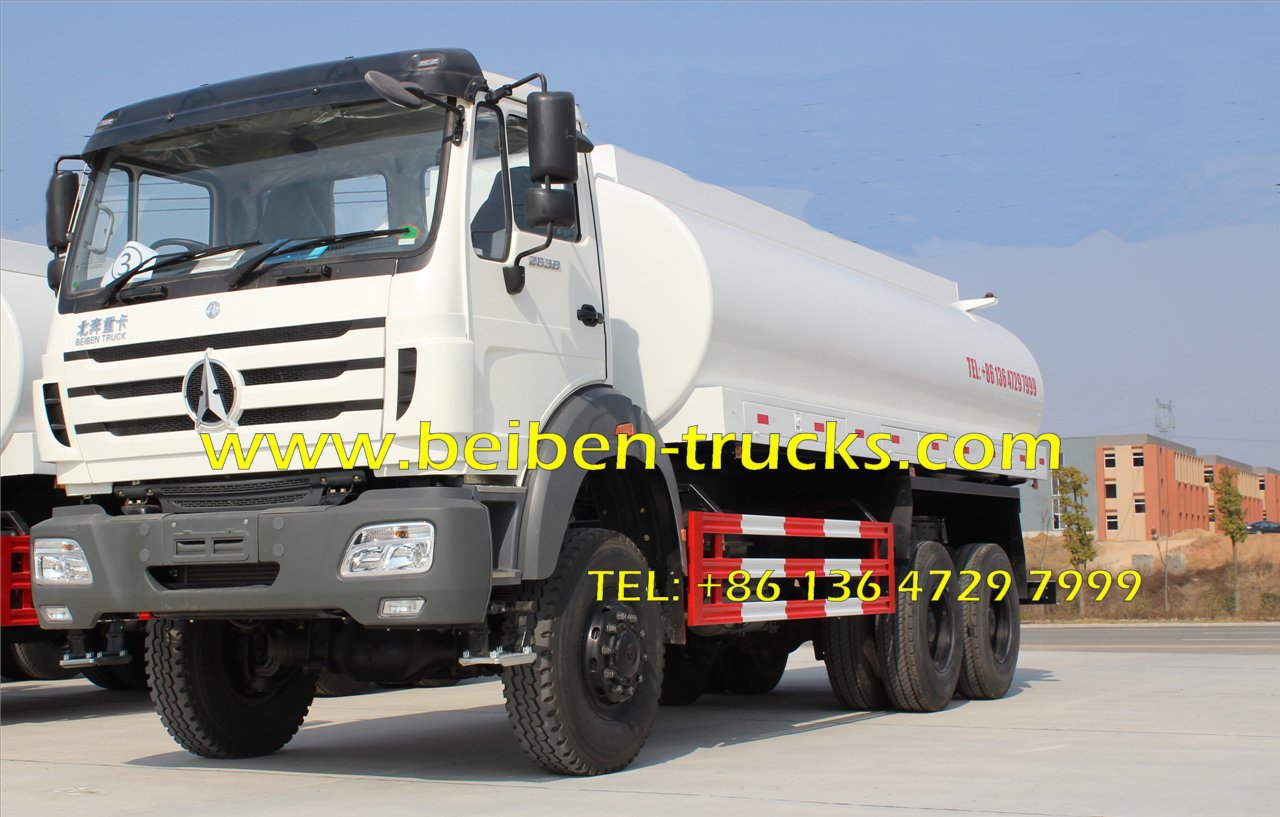

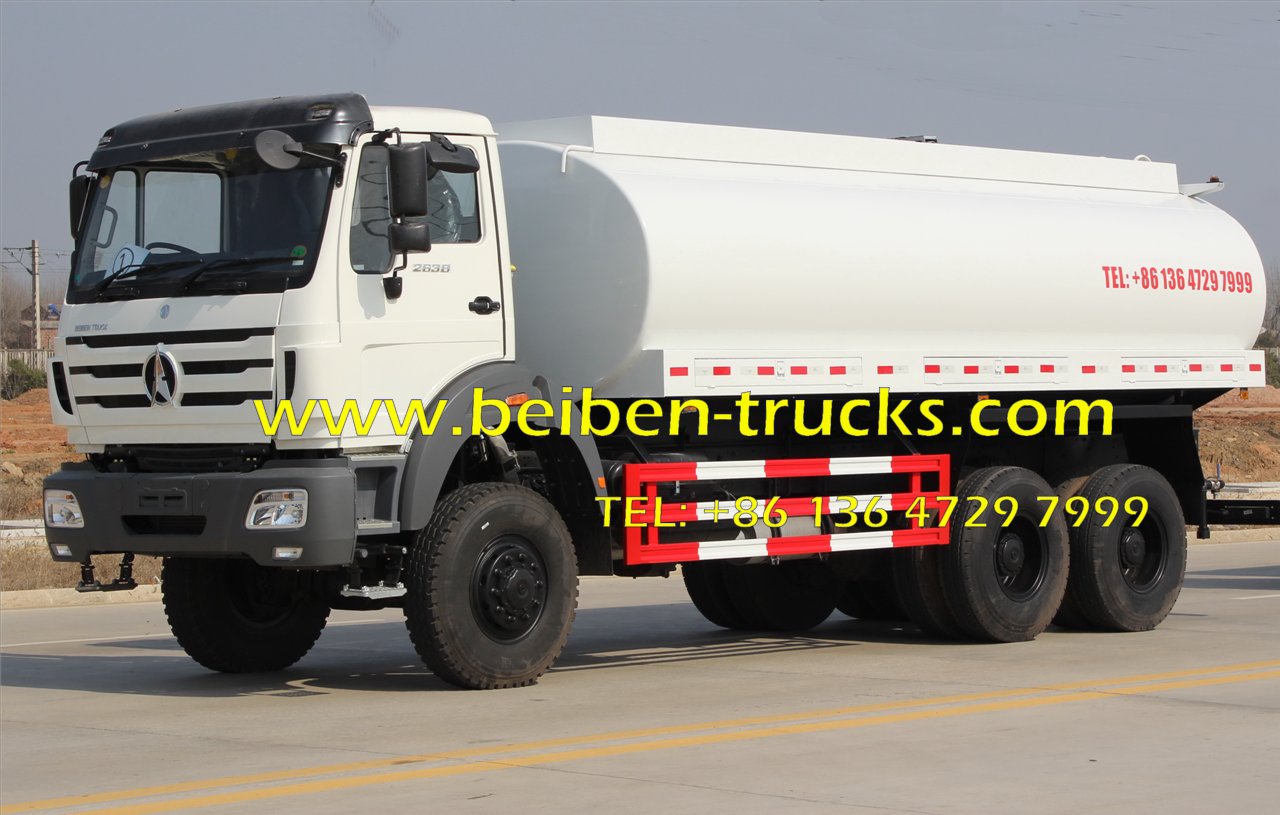

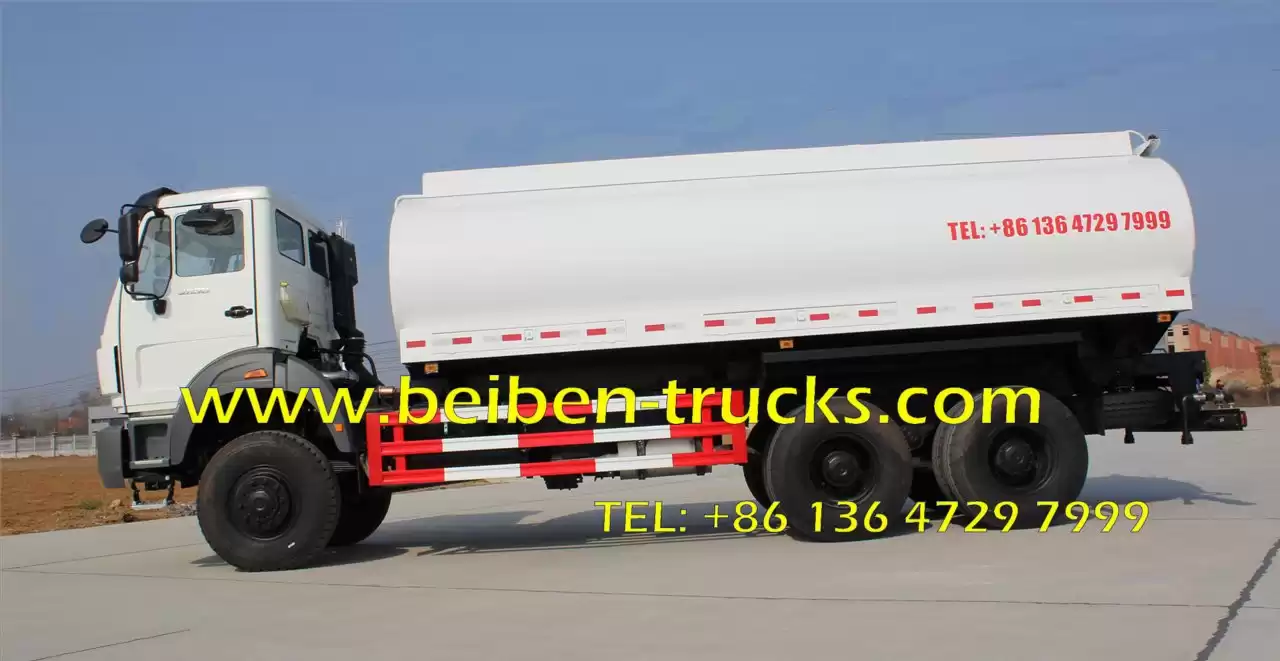

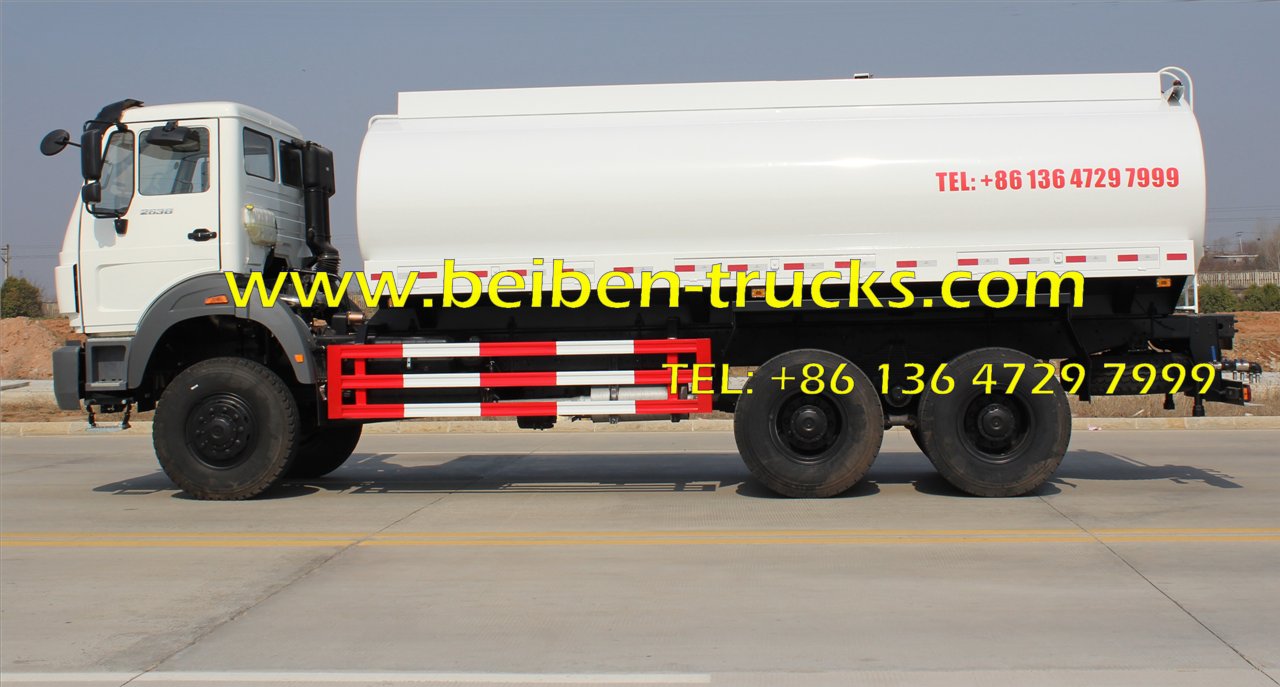

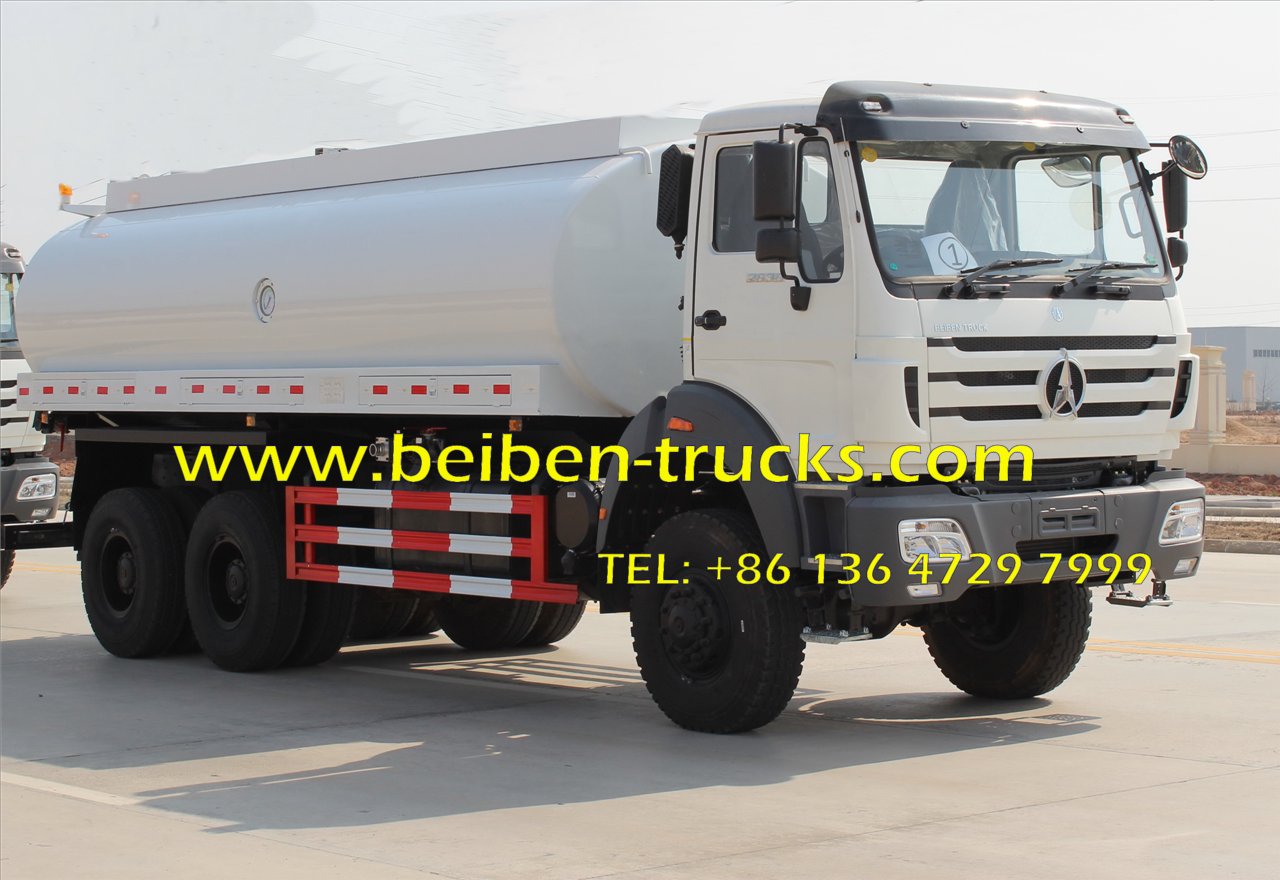

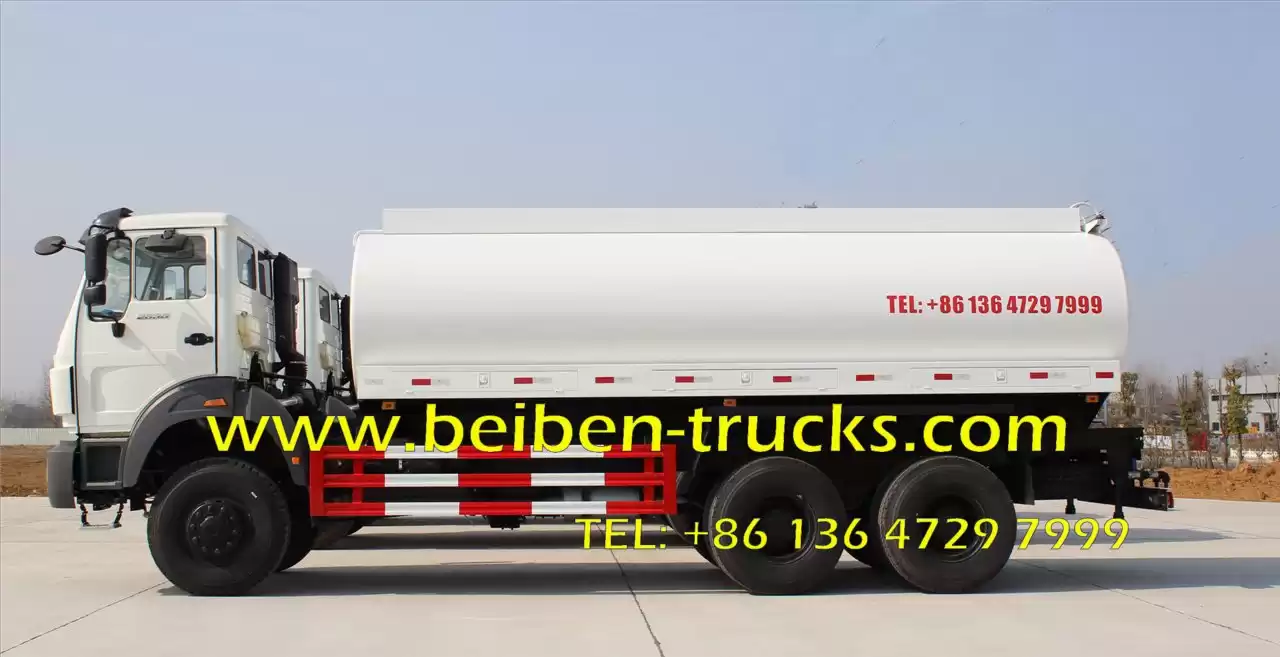

North benz NG80 6x4 336hp water tank truck for sale in constructon

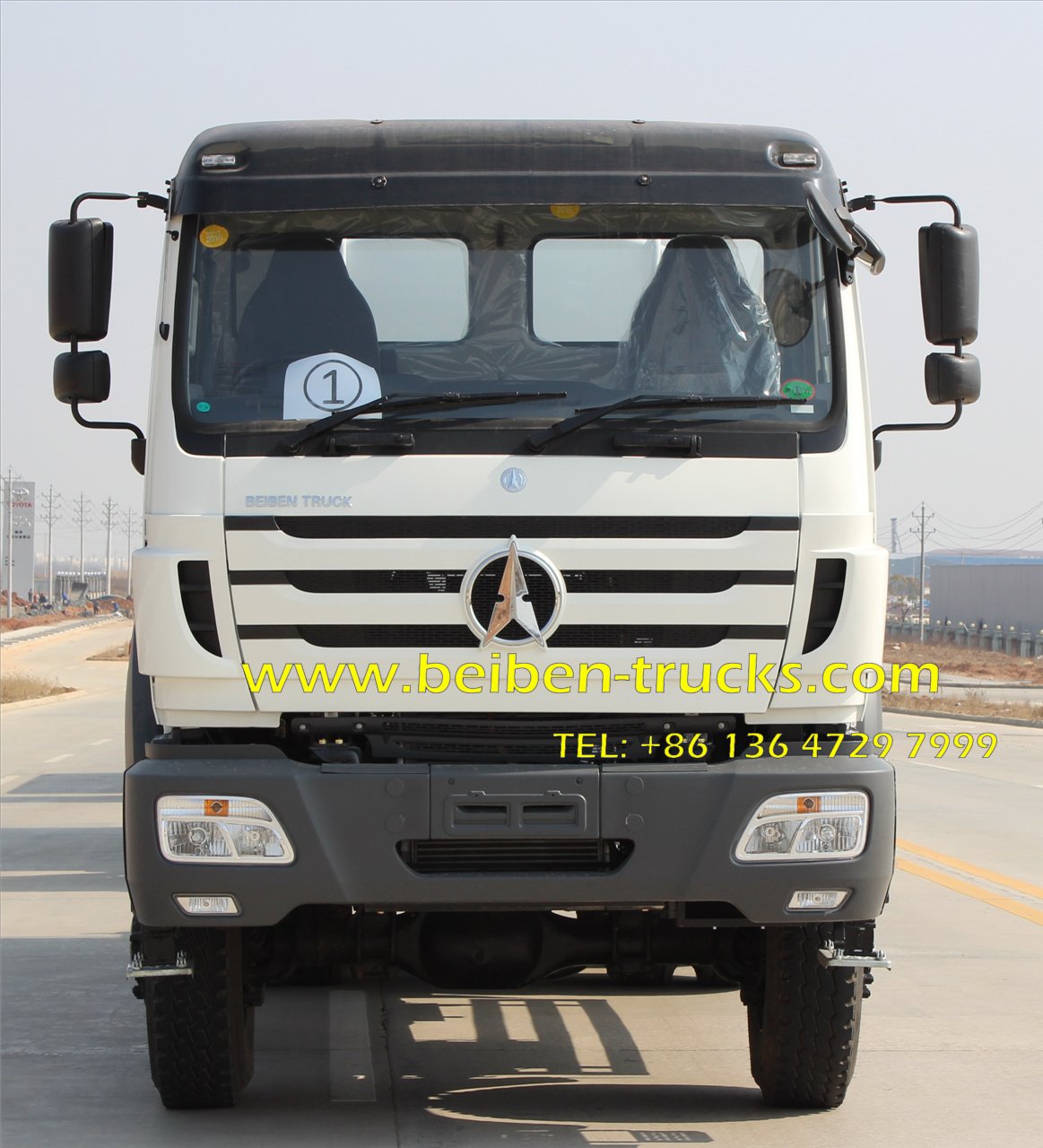

North benz NG80 6x4 336hp water tank truck for sale in constructon

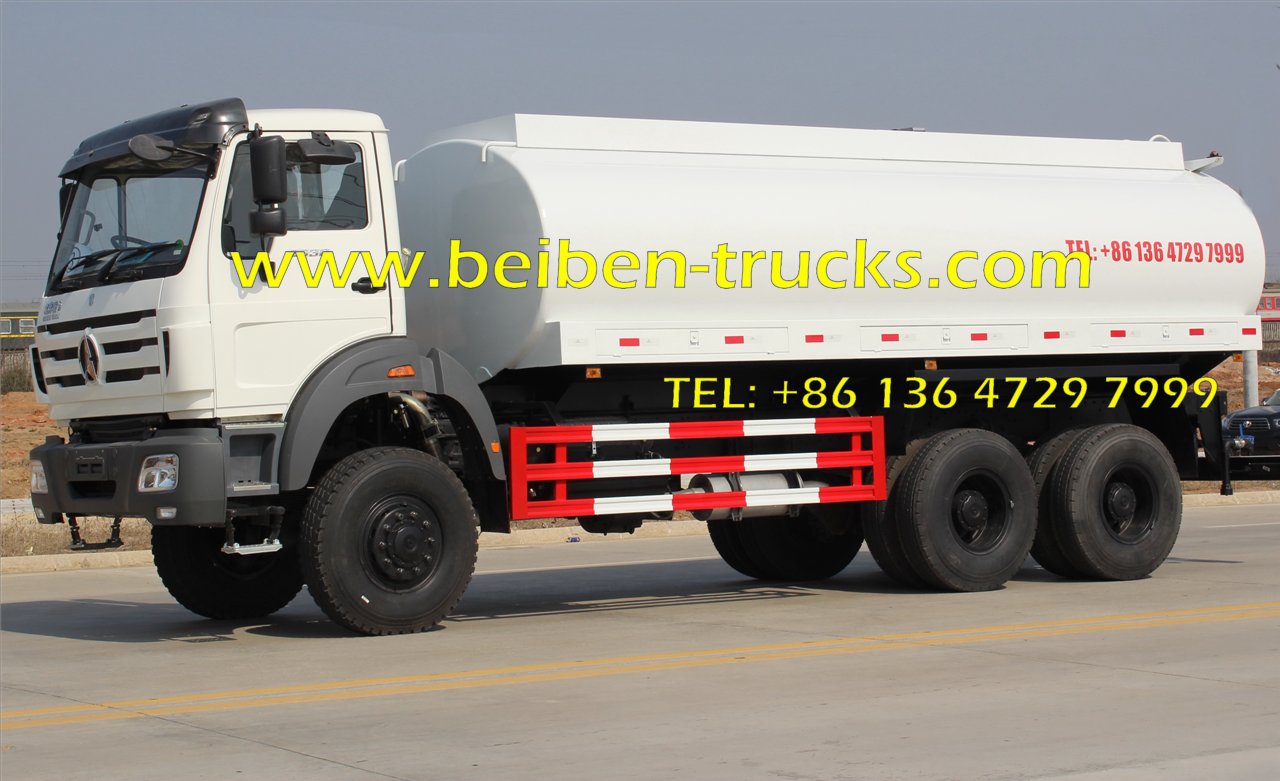

North benz NG80 6x4 336hp water tank truck for sale in constructon

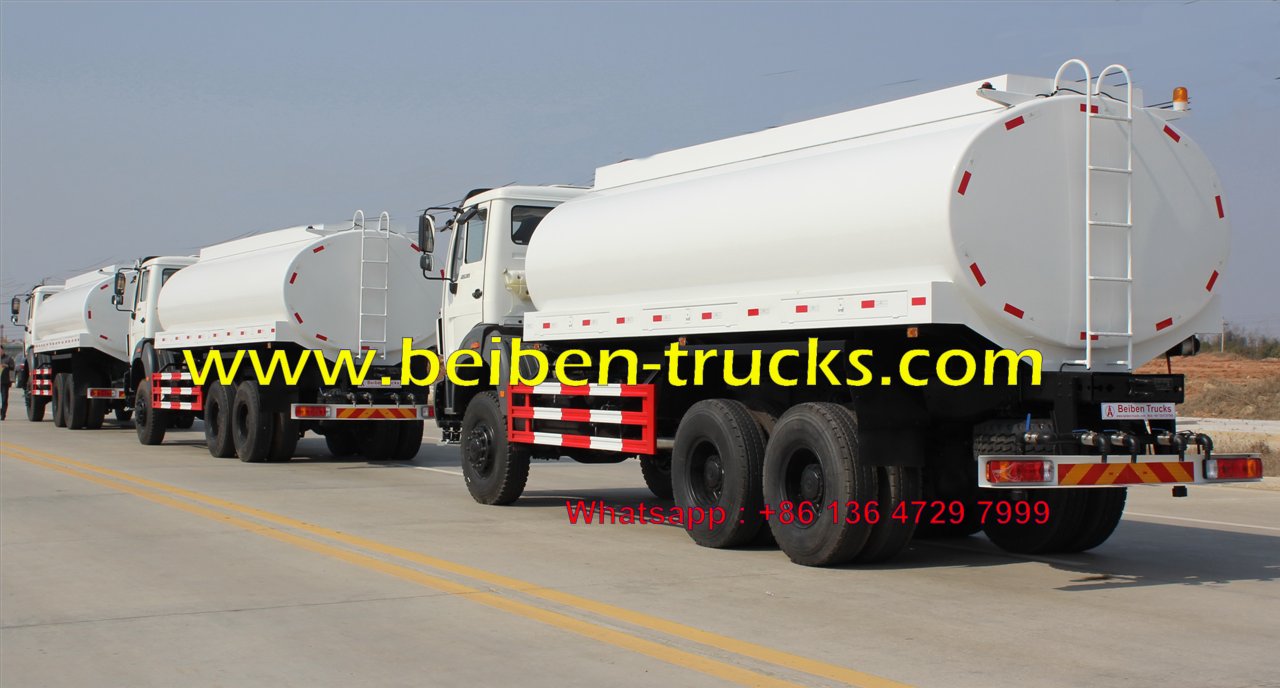

North benz NG80 6x4 336hp water tank truck for sale in constructon

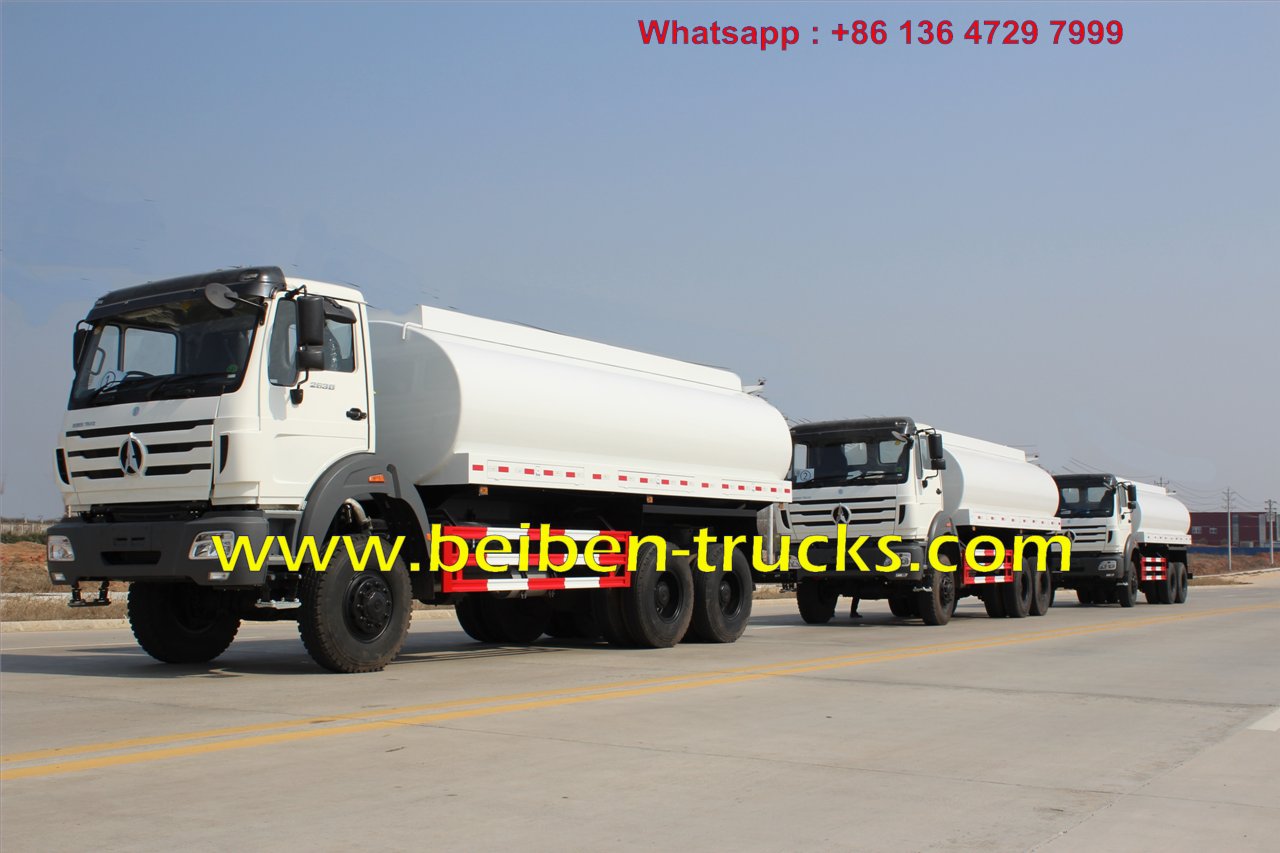

North benz NG80 6x4 336hp water tank truck for sale in constructon
