North Benz NG80 WEICHAI Engine EUROIII Truck Hydraulic Cylinder 6x4 Beiben Dump Truck

North Benz Truck Beiben Dump Truck
Engine Weichai 340hp
Gear box Fast 9JS150A
Mercedes Benz Technology
10 yeas experiences





North Benz NG80 WEICHAI Engine EUROIII Truck Hydraulic Cylinder 6x4 Beiben Dump Truck



Building new profit concept in the age of light weight



(This series mainly refers to the Beiben light dump truck with internal length above 6.5m, classified into rectangular north benz dump body and U-shaped dump body)



Energy-saving, high efficiency, light weight, and environment-friendly



The steel material of the superstructure is completely upgraded to manganese steel and 610L steel adopted in partial portions, with strength up to 550-700Mpa, which is more than 2 times of conventional steel plate.

The width and thickness for the pillars and ribs of the beiben dump body are sufficiently optimized to effectively guarantee anti-expansion performance of dump body and ensure elegant appearance.

The longitudinal beams of the frame sufficiently utilized the height and the side crossbeam adopts variable section type to reduce the dead weight and ensure sufficient strength.

Wide tail + middle balance stand structure ensure stable and safe lifting of dump body.

Powerful pump and large pipes of the hydraulic system relize fast lifting speed, high dumping efficiency, and durability.

 Light Weight Dump Truck

Key Features:

Germany BENZ technology chassis with high durability and reliability

Germany BENZ technology engine combined with original rear axle reducer gear and differential gear

Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

  Enhanced body, and the motherboard adopts variable cross-section beams.

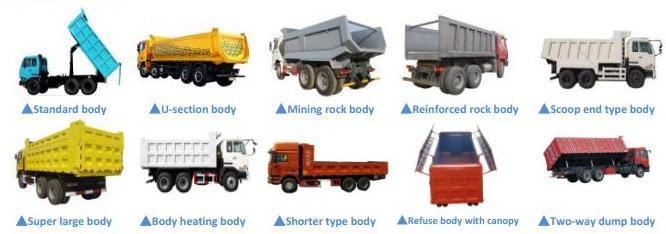

Special Dump Body Design are optional

Other customer requirements are welcome

Technical Parameters:

 Beiben dump truck for africa congo

  North Benz NG80 WEICHAI Engine EUROIII Truck Hydraulic Cylinder Beiben Dump Truck


 North Benz Truck Beiben Dump Truck
Engine Weichai 340hp
Gear box Fast 9JS150A
Mercedes Benz Technology
10 yeas experiences

Model

6x4 dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine



MAX Horse power:

380HP/280KW



Displacement(L):

9.726liter (Euro 2 standard)



Max torque:

1500NM@1200-1600rpm



Bore/stoke:

126mm/130mm

Gear box



Max torque:2000NM



Model:

12JS200T, mechanism,12gears,2reverse gear, manual, synchronization



Speed:

12speed,2reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system



Parking brake: Potential springs pressing on middle and rear wheels



Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side



Electric Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

12+1 spare tyre with rim



12.00-R20

Suspension system: strongthen heavy duty Leaf spring type



Front/Rear

12/12/13

Dump body:

Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system.

Overall dimension(mm): 11730x2500x3484(Length x width x height)

Wheelbase

1950+4600+1450mm

Track:





Front/Rear

2045/1872



Approach/Departure angle

26/27



Front /Rear overhang

1410/2320



Max speed

90km/h

Kerb weight:

15500kg

Oil tank capacity

300L fuel tank

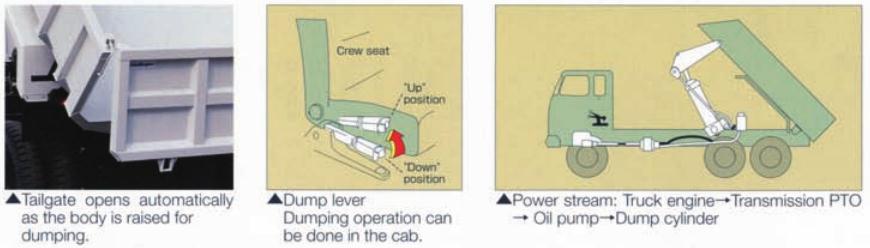

Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

Light Weight Dump Truck

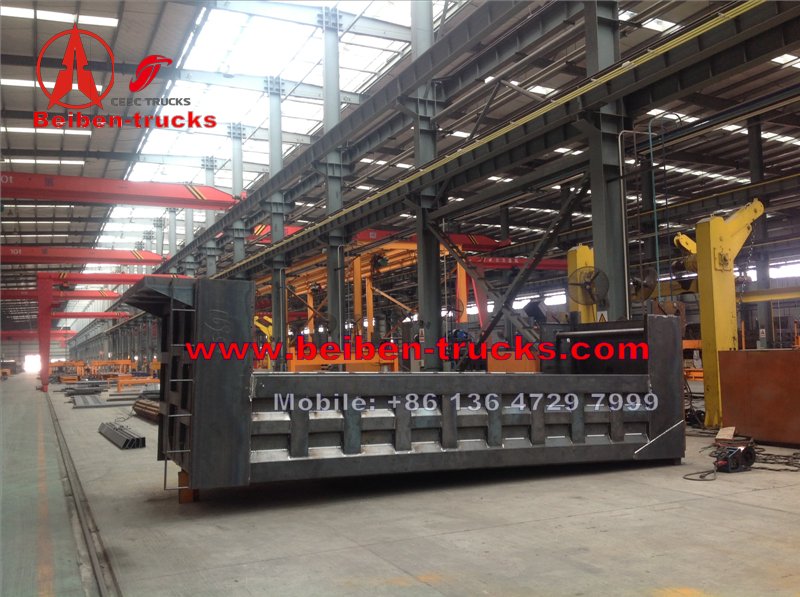

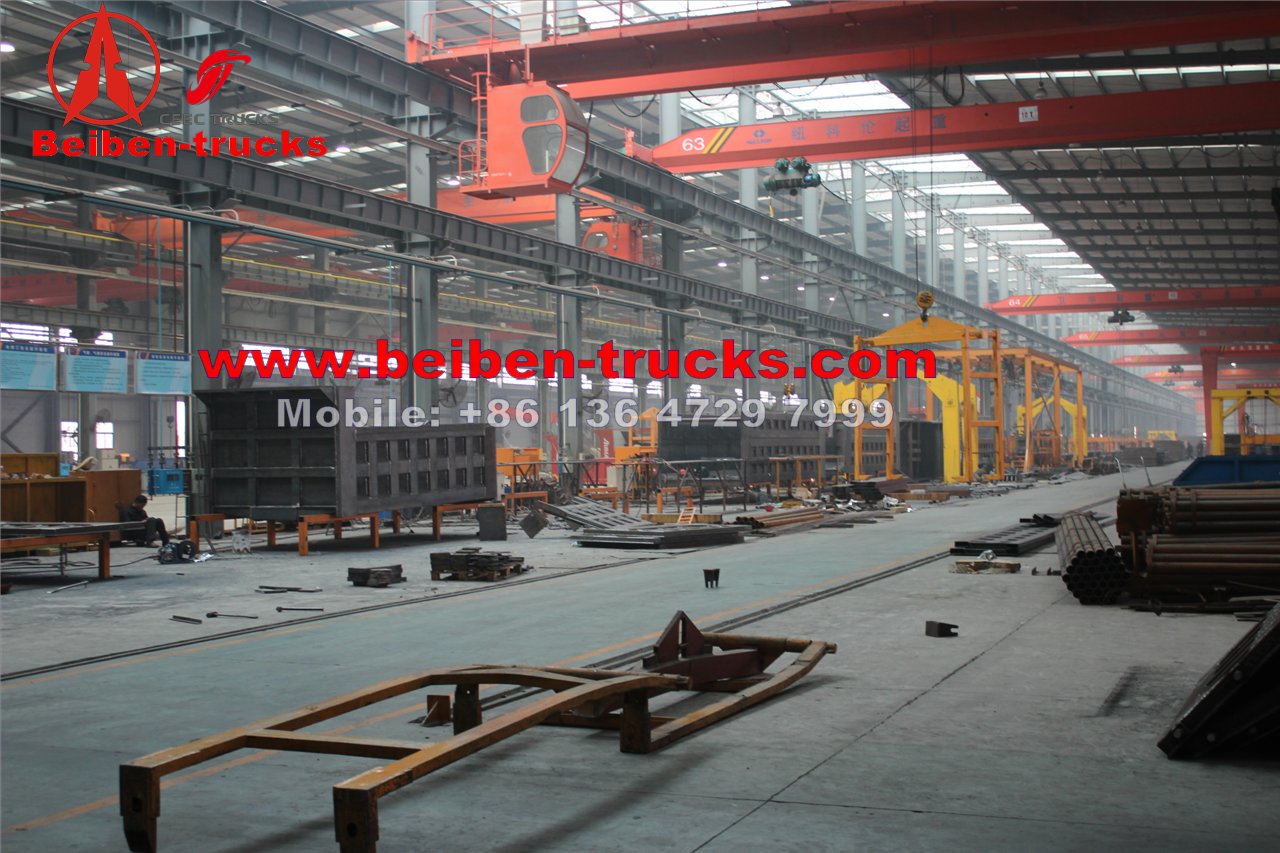

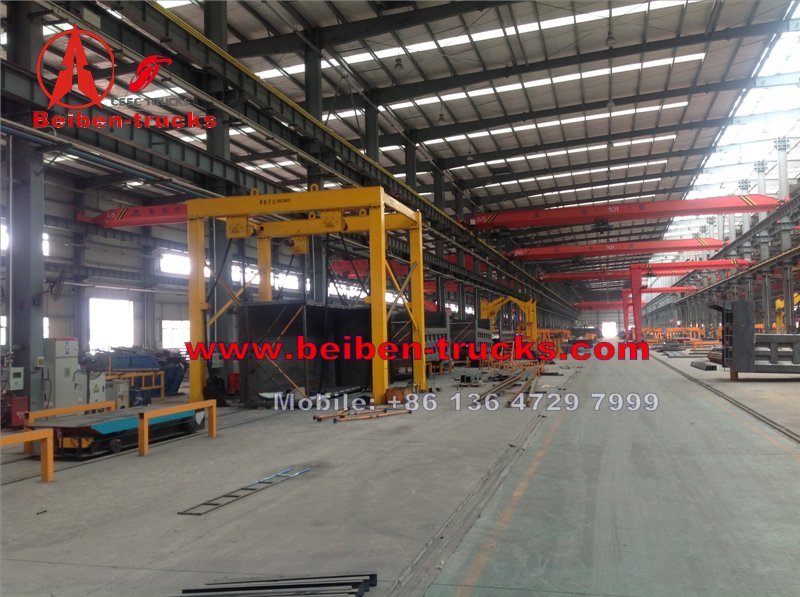

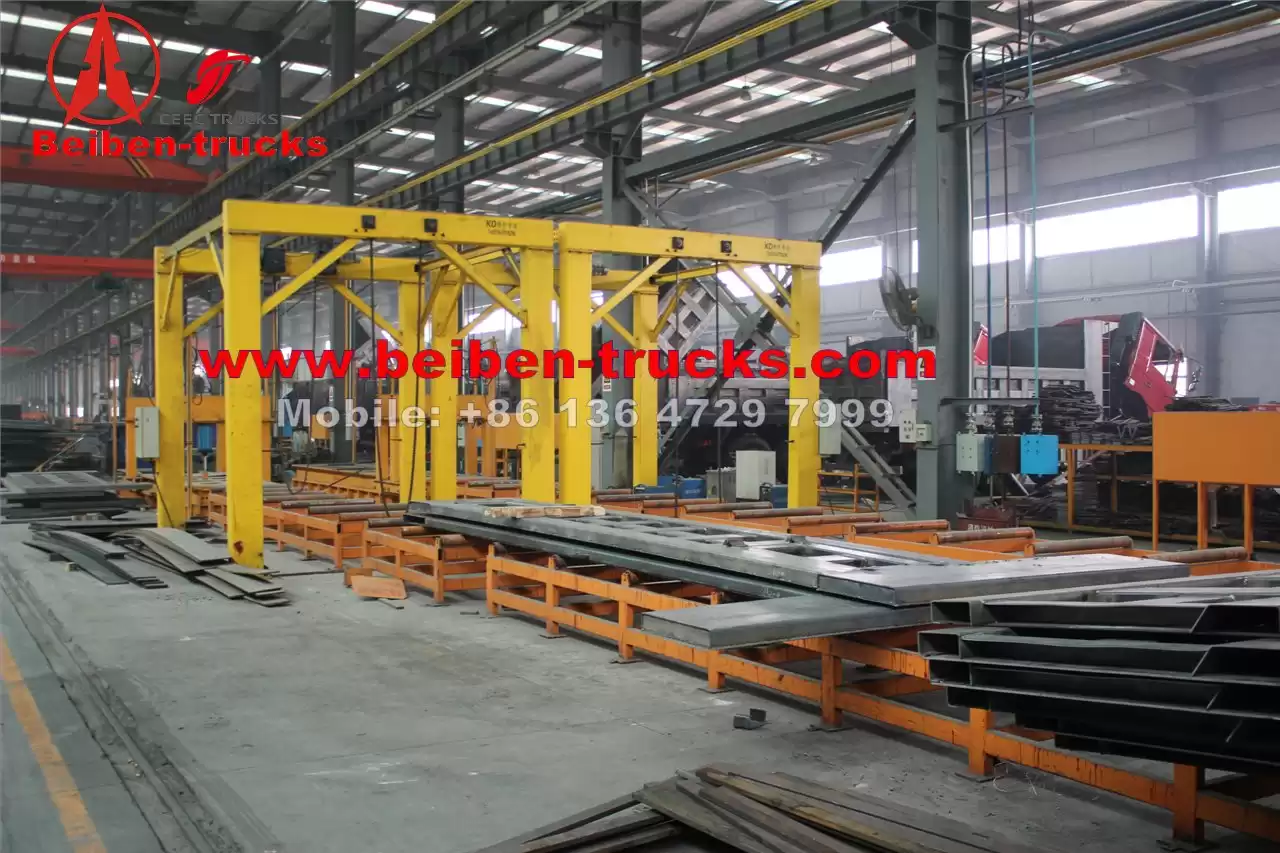

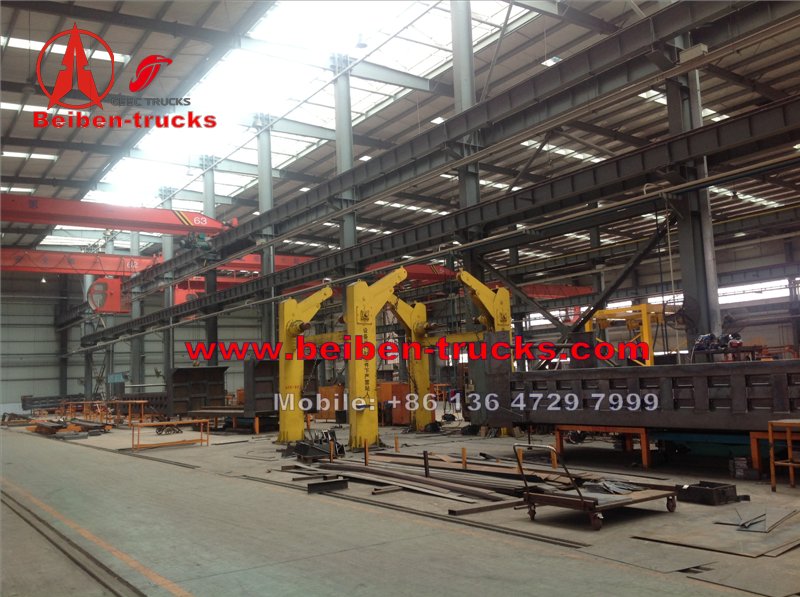

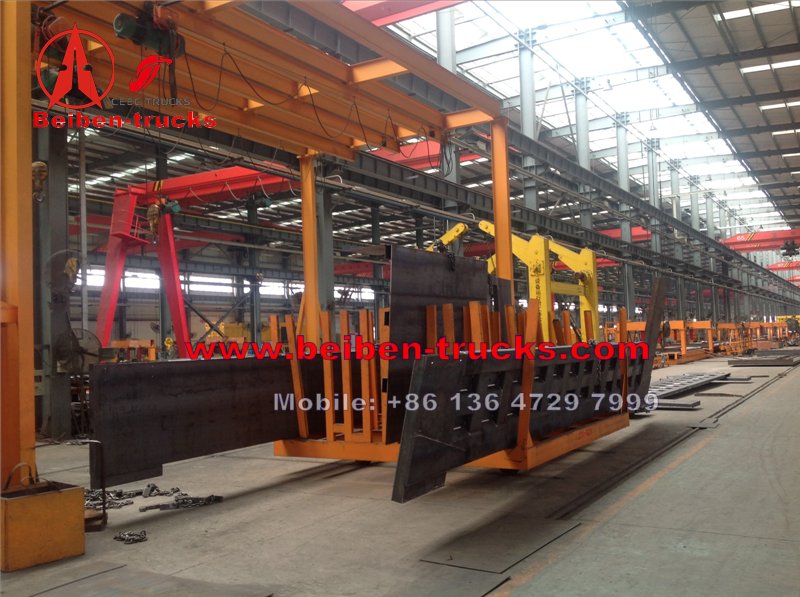

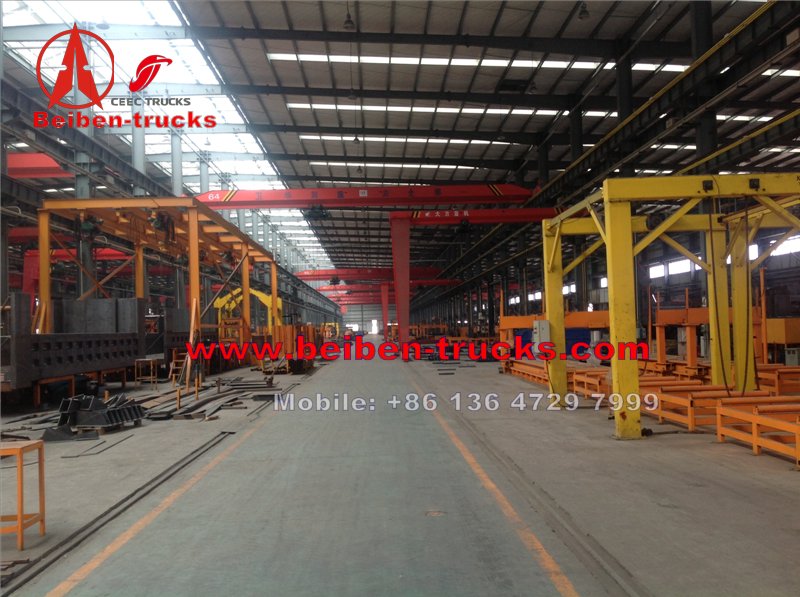

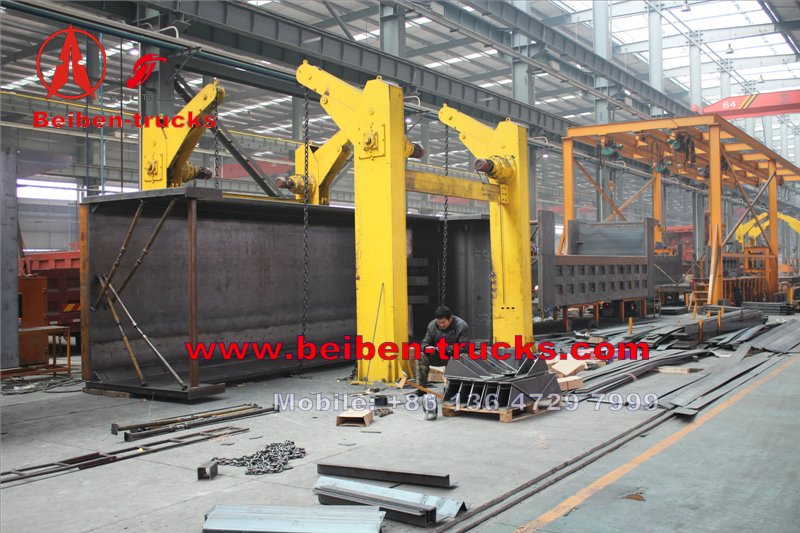

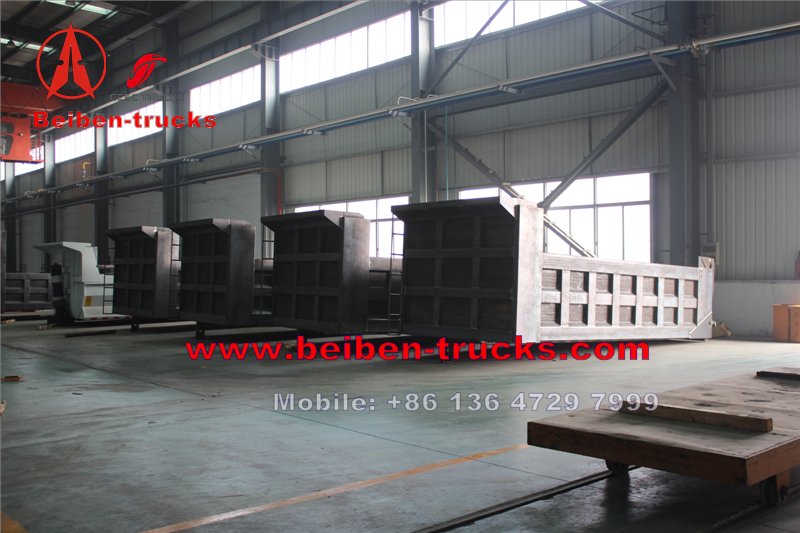

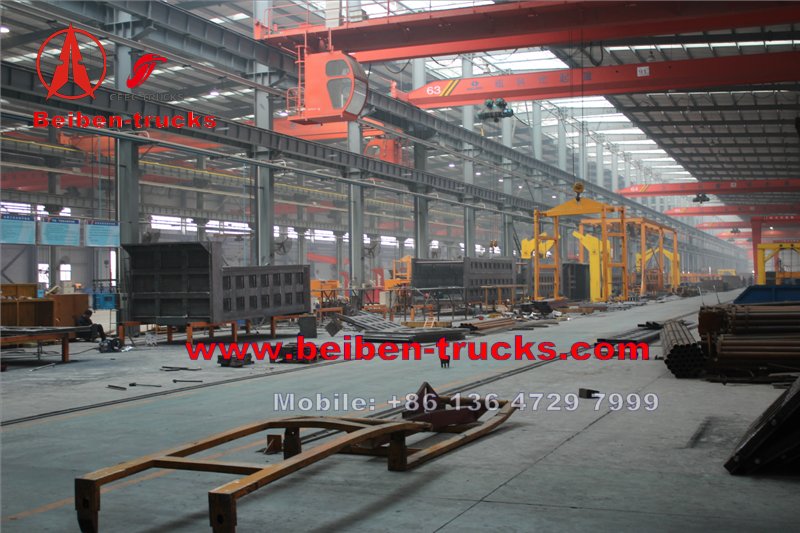

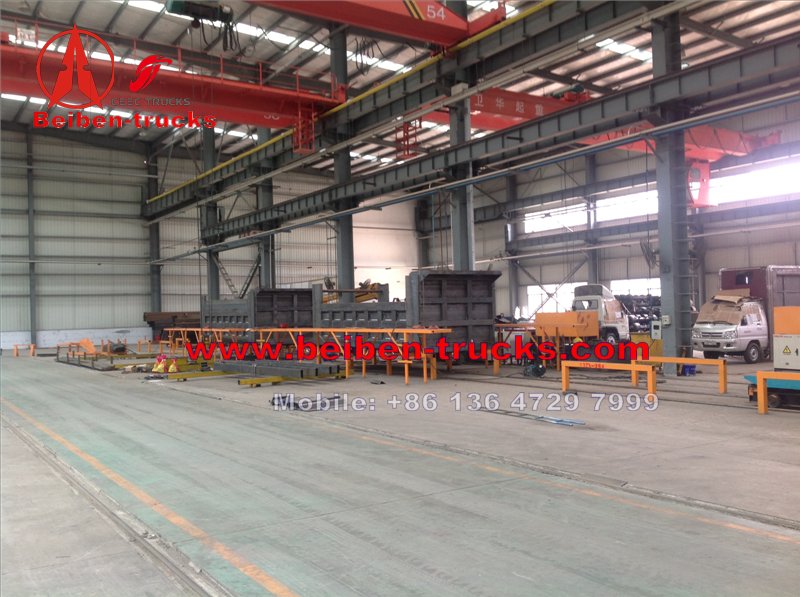

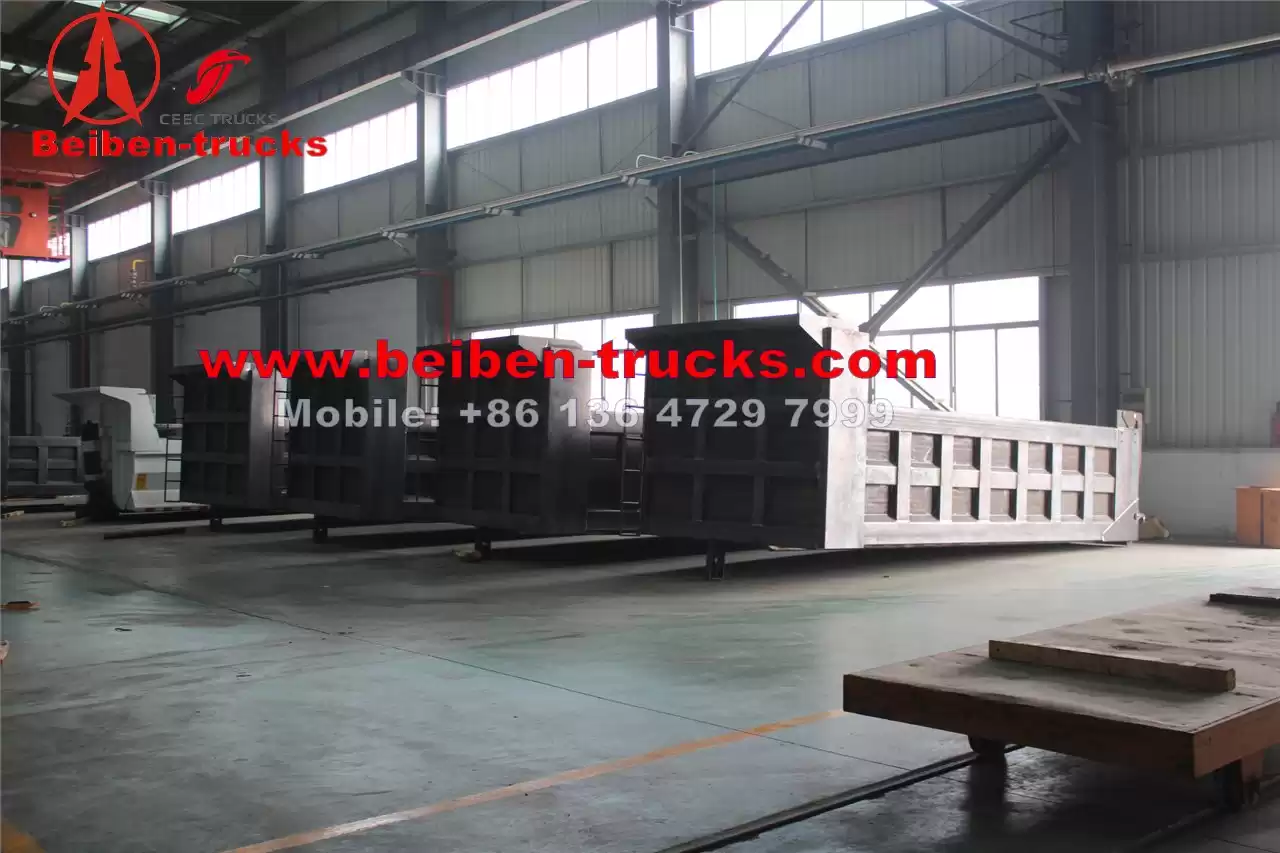

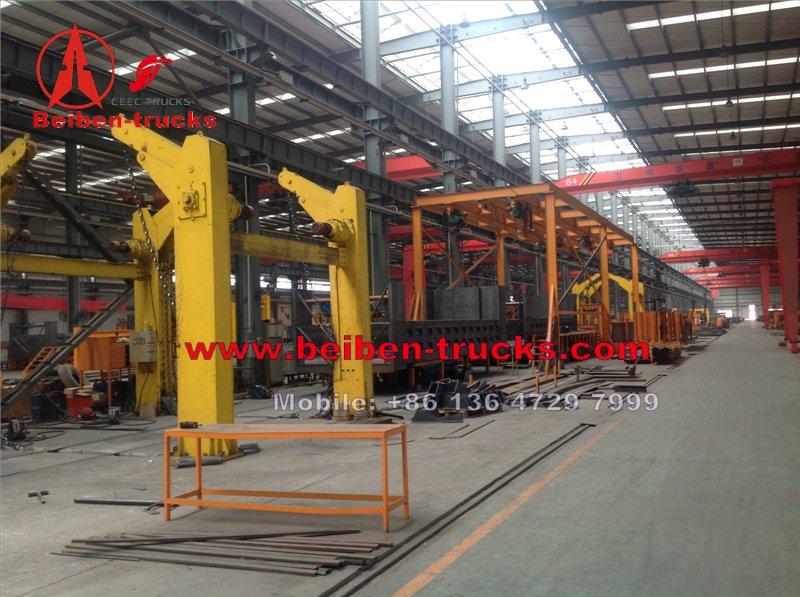

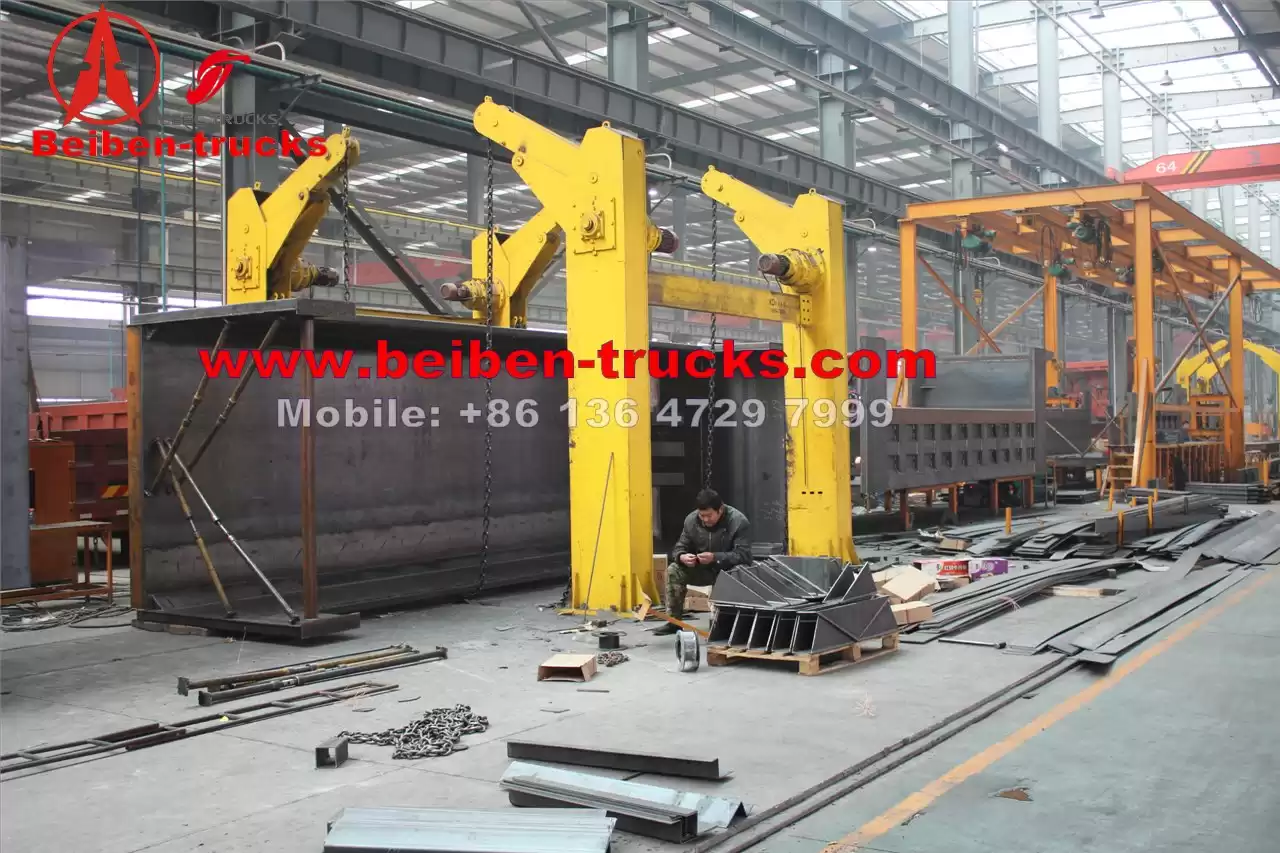

Beiben dump truck in great order from our plant.

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

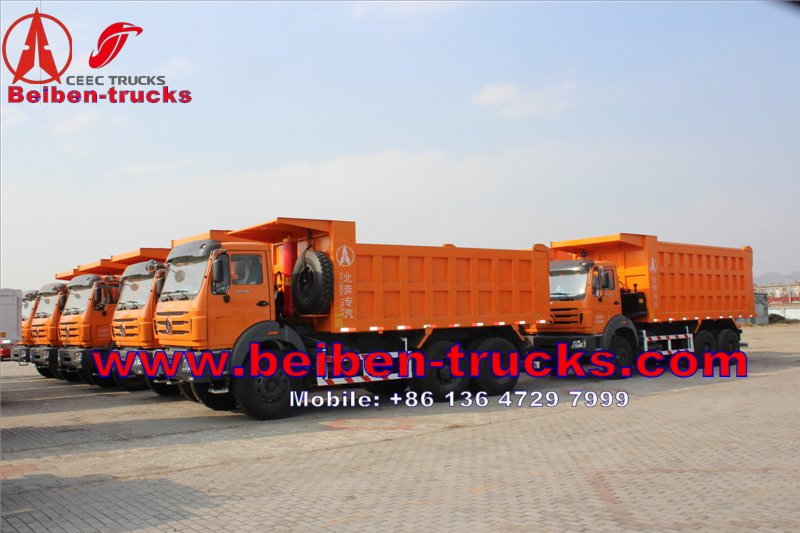

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

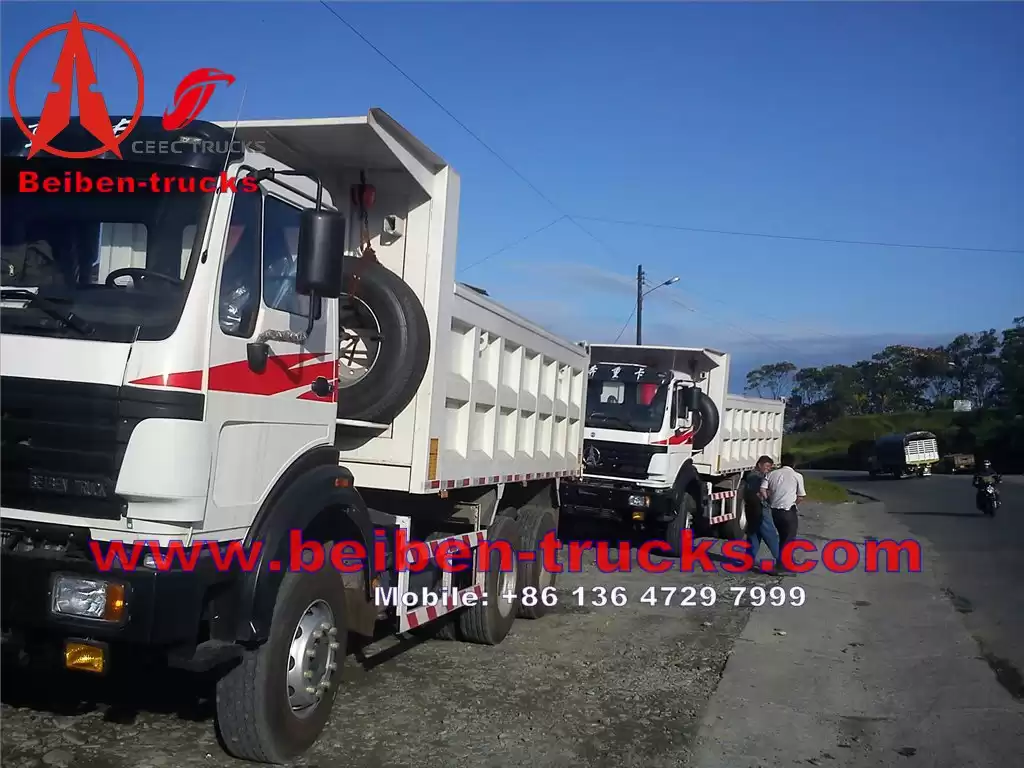

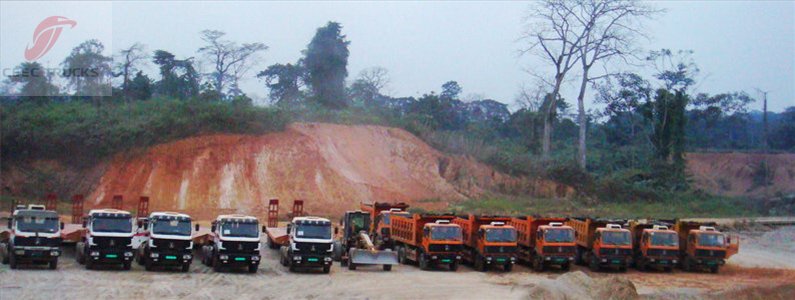

Beiben dump truck for africa congo
