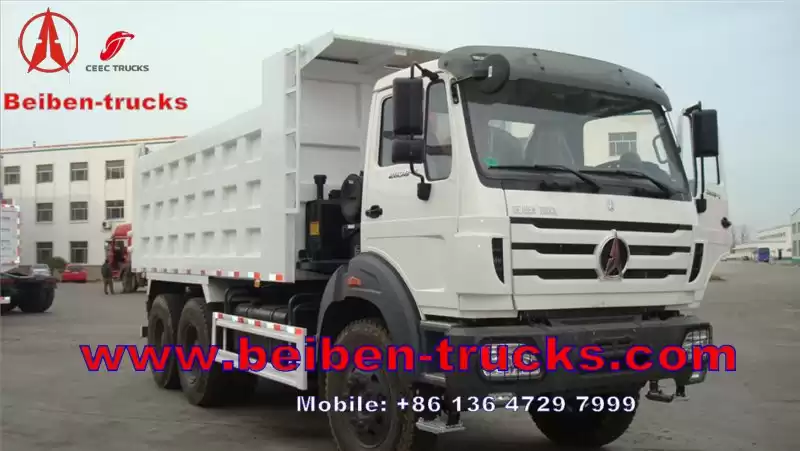

North BENZ tipper truck BEIBEN 6x6 dump truck

1.BEIBEN Euro2, 3 dump truck
2.6x6 driving type
3.WEICHAI engine
4.FAST transmission
5.Mercedes benz technology chassis



1.BEIBEN Euro2, 3 dump truck
2.6x6 driving type
3.WEICHAI engine
4.FAST transmission
5.Mercedes benz technology chassis

Model

beiben 6x6 mining dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 340E32

WEICHAI Diesel engine



MAX Horse power:

340HP/250KW



Displacement(L):

9.726liter (Euro III standard)



Max torque:

1160NM@1200-1600rpm



Bore/stoke:

126mm/130mm

Gear box



Max torque:1500NM



Model:

9JS150A, mechanism



Speed:

9speed,1reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake: Double circulation air brake system



Parking brake: Potential springs pressing on middle and rear wheels



Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side (RHD is optional)

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

10+1 spare tyre with rim



12.00-20 radial tyre

Suspension system: strongthen heavy duty Leaf spring type



Front/Rear

10/13

Dump body:

Inside size of Body(mm): 5200x2300x1500, 8x6mm, made of high intensity steel

Lifting type: Front lifter type hydraulic system.

Overall dimension(mm): 8530x2500x3310(Length x width x height)

Wheelbase

3800+1350mm

Track:





Front/Rear

1995/1800



Approach/Departure angle

26/32



Front /Rear overhang

1410/1870



Max speed

90km/h

Kerb weight:

12200kg

Oil tank capacity

300L fuel tank
