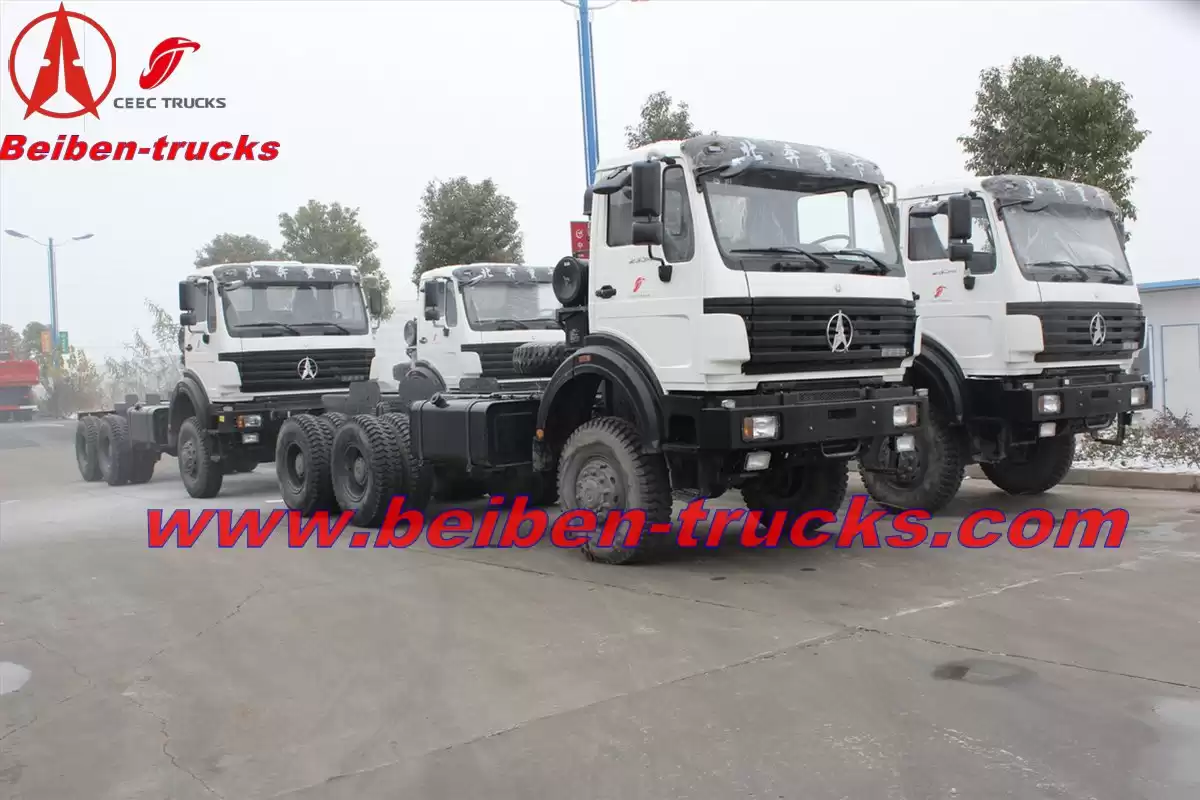

North Benz Tractor Truck/Beiben Tractor Beiben 6*4 Tractor Truck With Certicfication
Model
|
ND4258B34J
|
Driving type
|
6x4
|
Cab
|
Mercedes Benz cabin with air conditioner and single bed
|
Drive type
|
RHD
|
Wheel base (mm)
|
3450+1450
|
Dimension (mm)
|
6935x2500x3630
|
Kerb. mass
|
9200kg
|
Total mass
|
40000kg
|
Front overhang
|
1410mm
|
Rear overhang
|
6255mm
|
Front track (mm)
|
2022
|
Rear track (mm)
|
1800
|
Approach angle
|
26 degree
|
Departure angle
|
64 degree
|
Engine
|
Engine Model
|
WP10.340NE32
|
Displacement
|
9.726 liters
|
Max. output
|
340hp@2200rpm
|
Max torque
|
1350NM@1100-1600rpm
|
Engine type
|
Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling
|
chasiss
|
Gear box
|
12JS160TA
|
Clutch
|
GF420 spring type
|
Front axle
|
Benz 7.5T front axle
|
Rear axle
|
13T Benz double reduction drive axle, ratio=5.921
|
Tyre
|
12.00R20
|
Steering
|
TAS85
|
